- Type:professional speaker
- Impedance:8Ω
- Frequency:55Hz-20KHz
- Rated Power:450W
- Sensitivity:99dB/W/M
- Treble:1.7"Conical treble unit*1
- Bass:15"*1
- Angle of Coverage:(H)90°(V)70°
- Dimensions:(H 740 mm*W 450 mm * D 430 mm )
- Weight:26.5kg
- Warranty:3years
- Customized:yes
- Place of Origin:CN;GUA
- Brand Name:ITC
- Model Number:TS-515
- Certification:CE

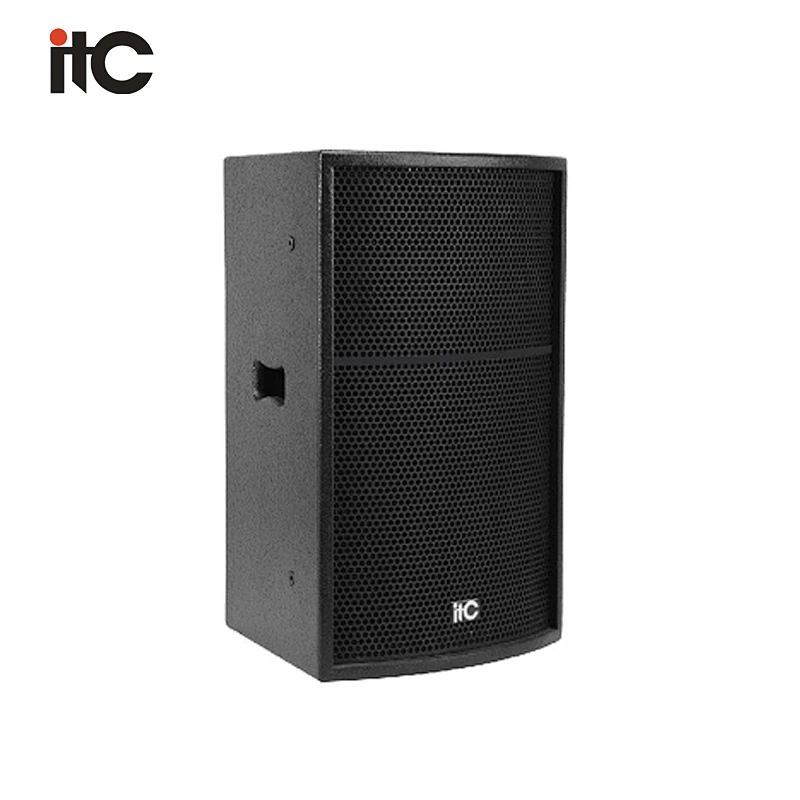

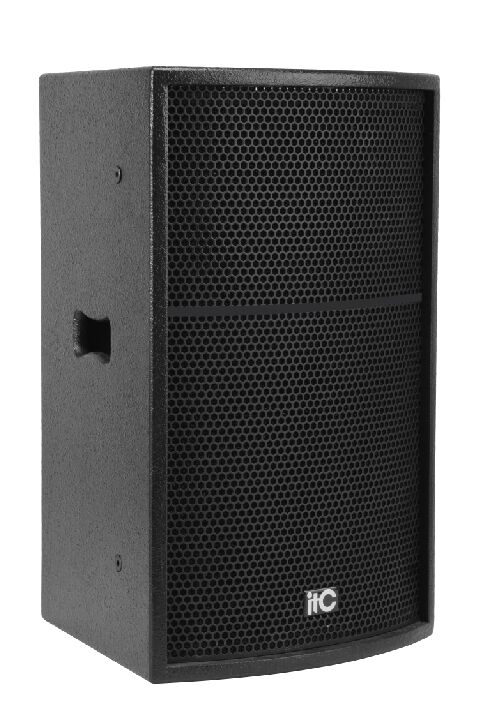

TS-515 Professionalspeaker
Description
1. Adopt 15"×1 mid-bass and 1.7 ×1 ring polyethylene diaphragm compression treble unit;
2. The box body is made of 15mm woodboard, light, with wear-resistant paint treatment, and inner side pasted with dust-proof net cotton;
3.The accurate design of frequency divider is able to optimize the intermediate frequency expression of the voice;
4.A plurality of screw lifting holes, a pole socket with35 mm diameter and a variety of installation methods.
Application
It works withTS professional stereo amplifier and sound effect processor system, to make a completed perfect sound and outstanding vocal performance professional sound system. It is suitable for all kinds of professional sound reinforcement places.If it works together with sub-woofer, it can be used as high-performance satellite speaker.
Specifications
Model | TS-515 |
Impedance | 8Ω |
Frequency | 55Hz-20KHz |
Rated Power | 450W |
Sensitivity | 99dB/W/M |
Angle of Coverage | (H)90°(V)70° |
Treble | 1.7"Compressed treble unit×1 |
Bass | 15"Bass×1 |
Dimensions (H x W x D) | 740×450×430 mm |
Weight | 26.5Kg |
* We have very strict quality control system.
* We promise the electronics yearly failure rate is less than 1%.
* 100% products need to be aged (full loading) at least 24 hours and tested 4 times before delivery.
ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our product are complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
Pre-sale Service
* High Quality + Factory Price + Quick Response + Reliable Service, is our working faith.
* Professional foreign trade team, Reply your Alibaba enquiry and trade messager in 24 working hours.
* 30 system consultants and 10 designers to make drawing and BOQ for each tender.
* Design and BOQ response to customer within 48 hours.
Middle-sale Service
* Testing quality again before sending goods.
* Well-trained sales team for sales and basic technical service.
* Online system software demo and configuration is available.
* PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
* Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goods.
After-sale service
* ITC guarantee all electronics of 3 years quality warranty.
* ITC could supply 1% wearing spare parts free of charge.
* Two English spoken technician provide online after sales service.
* Technical documents could be downloaded from website www.itc-pa.com.cn.
* All of the quality compliant shall be feedback with a solution within 48 hours.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
