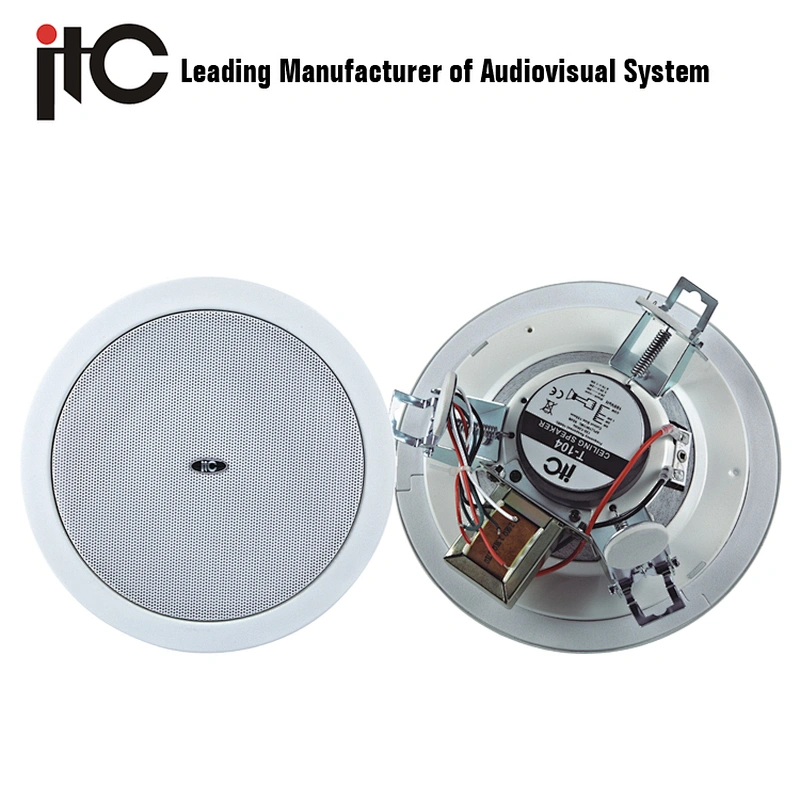

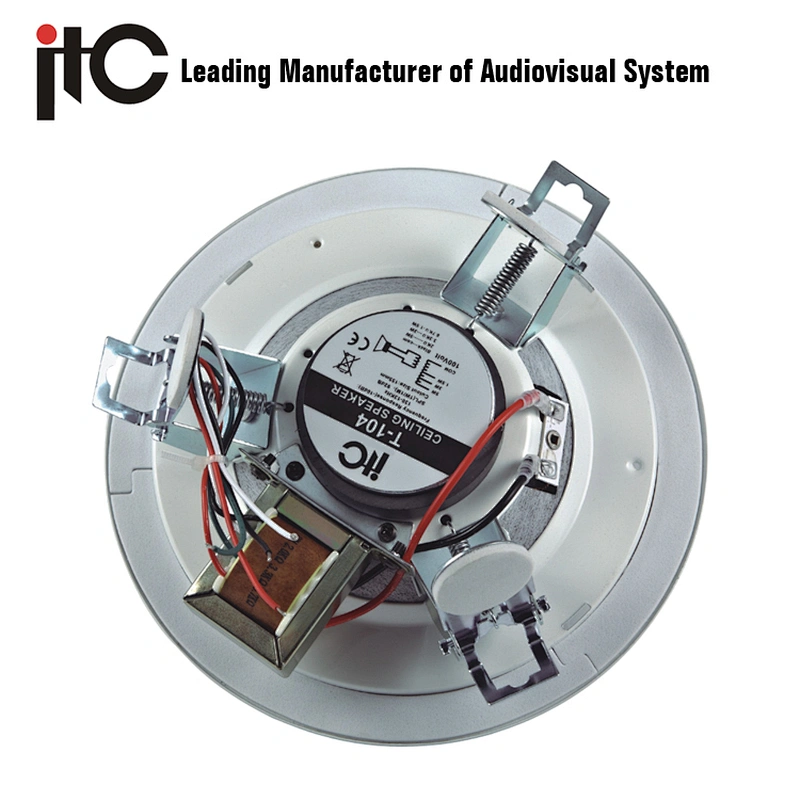

ITC T-104 High Quality 6 Watt 4 inch In Ceiling Speaker
ITC T-104 High Quality 6 Watt 4 inch In Ceiling Speaker
ITC T-104 High Quality 6 Watt 4 inch In Ceiling Speaker
ITC T-104 High Quality 6 Watt 4 inch In Ceiling Speaker
ITC T-104 High Quality 6 Watt 4 inch In Ceiling Speaker

ITC T-104 High Quality 6 Watt 4 inch In Ceiling Speaker

Model NO.
T-104
Delivery
FOB
Minimum order quantity
500 units
Supply Ability
1000 units / Week
Country of Origin
Guangzhou, Shenzhen or HK
Quantity:
  • Place of Origin:CN;GUA
  • Use:Home Theatre
  • Model Number:T-104
  • Brand Name:ITC
  • Type:Passive
  • Channels:1
  • Use:PA System
  • Power Taps @100V:1.5W, 3W, 6W
  • Power Taps @70V:0.75W, 1.5W, 3W
  • Impedance:Black: Com Red:6.7 KΩ Green:3.3KΩ White:1.7KΩ
  • SPL(1W/1M):92dB
  • Max. SPL (Rated W/1M):99dB
  • Frequency Response (-10dB):130-13KHz
  • Finish:Baffle: Steel, White Grille: Steel, White
  • Speaker Driver:4"x 1
  • Cutout Size:155mm
  • Dimension:180 x 50mm

ITC T-104 High Quality 6 Watt 4 inch In Ceiling Speaker

Feature

  • Built-in 100V/70V transformer
  • Ceiling speaker
  • 4 inch speaker unit
  • Power taps 1.5W, 3W & 6W @100V
  • Metal enclosure and aluminum grille
  • Paint in white color
  • Metal back cover is optional

T-104 T-105 T-106.jpg

T-104 T-105 T-106-.jpg

The T-104 High Quality 6 Watt 4 Inch In Ceiling Speaker is a in ceiling speaker built in 70V/100V transformer. The 70V/100V transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple speakers.

The built-in 4 inch ceiling speaker driver is designed of wide frequency response 130-13kHz, the multiple power taps 1.5W, 3W & 6W are helpful for different applications varies from room size and ambient noise surrounding. The metal grille and aluminum grille are painted in attractive white color. Its spring clamp makes the easy and secure installation.

It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.

Parameters

Model

T-104

Power Taps @100V

1.5W, 3W, 6W

Power Taps @70V

0.75W, 1.5W, 3W

Impedance

Black: Com Red:6.7 KΩ Green:3.3KΩ White:1.7KΩ

SPL(1W/1M)

92dB

Max. SPL (Rated W/1M)

99dB

Frequency Response (-10dB)

130-13KHz

Finish

Baffle: Steel, White Grille: Steel, White

Speaker Driver

4 inch x 1

Cutout Size

155mm

Dimension

180 x 50mm

Weight

0.7Kg

Mounting

Spring-clip

Related Products

Ceiling Speaker.jpg

Company Information


Certifications

_09ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our productare complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
