- Place of Origin:CN;GUA
- Model Number:T-4060MP T-4120MP T-4240MP
- Brand Name:ITC
- Power Output:4x60W/4x120W/4x240W
- Versatile Speaker Output:70V, 100V & 4Ω
- S/N Ratio:≥65dB
- LINE1-4 Output Level:1V/ 600 ohm (Balanced)
- Frequency Response:80-16KHz (0/-3dB )
- SD File System:Only support FAT16 & FAT32, not support to create folder
- THD:≤1%
- Power Consumption:375W/750W/1500W
- Power Supply:~230V/50Hz
- Dimension:484*440*132mm

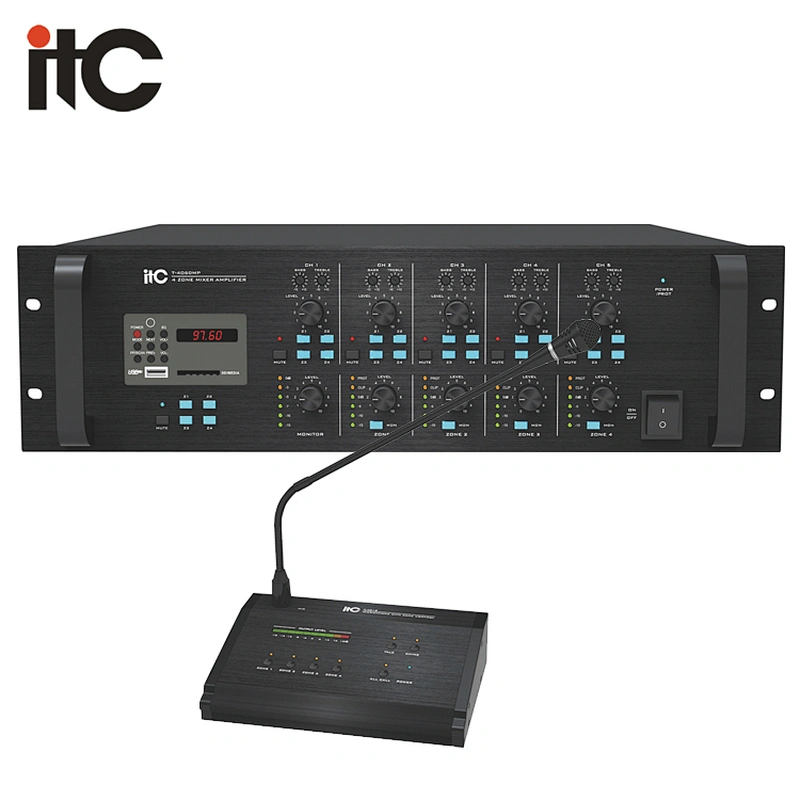

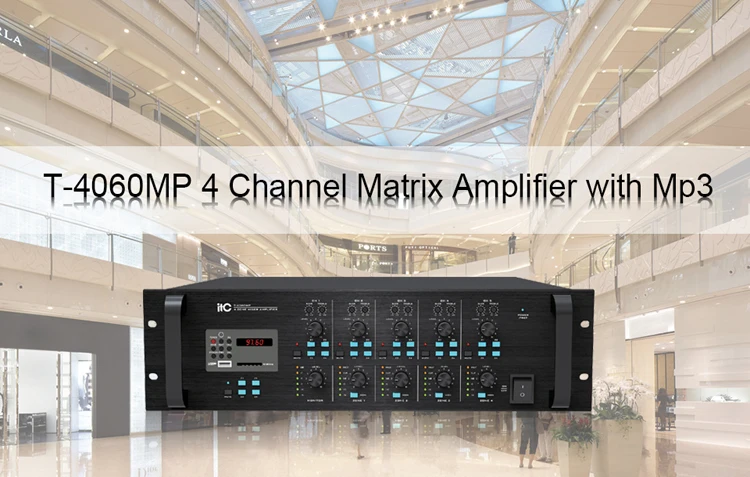

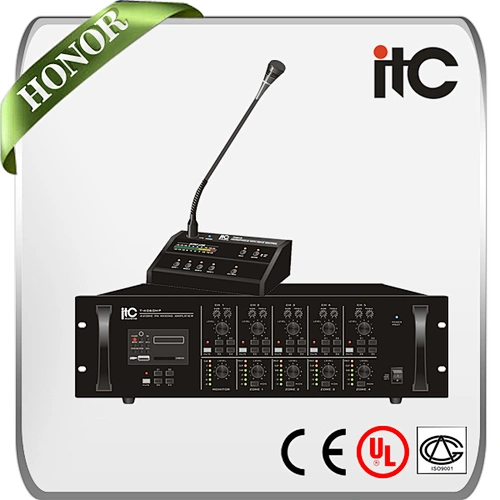

4 Channel MP3 Power Amplifier Matrix Mixer Public Address Amplifier
Feature
1) It’s 4x4 matrixs pa system controller in design of 3U rack mount.
2) All input could be matrix-style assigned to different 4 output simultaneously.
3) 5 input and MP3 input are with individual treble/bass control and volume control.
4) 3 Mic/Line input is with phantom power and gain control.
5) 2 AUX input is in type of RCA and is with gain control.
6) It’s with both USB port & SD slot to read MP3 files, which is supplied by individual power.
7) It’s with internal radio tuner.
8) Users could connect the host and remote paging microphone via RJ45.
9) Versatile speaker output for each 4 channel: 70V, 100V and 4 ohm.
10) It offers RS232 to work with third-party system.
11) Priority level from high to low:
(Before triggered by short) Mic 1=TEL=Remote Mic=Mic 2>Mic 3>Line 4>Line 5>MP3
(After triggered by short) TEL=Mic 1=Remote Mic=Mic 2>Mic 3>Line 4>Line 5>MP3
12) With monitor
13) Complete protection for short, over-heat, overload, etc.
Specification
Model | T-4060MP | T-4120MP | T-4240MP |
Power Output | 4x60W | 4x120W | 4x240W |
Versatile Speaker Output | 70V, 100V & 4Ω | ||
Input Sensitivity & Impedance | CH1, CH2, CH3/MIC: ±2.5mV/600 ohm Phantom Power: ±2.5mV Line: AC 175mV/10 Kohm, balanced CH5, CH6:350mV/10 Kohm, balanced TEL: 350 mV/10 Kohm Remote Mic: ±387mV/10 Kohm | ||
Tone | Bass: ±10dB at 100Hz Treble:±10dB at 10KHz | ||
S/N Ratio | ≥65dB | ||
LINE1-4 Output Level | 1V/ 600 ohm (Balanced) | ||
Frequency Response | 80-16KHz (0/-3dB ) | ||
MP3 | Support MP3 format, max. of capacity is 32GB | ||
SD File System | Only support FAT16 & FAT32, not support to create folder | ||
Mp3 Format | Supports MPEG audio 1, 2 and 2.5. Supports Layer 1, 2and3 Supports sample rates 8k, 16k, 32k, 11.025k,22.05k, 44.1k, 12k, 24k and 48kHz Supports bit rate 8 to 320 kbps and VBR (Variable Bit Rate).Except free format | ||
THD | ≤1% | ||
Power Consumption | 375W | 750W | 1500W |
Power Supply | ~230V/50Hz | ||
Dimension | 484*440*132mm | ||
Weight | 8.1Kg | 11.68Kg | 22Kg |

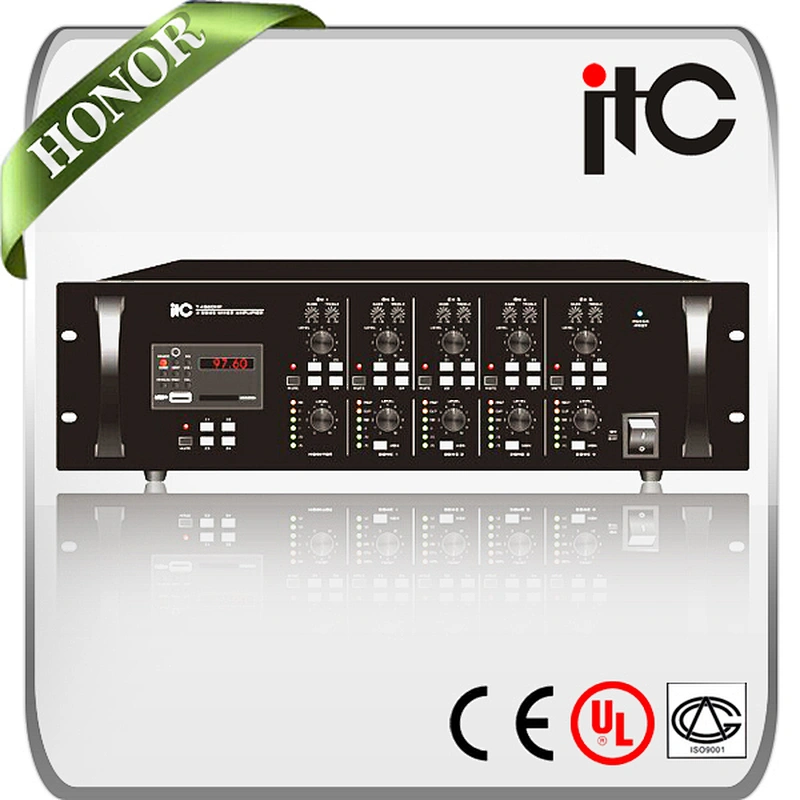

Front Panel
1 Button for mute control
2 Matrix-style choosing output buttons for MP3 and radio tuner
3 Monitor volume level indicators
4 Adjustment rotary knob for monitor volume
5 Volume level indicator for each zone
6 Switcher for monitor
7 Volume control for each output
8 Power Switcher
9 Indicator for Power
10 Individual treble control
11 Individual bass control
12 Volume control for Channel 1
13 MP3 Player with USB port and SD slot

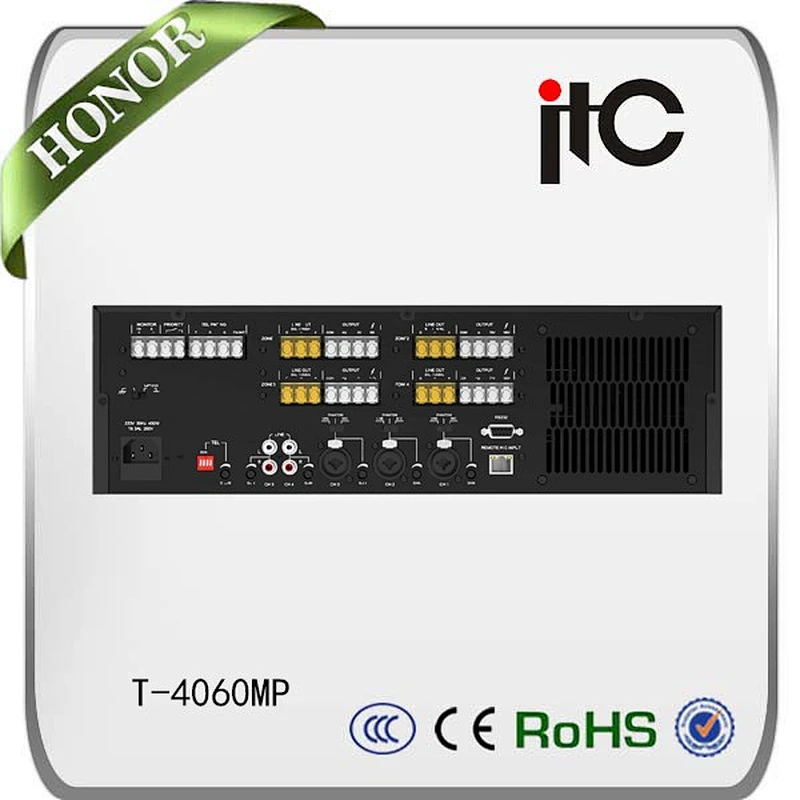

Rear Panel
1 Socket for AC power
2 DIP switch and volume control for TEL
3 Input and gain control for Channel 5
4 Input and gain control for Channel 4
5 Mic/Line input and gain control for Channel 3
6 Mic/Line input and gain control for Channel 2
7 Mic/Line input and gain control for Channel 1
8 Input for remote paging microphone
9 RS232
10 Switcher for Mic and Line
11 Vent
12 Versatile speaker output of Zone 1 to 4
13 Line output for Zone 1 to 4
14 Antenna port
15 TEL input
16 Short receiving port to change the priority between TEL and MIC 1
17 Monitor output
18 Ground method swithcer

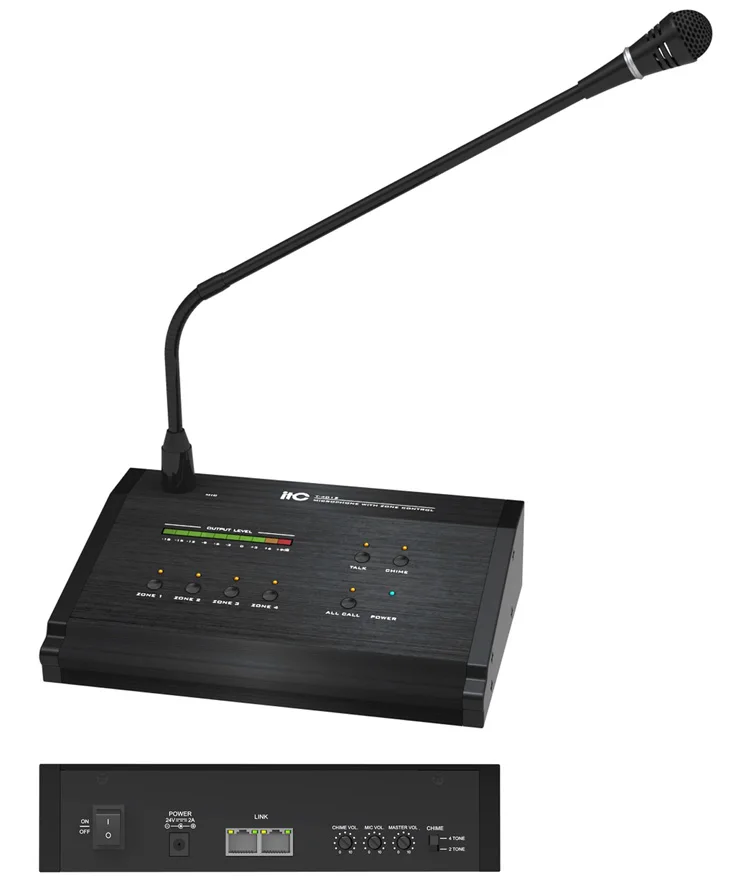

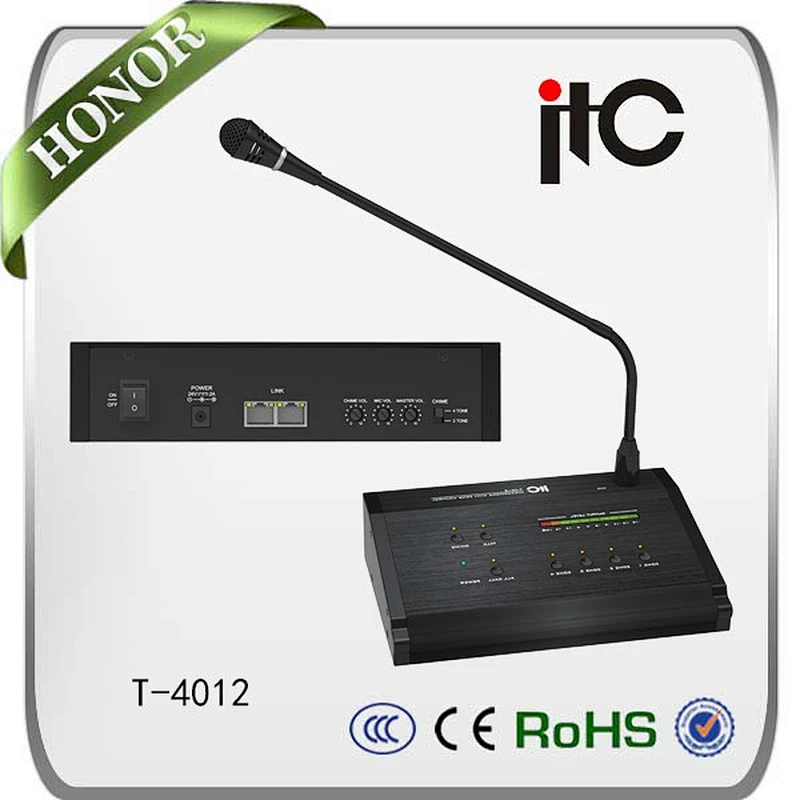

T-4012

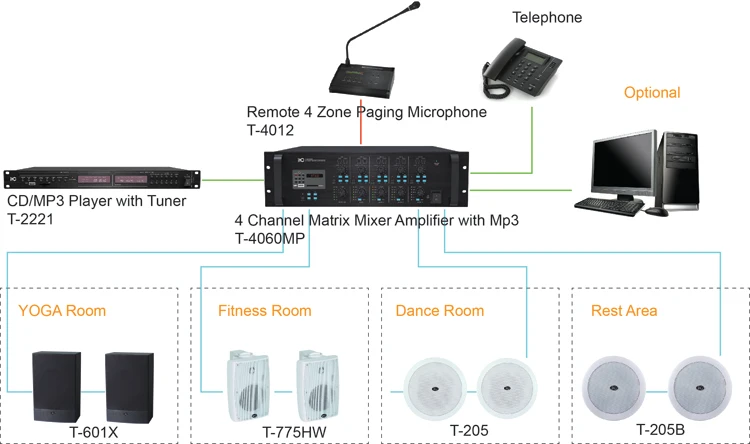

General System Diagram
