- Place of Origin:CN;GUA
- Model Number:T-6600 System
- Brand Name:ITC
- Power Supply:AC 110V @60Hz or AC230V @50Hz
- Audio Input:10 Kohm, 775mV, unbalanced
- Audio Output:1 Kohm, 0 to 1.5V, unbalanced
- Frequency Response:20Hz to 50KHz
- S/N Ratio:90dB
- Distortion:0.1%
- Input Level of Alarm Signal:0
- Output Level of Alarm Signal:0
- Level of Power Sequencer Control:0
- Communication Interface:RJ45
Best Sound 16 Zones Weekly Timer Audio Matrixs Best Pa System
Your Preferred Choice for Economical PA System

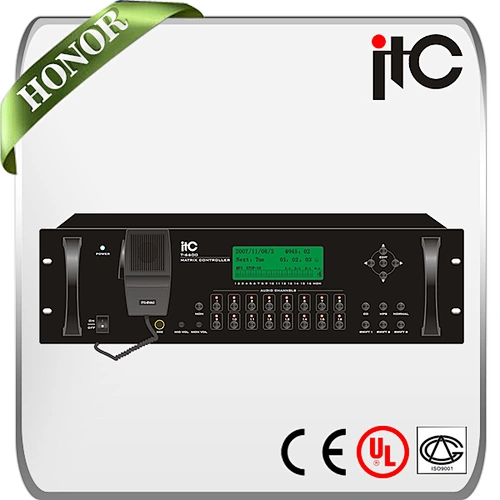

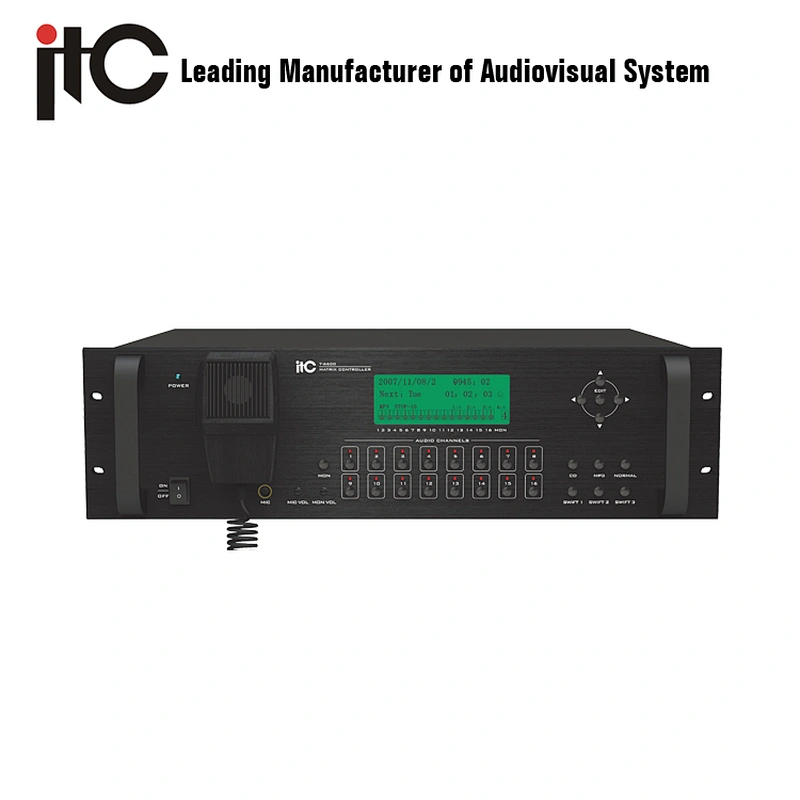

T-6600 integrates complete function of Public Address System. It’s with 2 ports (RS-422 & RS-485) and with the function of programmable automatic control. And it’s built in 8*16 audio matrix, power sequencer, fire signal receiver and could control multiple intelligent devices, such as zoning pager for phone, remote paging station, expansion power sequencer, etc. Users only need to write their own program into it and it would run automatically. No matter it’s on or off, once fire signal is input, the whole system would enter emergency status immediately. It meets broadcasting demand of various venues. And I feel proud to say that it’s your preferred choice for projects from small to large scale.
It’s suitable for all scale of projects, such as school(Main), office building, shopping mall, factory, hotel, etc, for it could do various combination according to clients’ demand.
Features
* Timing and specified point broadcasting
Clients could use the matching software to write your own program that orders specified source to be played in specified zone. Or you could write the program via fluent buttons on the front panel.
*Broadcasting to All zones or partition
*Power Management
T-6600 is built in 6 channel power sequencer and it could be expanded to control more peripherals.

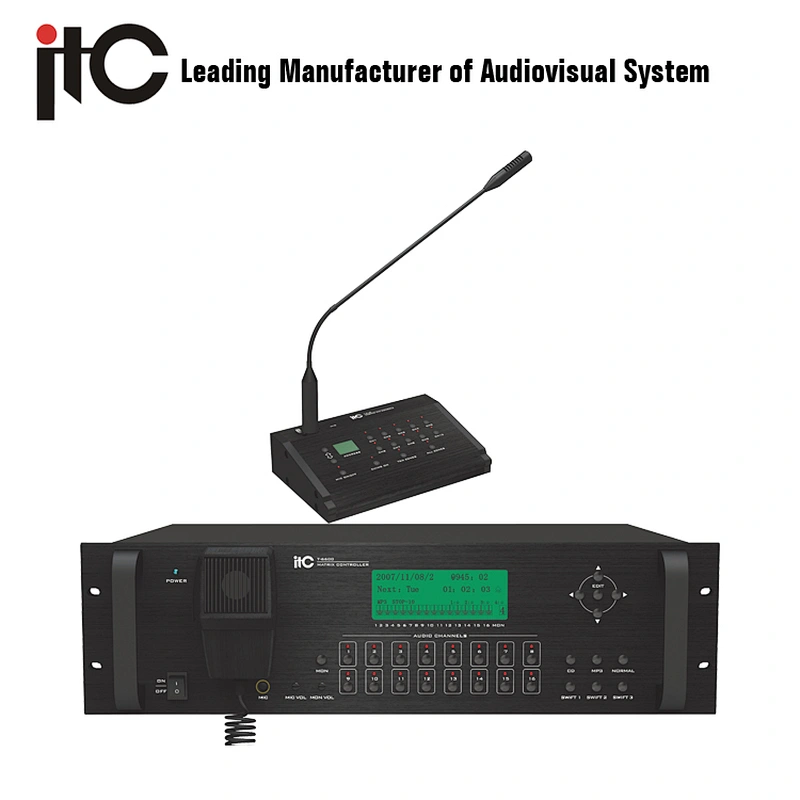

*Function of Remote Paging
Remote paging console could be connected to the host via network cable. And via functional buttons on the console, users could do paging to all zones or partition. What’s more, the transmission distance is up to 1Km.
*Hot-key
T-6600 provides you with several hot-key to call designated function. And you could custom the hot-keyfreely via software.
*Function of Forced Voice Alarm
When doing voice alarm, T-6600 needs to work with fire signal receiving panel. There’s 3 modes of voice alarm, including all zone voice alarm, zoning voice alarm and adjacent voice alarm.
Economic Public Address System for School
Product List
Intelligent Control Center T-6600
Remote Paging Station T-218
CD Player *2 T-6227
Digital Radio Tuner T-6228
Zoning Pager for Phone TW-1250
8 in 8 out Preamplifier *2 T-6240
Fire Signal Receiving Device T-6223(A)
4 Channel Post-class Power Amplifier *4 T-4S120
Model | T-6600 |
Power Supply | AC 110V @60Hz or AC230V @50Hz |
Audio Input | 10 Kohm, 775mV, unbalanced |
Audio Output | 1 Kohm, 0 to 1.5V, unbalanced |
Frequency Response | 20Hz to 50KHz |
S/N Ratio | 90dB |
Distortion | 0.1% |
Input Level of Alarm Signal | 0V |
Output Level of Alarm Signal | 0V |
Level of Power Sequencer Control | 0V |
Rated Power of Monitor | 0.5W |
Communication Interface | RJ45 |
Communication Protocol | RS-422 & RS-485 |
Communication Speed | 4800bps |
MP3 Storage Mediator | SD Card |
Dimension | 484*350*132mm |
Weight | 7.62Kg |
Power Consumption | 30W |
Main Functions
1) About the Background Music
The host could transfer any of the audio sources including, CD player, radio tuner and MP3 player any zone because of the programmable controlling 8*16 audio matrix.
2) About the Voice Alarm
Voice alarm message and background music use the same set of power amplifiers. When fire happens, a short signal is transmitted to fire signal receiving panel T-6223(A). And T-6223(A) sends the host a command. Then, the host let the whole system enter emergency status. Voice message stored in the T-6223(A) would be transmitted to all speakerand at the same time, forced switching power supplier T-6211(A) would turn the volume control to its Max..
3) About the business paging
Local paging: Voice is transmitted to audio matrix of the host, and then, it’s output to specified channel’s power amplifier by the host. At last, people could hear the voice through speakers.
Remote paging: First, remote paging console need to be linked to the host via network cable and the distance is up to 1Km. Then, clients could do paging in any partition freely via the fluent buttons on the paging console.
Phone paging: Local call line need to be linked with our zoning pager for phone(TW-1250). Then, when clients wanna to do paging via phone or cell phone, they just need to call the number.
