- Light Source:LED
- Item Type:Point Lights
- IP Rating:IP65
- Certification:CCC
- Certification:CE
- Certification:ROHS
- Place of Origin:CN;GUA
- Color Temperature(CCT):2200-6500K/RGB
- Lamp Body Material:ADC12
- LED Light Source:SMD3535
- Input Voltage(V):DC24V
- Lamp Power:3
- Lamp Luminous Efficiency(lm/w):60
- Working Temperature(℃):-20 - 50
- Brand Name:ITC
- Rated power:3W/5W
- Dimension:L122*W94*H54
- Weight:0.288 kg
- Pixel section:1
- Beam angle:2200-6500K/RGB
- Control method:Always-on/DMX512
- Light effects:Always-on/Full color
- Light body material:ADC12
- Light body color:Sand Grey
- Warranty:1Years

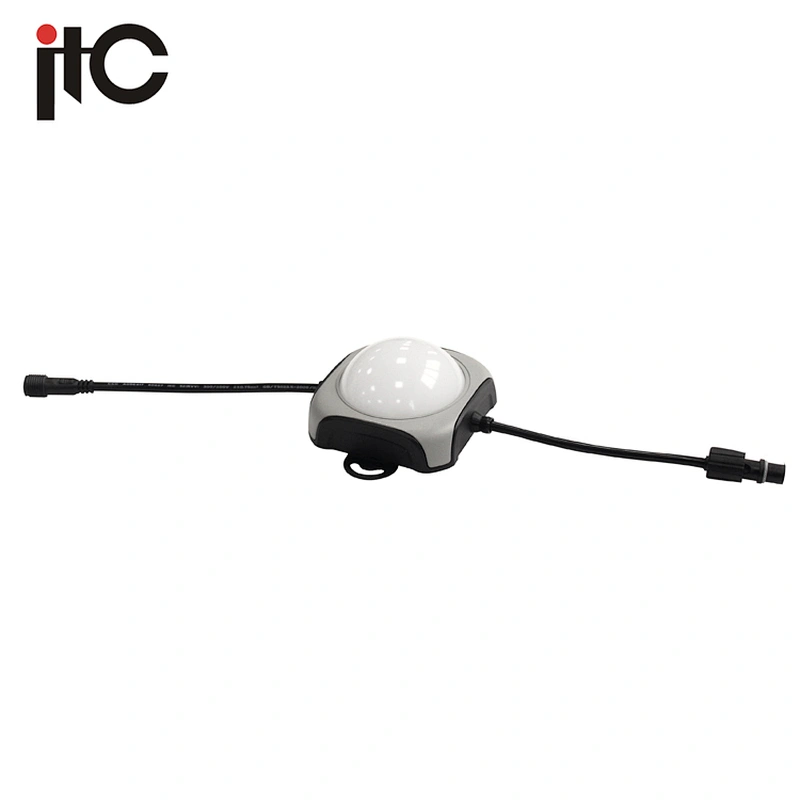

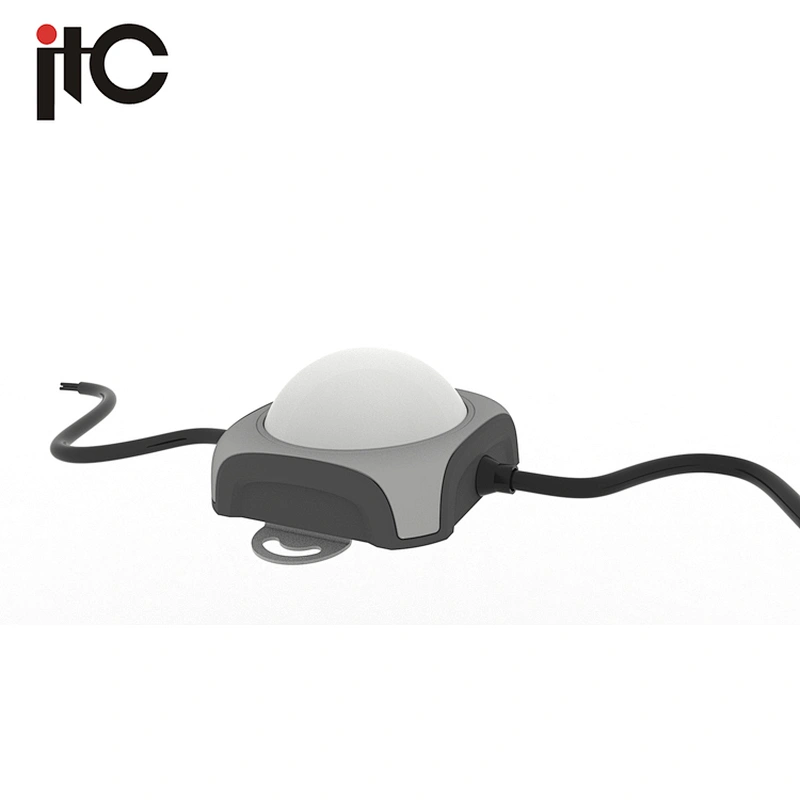

CE Certificate DC14V IP65 Waterproof LED Pixel Module Led Point Light Source
* High-strength cast aluminum alloy shell, good heat dissipation.
* Import high light transmittance PC cover, the light evenly.
* Highlighting import brand LED chip with low power consumption.
* Structure waterproof design, protection grade reaches IP65.
* External control (DMX512), can achieve the monochrome normally on or 7 colour changes.
Model | TL-810 |
Rated power | 3W/5W |
Dimension | L122*W94*H54 |
Weight | 0.288 kg |
Pixel section | 1 |
LED Type | SMD3535 |
Input voltage | DC24V |
Beam angle | 120° |
Light efficiency | >60LM/W |
Light color temperature | 2200-6500K/RGB |
Control method | Always-on/DMX512 |
Light effects | Always-on/Full color |
Environment temperature | -20℃to50℃ |
Light body material | ADC12 |
Light body color | Sand Grey |
Protection class | IP65 |
