- Place of Origin:CN;GUA
- Model Number:TS-15A02 TS-15A03
- Brand Name:ITC
- Certificate:CCC CE
- Impedance:Woofer: 4 ohms; Full Range: 4 ohms
- Frequency Response:40Hz to 20KHz
- Rated Power:Woofer: 500; Full Range: 400W
- Sensitivity:99dB/W/M
- Drivers:15"Woofer x1 & 3"Full Range x12
- Dimension of Subwoofer (HxWxD)mm:580x440x525 mm
- Dimension of Full Range Speakers:2120x63x80 mm
- Warranty:3 Years
- Weight:46Kg

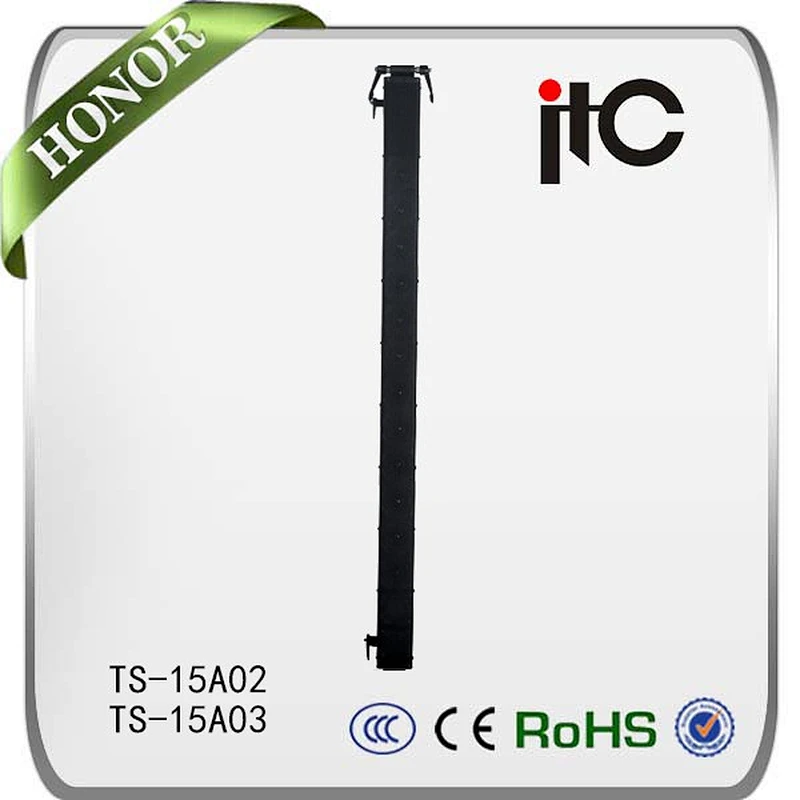

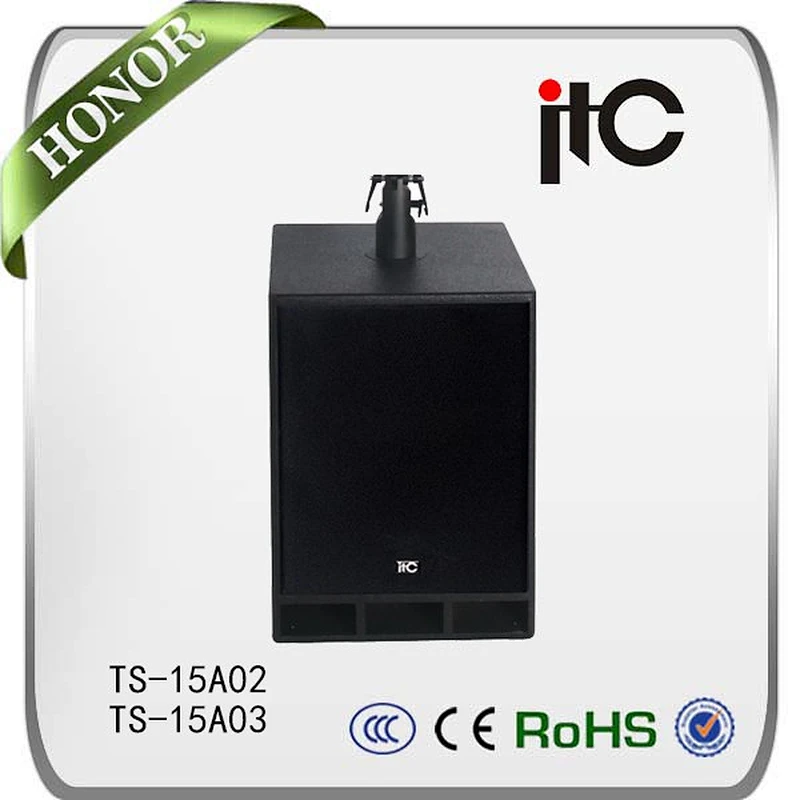

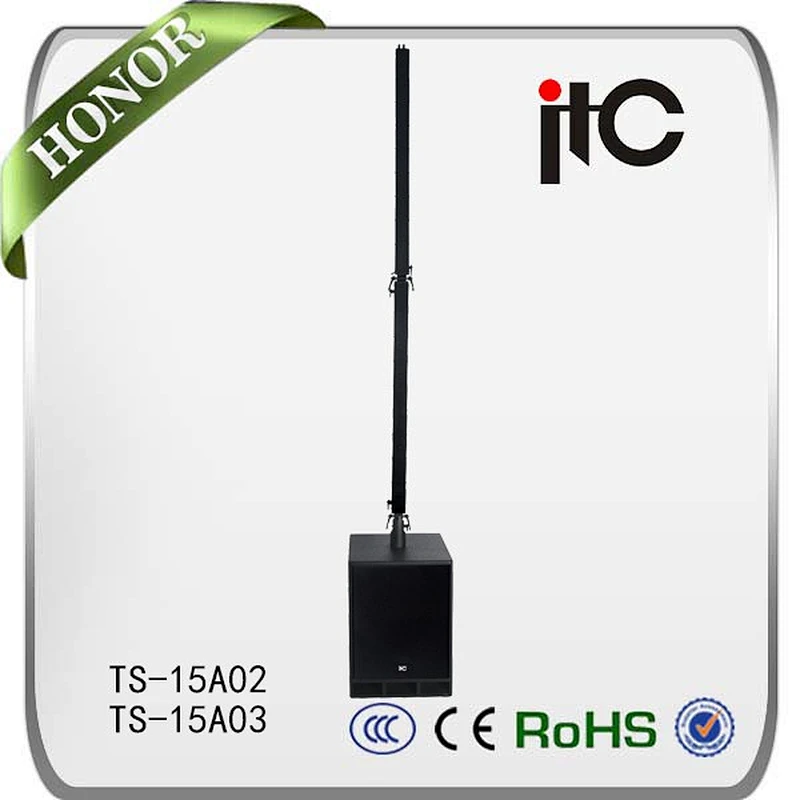

High-Tech Professional Sound Outdoor Stage Top Pro Audio Powered Speaker Line Array Box
High-tech sound speaker empty line array box features:
1. Using reversed phase hole to reduce distortion;
2. Splicing arrangement design to cover larger area while using less speakers; even in complicated acoustic environment, it could realize perfect audio transmission;

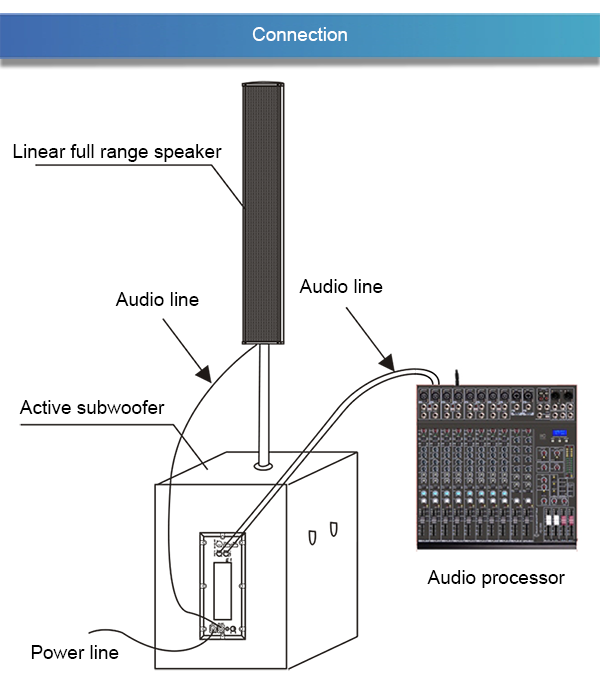

3. The speaker is with internal 2 channel digital amplifier; 1 is for subwoofer and the other is for full range speakers;

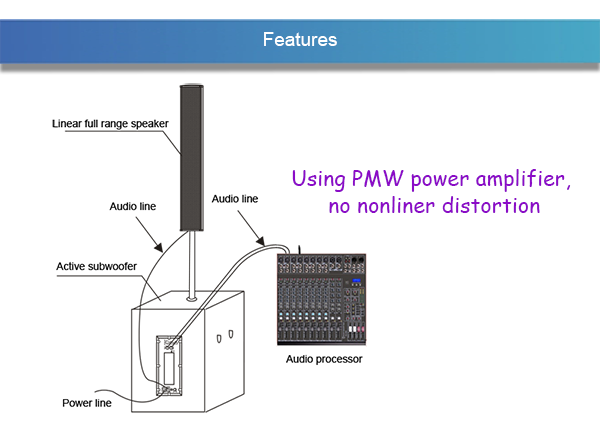

4. Using PWM power amplifier to realize no nonlinear distortion; auto recovery back electromotive force of speaker drivers;
5. With internal 2 in 2 out pro sound processor whose S/N ratio is 110dB; sampling rate 96KHz/24Bit;
6. The audio processor works with power amplifier perfectly and the state signal of the power amplifier dynamic control the compensation created by the processor; the sound processor provides amplifier with base clock to achieve instruction synchronization;
7. The audio processor is integrated with EQ, distributor, delayer, suppressor, noise-gate, etc;
8. Using dual-phase power to supply continuously in large dynamic; using fixed-frequency switching power to avoid interference by frequency drift and beat signal;
9. Using the loop matching the feature of audio amplifier to speed up power supply and to ensure power supply in fast switching between unload and full-load.
Model | TS-15A02 | TS-15A03 |
Impedance | Woofer: 4 ohms; Full Range: 4 ohms | |
Frequency Response | 40Hz to 20KHz | |
Rated Power | Woofer: 500; Full Range: 500W | Woofer: 500; Full Range: 400W |
Sensitivity | 99dB/W/M | |
Drivers | 15” Woofer x1 & 2” Full Range x24 | 15” Woofer x1 & 3” Full Range x12 |

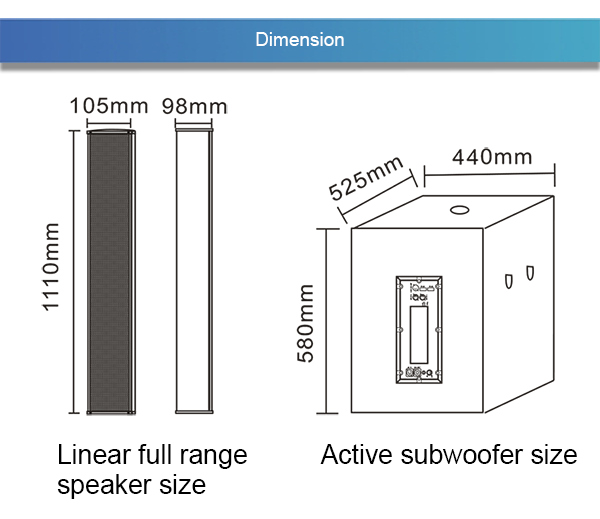

Dimension of Subwoofer (HxWxD)mm | 580x440x525 | 580x440x525 |
Dimension of Full Range Speakers (HxWxD)mm | 2100x63x80 | 1290x105x98 |
Weight (Kg) | 46 | 43 |
ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our product are complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
Pre-sale Service
* High Quality + Factory Price + Quick Response + Reliable Service, is our working faith.
* Professional foreign trade team, Reply your Alibaba enquiry and trade messager in 24 working hours.
* 30 system consultants and 10 designers to make drawing and BOQ for each tender.
* Design and BOQ response to customer within 48 hours.
Middle-sale Service
* Testing quality again before sending goods.
* Well-trained sales team for sales and basic technical service.
* Online system software demo and configuration is available.
* PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
* Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goods.
After-sale service
* ITC guarantee all electronics of 3 years quality warranty.
* ITC could supply 1% wearing spare parts free of charge.
* Two English spoken technician provide online after sales service.
* Technical documents could be downloaded from website www.itc-pa.com.cn.
* All of the quality compliant shall be feedback with a solution within 48 hours.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.

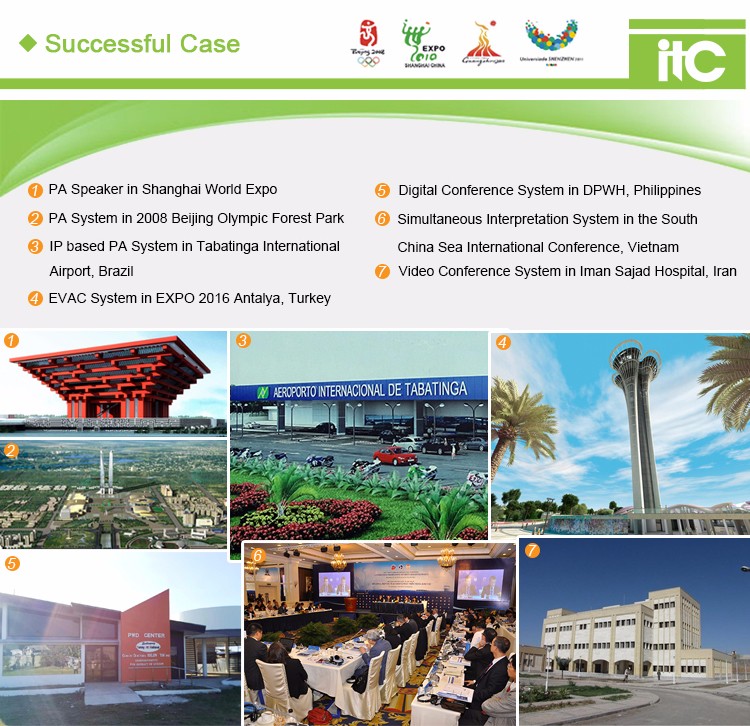

Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
Send Message

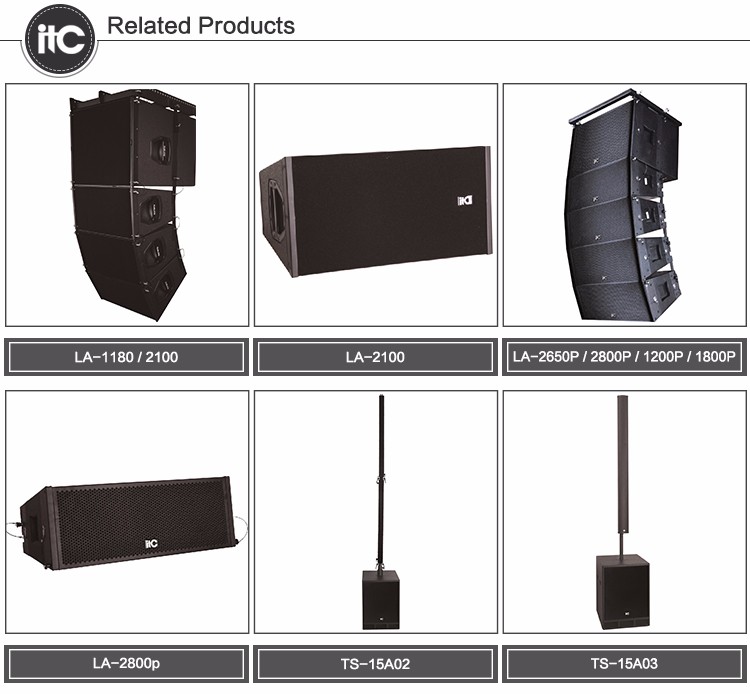

Related Products
