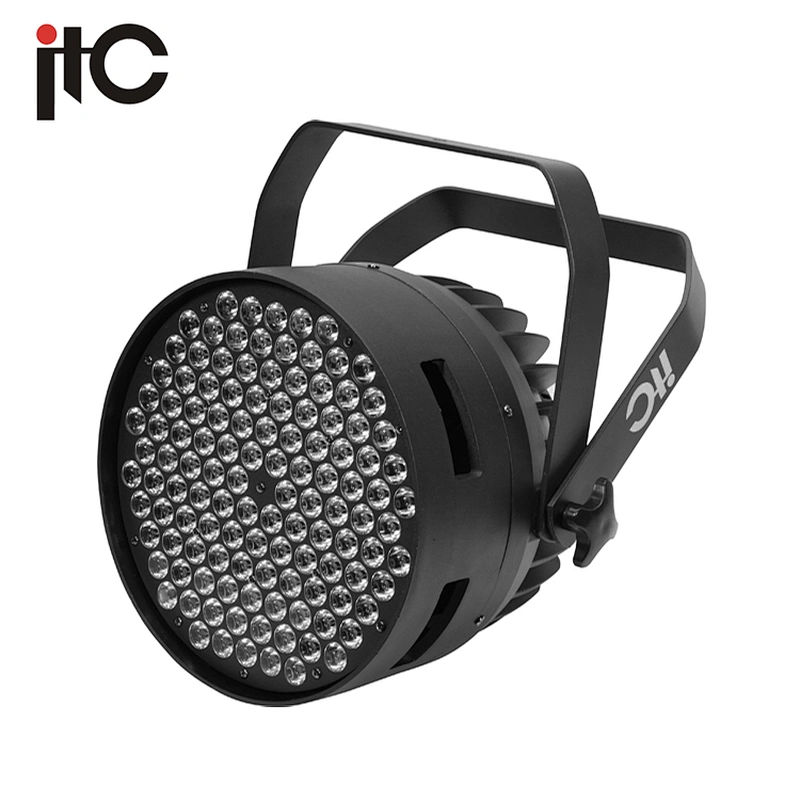

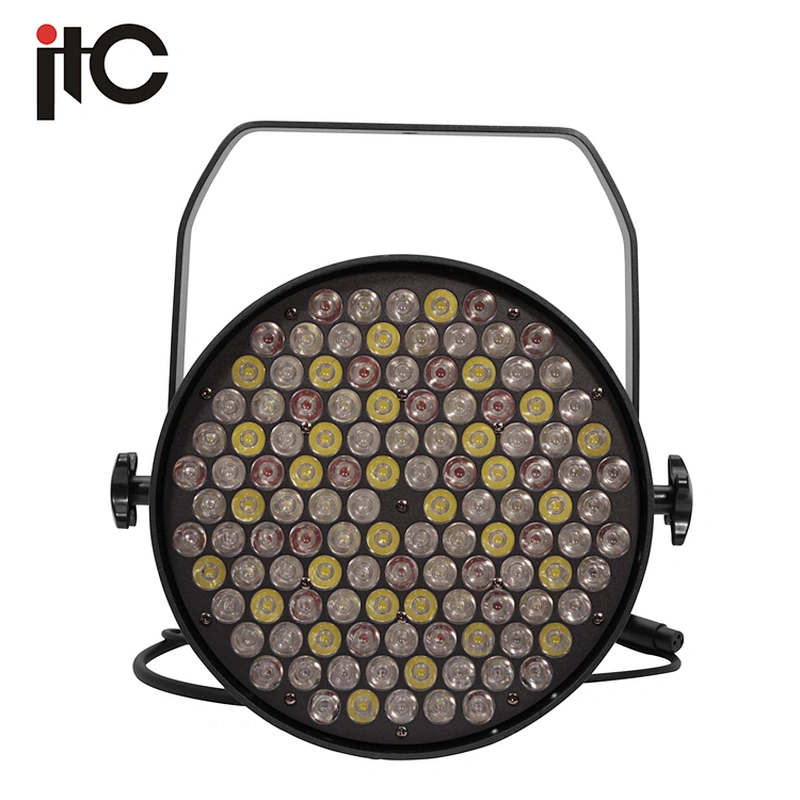

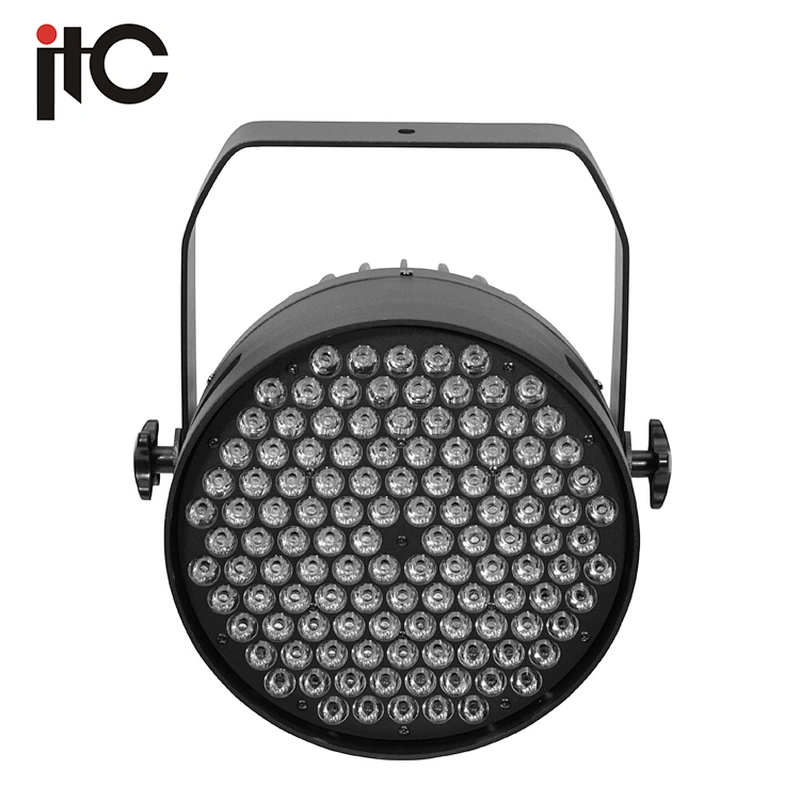

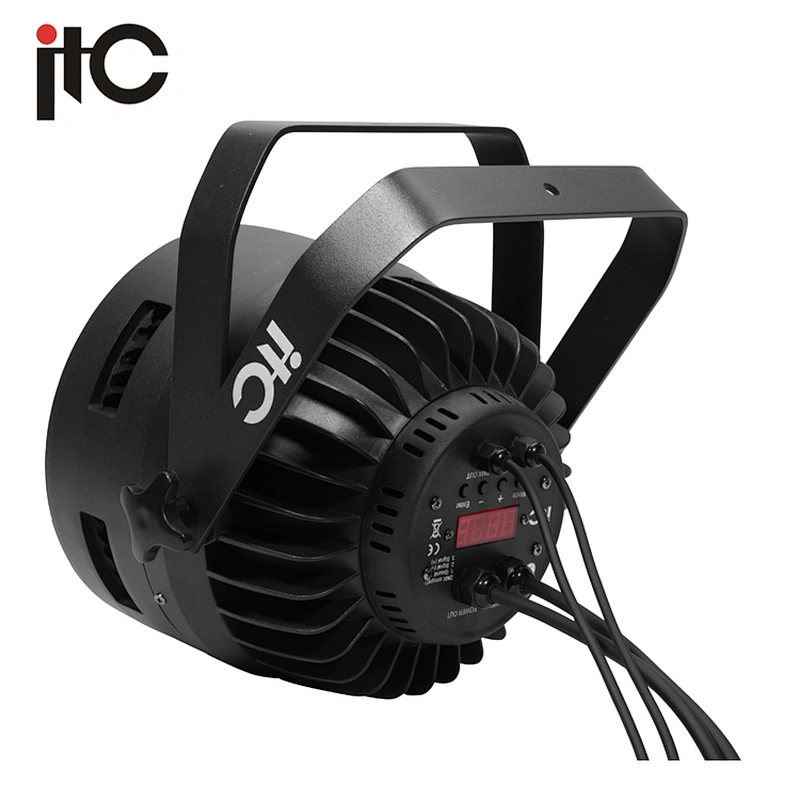

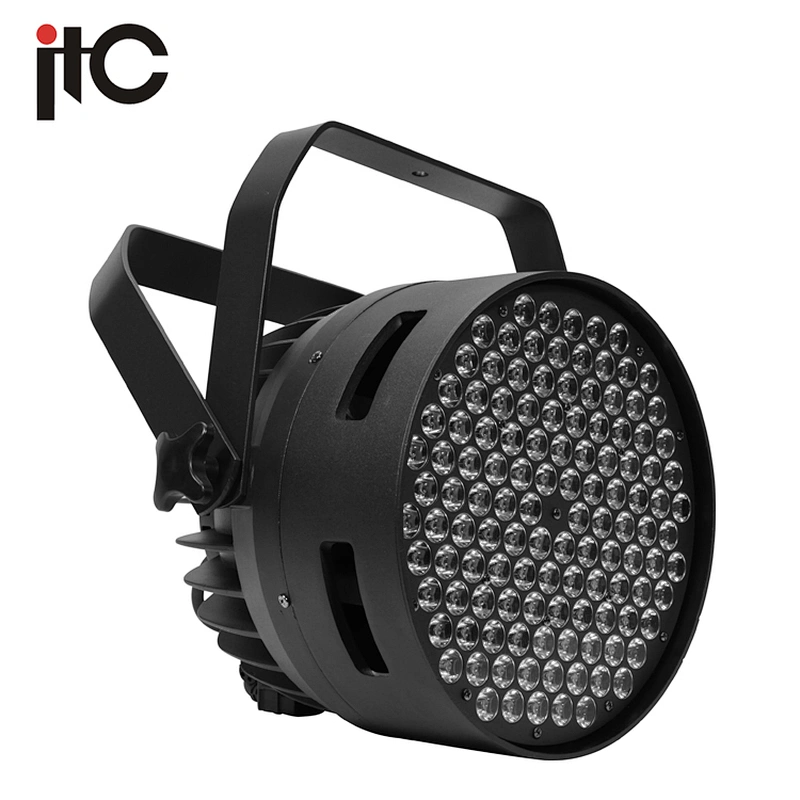

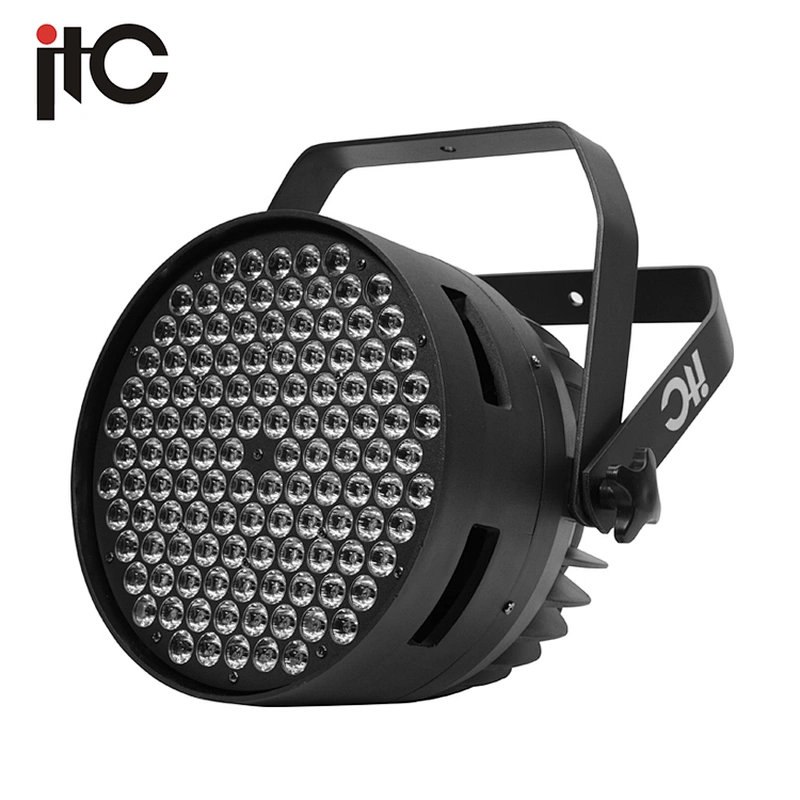

Stage Lighting Indoor Usage 120*3W LED Par Light
Stage Lighting Indoor Usage 120*3W LED Par Light
Stage Lighting Indoor Usage 120*3W LED Par Light
Stage Lighting Indoor Usage 120*3W LED Par Light
Stage Lighting Indoor Usage 120*3W LED Par Light
Stage Lighting Indoor Usage 120*3W LED Par Light
Stage Lighting Indoor Usage 120*3W LED Par Light
Stage Lighting Indoor Usage 120*3W LED Par Light
Stage Lighting Indoor Usage 120*3W LED Par Light
Stage Lighting Indoor Usage 120*3W LED Par Light
Stage Lighting Indoor Usage 120*3W LED Par Light
Stage Lighting Indoor Usage 120*3W LED Par Light
Stage Lighting Indoor Usage 120*3W LED Par Light

Stage Lighting Indoor Usage 120*3W LED Par Light

Model NO.
TL-XGA0-05
Price:
USD 450.00-675.00 / piece
Delivery
FOB
Minimum order quantity
1 piece
Supply Ability
1000 piece / Month
Country of Origin
Guangzhou or Shenzhen or Hong Kong
Quantity:
  • Light Source:LED
  • Place of Origin:CN;GUA
  • Color Temperature(CCT):Cool White
  • Model Number:TL-XGA0-05
  • Brand Name:ITC
  • Input Voltage(V):AC110V-240V,50/60HZ
  • Type:Moving Head Lights
  • LED Light Source:RGB
  • Working Lifetime(Hour):50000
  • Lamp Power(W):400
  • Emitting Color:RGBW
  • Certification:CCC
  • Certification:CE
  • Certification:ROHS
  • IP Rating:IP20
  • Light Source:120 X 3W high-brightness LED
  • Light source life:6-10 million hours
  • Dimming:0-100% linear adjustment
  • Strobe:Independent electronic strobe, 1-20 times / second
  • Lens angle:15°, 25°, 35°, 45° (optional)
  • Control method:Standard DMX512 signal
  • DMX channel:8 channels (digital display)
  • Cooling system:Air-cooled
  • Lamp body part and color:Die-cast aluminum, black
  • Warranty:1 Year

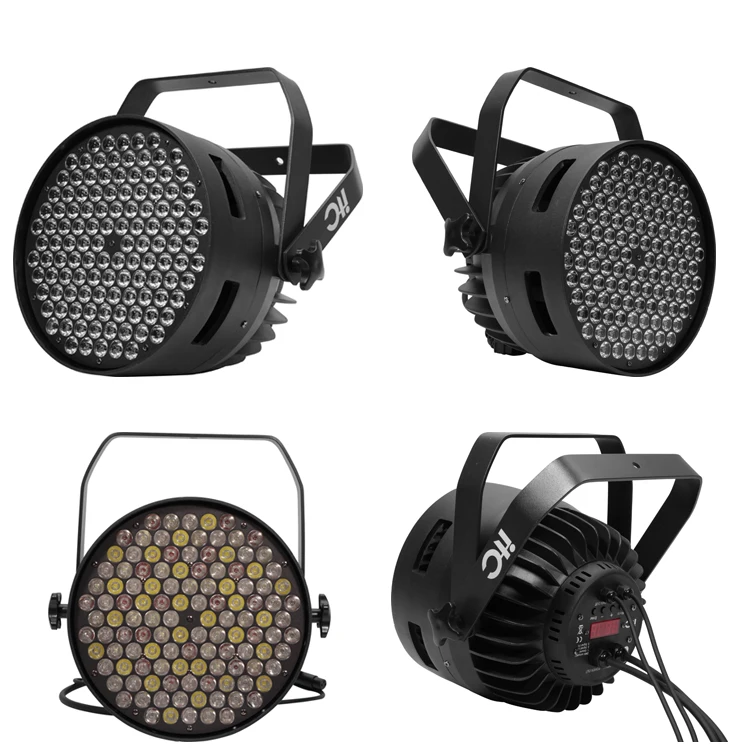

Stage Lighting Indoor Usage 120*3W LED Par Light

Product Description





Input voltage

AC90-240V, 50/60HZ

Power

400W

LED light source

120 X 3W high-brightness LED

Number of light sources

120 X 40R+40G+40B/30R+30G+30B+30W/ W120/

(RGB/RGBW optional)

Light source life

6-10 million hours

Dimming

0-100% linear adjustment

Strobe

Independent electronic strobe, 1-20 times / second

Lens angle

15°, 25°, 35°, 45° (optional)

Control method

Standard DMX512 signal, 3-core interface, master-slave control, Self-propelled, voice-activated mode

DMX channel

8 channels (digital display)

Cooling system

Air-cooled

Lamp body part and color

Die-cast aluminum, black

Protection class

IP20

Working environment temperature

Indoor -20°C-40°C








Workshop Showing

















Company Information

_05ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one stop

solution, such as Public Address System,IP System,conference systemvideo conferencing,Evacation System, professional sound system,Led video wall  and Lighting system, etc.

What's more,our system is applied to various worldclass events, such as 2008 Peking Olympic

Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 600 thousand successful cases in China and in worldwide. _07_09_11_13_15.jpg
