- Place of Origin:CN;GUA
- Use:Home Theatre
- Model Number:T-205CW
- Brand Name:ITC
- Type:Passive
- Channels:2 (2.0)
- Use:PA
- Rated power:2.5W, 5W, 10W, 20W
- Max power:1.25W, 2.5W, 5W, 10W, 20W
- Sensitivity (1W/1M):88dB±3dB
- Max. SPL (Rated W/1M):111dB
- Frequency Response (-10dB):100-20KHz
- Speaker unit:5"x1 1.5"x1
- Installation hole size:180mm
- Dimension:215x152mm
- Warranty:3 Years
- Product name:Inceiling Speaker

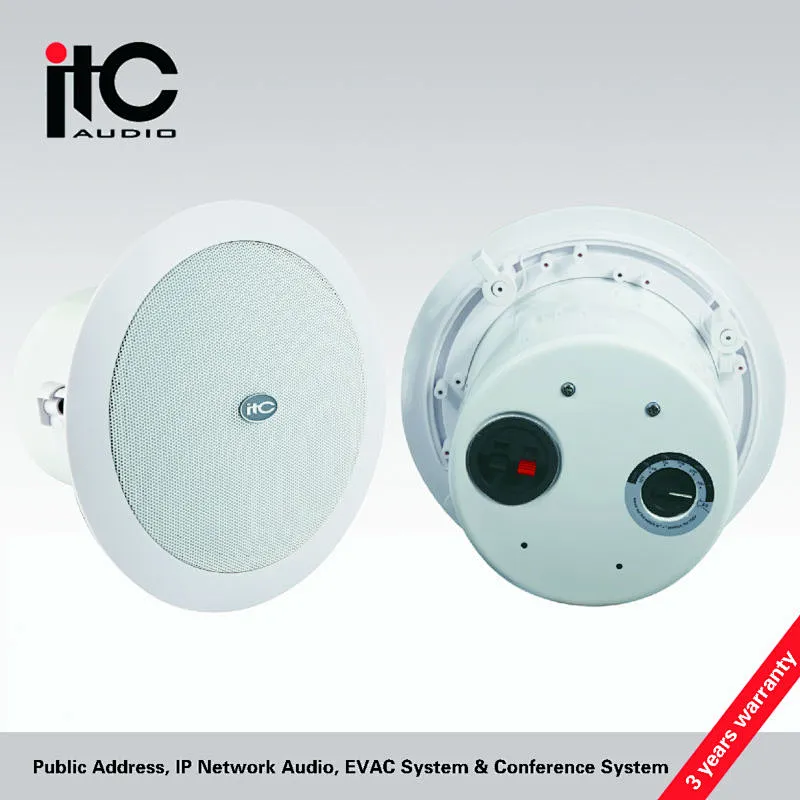

Excellent Sound Quality Two Way Coaxial 10W Inceiling Speaker
*Built-in 100v/70v transformer
*In-ceiling type loudspeaker
*5” +1.5” coaxial speaker unit
*Power output 1.25W, 2.5W, 5W & 10W @100V
*Metal grille, ABS baffle
*Paint in black color
Model | T-205CW |
Power Taps @100V | 2.5W, 5W, 10W, 20W |
Power Taps @70V | 1.25W, 2.5W, 5W, 10W, 20W |
Transformer Impedance | Black: Com Red: 4KΩ/2KΩ/1KΩ/500Ω/250Ω |
Input | 70V/100V/8Ω |
SPL(1W/1M) | 88dB±3dB |
Max. SPL (Rated W/1M) | 101dB |
Frequency Response (-10dB) | 100-20KHz |
Finish | Baffle: ABS, White Cover, Grille: Steel, White |
Speaker Driver | 5"x 1 1.5"x 1 |
Cutout Size | 180mm |
Dimensions | 215 x 152mm |
Weight | 1.4Kg |
Mounting | Flush-mount dog ears |
The T-205CW is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.

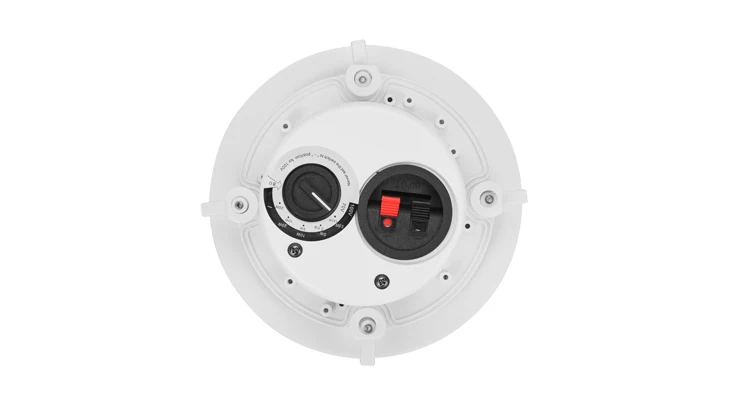

The built-in 5”+1.5” coaxial speaker driver is designed of wide frequency response 100-20kHz, and its various power output from 2.5W, 5W, 10W to 20W could meet different room size applications. The power taps is convenient to switch the input from 100V to 70V or 8Ω, thus this speaker support both high impedance input and low impedance input use. The metal grille, ABS baffle and metal back cover are painted in attractive white color. Its flush mount type makes the easy and secure installation.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
