- Place of Origin:CN;GUA
- Model Number:T-901B Series
- Brand Name:ITC
- Certificate:CCC CE
- Rated Input:10W/20W/30W/40W
- Max Input:15W/25W/35W/45W
- Line Input:100V & 70V
- Impedance:1kΩ & 1.7kΩ450Ω & 670Ω360Ω & 420Ω280Ω & 400Ω
- Freq Resp:130-16kHz
- Sensitivity:95dB/96dB/97dB/98dB
- Grill:Metal
- Frame:Aluminum Alloy
- Warranty:3 Years
Chinese supplier 2.1 super woofer speaker system
Feature:
- Built-in 100v/70v transformer
- Weatherproof column type loudspeaker
- IP6 waterproof level
- 4” full range waterproof loudspeakers
- Power output at 5w-10w @100V
- Aluminum body for anti-rust
- A pair of metal mounting brackets are supplied

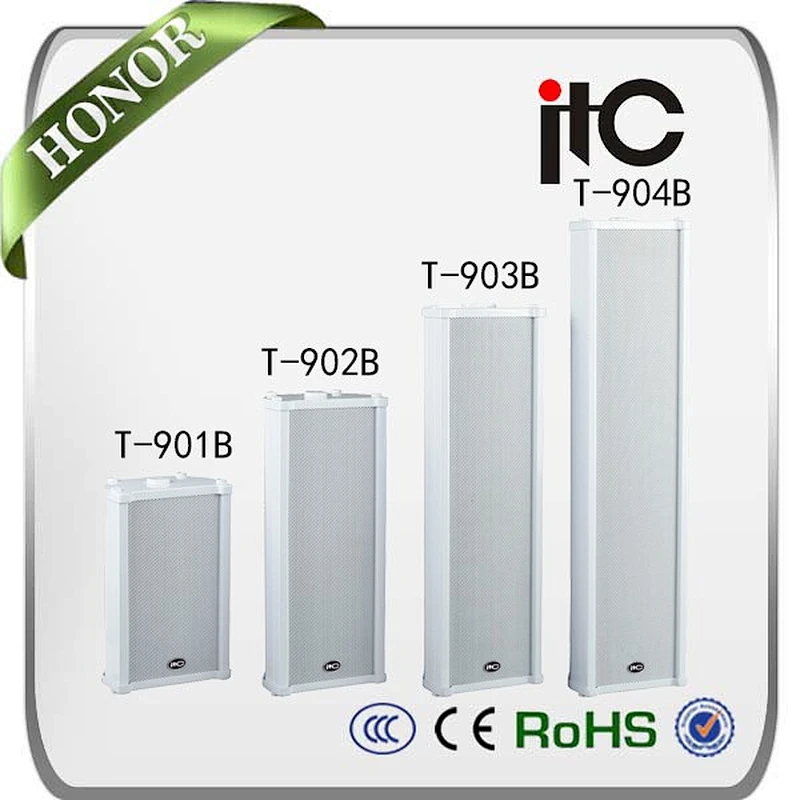

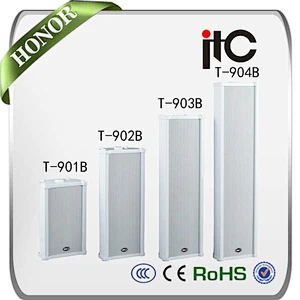

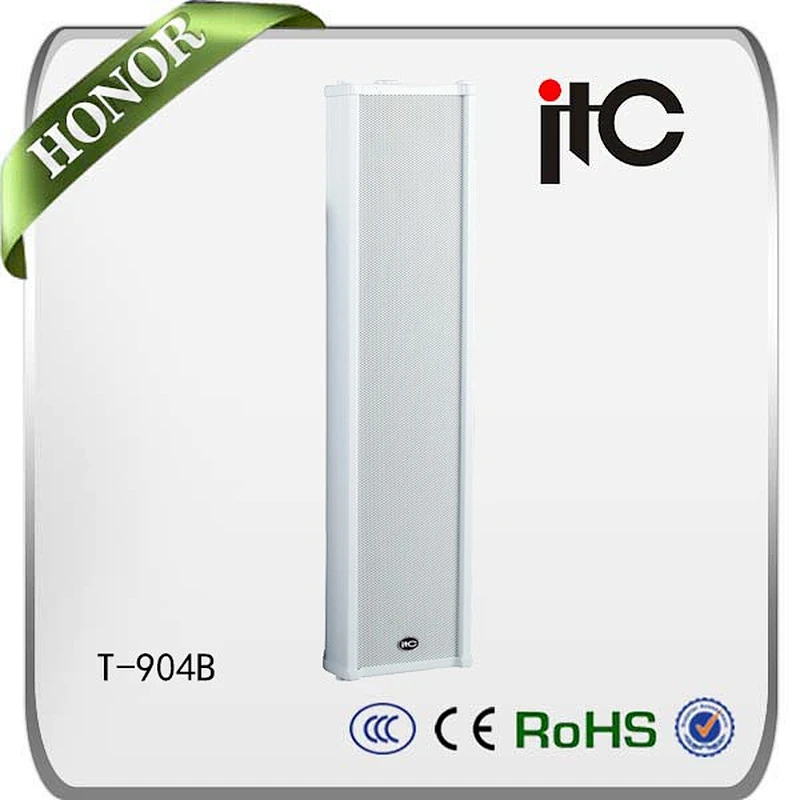

Model | T-901B | T-902B | T-903B | T-904B |
Rated Power @100V | 5W, 10W | 10W, 20W | 15W, 30W | 20W, 40W |
Rated Power @70V | 2.5W, 5W | 5W, 10W | 7.5W, 15W | 10W, 20W |
Max. Power | 20W | 40W | 60W | 80W |
Sensitivity | 92dB±3dB | 93dB±3dB | 94dB±3dB | 94dB±3dB |
Max. Sensitivity | 102dB±3dB | 106dB±3dB | 109dB±3dB | 110dB±3dB |
Impedance | Black: Com; Green: 2Kohm; White: 1Kohm | Black: Com; Green: 1Kohm; White: 500ohm | Black: Com; Green: 670ohm; White: 330ohm | Black: Com; Green: 500ohm; White: 250ohm |
Frequency Response | 130 to 16KHz | 130 to 16KHz | 130 to 16KHz | 130 to 18KHz |
Dimension | 150x105x250mm | 150x105x365mm | 150x105x490mm | 150x105x610mm |
Speaker Driver | 4’’ | 4’’x2 | 4’’x3 | 4’’x4 |
Weight | 2Kg | 2.3Kg | 3.1Kg | 4Kg |

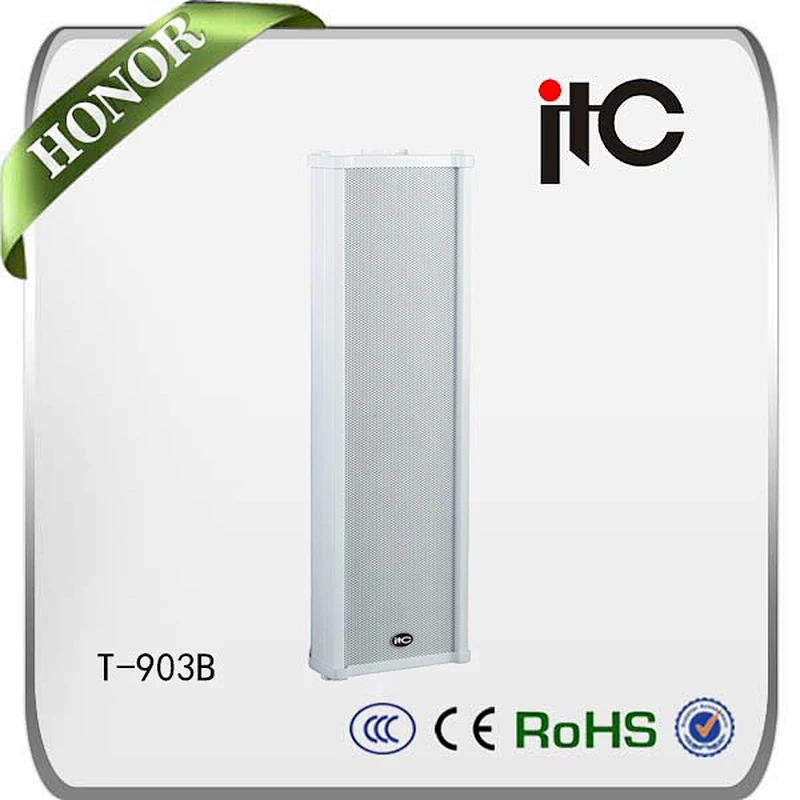

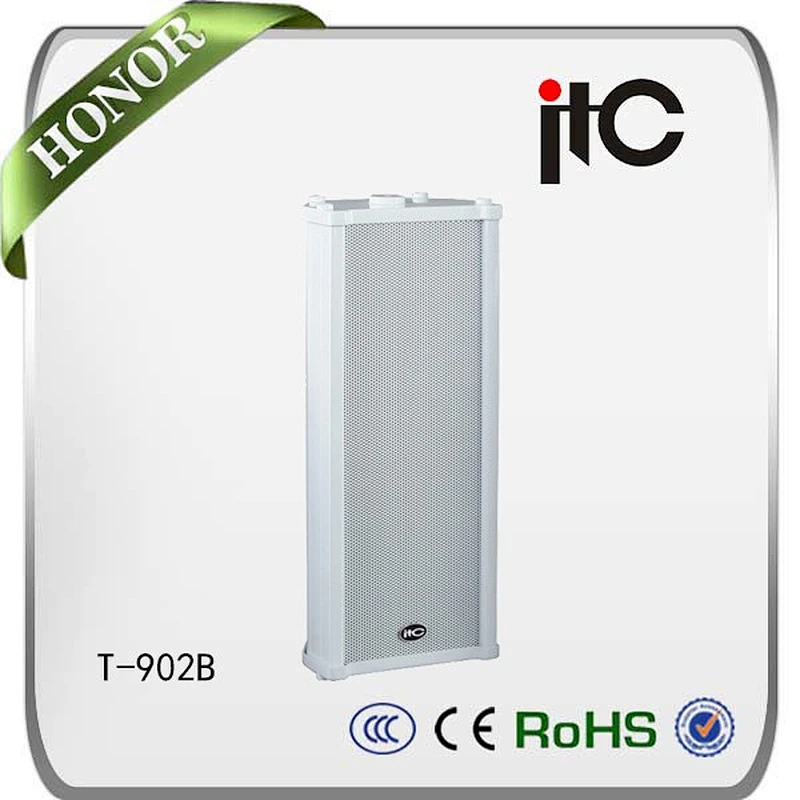

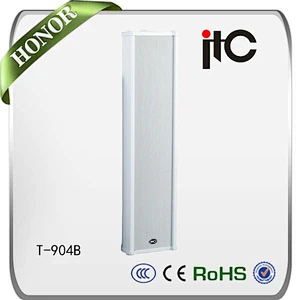

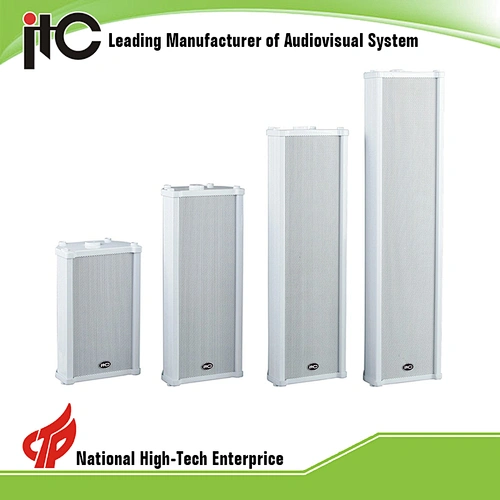

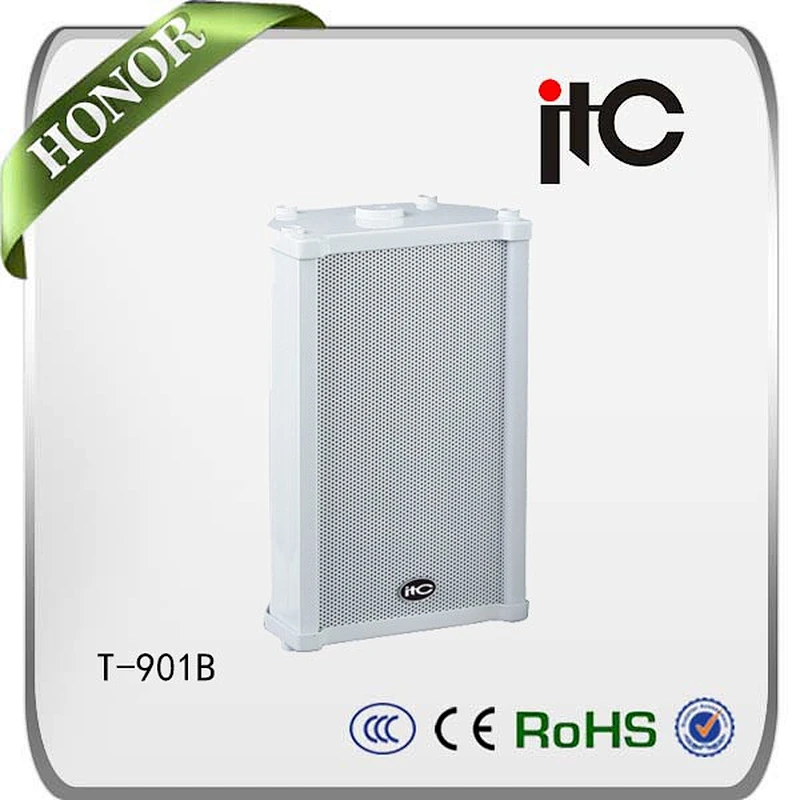

The T-901B is a weatherproof outdoor column speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 4” full range speaker drivers are designed of wide frequency response 130-16KHz, the power output at 5w-10w could meet paging and music applications varies from room size and ambient noise surroundings.
The aluminum enclosure and steel grille is of white color. It is also designed of weatherproof and heavy damage proof finish. Easy and secure wall mount installation in outdoor area through the supplied pair of metal mounting brackets.
It is ideal choice for industrial and commercial applications in the outdoor area of train station, shopping mall, parking area and factory where background music and paging is needed.
ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our productare complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
