- Place of Origin:CN;GUA
- Use:Home Theatre
- Model Number:T-105A
- Brand Name:ITC
- Type:Passive
- Channels:2 (2.0)
- Use:Public Address
- Power Taps @100V:1.5W, 3W, 6W
- Power Taps @70V:0.75W, 1.5W, 3W
- SPL(1W/1M):94dB
- Max. SPL (Rated W/1M):102dB

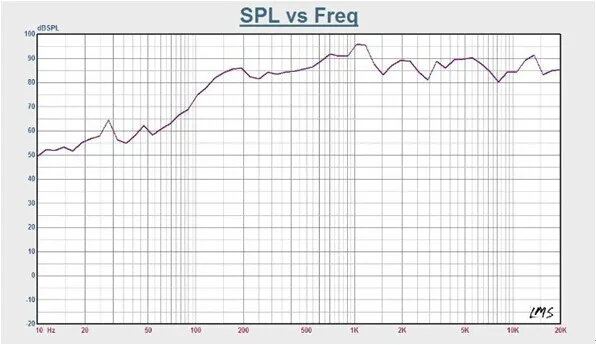

- Frequency Response (-10dB):110-14.5KHz
- Speaker Driver:5"x 1 1.5"x 1
- Cutout Size:200 x 65mm
- Weight:0.8Kg
- Mounting:Spring-clip
- Warranty:3 Years

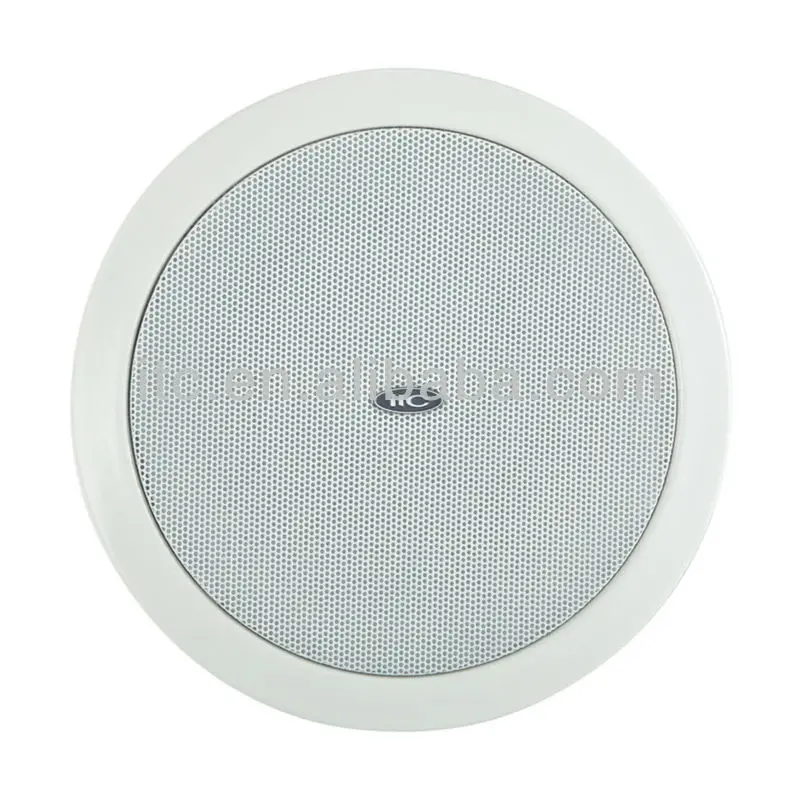

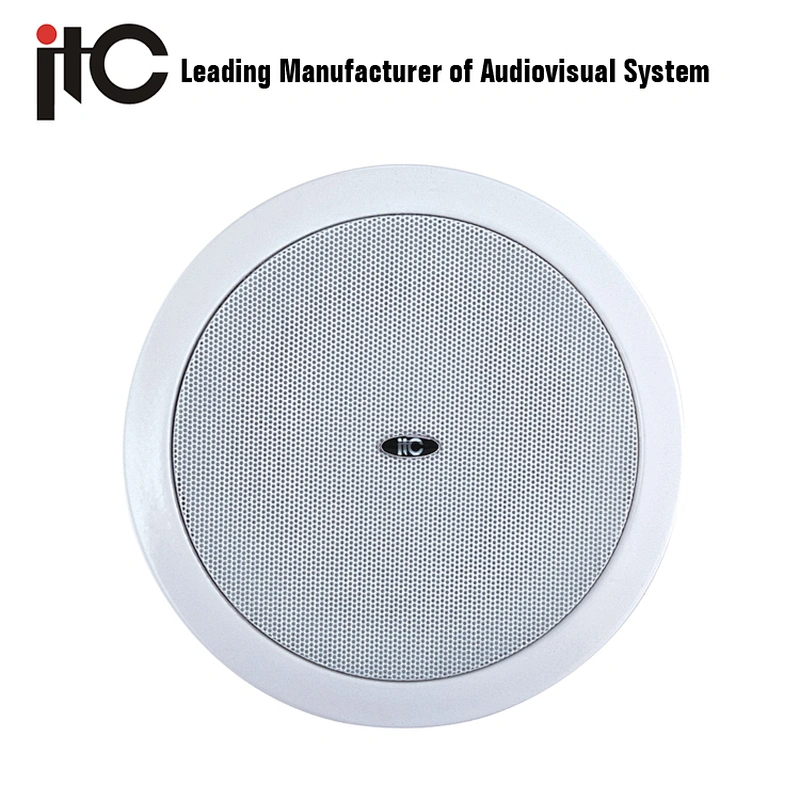

ITC T-105A Level A 5"Coaxial In-ceiling Speaker 6W
*Built-in 100V/70V transformer
*In-ceiling speakers
*5” +1.5"coaxial speaker unit
*Power taps 1.5W, 3W & 6W @100V
*Aluminum grille & metal baffle
*Metal back box could be added

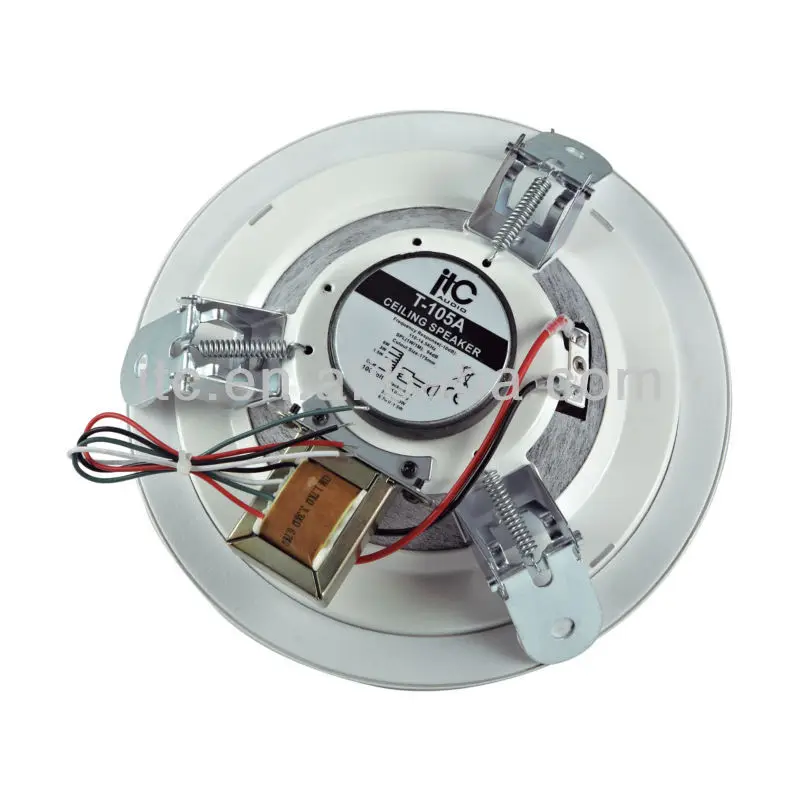

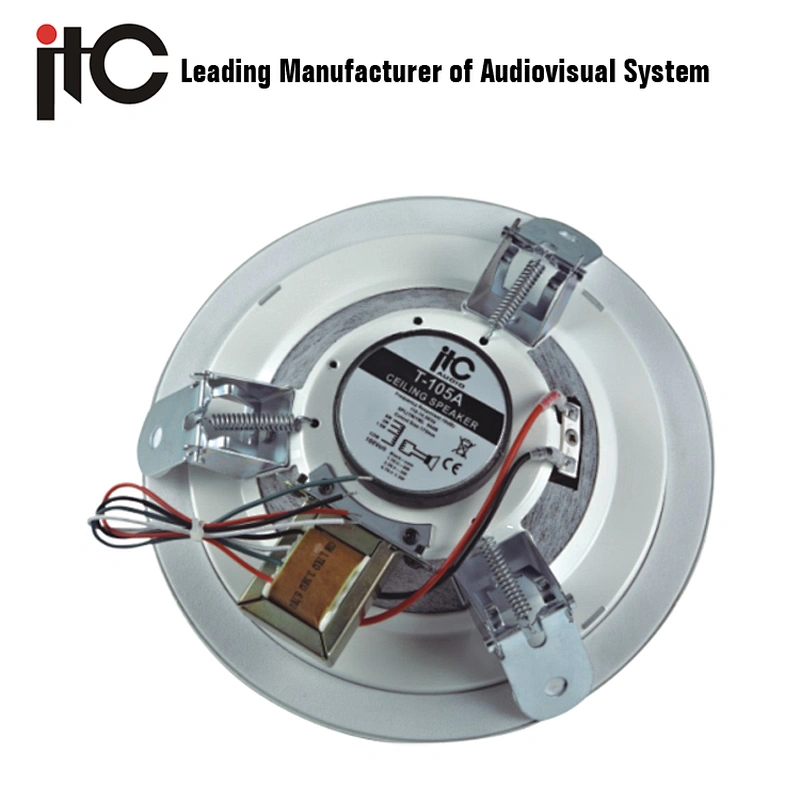

The T-105A is a coaxial in-ceiling speaker built in 70V/100V transformer. The 70V/100V transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple speakers.
The built-in 5"+ 1.5"coaxial in-ceiling speakers driver is designed of wide frequency response 110-14.5kHz, the multiple power taps 1.5W, 3W & 6W are helpful for different applications varies from room size and ambient noise surrounding. The aluminum grille and metal baffle are painted in attractive white color. Its spring clamp makes the easy and secure installation.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
Model | T-105A |
Power Taps @100V | 1.5W, 3W, 6W |
Power Taps @70V | 0.75W, 1.5W, 3W |
Impedance | Black: Com Red: 6.7 KΩ Green:3.3KΩ White:1.7KΩ |
SPL(1W/1M) | 94dB |
Max. SPL (Rated W/1M) | 102dB |
Frequency Response (-10dB) | 110-14.5KHz |
Finish | Baffle: Steel ,white Grille:Steel ,white |
Speaker Driver | 5"x 1 1.5"x 1 |
Cutout Size | 170mm |
Dimensions | 200 x 65mm |
Weight | 0.8Kg |
Mounting | Spring-clip |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
