High efficiency amplifier for 5.1 speakers

High efficiency amplifier for 5.1 speakers

Model NO.: T-6707
Delivery: FOB
Minimum order quantity: 10 units
Supply Ability: 1000 units / Week
Country of Origin: Guangzhou, Shenzhen or HK

Quantity:

Product Description

Place of Origin:CN;GUA
Use:Home Theatre
Model Number:T-6707
Brand Name:ITC
Type:Active
Channels:3 (2.1)
Use:Public Address
Network input:RJ45
Protocol support:TCP/IP, UDP, IGMP
Audio format:Mp3/Mp2
Sampling rate:8k-48kHz
Transmit speed:100Mbps
Frequncy output:80-16kHz
T.H.D.:less than 1%
S.N.:more than 70dB
Power consumption:less than 70W
Power supply: 220V, 50Hz

High efficiency amplifier for 5.1 speakers

Product Description

Feature:

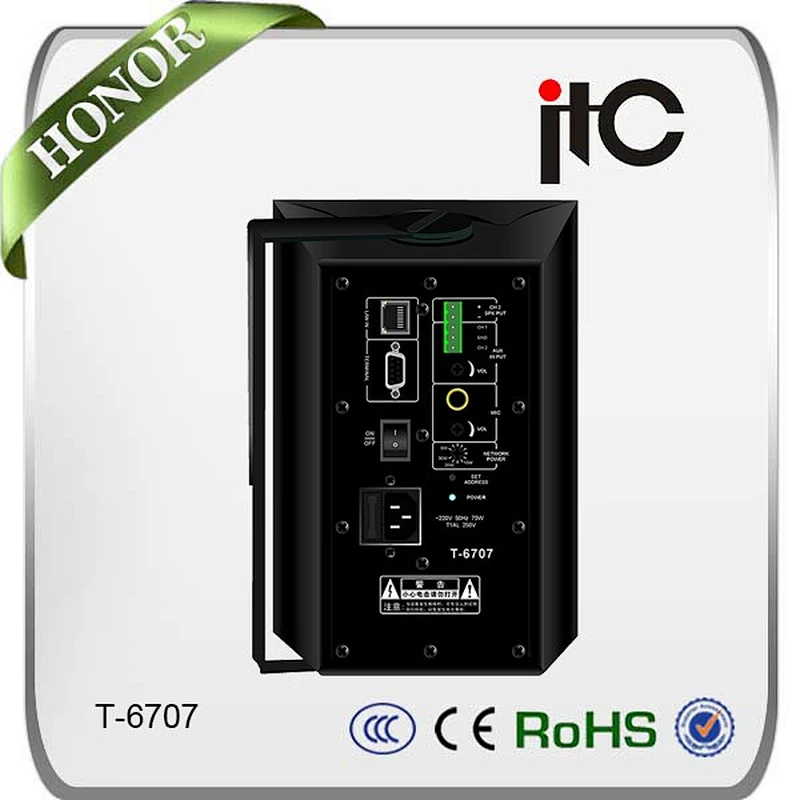

Model	T-6707
Network Input	Standard RJ45 Input
Communication Protocol	TCP/IP, UDP, IGMP (multicast)
Audio Mode	MP3/MP2
Sampling Rate	8K~48KHz
Transfer Rate	100Mbps
Audio Mode	16 digit stereo CD level
Output Frequency	80Hz~16KHz
T.H.D	≤1%
S/N Ratio	>70dB
External Speaker Output	8Ω, 2 x 10W, 20W, 30W Industry standard pressure line terminals
Impedance and Power
Audio Input	350mV, Industrial standard pressure line terminals
MIC Input Sensitivity	5mV
Working Temp	5℃~40℃
Humidity	20%~80% Relative humidity, without condensation
Power Consumption	≤70W
Power Supply	~220V-240V 50/60Hz
Dimensions	245 x 162 x 182mm
Weight	5.26Kg

T-6707 T-6707 -3

Apply to ordinary classrooms, multimedia classrooms, offices, meeting rooms and other places of

broadcast and local broadcast.

Features

* Professional integration of wall-mounted design, exquisite appearance, sophisticated technology, filling the high-end temperament.

* Equipment with embedded computer technology and DSP audio processing technology design;

high-speed industrial-grade chips, start-up time of less than 1 second.

* Built 1 channel network hardware audio decoding module that supports TCP/IP, UDP, IGMP (multicast) protocol for network transmission 16 CD-quality stereo audio signal.

* Built-in 2 x 10W / 20W / 30W (8Ω load) stereo power amplifier module, sound is smooth, power is strong, can select the network power, support left and right channel volume balance and adjustment.

* 1 line (AUX) and 1 microphone (MIC) inputs with separate volume control, and support for off

network paging function.

* Built-in audio processing circuitry to support multi-channel signal amplification, mixing, support

three class audio priority management.

* Support for 1000 classes audio priority mute control.

* Support PSTN phone broadcasting, support SMS voice broadcast.

* Support mobile WIFI on demand, wireless remote control on demand.

* Support panel serial port expansion on demand, to achieve remote programming on demand,

program selections, adjust the volume.

* Support for server management functions authorized to operate a unified, unified configuration

management user and password.

* Support for digital audio playback breakpoint passage of time, to ensure that the broadcast

synchronization effect.

* Support DHCP, compatible routers, switches, bridges, gateways, Modem, Intelnet, 2G, 3G, 4G,

multicast, unicast and other random network structure.

* Support for the new configuration registered intelligent voice prompts.

* Support 15KVESD protection, built-in network isolation mine processing circuit.

* One IP address reset button, if you lose the IP address, can restore the factory IP address.

* 1 channel to download the PC serial port IP address, is used to modify the IP address of network decoding module.

* Digital products, expansion of convenience, without geographical restrictions, no additional room management equipment, total net free line construction design, easy to install.
