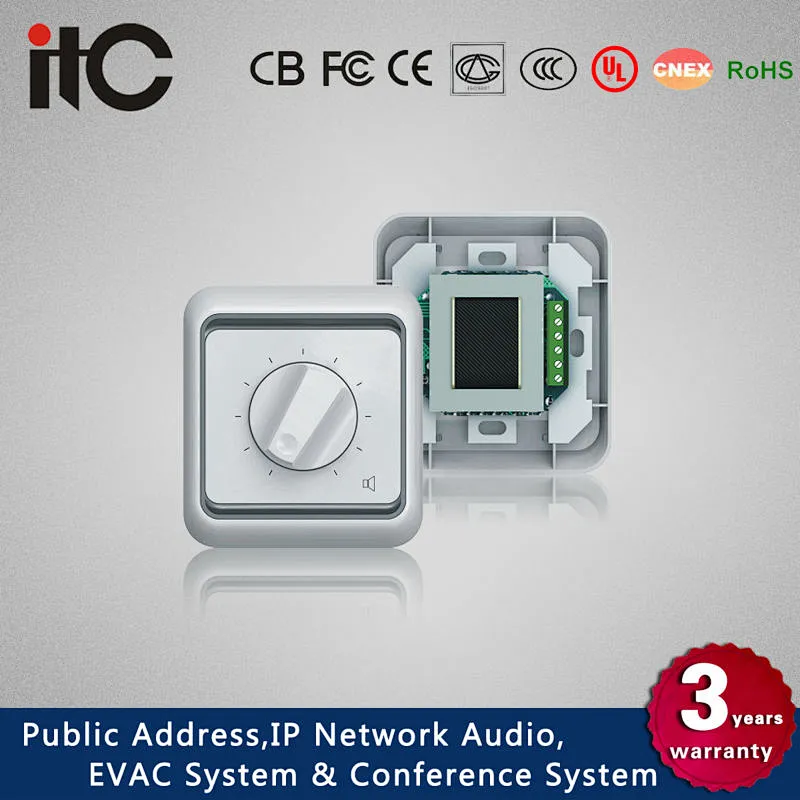

ITC T-691F Series 15W 30W 60W 100W 11 Steps Stereo Analog Knob Volume Control
ITC T-691F Series 15W 30W 60W 100W 11 Steps Stereo Analog Knob Volume Control

ITC T-691F Series 15W 30W 60W 100W 11 Steps Stereo Analog Knob Volume Control

Model NO.
T-691F /T-692F /T-693F/ T-694F/ T-695F
Delivery
FOB
Minimum order quantity
100 units
Supply Ability
1000 units / Week
Country of Origin
Guangzhou, Shenzhen or HK
Quantity:
  • Place of Origin:CN;GUA
  • Model Number:T-691F /T-692F /T-693F/ T-694F/ T-695F
  • Brand Name:ITC audio
  • Input Power:6W 15W 30W 60W 100W
  • Control Mode:Transformer
  • Signal Input:70~100V
  • Signal Output:0~100V
  • Speaker Type:Voltage Speaker
  • Frequency Response:80-16KHz
  • Relay:With DC24V relay
  • Step:11 Steps
  • Finish:ABS, white
  • Mounting Size:86*86*50mm

ITC T-691F Series 15W 30W 60W 100W 11 Steps Stereo Analog Knob Volume Control

Appearance

ITC T-691F Series 15W 30W 60W 100W 11 Steps Stereo Analog Volume Control Knob with Relay


Dimension

ITC T-691F Series 15W 30W 60W 100W 11 Steps Stereo Analog Volume Control Knob with Relay


Connection

ITC T-691F Series 15W 30W 60W 100W 11 Steps Stereo Analog Volume Control Knob with Relay


Specification

ITC T-691F Series 15W 30W 60W 100W 11 Steps Stereo Analog Volume Control Knob with Relay

Model

T-691F

T-692F

T-693F

T-694F

T-695F

Input Power

6W

15W

30W

60W

100W

Control Mode

Transformer

Signal Input

70~100V

Signal Output

0~100V

Speaker Type

Voltage Speaker

Frequency Response

80-16KHz

Relay

With DC24V relay

Step

11 Steps

Finish

ABS, white

Mounting Size

86x86x50mm

Dimension

85x93x65mm

Weight

0.16Kg

0.22Kg

0.22Kg

0.22Kg

0.24Kg

Accessory

One pair screw of M3.5x2.0
