- Light Source:LED
- Item Type:Wall Washers
- IP Rating:IP65
- Certification:CCC
- Certification:CE
- Place of Origin:CN;GUA
- Lamp Body Material:AL6063
- Application:Wall
- Input Voltage(V):DC24V
- Warranty(Year):2
- Working Temperature(℃):-20 - 50
- Working Lifetime(Hour):50000
- Brand Name:ITC

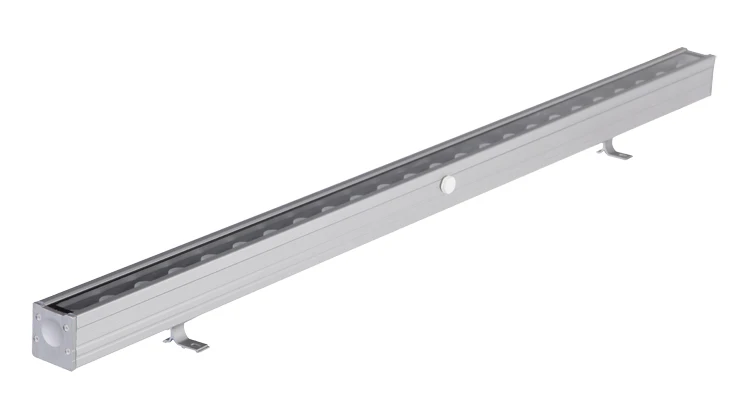

- Model Number:TL-709
- Product name:led wall washer
- LED Light Source:SMD3535
- Lamp Luminous Efficiency(lm/w):>80LM/W
- Color temperature:2200-6500K/RGB/R/G/B
- Beam Angle:10*60°/20°/30°/45°/60°
- Pixel Segment:1
- Control mode:DMX512/TTL
- Light Effects:Always light/fully color
- Size:1000*45*84mm
- Weight:1.42kg

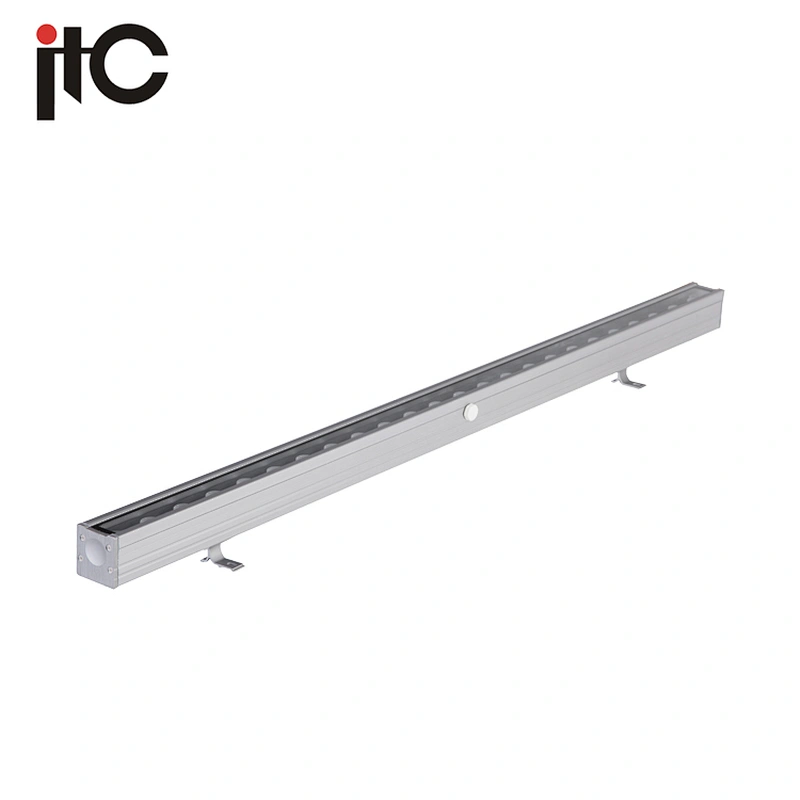

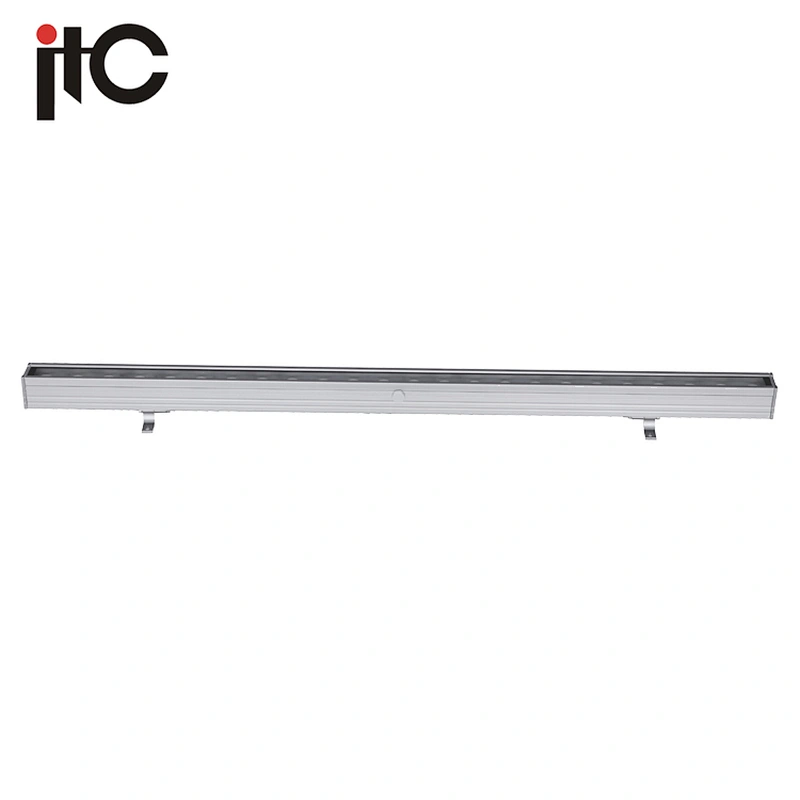

ITC Customized Led Strip Light 36W RGB Led Wall Washer for Project
*Fine appearance and light weight
*Adopt imported high heat conductive adhesive full irrigation and waterproof design
*Imported high photoelectric chip, waterproof packaging light source
*Outdoor lightning protection and electrostatic (ESD) protection design
*Various installation accessories can be added according to site installation requirements
Product Model | TL-709 | ||
Rated power | 24W/36W | 12W/18W | 6W/9W |
Product size(mm) | L1000*W45*H84 | L500*W45*H84 | L300*W45*H84 |
product weight | 1.42KG | 0.83KG | 0.57KG |
Pixel Segment | 1 | 1 | 1 |
LED Type | 1W high-power/SMD 3535 | ||
Input voltage | DC24V | ||
Beam Angle | 10*60°/20°/30°/45°/60° | ||
Light efficiency | >80Lm/w | ||
Color Temperature | 2200-6500K/RGB/R/G/B | ||
Control Method | DMX512/TTL | ||
Light effects | Always lighted/Full Color | ||
Ambient temperature | -20℃ to 50℃ | ||
Light body material | AL6063 | ||
Light body color | Iron Grey | ||
Protection level | IP65 | ||
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System,professional sound system,Led video wall and Lighting system , etc.
What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 600 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
