- Place of Origin:CN;GUA
- Brand Name:ITC
- Model Number:T-7707A
- Type:Wall Mount Speaker
- Network Interface:Standard RJ45 input
- Transmission Speed:100Mbps
- Protocol:TCP/IP, UDP, IGMP(Multicast)
- Audio Mode:16 bit stereo CD sound quality
- Sampling Rate:8KHz~48KHz
- Bit Rate:8Kbps~512Kbps
- Frequency Response:150Hz~16KHz(+1/-3dB)
- Output Power:2*20W
- Dimension:137*125*250mm

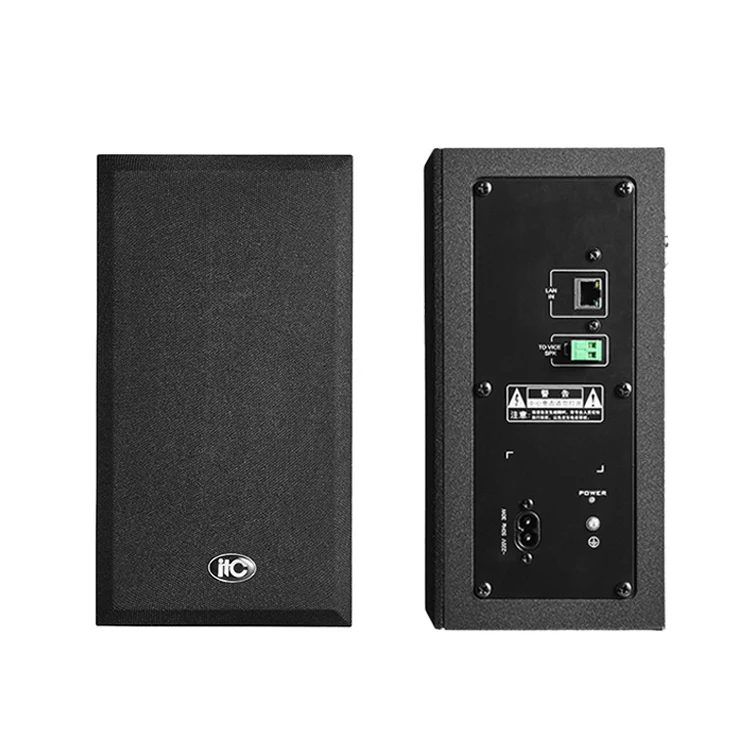

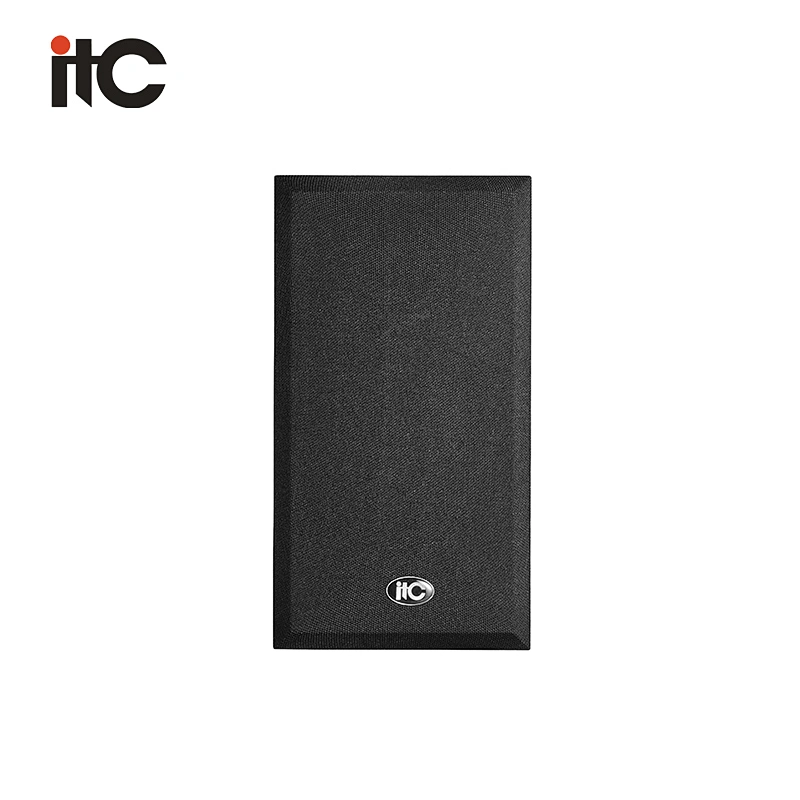

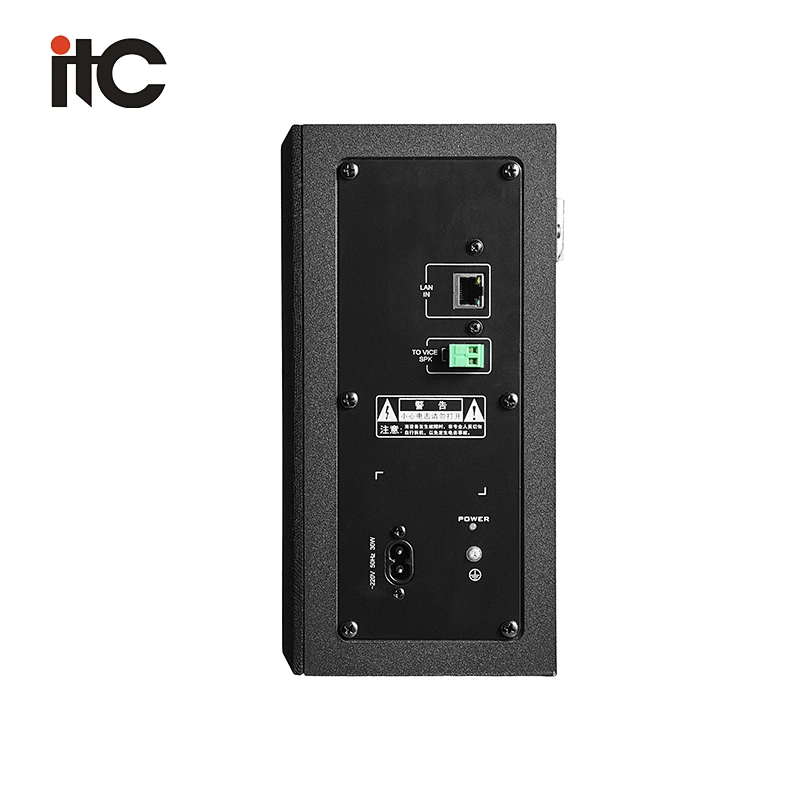

ITC Economic Wall Mount Speaker IP Active Loudspeaker for Pa system
T-7707A
Description
Suitable for ordinary classrooms, office, meeting rooms, prisons, hospital departments, subway and other placesthat need to broadcast recorded voice files or background music.
Features
* Professional integration wall mounted design,the speaker case subjects to sound resonance principle design concept,, with elegant and delicated appearance.
* Adopted embedded computer and DSP audio processing technology, rapid industrial SCM system chips, to ensure the start-up time is less than 1 second.
* Built 1 channel network hardware audio decoding module that supports TCP/IP, UDP, IGMP (multicast) protocol for network transmission 16 CD-quality stereo audio signal.
* Built-in 2 x 20W stereo power amplifier module, one channel connect with main speaker and the other channel connect with assistant speaker, Sound is smooth, power is strong, support network volume adjustment.
* Support routers, switches, bridges, gateways, Modem, Intelnet, 2G, 3G, 4G, multicast, unicast and other network structure.
* Digital products, easy to expand, without geographical restrictions, no additional room management equipment, adopts network free line construction design, which is much convenient to install.
* It supports remote hardware upgrade of the terminal, no need go to upgrade at the local site, to reduce maintenance burdens and make more simple operation.
Specifications
Model | T-7707A |
Audio Format | MP3 |
Frequency Response | |
THD | ≤1% |
SNR | >65dB |
Total Power Consuption | ≤50W |
Working Temperature | 5℃~40℃ |
Working Temperature | 20%~80% relative humidity, no condensation |
Input Power | ~190V-240V 50-60Hz |
* We have very strict quality control system.
* We promise the electronics yearly failure rate is less than 1%.
* 100% products need to be aged (full loading) at least 24 hours and tested 4 times before delivery.
ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our productare complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
Pre-sale Service
* High Quality + Factory Price + Quick Response + Reliable Service, is our working faith.
* Professional foreign trade team, Reply your Alibaba enquiry and trade messager in 24 working hours.
* 30 system consultants and 10 designers to make drawing and BOQ for each tender.
* Design and BOQ response to customer within 48 hours.
Middle-sale Service
* Testing quality again before sending goods.
* Well-trained sales team for sales and basic technical service.
* Online system software demo and configuration is available.
* PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
* Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goods.
After-sale service
* ITC guarantee all electronics of 3 years quality warranty.
* ITC could supply 1% wearing spare parts free of charge.
* Two English spoken technician provide online after sales service.
* Technical documents could be downloaded from website www.itc-pa.com.cn.
* All of the quality compliant shall be feedback with a solution within 48 hours.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
