- Place of Origin:CN;GUA
- Brand Name:ITC
- Model Number:T-7705A
- Type:IP Network audio terminal
- Network Interface:Standard RJ45 input
- Audio Format:MP3
- Protocol:TCP/IP, UDP, IGMP(Multicast)
- Audio Mode:16 bit stereo CD sound quality
- Sampling Rate:8KHz~48KHz
- Display Screen Size:4.3 inches
- Display Screen Type:TFT true color LCD screen
- Frequency Response:150Hz~16KHz(+1/-3dB)
- Dimension:190*110*40mm

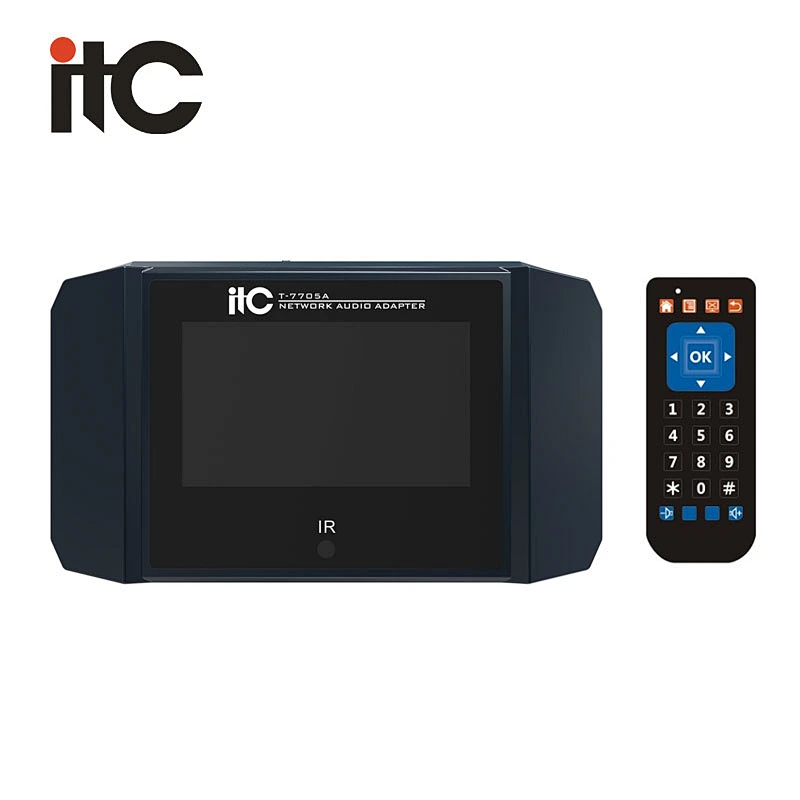

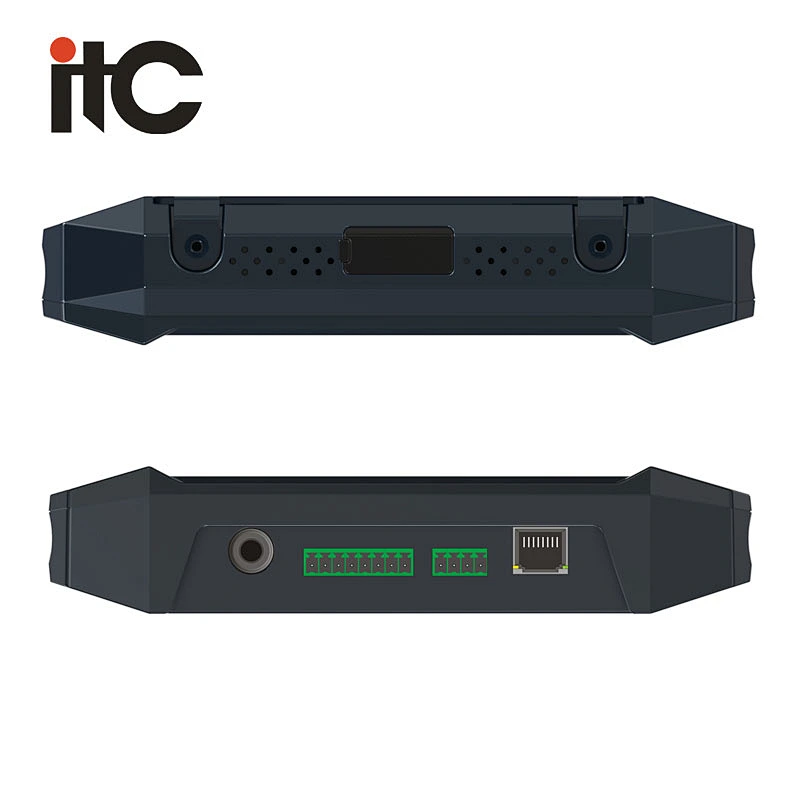

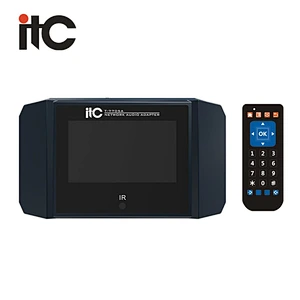

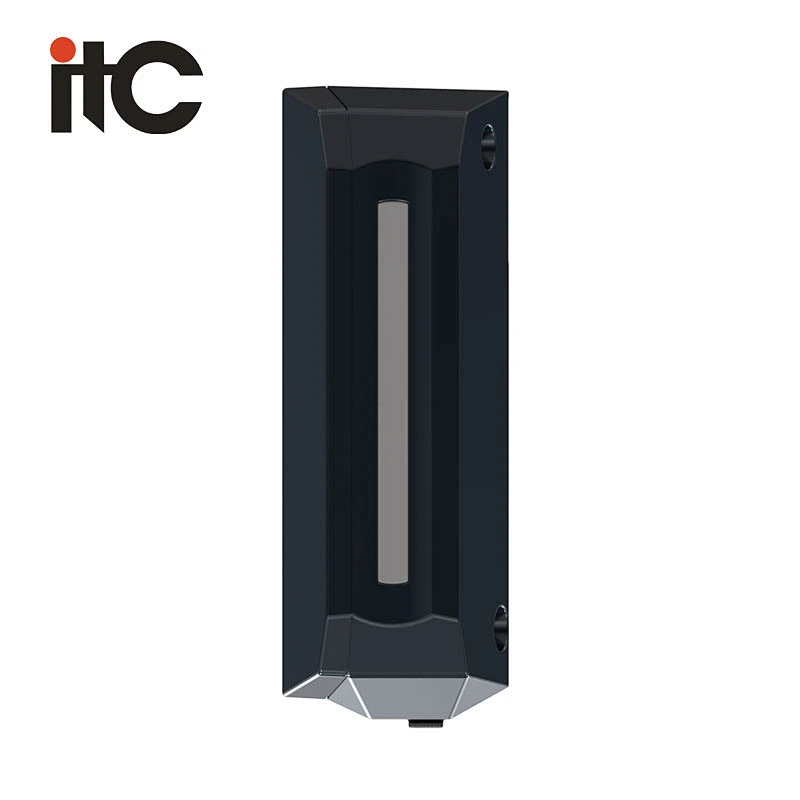

ITC economic wall mounted IP Network audio terminal adapter for Pa system
T-7705A
It is wide application to schools, office buildings, convention centers, alarm centers, railway stations and so on. Based on network digital transmission, it fulfill the functions of BGM broadcast, timing ringing task, sound source collection, one-way paging, and so on.
Features
1.Wall-mounted designwith small size, aluminum alloy structure design, exquisite beauty.
2. Clear 4.3 inches TFT LCD screen, with infrared remote control function, easy to operate.
3. Adopt embedded computer and DSP audio processing technology.
4. Built-in network IP decoding module has real-time broadcasting and paging functions ; delay time of signal collection playback and paging is less than 100ms.
5. Built-in broadcast on demand acquisition module, to achieve real-time broadcast on-demand from network media library.
6. Build-in 2 x 30W digital amplifier, lower heat and higher efficacy, with CD level perfect sound.

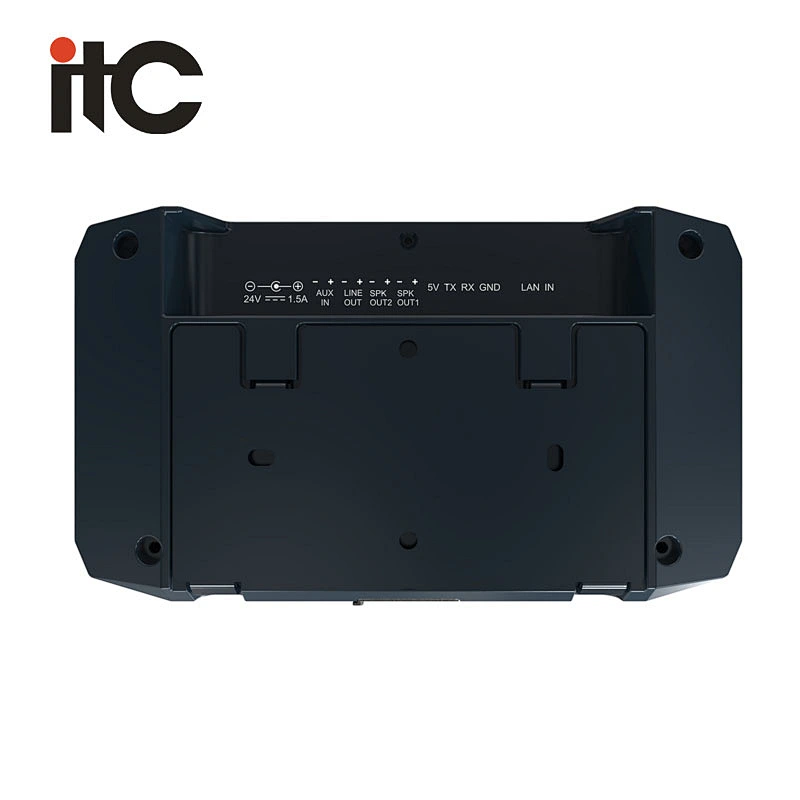

7. 1 line input and 1 line output interface, suitable for on-site local PA broadcasting.
8. 1 line input USB, suitable for local broadcast on demand, it supports local on - demand USB plug - in device playback in the offline situation.
9.Priority function:
1)Highest priority network alert.
2)The local MIC and AUX are the same level, have higher priority than network background music.
3)Network background music priority is higher than local USB play music.
10. 1 line volume control box interface, support extending the volume control box device to achieve the volume control of AUX and network.
11. Realize information such as local information and playback status, AUX and network volume adjustment, on-demand server media library or USB external device audio resources by infrared remote control.
12. Support on-demand, last song / next song, loop playback and other functions.
13. Support the lock screen setting of the terminal display, the lock screen time can be customized.
14. Compatible with routers, switches, Bridges, Modem, Internet, 2G, 3G, 4G, etc.
15.It supports remote hardware update of the terminal, no need go to upgrade at the local site, to reduce maintenance burdens and make more simple operation.
Specifications
Model | T-7705A |
Network Interface | Standard RJ45 input |
Support Protocol | TCP / IP, UDP, IGMP (multicast) |
Sampling Rate | 8K~48KHz |
Transmission Rate | 100Mbps |
Audio Mode | 16-bit CD quality |
4.3inches | |
TFT true color LCD screen | |
Operation Mode | Infrared remote control |
Remote Distance | ≤8 meters straight, accessibility |
THD | ≤1% |
Frequency Response | 80Hz~16KHz +1dB/-3dB |
SNR | ≥68dB |
AUX Input Sensitivity | 350mV industry standard voltage limited terminals |
MIC Input Sensitivity (Unbalanced) | 5mV |
Short-circuit Output | DC24V/1.5A |
Working Temperature | 5℃~40℃ |
Operating Humidity | 20% to 80% relative humidity, non-condensing |
Total Power Consumption | ≤50W |
Power Input | ~190-240V 50-60H |
Size | 190×110×40mm |
Weight | 0.5kg |
* We have very strict quality control system.
* We promise the electronics yearly failure rate is less than 1%.
* 100% products need to be aged (full loading) at least 24 hours and tested 4 times before delivery.
ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our product are complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
Pre-sale Service
* High Quality + Factory Price + Quick Response + Reliable Service, is our working faith.
* Professional foreign trade team, Reply your Alibaba enquiry and trade messager in 24 working hours.
* 30 system consultants and 10 designers to make drawing and BOQ for each tender.
* Design and BOQ response to customer within 48 hours.
Middle-sale Service
* Testing quality again before sending goods.
* Well-trained sales team for sales and basic technical service.
* Online system software demo and configuration is available.
* PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
* Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goods.
After-sale service
* ITC guarantee all electronics of 3 years quality warranty.
* ITC could supply 1% wearing spare parts free of charge.
* Two English spoken technician provide online after sales service.
* Technical documents could be downloaded from website www.itc-pa.com.cn.
* All of the quality compliant shall be feedback with a solution within 48 hours.
