- Product Name:Video Conferencing Camera
- Power Supply:DC12V
- Framework Protocol:In accordance with ITU H.323 and VCS protocol
- Display Method:Support 4:3 and 16:9
- Access Rate:Access rate of 64Kbps - 8Mbps
- Ambient Temperature:0 ℃ ~ 35 ℃ (work) - 40℃~ 55℃ (non-work state)
- Internet Port:1 -channel gigabit, Rj45 * 1
- Application:conference room, Remote meeting
- Size:248mm*142mm*205.5mm
- Warranty:3 Years
- Type:Network Conference System
- Type:Video Conference System
- Function:Remote meeting
- Simultaneous Interpretation:No
- Place of Origin:CN;GUA
- Brand Name:ITC
- Model Number:NT90MT

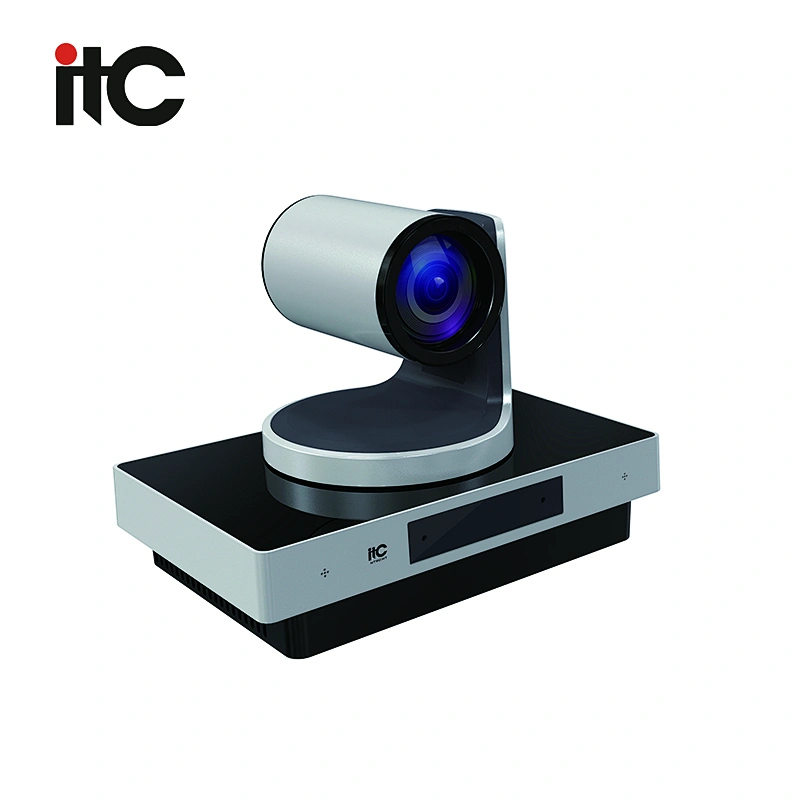

NT90-MT series is a new Integrated HD video conference terminal, with integrated HD camera, with delicate appearance and excellent performance;
It supports H.265 technology , it can achieve ultra-high definition effects with ultra-low bandwidth, simple installation, suitable for various medium and small size of meeting applications.
Features
* Adopting split type structure, built-in hardware video processing unit, with embedded operating system, non-Windows, Android, etc.
* With various interfaces, including 3-channel HD video inputs, 2 -channel HD video outputs.
* Support the repair mechanism in case of IP network packet loss, to ensure that there is no mosaic when the packet loss rate reaches 5%. the conference can still be held normally when the packet loss rate reaches 8%. the image to be acceptable when it is 20% packet loss . audio is not affected and the conference is guaranteed to proceed normally with 70% packet loss rate.
* With ultra strong network adaptability, it adjusts the resolution according to the network automatically according to the network to ensure the meeting go fluently.
* With H.239 dual-stream protocol, both main and auxiliary streams can reach 1080P.
* With super network adaptability, it will adjust the resolution to ensure the smoothness of the meeting according to the network automatically.
* With H.239 dual-stream protocol, both main and auxiliary streams can reach 1080P.
* Supports single screen with double images, dual screen with double images function.
* Support for PIP function. ONE single-screen maximum support 25-channel screen at the same time.
* Built-in conference recording module, to fulfill conference recording.
* The terminal is built-in sign-in, electronic whiteboard, voting, file sharing and other data conferencing functions.
* The terminal built-in MCU supports max. 22-site conferences, supporting H.239 auxiliary streams.
* It supports open, close, drag and drop the remote video image at will .
* It supports automatically open the remote auxiliary stream video image .
* It supports remote control to the dual-stream code rate, resolution , as well as the PTZ camera for all remote sites
* It supports sending scrolling messages, banners and other operations.
* Built-in 4G module to realize meeting with 4G network. (optional)
* Built-in wifi module to support meeting with wifi network. (optional)
* It supports wireless screen projection function. (optional)
Parameters
Model | MT01 | MT01M4 | MT01M8 | MT01M16 | MT01M22 |
Built-in MCU | NO | 4 sites | 8 sites | 16 sites | 22 sites |
Size | 248mm×142mm×205.5mm | ||||
Framework Protocol | In accordance with ITU H.323 and VCS protocol | ||||
Power Supply | DC 12V | ||||
Video Input | 1-channel HD video input, +1 channel built-in HD video input ; Support 1280×720P 60fps/50fps/30fps/25fps, 1920×1080P 60fps/50fps/30fps/25fps HD input | ||||
Video Output | 2-channel HD video outputs, HDMI×2, Supports 1280×720P 60fps/50fps/30fps/25fps, 1920×1080P 60fps/50fps/30fps/25fps and 4K HD output | ||||
Audio Input | 2 -channel audio inputs, MIC IN×1, LINE In×1 | ||||
Audio Output | 2 -channel audio output, HDMI×1, LINE OUT×1, support connect to speaker or audio mixer | ||||
Internet Port | 1 -channel gigabit, Rj45×1 | ||||
USB PortInterface | ≥2 USB interfaces, can be used to extend and upgrade online | ||||
Video Protocol | Support H.264, H264HP, H264SVC, H.265 video standard protocol | ||||
Dual Stream Protocol | Support H. 239 dual stream protocol. | ||||
Audio Protocol | Support G.711A, G.711U, G.722, G.722.1, G.722.1 C, OPUS CODEC protocol standard | ||||
Display Method | Support 4:3 and 16:9 | ||||
Access Rate | Access rate of 64Kbps - 8Mbps | ||||
Audio Quality | 20KHz (supports dual sound track stereo effect), opus-48k | ||||
Audio Processing | Support automatic noise suppression, automatic gain control and automatic echo cancellation | ||||
Audio Function | Support the mute function, adjustable volume of conference | ||||
Others | Support networking for hardware and software terminal, support NAT traverse, IP Precedence, Diffserv | ||||
Management and Maintenance | The terminal is built-in WEB server, to fulfill remote management or control through WEB. Network Ping test, network bandwidth test, network packet loss rate test; The statistical function of network state can make real-time statistics on the protocol, rate and packet loss rate of connection in communication Support local audio and video loop diagnostics; One-click to test local audio and video | ||||
Ambient Temperature | 0 ℃ ~ 35 ℃(work) - 40℃~ 55℃(non-work state) | ||||
Relative Humidity | 10% ~ 80% (working status) 0% ~ 95% (non-working state) (not condensation) | ||||
Specification of Built-in Camera | 1/2.3 inch 12 million image sensor | ||||
12 times Optical zooming | |||||
1080P full HD resolution | |||||
72.5 degree horizontal view angle | |||||
* We have very strict quality control system.
* We promise the electronics yearly failure rate is less than 1%.
* 100% products need to be aged (full loading) at least 24 hours and tested 4 times before delivery.
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one stop
solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, Led video wall and Lighting system , etc.
What's more,our system is applied to various worldclass events, such as 2008 Peking Olympic
Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 600 thousand successful cases in China and in worldwide.
Pre-sale Service
* High Quality + Factory Price + Quick Response + Reliable Service, is our working faith.
* Professional foreign trade team, Reply your Alibaba enquiry and trade messager in 24 working hours.
* 30 system consultants and 10 designers to make drawing and BOQ for each tender.
* Design and BOQ response to customer within 48 hours.
Middle-sale Service
* Testing quality again before sending goods.
* Well-trained sales team for sales and basic technical service.
* Online system software demo and configuration is available.
* PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
* Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goods.
After-sale service
* ITC guarantee all electronics of 3 years quality warranty.
* ITC could supply 1% wearing spare parts free of charge.
* Two English spoken technician provide online after sales service.
* Technical documents could be downloaded from website www.itc-pa.com.cn.
* All of the quality compliant shall be feedback with a solution within 48 hours.
