- Product name:T-205B T-206B T-208B
- Power Taps @100V:0.75W, 1.5W, 3W, 6W 1.25W, 2.5W, 5W, 10W 1.87W, 3.75W, 7.5W, 15W
- Power Taps @70V:0.38W, 0.75W, 1.5W, 3W/0.62W, 1.25W, 2.5W, 5W/0.93W, 1.87W, 3.75W, 7.5
- SPL(1W/1M):88dB 89dB 90dB
- Max.SPL (Rated W/1M):96dB 99dB 102dB
- Frequency Response:80-20KHz
- Speaker Driver:5"*1 1.5"*1 6"*1 1.5"*1 8"*1 1.5"*1
- Cutout Size:180mm 208mm 245mm
- Dimension:215 *75mm 240 *78mm 280 *80mm
- Weight:0.6Kg
- Certification:CE
- Power Source:AC
- Support Apt-x:No
- Support APP:No
- Battery:No
- Number of Loudspeaker Enclosure:1
- Audio Crossover:Two-Way
- Woofer Size/Full-Range Size:6"
- Set Type:Speaker
- Material:plastic
- Waterproof:No
- PMPO:6W
- Support Memory Card:No
- Speaker Type:In-ceiling Speaker
- Output Power:6W
- Remote Control:No
- Cabinet Material:plastic
- Frequency Range:80Hz-20KHz
- Display Screen:No
- Intelligent Personal Assistant:None
- Voice Control:No
- Built-in Microphone:No
- Tweeter Size:1.5"
- Type:Passive
- Use:Home Theatre
- Use:Public Address
- Channels:2 (2.0)
- Special Feature:Mini
- Place of Origin:CN;GUA
- Brand Name:ITC
- Model Number:T-205B/T-206B/T-208B

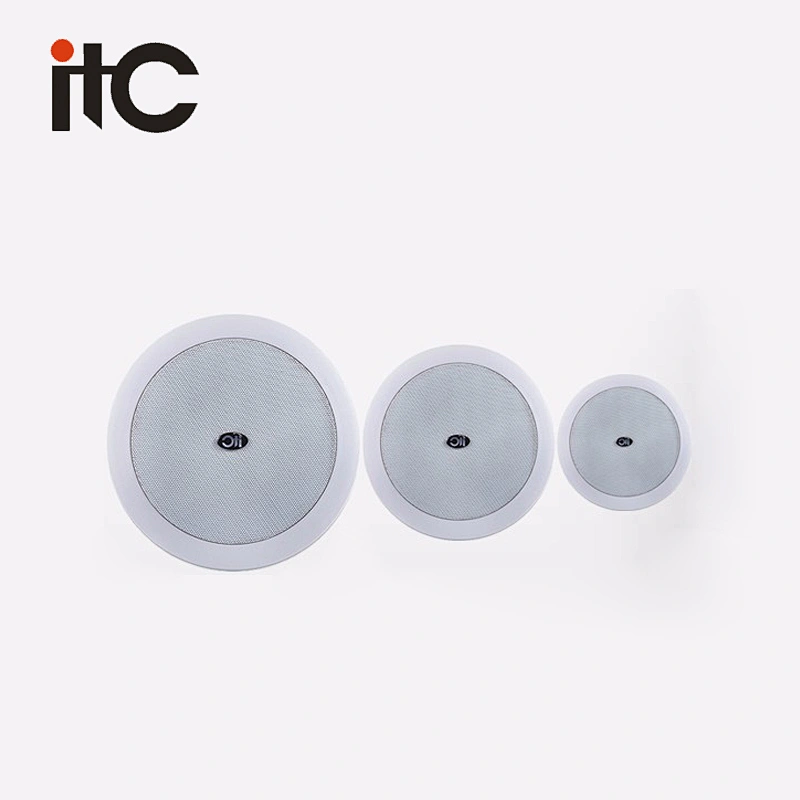

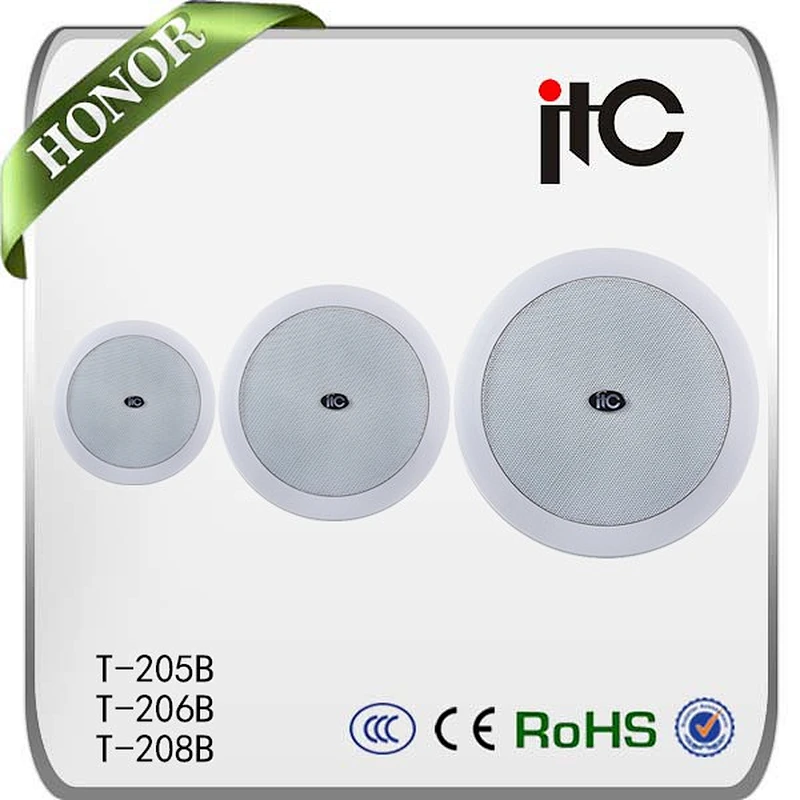

ITC In-ceiling Loudspeaker Two Way 3 Watts 6 Inch Flat Coax Speaker, ABS Ceiling Speaker

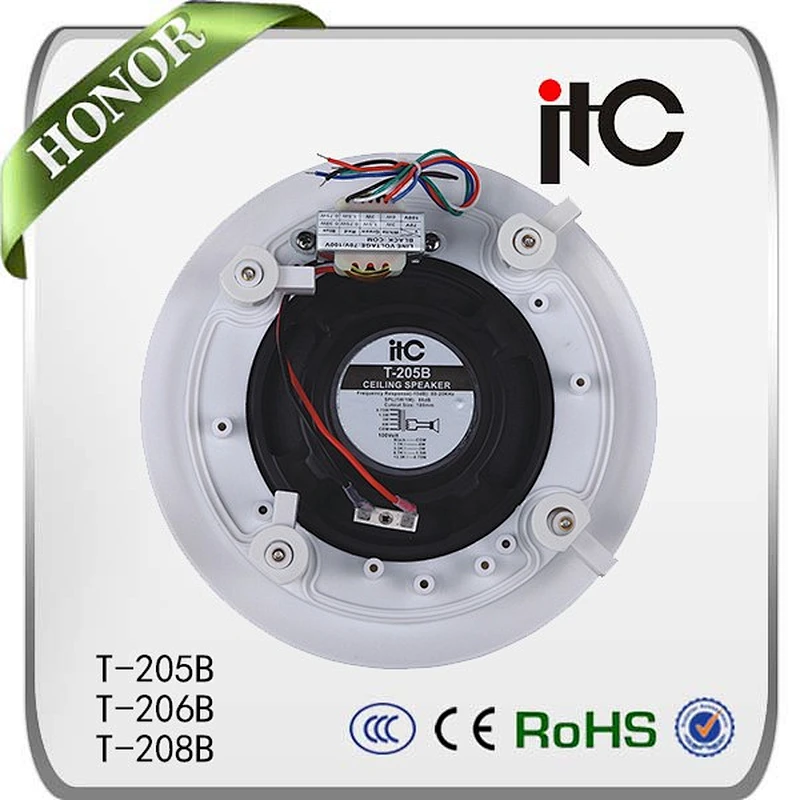

1) Built-in 100v/70v transformer
2) Excellent sound quality speaker for music & speech
3) In-ceiling type loudspeaker

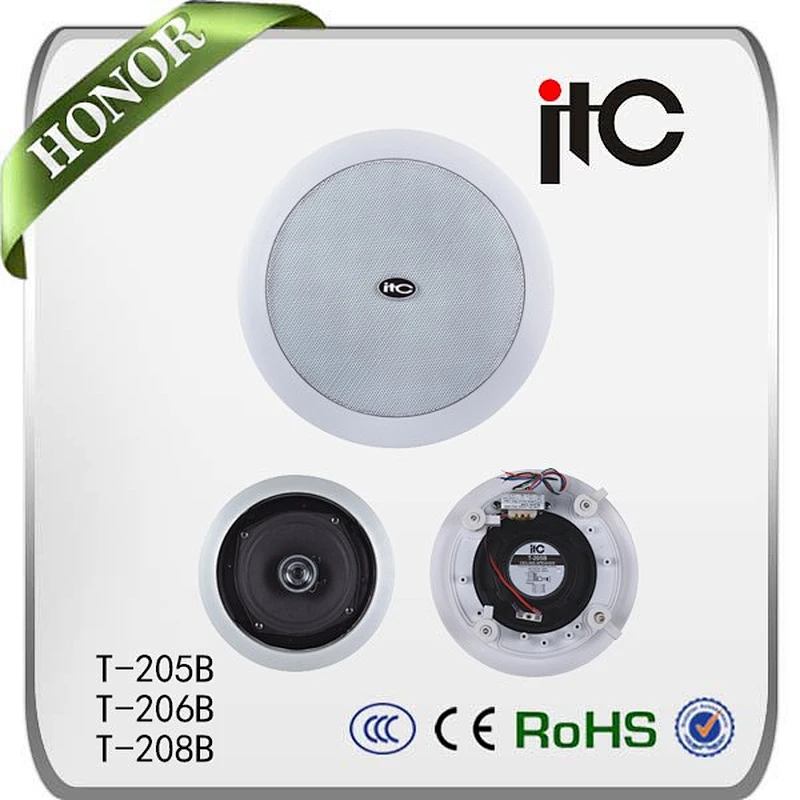

4) 5” +1.5” coaxial paper speaker unit
5) Power taps 0.75W, 1.5W, 3W & 6W @100V

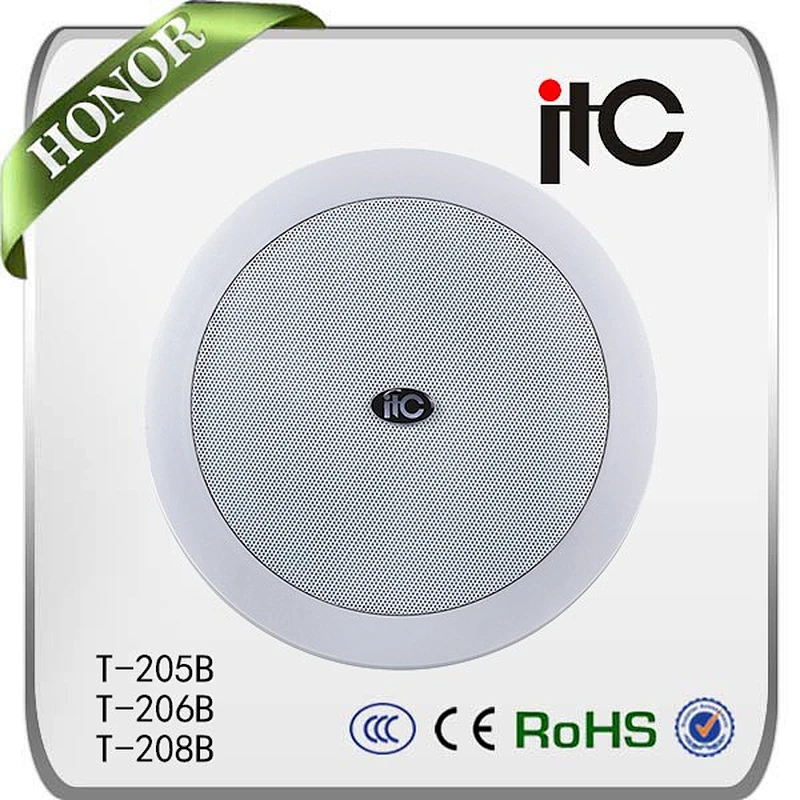

6) Metal grille & ABS baffle
7) Paint in white color
8) Flush mount easy & secure installation
Model | T-205B |
Rated Power Output @100V | 0.75W, 1.5W, 3W, 6W |
Rated Power Output @70V | 0.38W, 0.75W, 1.5W, 3W |
Impedance | Black: Com/Blue:13.3KΩ/Red:6.7KΩ Green:3.3KΩ/White:1.7KΩ |
Sensitivity(1W/1M) | 88dB |
Max. Sensitivity (W/1M) | 96dB |
Frequency Response (-10dB) | 80-20KHz |
Speaker Driver | 5"x 1 1.5"x 1 |
Cutout Size | 180mm |
Dimension | 215 x 75mm |
Weight | 0.6Kg |
ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our productare complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
