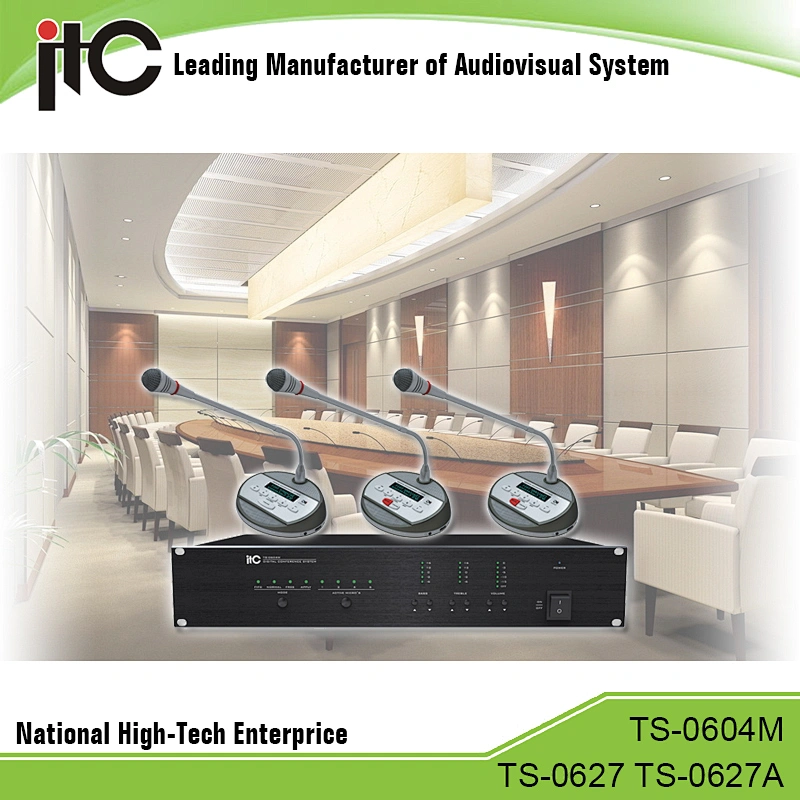

ITC T-0604 Series Small to Large Scale Project Used Conference Room Microphone System

• Place of Origin:CN;GUA
• Simultaneous Interpretation:Yes
• Function:translation
• Model Number:T-0604 Series
• Brand Name:ITC
• Type:Audio Conference System
• Power Supply:AC 100 or 240V; 50 to 60Hz
• Static Power Consumption:10W
• Max. of Power Consumption:350W
• Output Power:≤110W/24V per channel
• Aux Output:2V, 100 ohm, unbalanced
• Frequency Response:60-16KHz
• S/N Ratio:>80dB
• Total Harmonic Distortion:<0.5%
• Over Carrier Distortion:<1%
• Crosstalk Attenuation:>50dB

ITC T-0604 Series Small to Large Scale Project Used Conference Room Microphone System

Overview

ITC™ TS-0604 Series Intelligent Conference Systemadoptstech. of digital audio transmission. With the help of official software, users could manage the whole system and control the schedule easily.Multiple functions is available, such as discussion, telephone conference, voting, camera tracking, simultaneously interpretation, etc.It mainly consists of highly integrated system host, conference microphone, and management software.

Advantage

1)Hi-fi Pick-up in the distance of 50cm

2)Excellent function of howling cancel

3)High quality audio transmission

The system adopts 8-core air cable to ensure long distance audio transmission

4)UsingSMT

If you just want to discuss ……

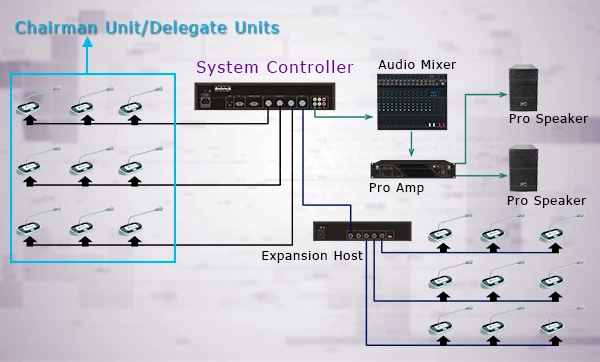

Products Above are…

1)TS-0604MIntelligent Conference System Controller

2)TS-0602/TS-0602AChairman/Delegate Conference Microphone

3)TS-16P-4 Series Audio Mixer

4)TS-200PI Precise Series Professional Amplifier

5)TS-8A Series Professional Speaker

Function

1)When participants want to speaker, they just need to press the button named “MIC”

2)Chairman unit has the highest priority

3)4 modes of conference management: First-in-first-out (FIFO)/Normal/Free/Apply

4)The host is with audio output for sound reinforce devices

5)Up to 128 speaking units are allowed, and if users want more, just add a expansion host so that the capacity of speaking units is up to 4096

6)With sound reinforce system

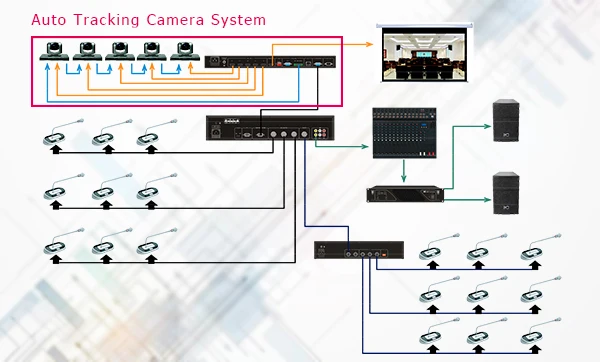

If you also need the tracking camera ……

You should add these devices below:

1)TS-0690Tracking Camera Controller

2)TS-0691 Tracking Camera

3)Also, we have upgrade conference microphoneto provide you with more function, it’s named TS-0627/TS-0627A

Extensions

1)Participants could do voting, selection and grading

2)With the help from tracking camera controller, participants could see the speaker easily

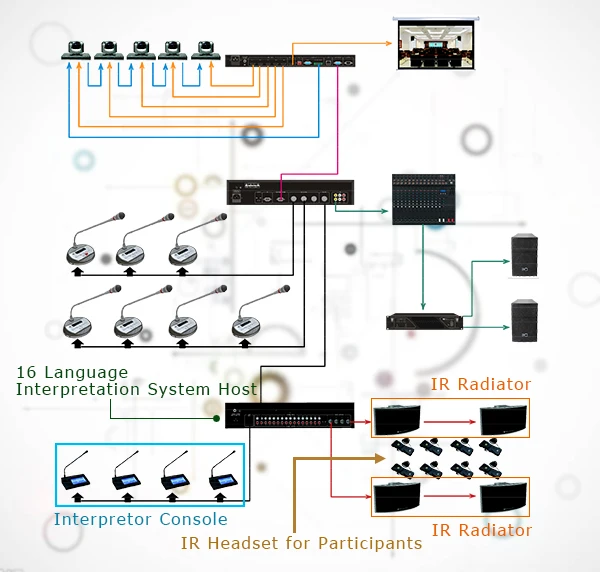

If your conference is in international grade… …

You should add devices below:

1)TS-0670H16 Channel Language Simultaneously Interpretation Controller

2)TS-0670HYFull Digit Interpreter Console

3)TS-0670HSIR Radiator

4)TS-0670HD-1616 Channel language Receiver

Extensions

Participants speaking up to 16 languages could attend the meeting with great experience
