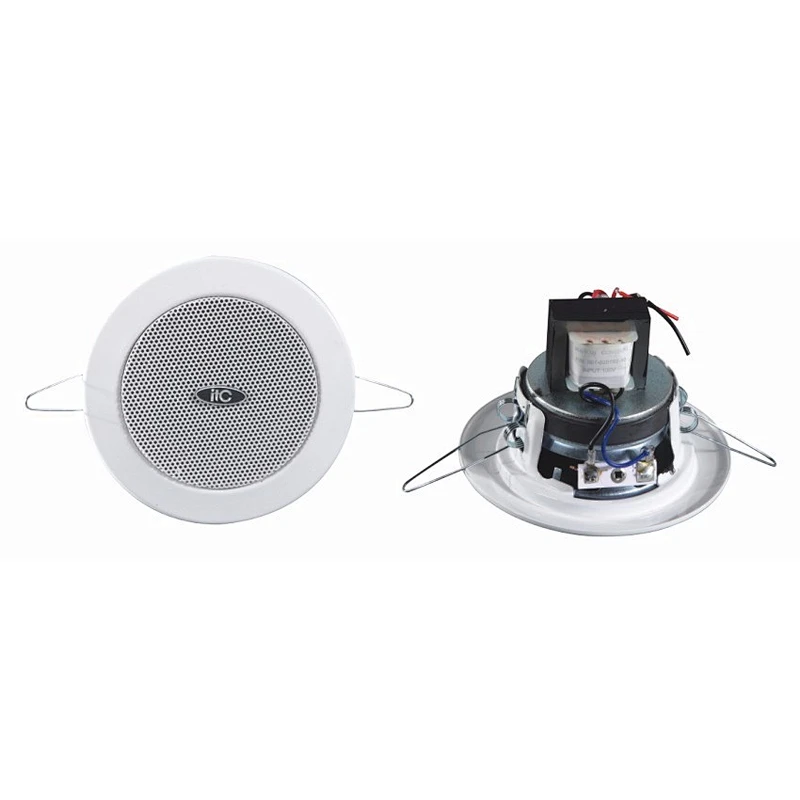

ITC T-103G School Broadcast Aluminum 1.5W/3W/6W Ceiling Speaker
ITC T-103G School Broadcast Aluminum 1.5W/3W/6W Ceiling Speaker
ITC T-103G School Broadcast Aluminum 1.5W/3W/6W Ceiling Speaker
ITC T-103G School Broadcast Aluminum 1.5W/3W/6W Ceiling Speaker
ITC T-103G School Broadcast Aluminum 1.5W/3W/6W Ceiling Speaker

ITC T-103G School Broadcast Aluminum 1.5W/3W/6W Ceiling Speaker

Model NO.
T-103G
Delivery
FOB
Minimum order quantity
500 pieces
Supply Ability
1000 pieces / Week
Country of Origin
Guangzhou, Shenzhen or HK
Quantity:
  • Place of Origin:CN;GUA
  • Use:Home Theatre
  • Model Number:T-103G
  • Brand Name:ITC
  • Type:Passive
  • Channels:1
  • Use:Public Address
  • Power Taps @100V:3W, 6W
  • Power Taps @70V:1.5W, 3W
  • Impedance:Black: Com White: 3.3KΩ, Red: 1.7Kohm
  • SPL(1W/1M):89dB
  • Max. SPL (Rated W/1M):97dB
  • Frequency Response (-10dB):120-20KHz
  • Finish:Baffle: Steel, White Grille: Steel, White
  • Speaker Driver:3 inch * 1
  • Cutout Size:80mm
  • Dimensions:102 * 75mm

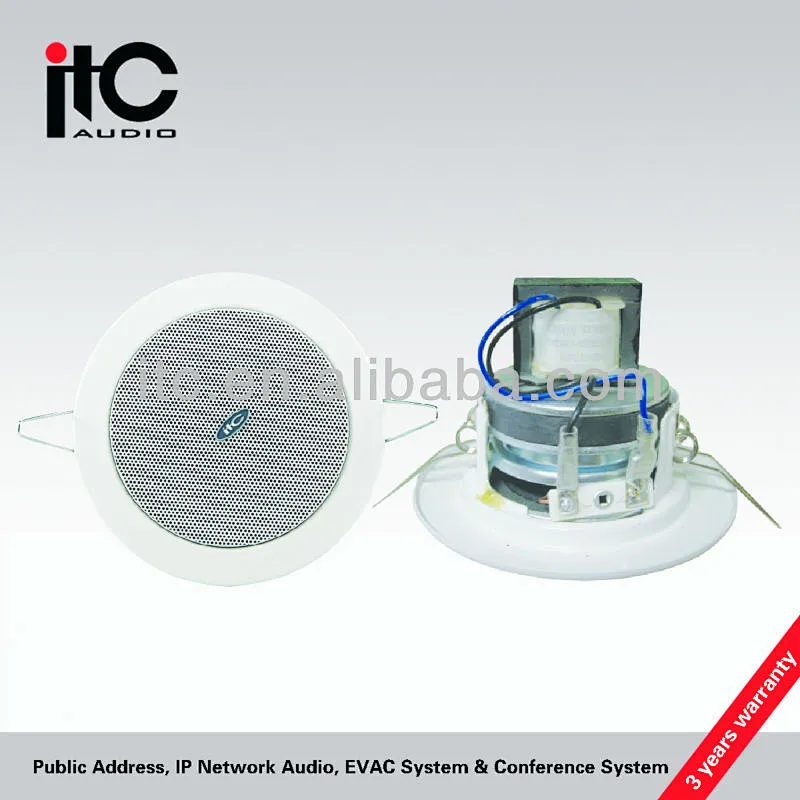

ITC T-103G School Broadcast Aluminum 1.5W/3W/6W Ceiling Speaker

Product Description

Product Description.jpg

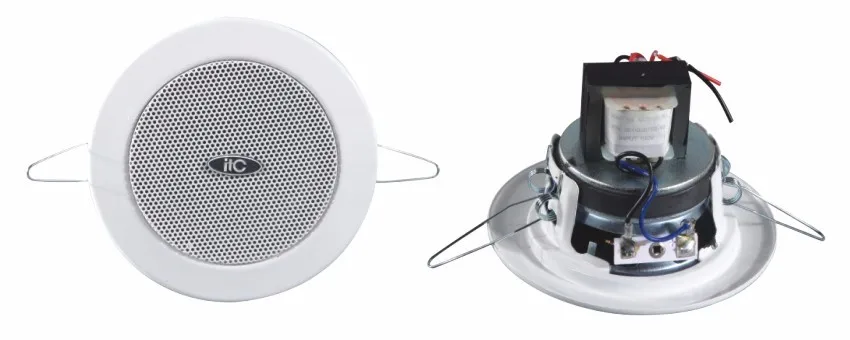

T-103G

Model

T-103G

Power Taps @100V

3W, 6W

Power Taps @70V

1.5W, 3W

Impedance

Black: ComWhite: 3.3KΩ,Red: 1.7KΩ

SPL(1W/1M)

89dB

Max. SPL (Rated W/1M)

97dB

Frequency Response (-10dB)

120-20KHz

Finish

Baffle: Steel, WhiteGrille: Steel, White

Speaker Driver

3"* 1

Cutout Size

80mm

Dimensions

102 * 75mm

Weight

0.4kg

Mounting

Spring-clip

Feature
  • Built-in 100V/70V transformer
  • 3"waterproof speaker unit
  • Power taps 3W & 6W @100V
  • Metal grille and metal baffle
  • Paint in white color
  • Fast installation by spring clip
