- Place of Origin:CN;GUA
- Use:Home Theatre
- Model Number:T-105Y
- Brand Name:ITC
- Type:Passive
- Channels:1
- Use:Public Address
- Power Taps @100V:0.75W,1.5W,3W,6W
- Power Taps @70V:0.38W/0.75W/1.5W/3W
- Sensitivity:90dB±3dB
- Max SPL:98dB±3dB
- Frequency Response:100-18KHz
- Material:Metal
- Speaker Unit:5"
- Cutout Size:165mm
- Dimension:195 * 78mm
- Weight:0.9Kg

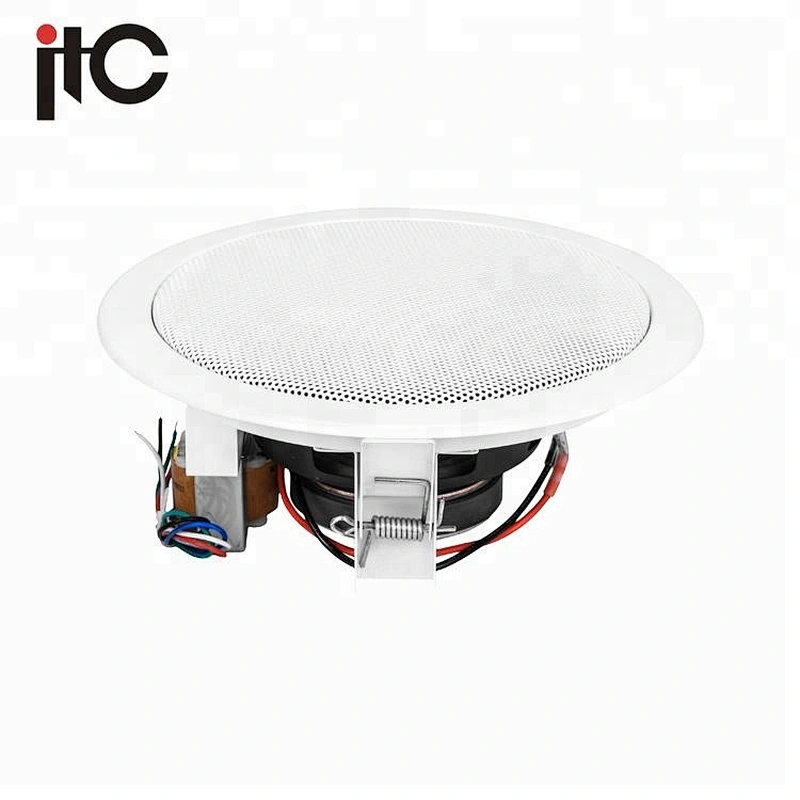

ITC T-105Y 6W 5"100V Metal Full Range Ceiling Speaker
- 5'' full range superior quality ceiling speaker
- Good quality driver of excellent frequency response
- 5 power taps of 0.75W, 1.5W, 3W, 6W @100v
- Metal baffle, metal grille
- Easy spring clip installation
- Metal back box could be added

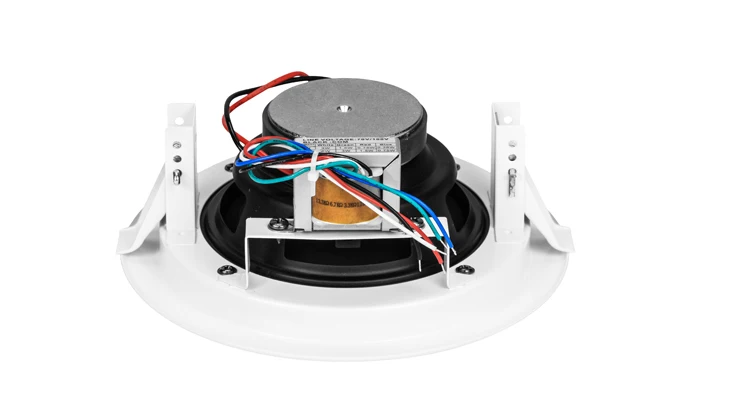

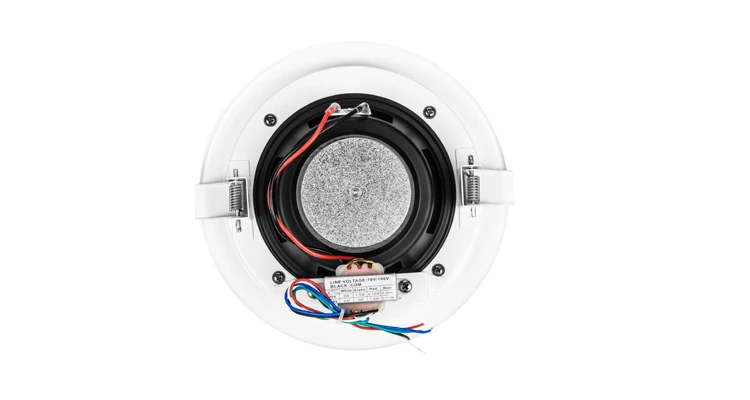

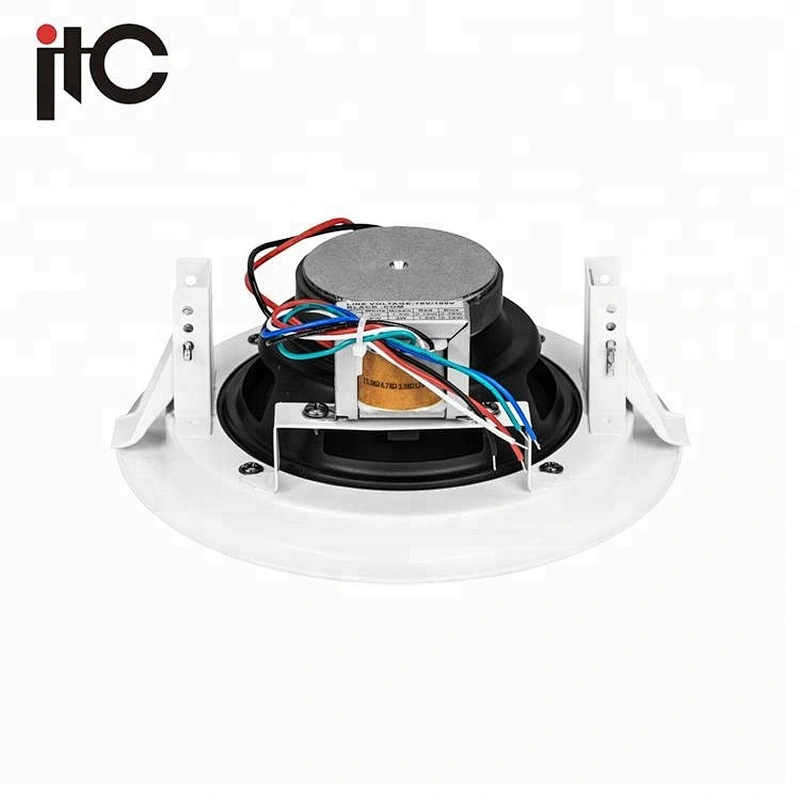

T-105Y is a ceiling speaker built in 70V/100V transformer. The transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple speakers.

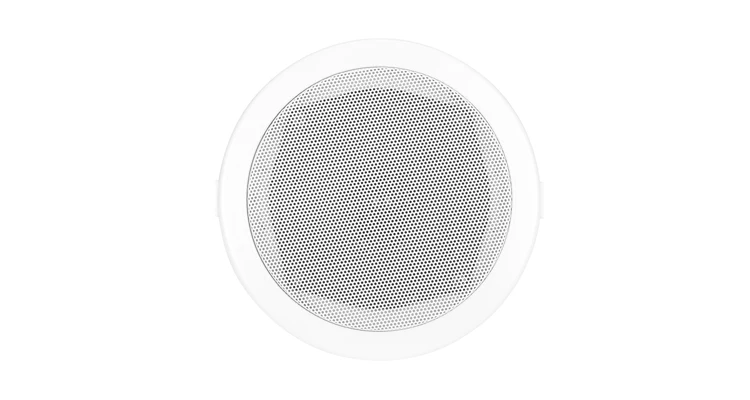

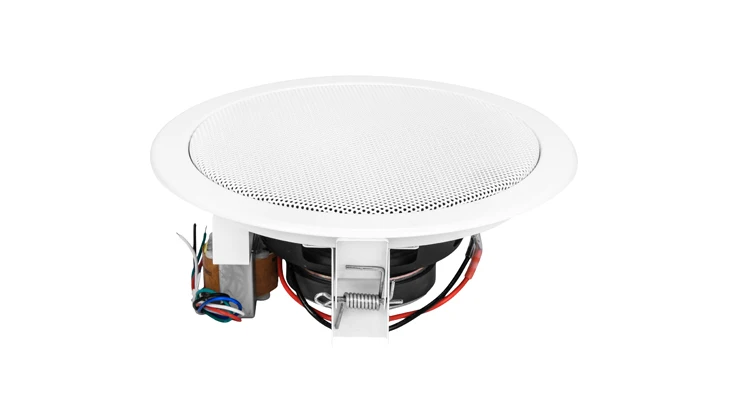

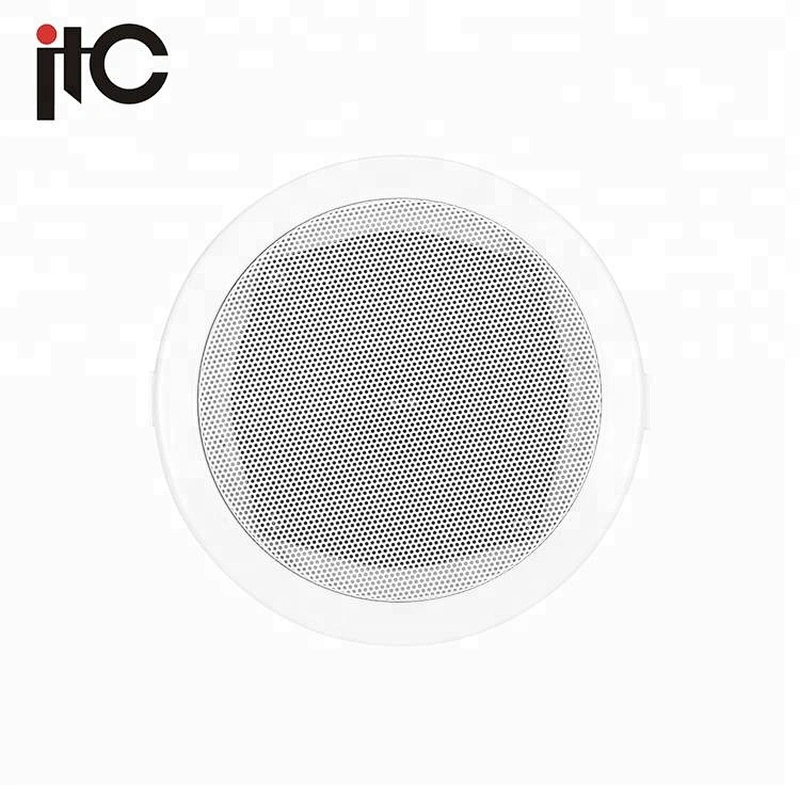

Internal 5"full range speaker driver is designed for wide frequency response 100-18KHz, the multiple power taps 0.75W, 1.5W, 3W & 6W are helpful for different applications varies from room size and ambient noise surrounding. The metal grille and metal baffle are painted in attractive white color. Its spring clip clamp makes the easy and secure installation.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
Model | T-105Y |
Power Taps @100V | 0.75W,1.5W,3W,6W |
Power Taps @70V | 0.38W/0.75W/1.5W/3W |

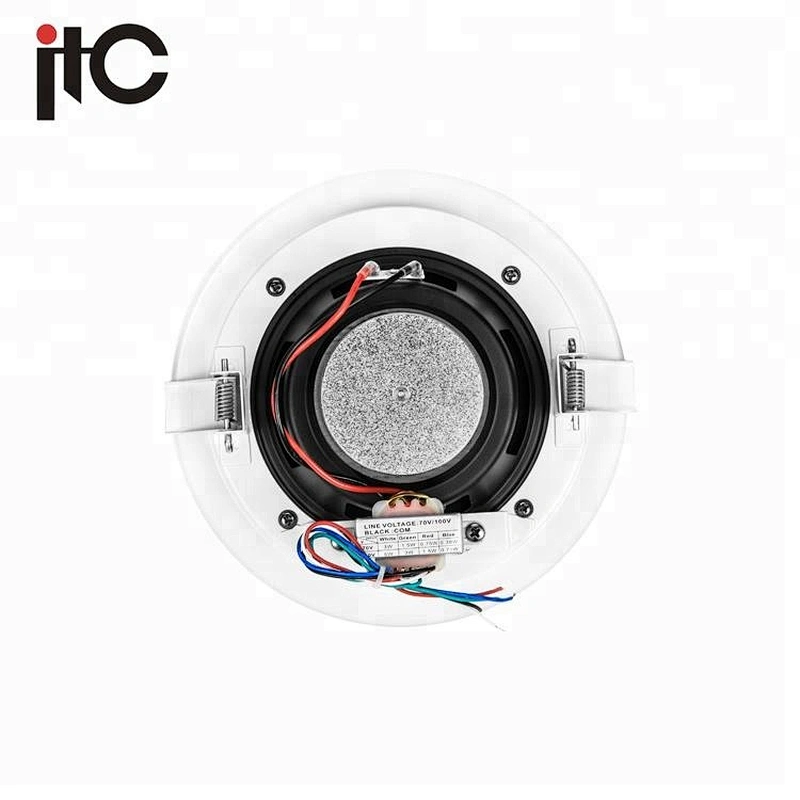

Impedance | Black:Com Blue: 13.3KΩ Red: 6.7KΩ Green: 3.3KΩ White: 1.7KΩ |
Sensitivity | 90dB±3dB |
Max SPL | 98dB±3dB |
Frequency Response | 100-18KHz |
Material | Metal |
Speaker Unit | 5" |
Cutout Size | 165mm |

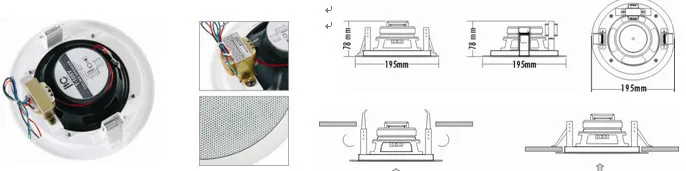

Dimension | 195 x 78mm |
Weight | 0.9Kg |
