- Place of Origin:CN;GUA
- Use:Home Theatre
- Model Number:T-106A
- Brand Name:ITC
- Type:Passive
- Channels:2 (2.0)
- Special Feature:Portable
- Use:Public Address
- Power Taps @100V:3W, 6W, 9W
- Power Taps @70V:1.5W, 3W, 4.5W
- SPL(1W/1M):94dB
- Max. SPL (Rated W/1M):103dB
- Frequency Response (-10dB):110-16KHz
- Speaker Driver:6"x 1 1.5"x 1
- Cutout Size:220mm
- Dimensions:245 x 75mm
- Weight:1Kg
- Mounting:Spring-clip

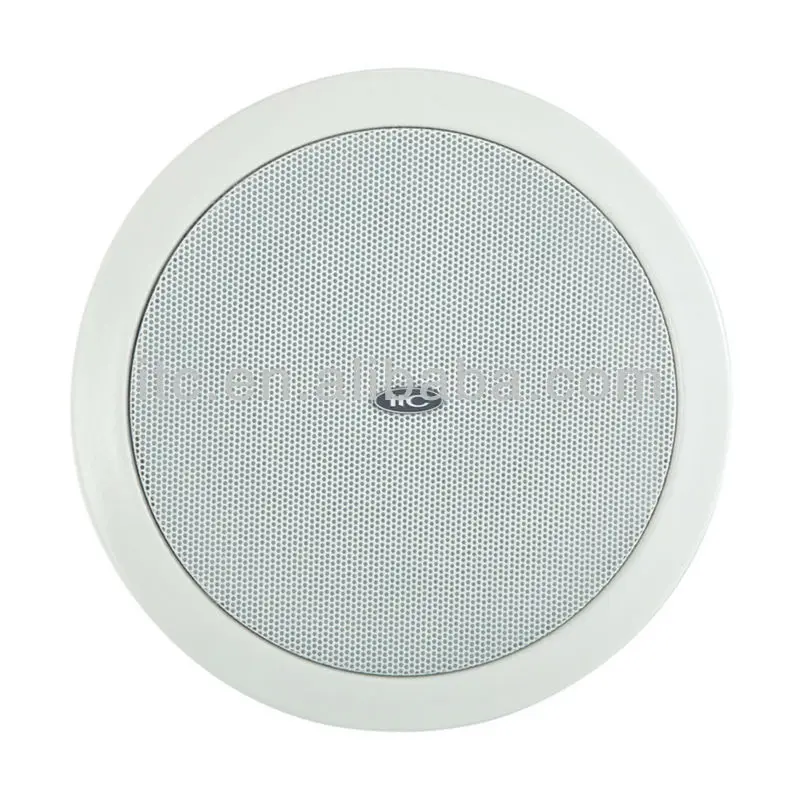

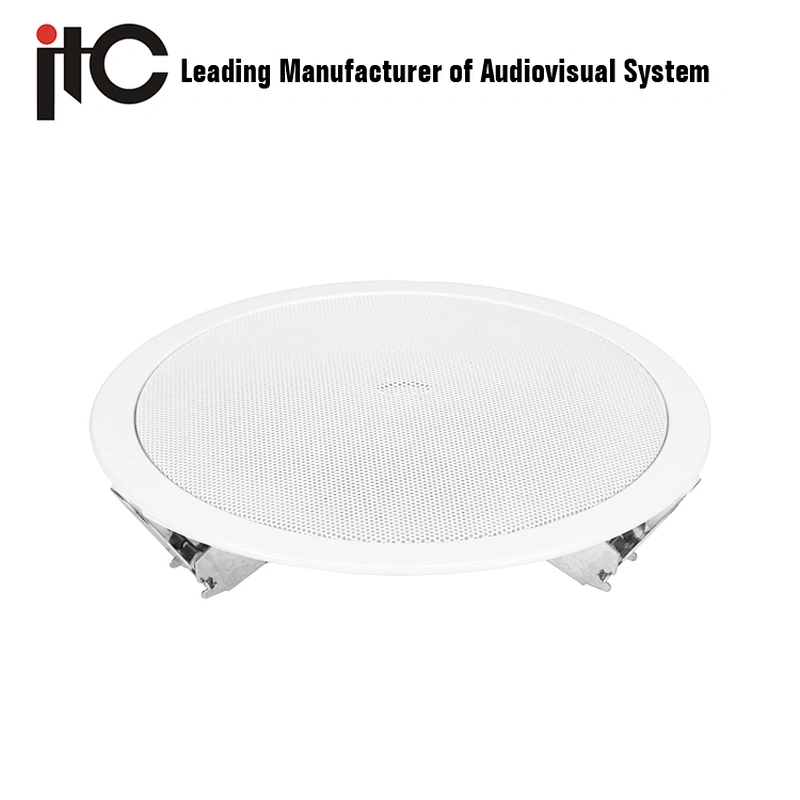

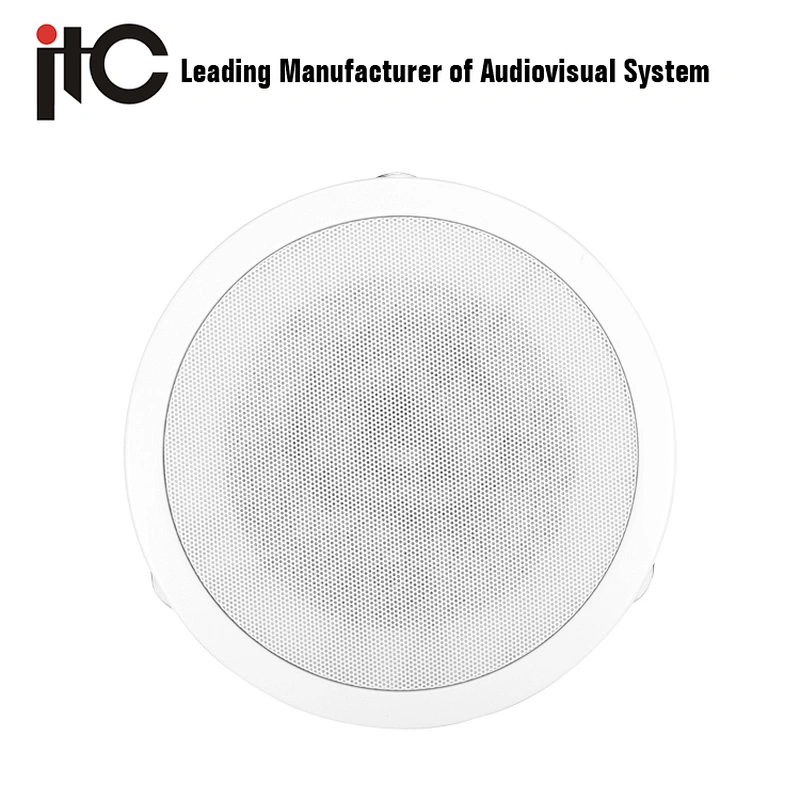

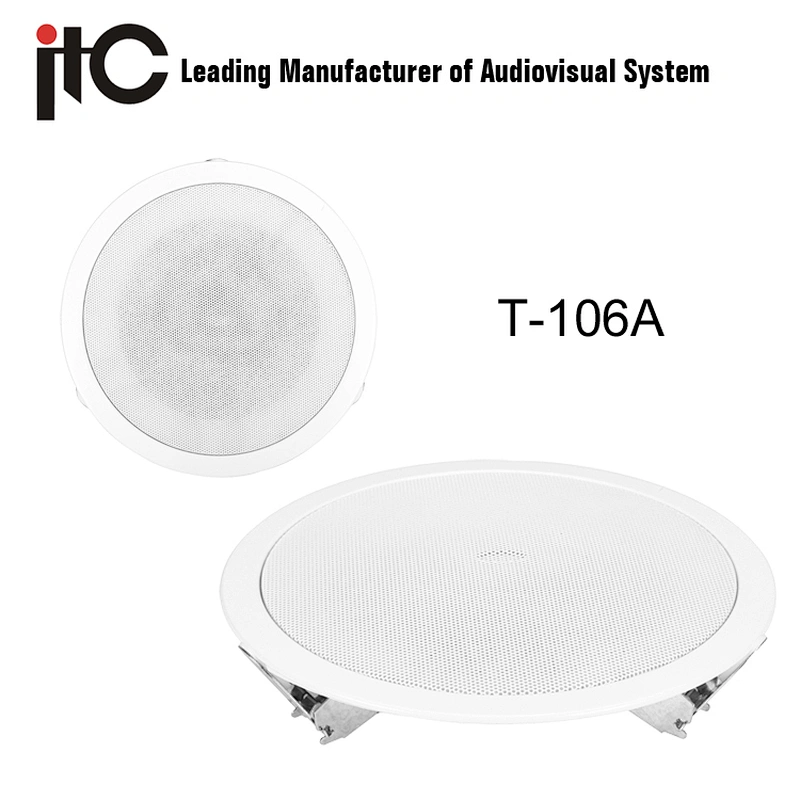

ITC T-106A 9W 6"and 1.5"Tweeter Coaxial Ceiling Speaker For Background Music
Model | T-106A |
Power Taps @100V | 3W, 6W, 9W |
Power Taps @70V | 1.5W, 3W, 4.5W |
Impedance | Black: Com Red:3.3 KΩ Green:1.7KΩ White:1.1KΩ |
SPL(1W/1M) | 94dB |
Max. SPL (Rated W/1M) | 103dB |

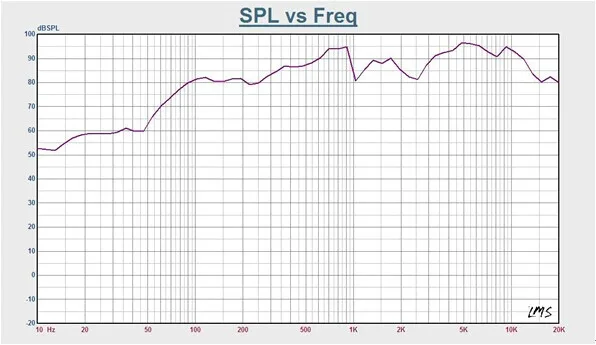

Frequency Response (-10dB) | 110-18KHz |
Finish | Baffle: Steel ,white Grille: Aluminum , white |
Speaker Driver | 6"x 1 1.5"x 1 |

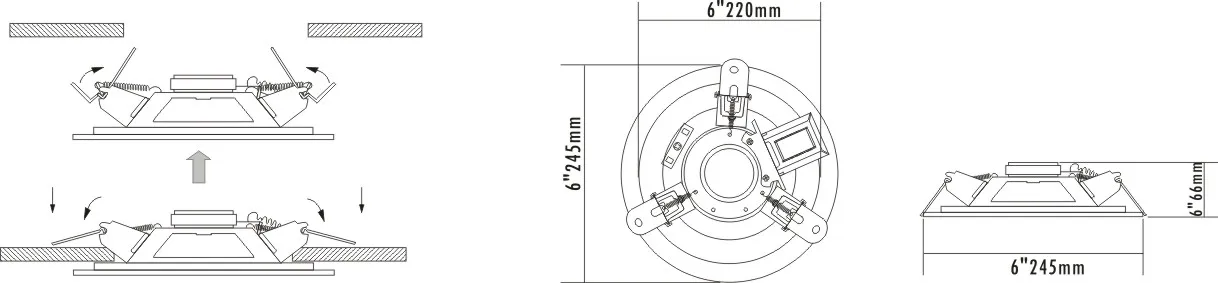

Cutout Size | 220mm |
Dimensions | 245 x 66mm |
Weight | 1Kg |
Mounting | Spring-clip |

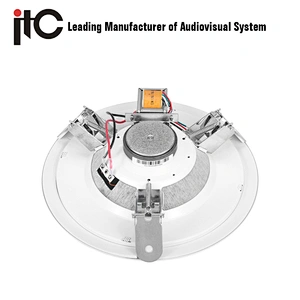

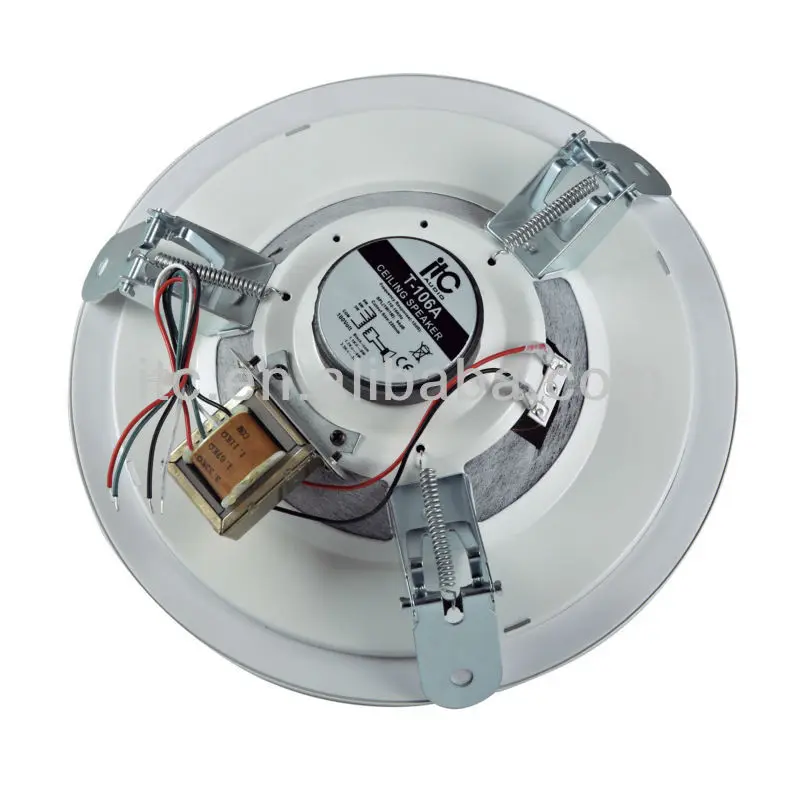

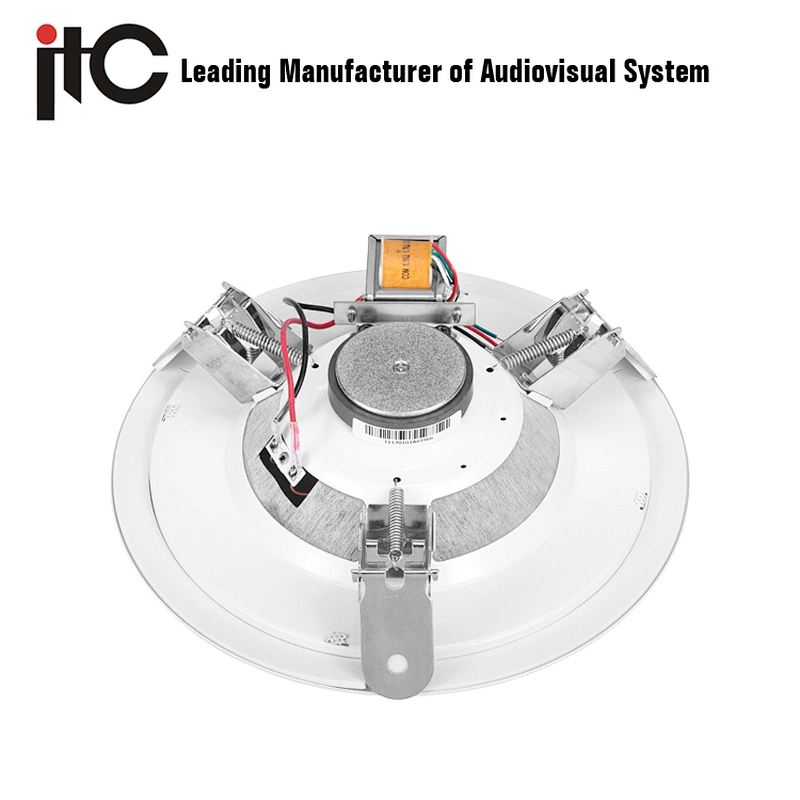

* Built in 100V/70V transformer
* 6"+1.5"coaxial speaker unit
* Power taps 3W, 6W & 9W @100V
* Aluminum grille & metal baffle
* Metal back box could be added
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
