- Place of Origin:CN;GUA
- Use:Home Theatre
- Model Number:T-205CW T-206CW T-208CW
- Brand Name:ITC
- Type:Passive
- Channels:2 (2.0)
- Use:Public Address
- Rated Power at 100V:5W, 10W, 20W, 40W
- Rated Power at 70V:2.5W, 5W, 10W, 20W, 40W
- Transformer impedance:2KΩ/1KΩ/500Ω/250Ω/125Ω
- Input:70V/100V/8Ω
- Sensitivity (1W/1M):90dB±3dB
- Max. Sensitivity (W/1M):106dB
- Frequency Response (-10dB):90-20KHz
- Speaker Driver:8"x1 & 1.5"x1
- Mounting size:245mm
- Warranty:3 Years

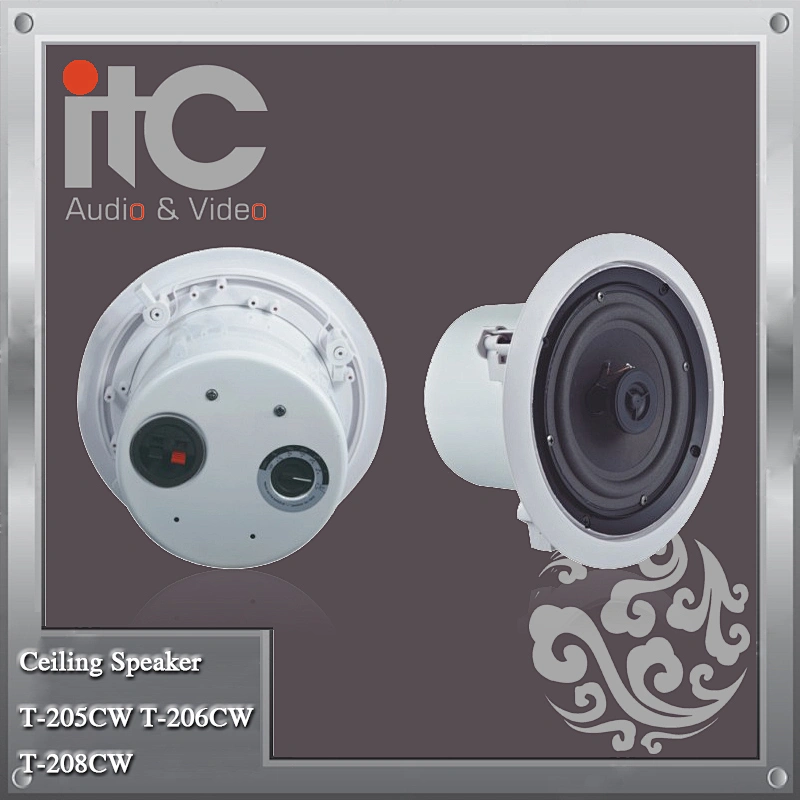

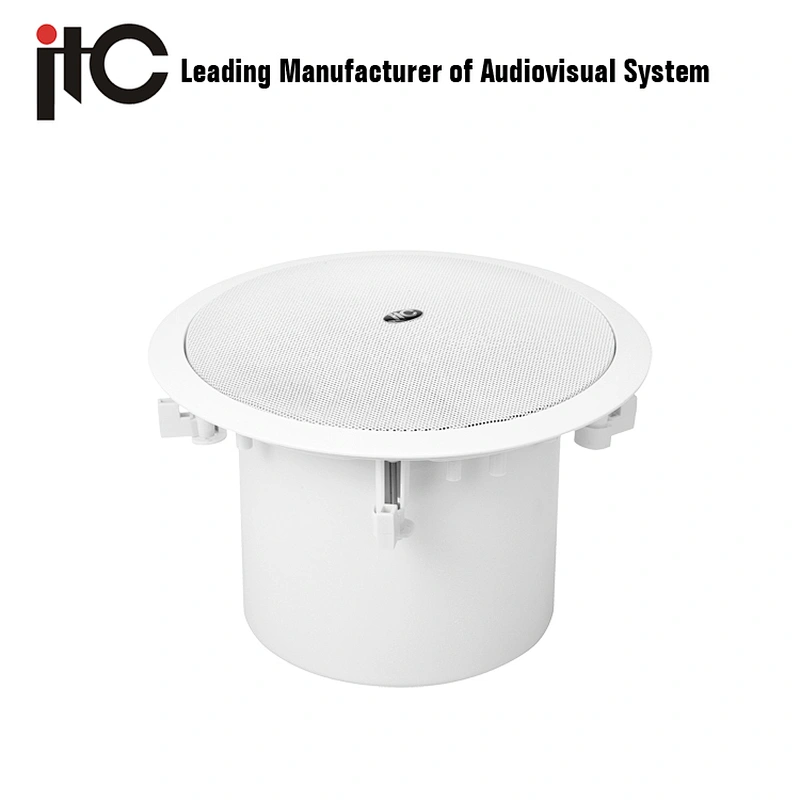

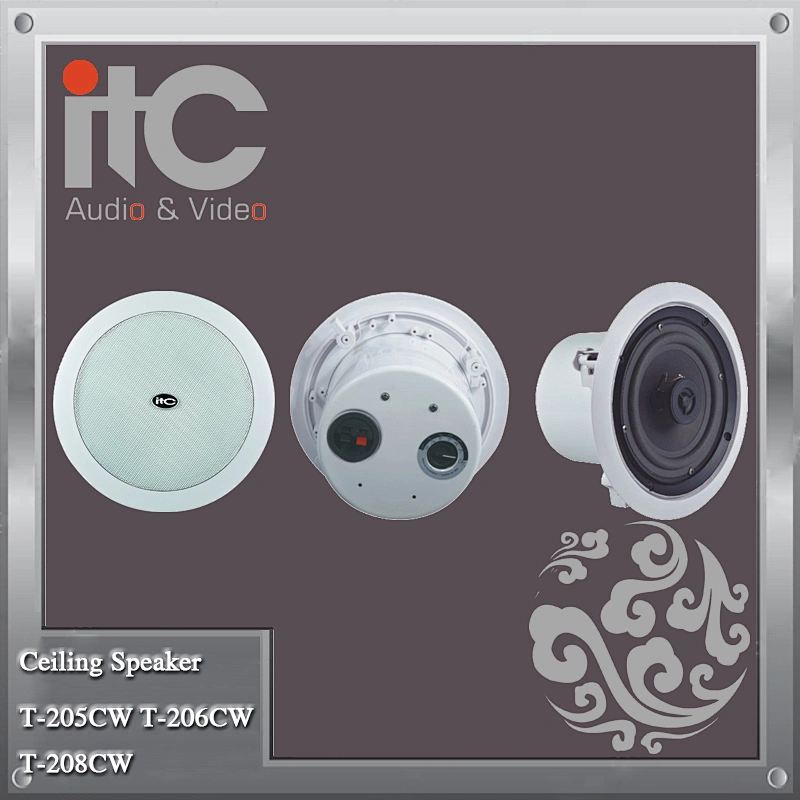

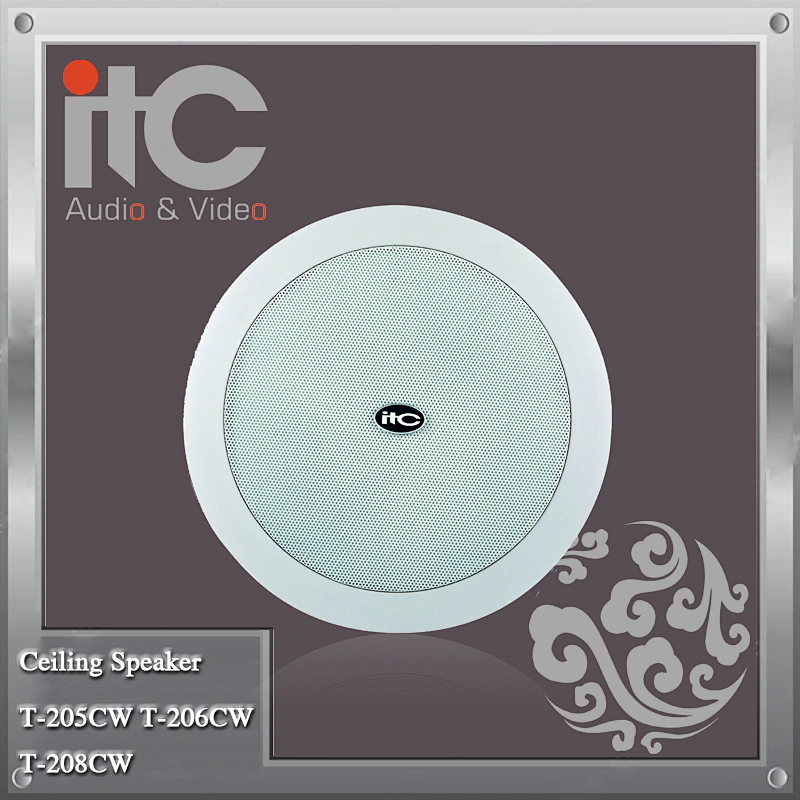

ITC T-205CW Series 20W 30W 40W Coaxial Type Fireproof PA System Ceiling Speaker 8ohm
Features
*Built-in 100v/70v transformer
*In-ceiling type loudspeaker
*5” +1.5” coaxial speaker unit
*Power output 2.5W, 5W, 10W & 20W @100V
*Line input: 100V, 70V or 8Ω
*Metal grille, ABS baffle & metal back cover
*Paint in white color
*Secure flush mount installation
Model | T-205CW |
Power Taps @100V | 2.5W, 5W, 10W, 20W |
Power Taps @70V | 1.25W, 2.5W, 5W, 10W, 20W |
Transformer Impedance | Black: Com Red: 4KΩ/2KΩ/1KΩ/500Ω/250Ω |
Input | 70V/100V/8Ω |
SPL(1W/1M) | 88dB±3dB |
Max. SPL (Rated W/1M) | 101dB |
Frequency Response (-10dB) | 100-20KHz |
Finish | Baffle: ABS, White Cover, Grille: Steel, White |
Speaker Driver | 5"x 1 1.5"x 1 |
Cutout Size | 180mm |
Dimensions | 215 x 152mm |
Weight | 1.4Kg |
Mounting | Flush-mount dog ears |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one stop
solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, Led video wall and Lighting system , etc.
What's more,our system is applied to various worldclass events, such as 2008 Peking Olympic
Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 600 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
