- Place of Origin:CN;GUA
- Model Number:T-521US
- Brand Name:ITC
- Communication:Wireless
- Use:Universal
- Style:Tie Clip
- Word frequency:640-857 MHz
- Number of channel:200
- Channel spacing:250KHz
- Frequency stability:Within ±0.005%
- Dynamic range:100dB
- Maximum deviation:±45KHz
- Audio frequency response:80-18KHz
- Comprehensive signal to noise ratio:105dB
- Comprehensive distortion:≤0.5%
- Working distance:About 100m

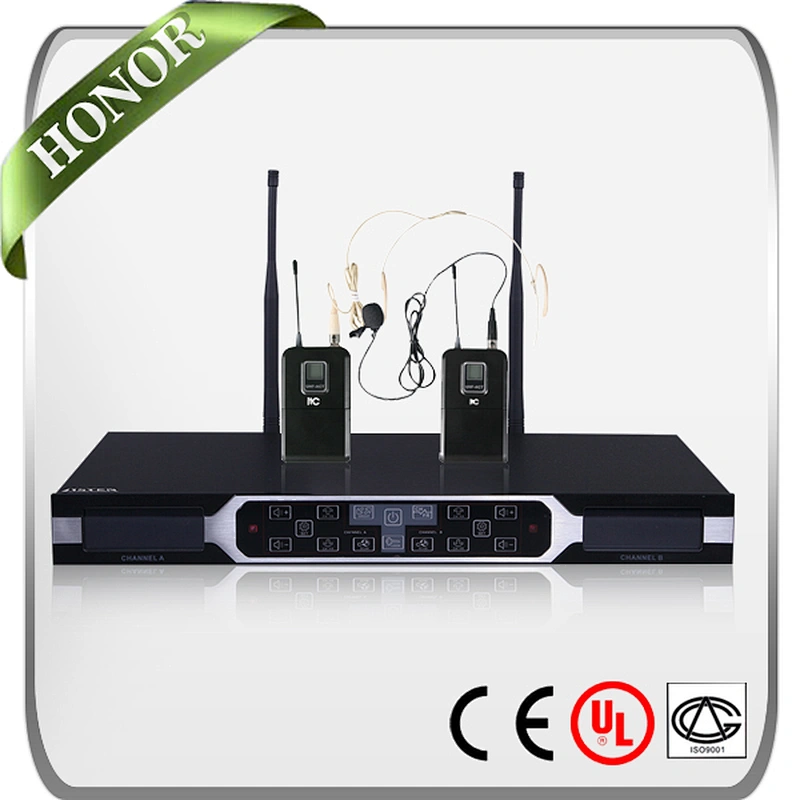

ITC T-521US Double True Diversity UHF Mini Wireless Tie Clip Microphone
ITC T-521US Double True Diversity UHF Mini Wireless Tie Clip Microphone
* Using UHF ultra-high frequency double true diversity reception, and USES the DPLL multichannel digital phase-locked loop frequency synthesis technology.
* Provides each of 200 a total of 600 channels to choose, true diversity receiving, effectively avoiding the phenomenon of fault frequency and to extend the receiving distance.
* With a magnitude 8, according to 8 audio level display, according to the audio level, according to the channel menu mute.
* Balanced and unbalanced output port, two choices to meet the needs of different device to connect.
* LCD liquid crystal display can also showed channel number and working frequency. Light touch button control is simple, which let users to use it more conveniently.
* Strong anti-interference ability, can effectively restrain noise caused by the external interference and same frequency interference.
* Infrared frequency function, can be convenient, shortcut of the transmitter and receiver synchronization.
* Enough intermediate frequency, Relaxed singing, sounds with magnetic and mixed thick feeling, the essence of the vocal microphone sound.
ITC T-521US Double True Diversity UHF Mini Wireless Tie Clip Microphone
Receiver mode | Double super heterodyne |
Intermediate frequency | 110MHz, 10.7MHz |
Antenna access | BNC/50Ω |
Sensitivity | 12dBμV (80dBS/N) |
Adjustable range of Sensitivity | 12-32dBμV |
Spurious suppression | ≥75dB |
Max output level | +10dBV |
Power supply mode | DC 12~18V 500mA input |
ITC T-521US Double True Diversity UHF Mini Wireless Tie Clip Microphone
Word frequency | 640-857MHz(the applicable frequency depends on the local regulation)Broadband FM |
Number of channel | 200 |
Channel spacing | 250KHz |
Frequency stability | Within ±0.005% |
Dynamic range | 100dB |
Maximum deviation | ±45KHz |
Audio frequency response | 80-18KHz (±3DB) (frequency response of the whole system depends on the microphone unit) |
Comprehensive signal to noise ratio | 105dB |
Comprehensive distortion | ≤0.5% |
Working distance | About 100m (working distance depends on many variation which includes absorbing, reflection and interference of Rf signal) 640-857MHz (the applicable frequency depends on the |
ITC T-521US Double True Diversity UHF Mini Wireless Tie Clip Microphone
Attack | Moving Coil Condenser microphone (Collar microphone, Headset microphone) |
Antenna | Internal helical antenna of handheld microphone,the hanging transmitter adopts1/4 wave-length whip antenna |
Output power | Max power 30Mw;Min Power 3Mw |
Spurious suppression | -60dB |
Power supply | 2 section 5,#1.5V alkaline battery |
Battery service life | About 10 hours under 30mW, about 15 hours under 3mW |
Function features | Adopting true diversity reception mode, effectively avoiding frequency phenomenon and the extension of the receiving distance |
Quality characteristics | Enough intermediate frequency, Relaxed singin, sounds with magnetic and mixed thick feeling, the essence of the vocal microphone sound |
