- Place of Origin:CN;GUA
- Use:Home Theatre
- Model Number:T-205B
- Brand Name:ITC
- Type:Passive
- Channels:2 (2.0)
- Special Feature:Portable
- Use:Public Address

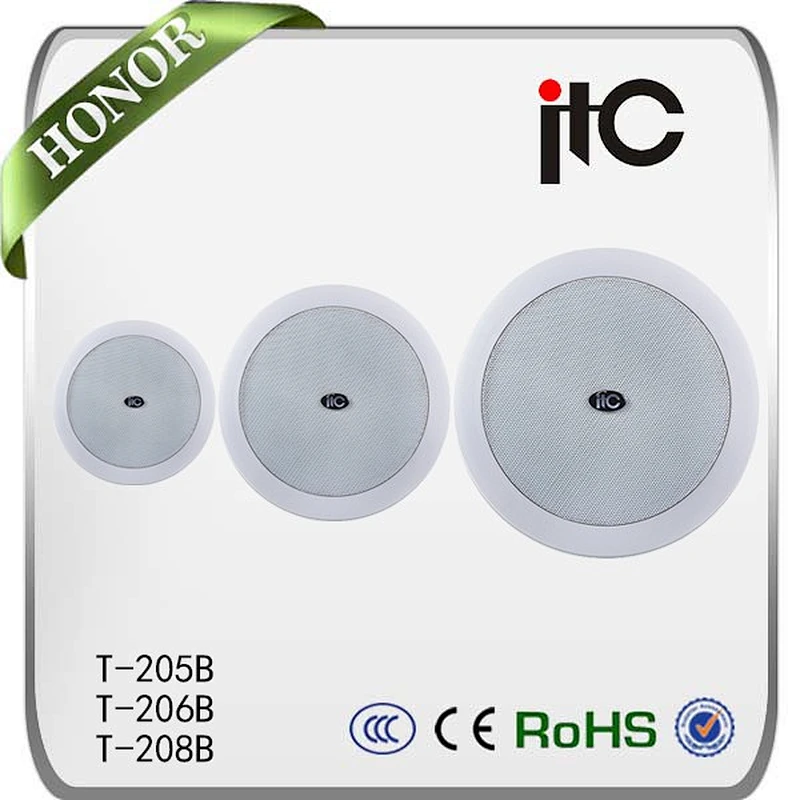

- Product name:T-205B T-206B T-208B
- Power Taps @100V:0.75W, 1.5W, 3W, 6W 1.25W, 2.5W, 5W, 10W 1.87W, 3.75W, 7.5W, 15W
- Power Taps @70V:0.38W, 0.75W, 1.5W, 3W/0.62W, 1.25W, 2.5W, 5W/0.93W, 1.87W, 3.75W, 7.5
- SPL(1W/1M):88dB 89dB 90dB
- Max.SPL (Rated W/1M):96dB 99dB 102dB
- Frequency Response:80-20KHz
- Speaker Driver:5"*1 1.5"*1 6"*1 1.5"*1 8"*1 1.5"*1
- Cutout Size:180mm 208mm 245mm
- Dimension:215 *75mm 240 *78mm 280 *80mm
- Weight:0.6Kg

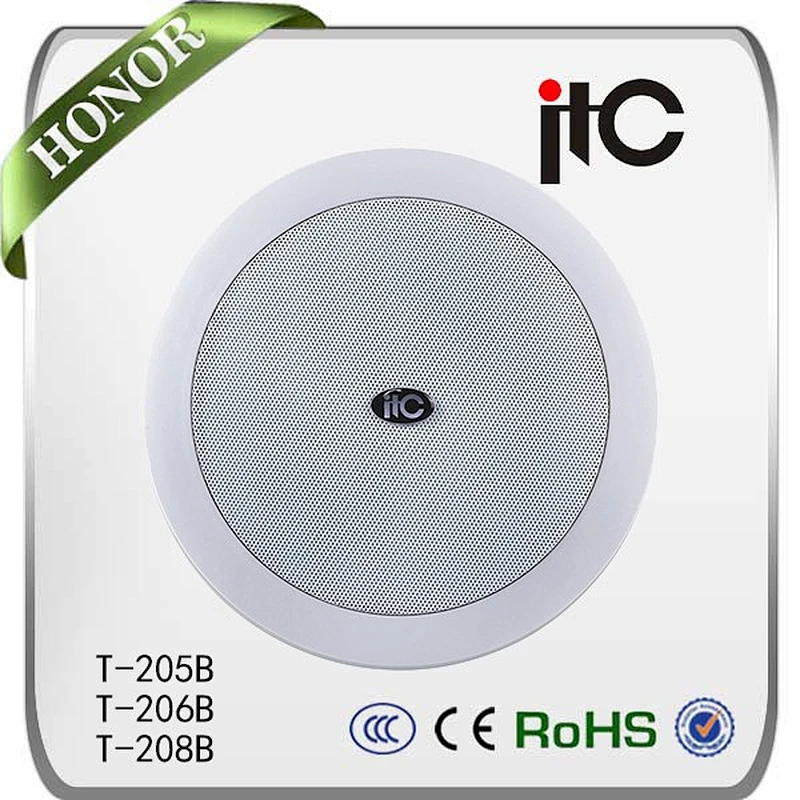

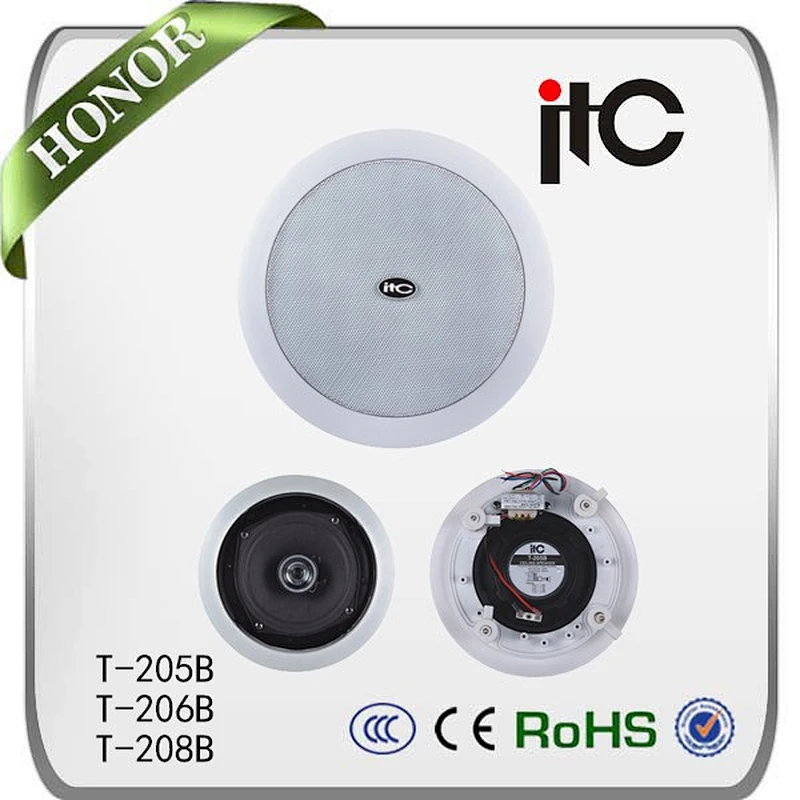

ITC two way speaker active 8"10,pa speaker for background
Feature:

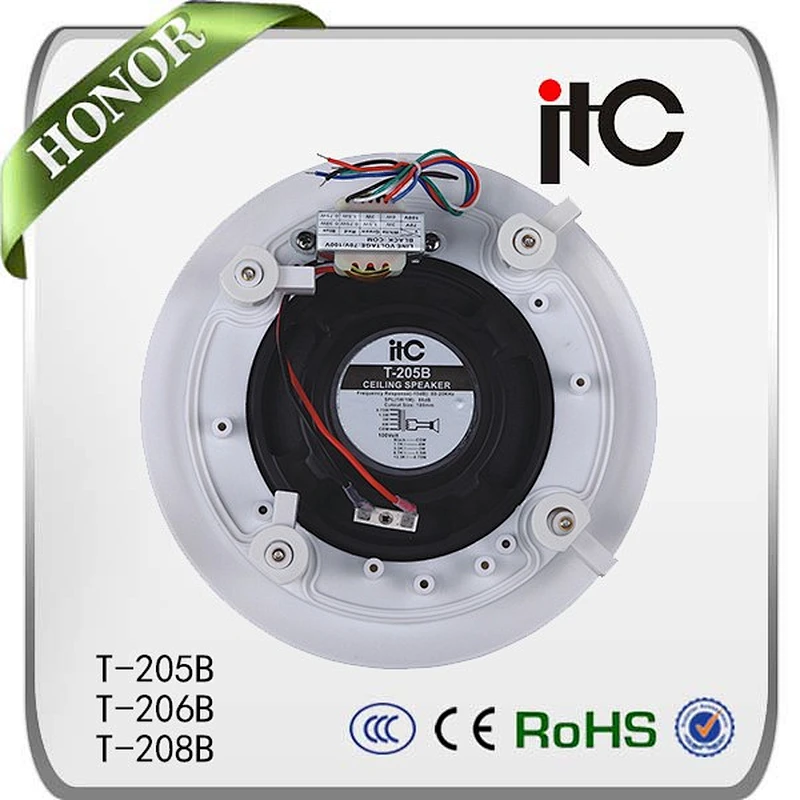

1) Built-in 100v/70v transformer
2) Excellent sound quality speaker for music & speech
3) In-ceiling type loudspeaker
4) 5” +1.5” coaxial paper speaker unit
5) Power taps 0.75W, 1.5W, 3W & 6W @100V
6) Metal grille & ABS baffle
7) Paint in white color
8) Flush mount easy & secure installation
Model | T-205B |
Rated Power Output @100V | 0.75W, 1.5W, 3W, 6W |
Rated Power Output @70V | 0.38W, 0.75W, 1.5W, 3W |
Impedance | Black: Com/Blue:13.3KΩ/Red:6.7KΩ Green:3.3KΩ/White:1.7KΩ |
Sensitivity(1W/1M) | 88dB |
Max. Sensitivity (W/1M) | 96dB |
Frequency Response (-10dB) | 80-20KHz |
Speaker Driver | 5"x 1 1.5"x 1 |
Cutout Size | 180mm |
Dimension | 215 x 75mm |
Weight | 0.6Kg |
ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our productare complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
Pre-sale Service
* High Quality + Factory Price + Quick Response + Reliable Service, is our working faith.
* Professional foreign trade team, Reply your Alibaba enquiry and trade messager in 24 working hours.
* 30 system consultants and 10 designers to make drawing and BOQ for each tender.
* Design and BOQ response to customer within 48 hours.
Middle-sale Service
* Testing quality again before sending goods.
* Well-trained sales team for sales and basic technical service.
* Online system software demo and configuration is available.
* PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
* Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goods.
After-sale service
* ITC guarantee all electronics of 3 years quality warranty.
* ITC could supply 1% wearing spare parts free of charge.
* Two English spoken technician provide online after sales service.
* Technical documents could be downloaded from website www.itc-pa.com.cn.
* All of the quality compliant shall be feedback with a solution within 48 hours.
