- Place of Origin:CN;GUA
- Model Number:VA-565
- Brand Name:ITC
- Type:Passive
- Channels:1
- Use:Public Address, EVAC
- Rated Power at 100V:0.38W, 0.75W, 1.5W, 3W, 6W
- Rated Power at 70V:0.19W, 0.38W, 0.75W, 1.5W, 3W
- Impedance:Com/1240Ω/1840Ω/3340Ω/6790Ω/13300Ω
- Sensitivity (1W/1M):92dB
- Max. Sensitivity (1W/1M):100dB
- Frequency Response (-10dB):130-18KHz
- Material:Baffle: Steel, White Grille: Steel, White Cover: Steel, Red
- Speaker Driver:5"x1
- Weight:1.2Kg
- Dimension:180 x 147mm

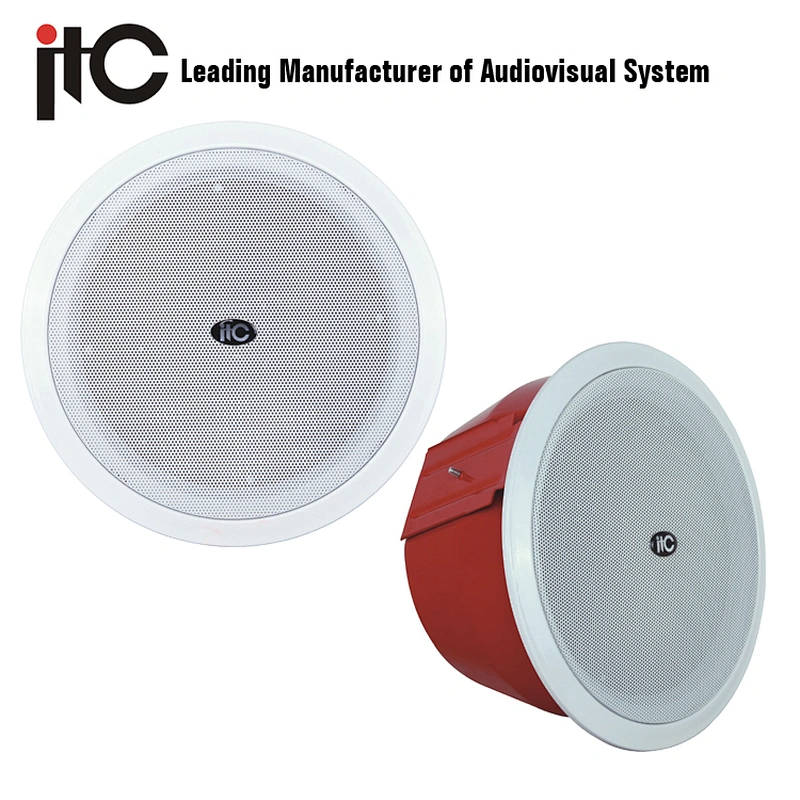

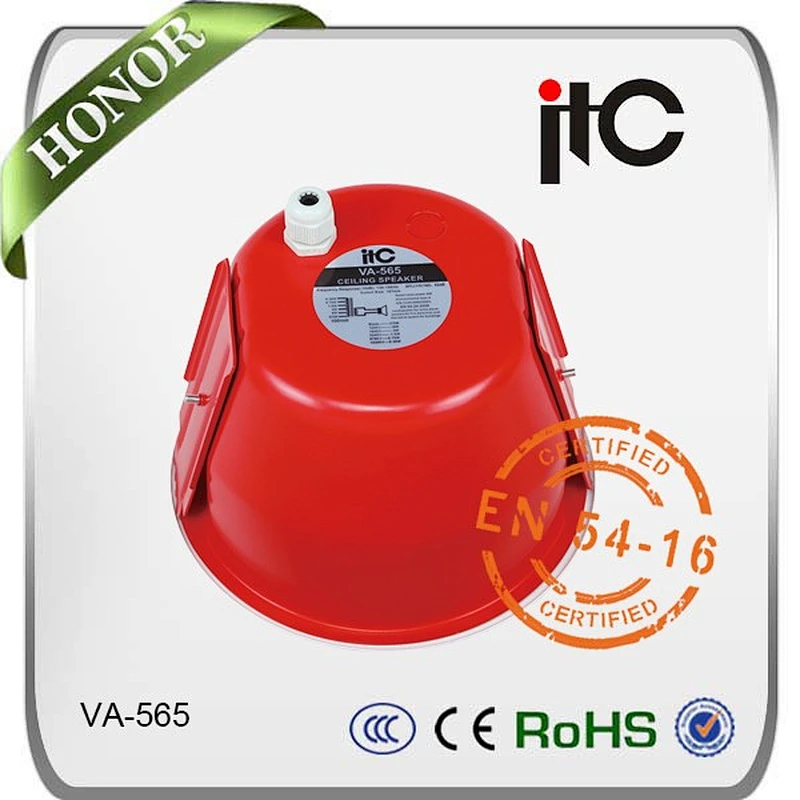

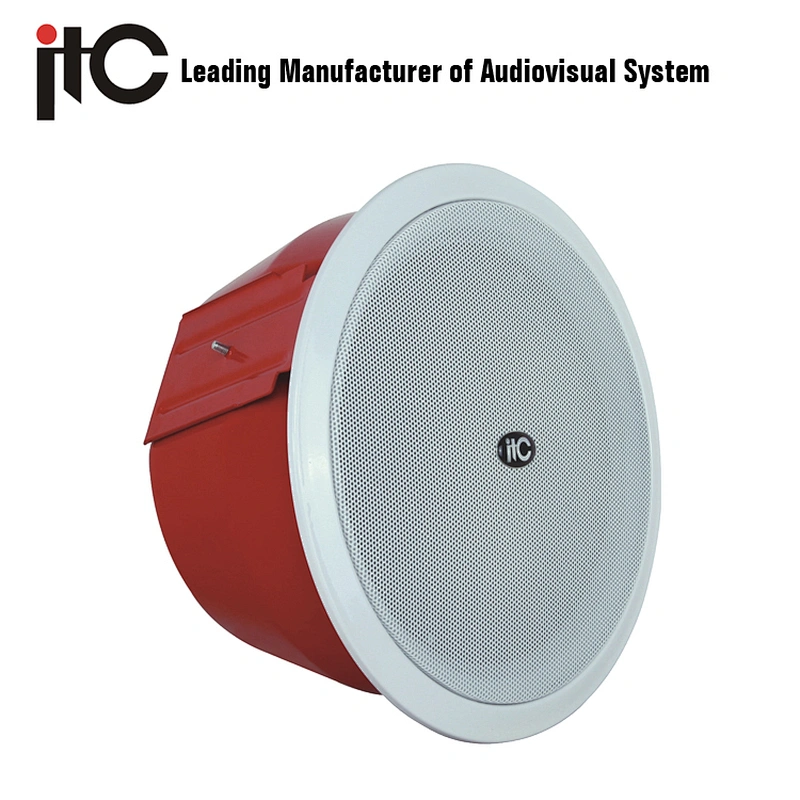

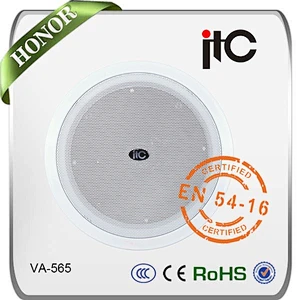

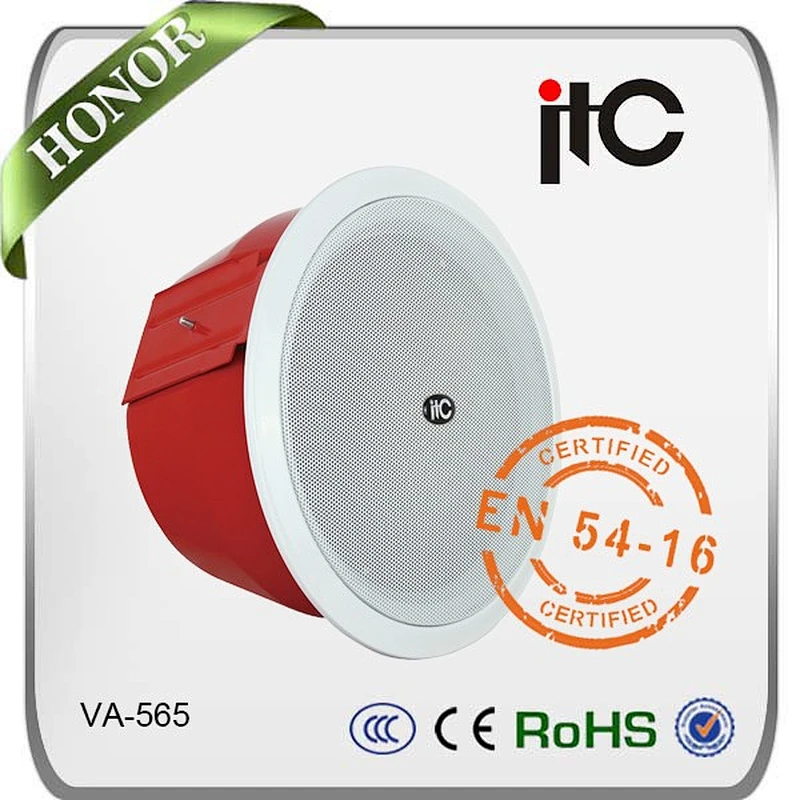

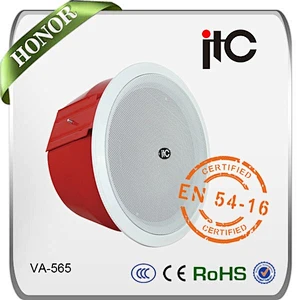

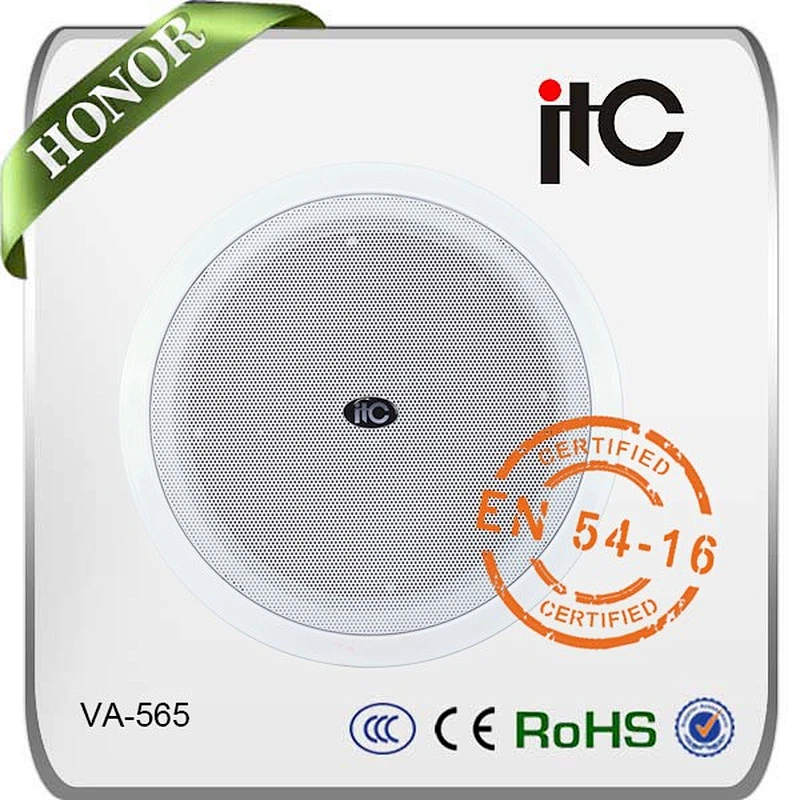

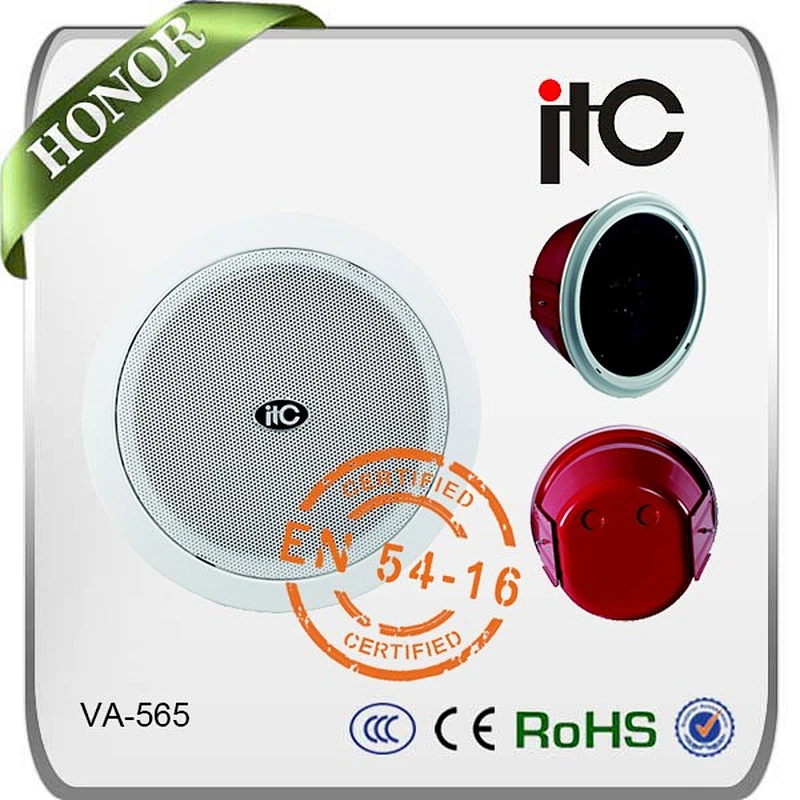

VA-565 New Products Metal 70V 100V 5 Inch Fireproof Speaker
- Built-in 100v/70v transformer
- In-ceiling type loudspeaker
- Ceramic connector, thermal fuse and fire-resistant cable
- 5” speaker unit
- Power taps 0.38w-0.75w-1.5w-3w-6w @100V

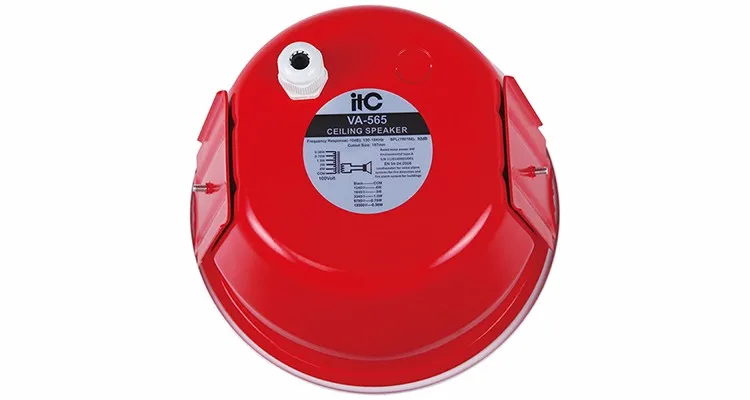

- Metal grille, metal baffle and fire dome metal back can
Model | VA-565 |
Power Taps @100V | 0.38W, 0.75W, 1.5W, 3W, 6W |
Power Taps @70V | 0.19W, 0.38W, 0.75W, 1.5W, 3W |
Impedance | Com/1240Ω/1840Ω/3340Ω/6790Ω/13300Ω |
SPL(1W/1M) | 92dB |
Max. SPL (Rated W/1M) | 100dB |
Frequency Response (-10dB) | 130-18KHz |
Finish | Baffle: Steel, White Grille: Steel, White Cover: Steel, Red |
Speaker Driver | 5" |
Cutout Size | 157mm |
Dimensions | 180 x 147mm |
Weight | 1.2Kg |
The VA-565 is a landscape garden speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple speakers.
The built-in 4”+1.5’’ two way speaker drivers are designed of wide frequency response 120-15kHz, the multiple power taps of 12.5W & 25W could meet different applications varies from room size and ambient noise surroundings.
The fiber-glass enclosure is of dark gray color and of weatherproof and heavy damage proof finish. Easy and secure wall mount installation in outdoor area.
It is ideal choice for park, playground, swimming pool and garden etc outdoor applications where background music and paging is needed. It is designed of IP66 waterproof level, so it could be directly exposed to outdoor severe environment, the organic resin material is strong resistant to cold, snow, ice, high temp and sunshine.
ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our productare complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
