- Description:Line Array Loudspeaker
- Power:400W
- Output Impedance:8Ω
- Frequency Response(-10dB):55Hz-20KHz
- Sensitivity(1W@1M):100dB(1M/1W )
- Wooefer:12"bass *1
- Tweeter:3"compressed drive *1
- Weight:23.5kg
- Horizontal Dispersion Angel(-6dB):110°
- Application:Large theater, gymnasium, etc.
- Place of Origin:CN;GUA
- Brand Name:ITC
- Model Number:LA-112H LA-118H
- Power:400W
- Frequency Range (Hz):55Hz-20KHz

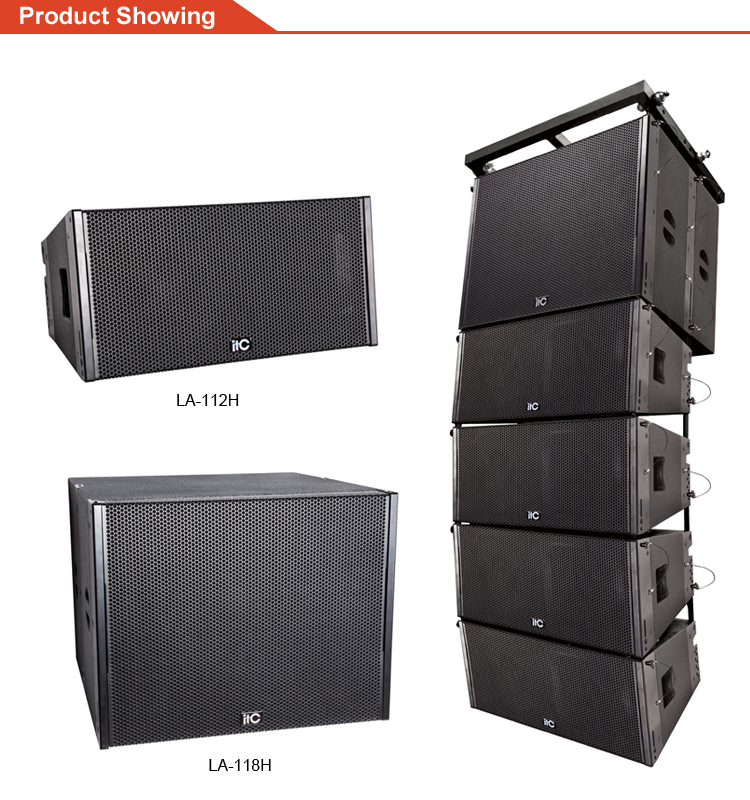

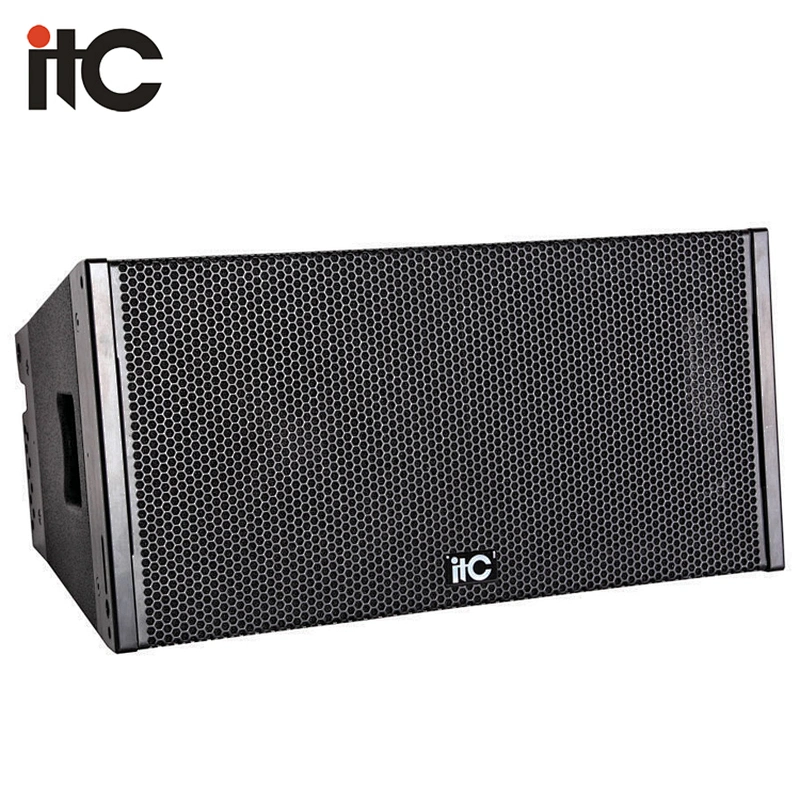

LA-112H China Factory Lifting Assembly Outdoor Loudspeaker Line Array
Featrues:
* The enclosure is made by birch, with small size, light weight, wear-resistant paint treatment.
* Using one 12 "low frequency unit and the 1 3" high frequency driver, with high sensitivity, strong penetration.
* Frequency divider in precise design to optimize power response and MF vocal performance.

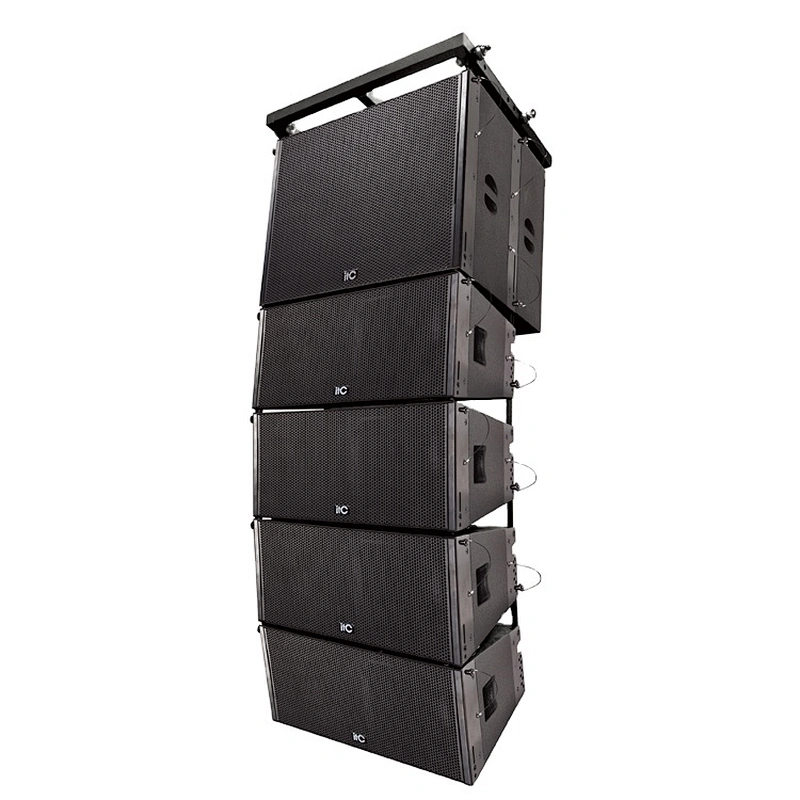

* Using lifting assembly line array design, and allowing 0-10 degrees to adjust the speaker coverage area;With the advantages of compact, light, easy and quick assembly.
* Professional hanging pendant combination, simple and quick hanging way, easy to install.
Scope Of Application:
The product has wide range of applications, and it is used with TA professional amplifier and Pre processor. It is suitable for large outdoor performances and sound reinforcement, large
theater, gymnasium, etc.
Specification:
Model | LA-112H | LA-118H |

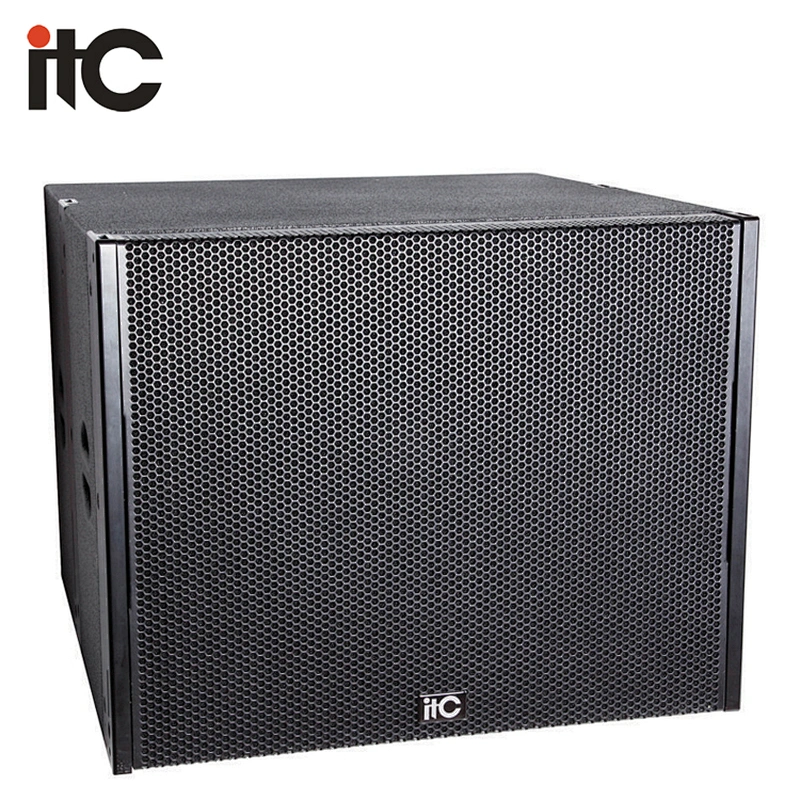

Type | 2 frequency linear array speaker | Ultra low frequency speaker |
Power | 400W | 600W |
Nominal Impedance | 8Ω | 8Ω |
Frequency Range | 55Hz-20KHz | 40Hz-1KHz |
Sensitivity | 100dB | 99dB |
Wooefer | 12" bass ×1 | 18"×1 |
Tweeter | 3" compressed drive ×1 | / |
Horizontal Coverage Angle (-6dB) | 110° | / |
Vertical Coverage Angle (-6dB) | Vary with the size and inclination angle of the linear array | / |
Dimensions (H x W x D) | (320+225)×635×415 mm | 505×635×655 mm |
Weight | 23.5kg | 41.5kg |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system, video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
