- Description:Line Array Loudspeaker
- Power:150W+450W
- Output Impedance:16Ω
- Frequency Response(-10dB):65Hz-20KHz
- Sensitivity(1W@1M):98dB(1M/1W )
- Bass:2*5"bass
- Tweeter:1*1.3"Compressed Treble
- Weight:9.5kg
- Level Coverage Angle (-6dB):110°
- Application:Big conference room, muilt-function room, auditorium and outdoor
- Warranty:3years
- Customized:yes
- Place of Origin:CN;GUA
- Brand Name:ITC
- Model Number:LA-205M LA-112M
- Certification:CE, UL, ROHS

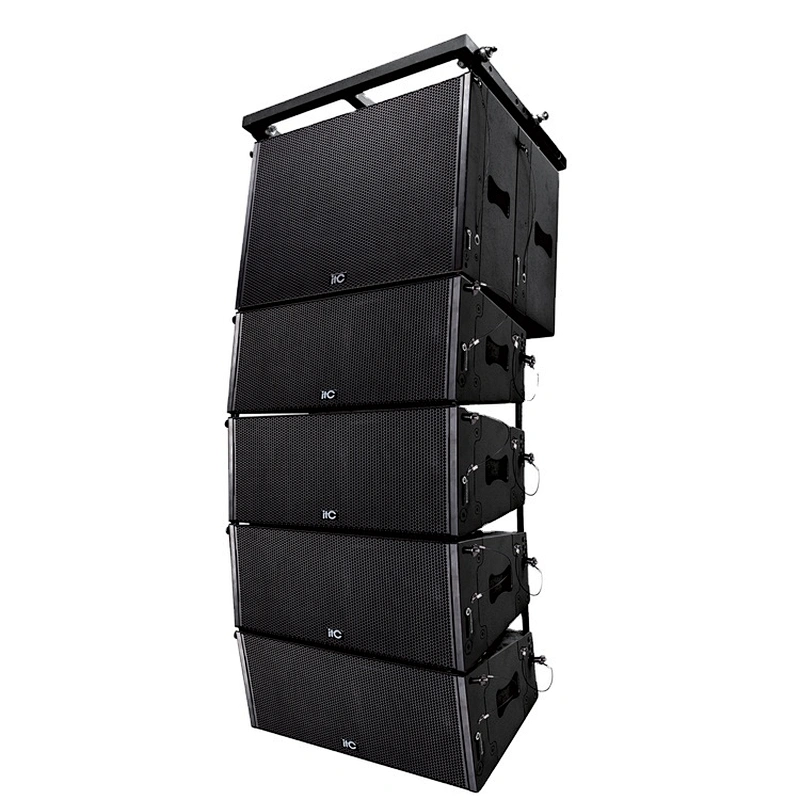

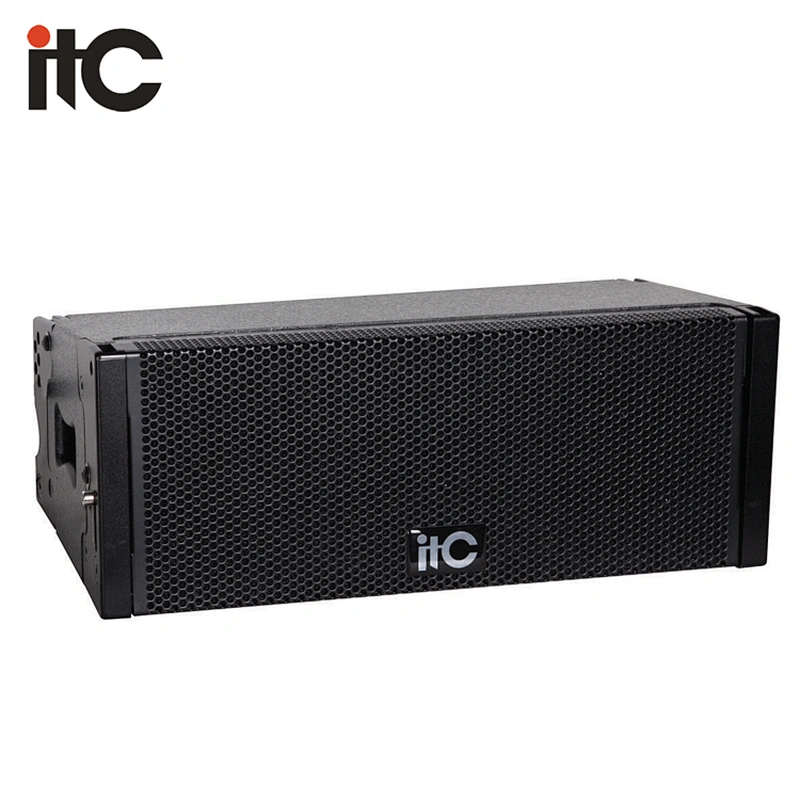

LA-205M Concerts Speaker Box Line Array System PA Top Pro Audio Line Array
Product Features
* The box is made of high quality plywood, small volume, light quality, wear-resistant paint treatment.
* 2×5" bass, 1×1.3" high frequency driver, high sensitivity.
* The precise design of the frequency divider optimizes the power response and vocal part of the intermediate frequency expression.

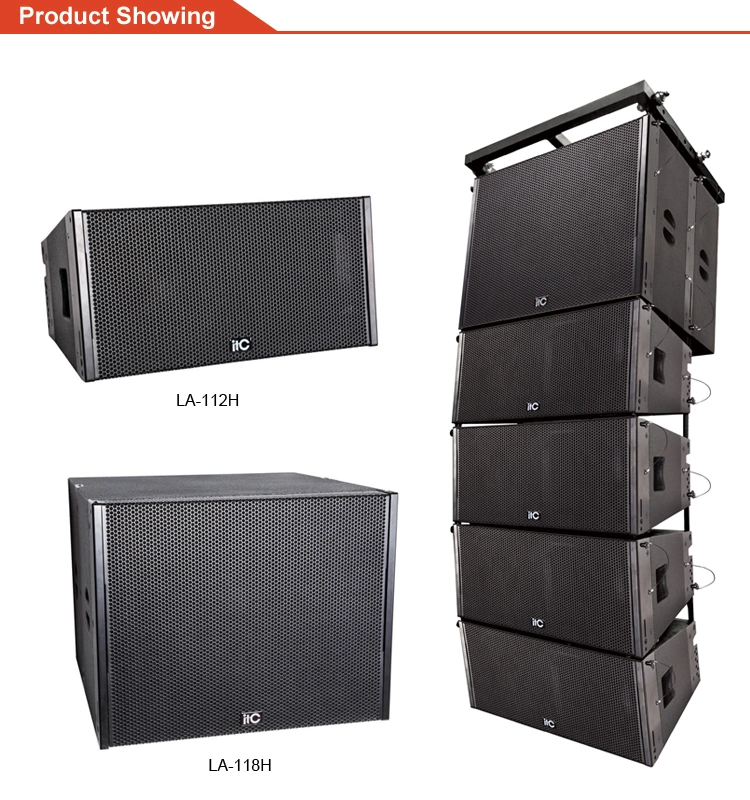

* Using hoisting combination line array design, allowing 0-10 degrees range adjustment speaker coverage area.
* Adopt aluminum alloy lifting bracket, easy and fast hanging way, convenient for project installation.
Scope Of Application
Product application is wide, can work with TA professional amplifier, pre-amplifier. Apply to big conference room, muilt-function room, auditorium and outdoor professional sound system.
Specification:
Model | LA-205M | LA-112M |

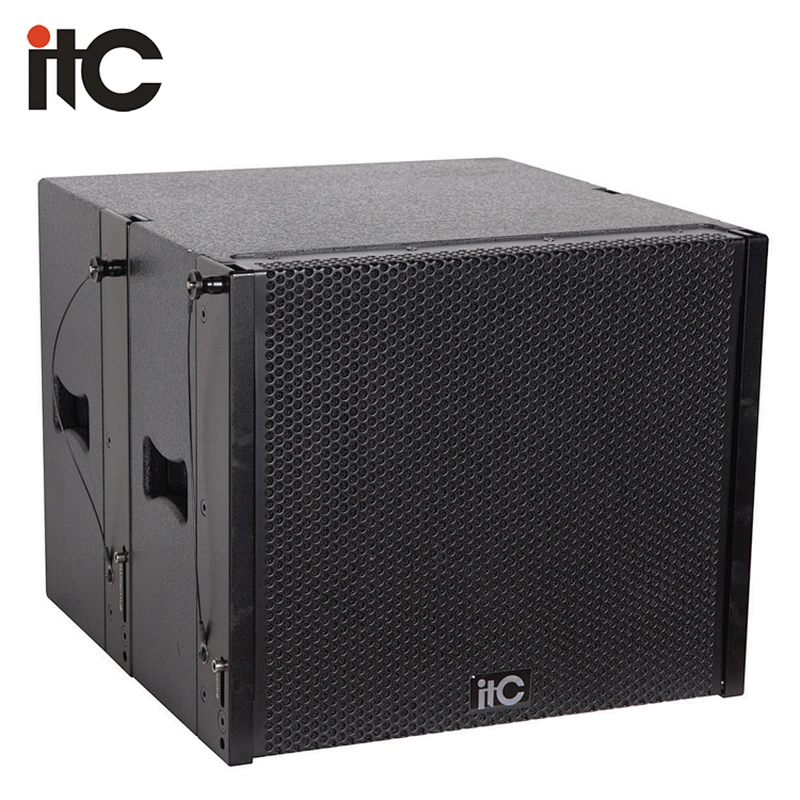

Type | Two Way Line Array speaker | Subwoofer |
Rated Power | 150W | 450W |
Impedance | 16Ω | 8Ω |
Frequency Range | 65Hz-20KHz | 45Hz-1KHz |
SPL (1W/1M) | 98dB | 98dB |
Bass | 2×5" bass | 1*12" bass |
Tweeter | 1×1.3" Compressed Treble | / |
Level Coverage Angle (-6dB) | 110° | / |
Vertical Coverage Angle (-6dB) | Change according to the size of line array and title angle | / |
Dimensions (H x W x D) | (160+125)×415×230 mm | 350×415×430 mm |
Weight | 9.5kg | 19.9kg |
