- Description:Three Way Line Array Loudspeaker
- Power:LF:500W+MHF:500W
- Output Impedance:8Ω+8Ω
- Frequency Range:55Hz-20KHz
- LF:99dB +MHF:106dB:LF:99dB +MHF:106dB
- Bass:10"bass *2
- Tweeter:8"tweeter*2+3"compressed driver*2
- Weight:36.8kg
- Horizontal Dispersion Angel(-6dB):110°
- Application:Large theater, gymnasium, conference etc.
- Warranty:3years
- Place of Origin:CN
- Brand Name:ITC
- Model Number:LA-2100H

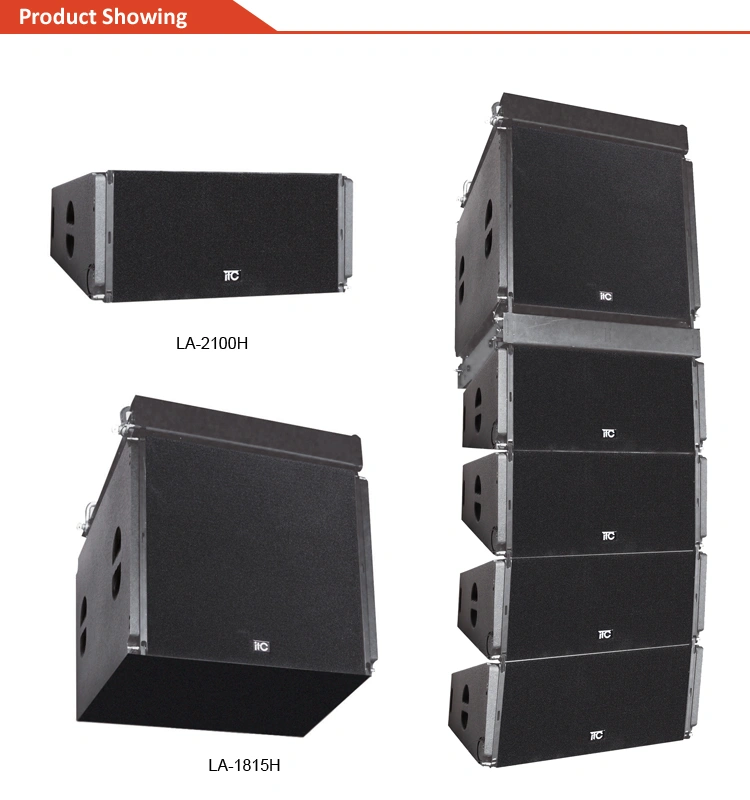

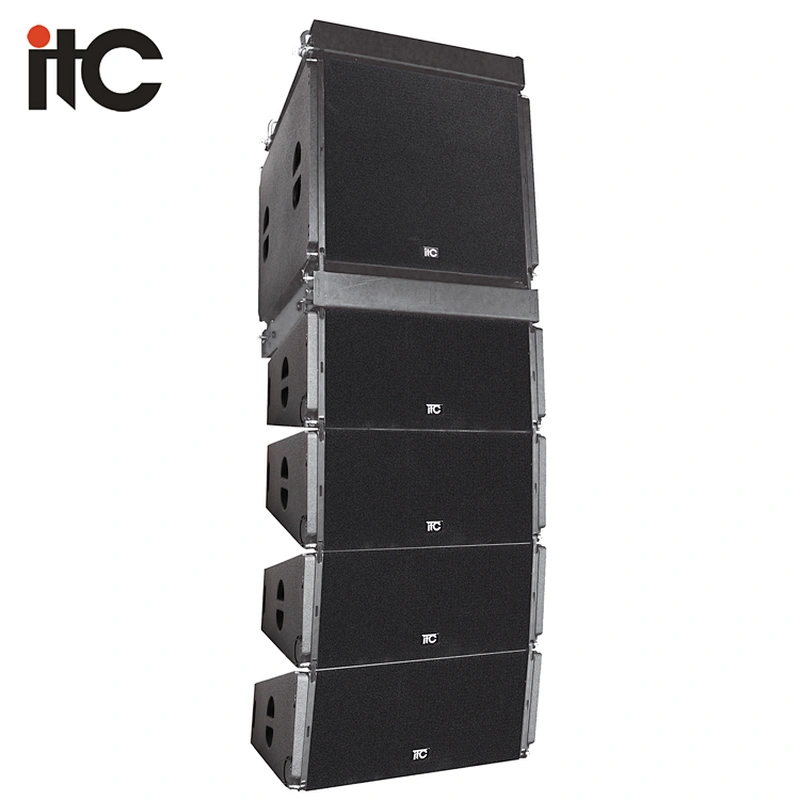

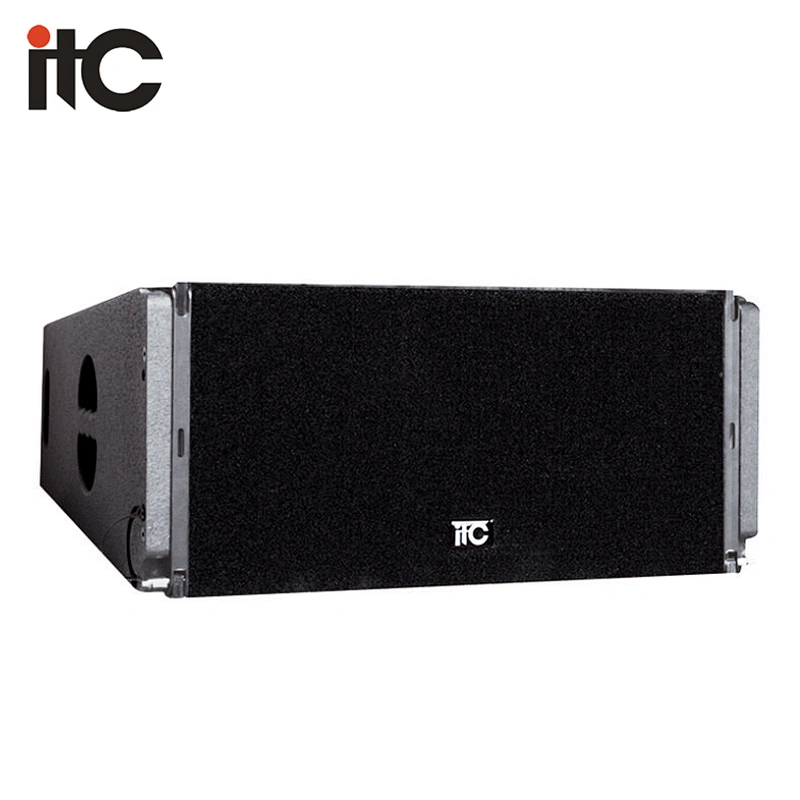

LA-2100H High Quality Pro Audio Loudspeaker 3 Way Line Array Speaker
Featrues:
* The box is made of high quality imported birch, small size, light quality, wear-resistant paint treatment.
* Consists of 2×10" high configuration low - frequency units,2×8" alto units and 2× 1.3"high frequency driver, long projection distance, high sensitivity and strong penetration.
* The precise design of the frequency divider optimizes the power response and vocal part of the intermediate frequency expression.
* Using hoisting combination line array design, allowing 0-14 degrees range adjustment speaker coverage area. With the compact combination , lightweight, easy to installation and other advantages.
* Professional hanging pendant combination, easy and fast way to hang, convenient for project installation.
Scope Of Application
Product application is wide, can work with TA professional amplifier, pre-amplifier. Apply to large outdoor professional sound system, large theater, GYM and other places.
Specification:

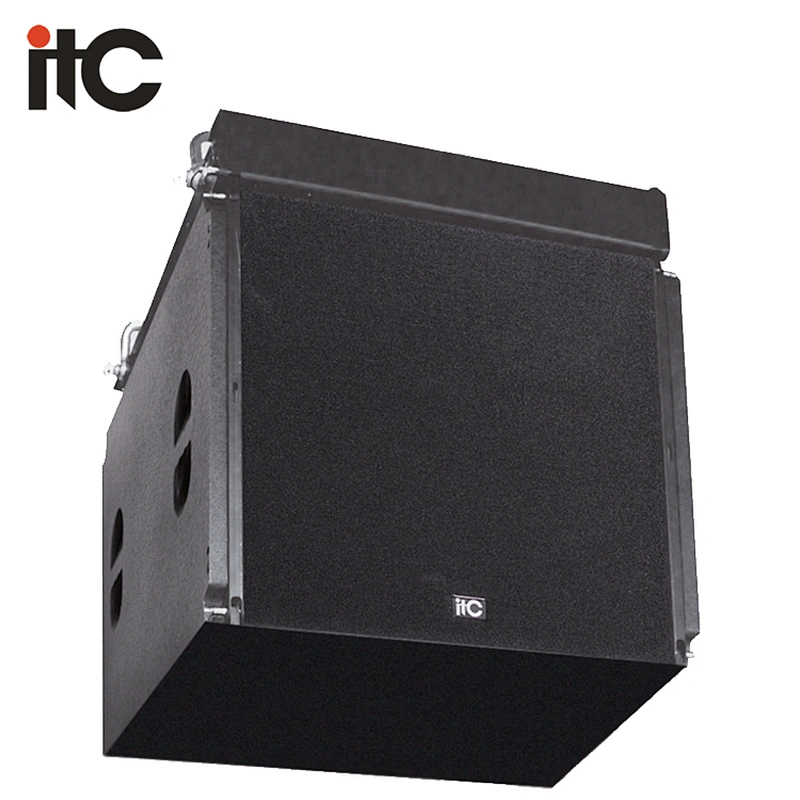

Model | LA-2100H | LA-1815H |
Type | Three Way Line Array speaker | Two way subwoofer speaker |
Rated Power | LF:500W+MHF:500W | 15":600W+18":800W |
Impedance | 8Ω+8Ω | 8Ω+8Ω |
Frequency Range | 55Hz-20KHz | 40Hz-1KHz |
SPL (1W/1M) | LF:99dB +MHF:106dB | 100dB |
Bass | 10"bass×2 | 15"×1+18"×1 |
Tweeter | 8"tweeter×2+3"compressed driver×2 | / |
Level Coverage Angle(-6dB) | 110° | / |
Vertical Coverage Angle(-6dB) | Change according to the size of line array and title angle | / |
Dimensions (H x W x D) | (305+215)×700×580 mm | 610×700×800 mm |
Weight | 36.8kg | 72.9kg |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system, video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
