Description:Sub-Frequency Active Line Array Speaker Full Range
Rated Power:150W (AES)
Output Impedance:8Ω
Frequency Response(-10dB):85Hz-20KHz
Sensitivity(1W@1M):99dB(1M/1W )
Sensitivity of Line Input:0dB
Mid-bass Speaker driver:6.5"x2
Tweeter:34mm(1.34") compression driver x1
Horizontal Dispersion Angel(-6dB):90°
Vertical Dispersion Angle(-6dB):Changing according to the Dimension and the Inclination
Product Description

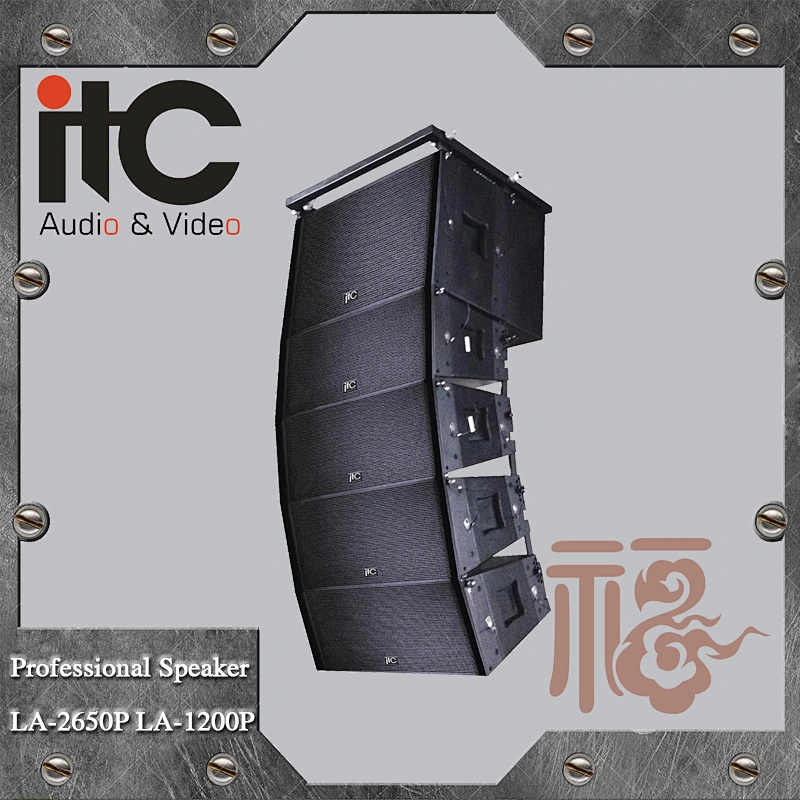

Active line array speakers consist of digital power amplifier and speaker, which has the feature of highly effective output, Hifi sound quality, complete protection function and excellent electromagnetic compatibility. Using hoisting combination design that allows angle adjustment range from 0° to 14°. And it has advantages of compactness, lightweight and easy to be installed.
Feature
1) Plug and play, user-friendly, clear indication, no need professionals;
2) Special alumina hanging rack combination, convenient and fast for sound project installation;
3) Strong power; the sound is soft, natural, elastic and Hifi;
4) Active speaker uses digital power amplifier, which has the feature of Hifi, high efficiency, stable working;
5) Complete protection for short, over-flowing, over-heat and under voltage to remove customers worries;
6) It's suitable for conference room, multi-function room, enterprises, etc.
Technical Parameters
Model
LA-2650P

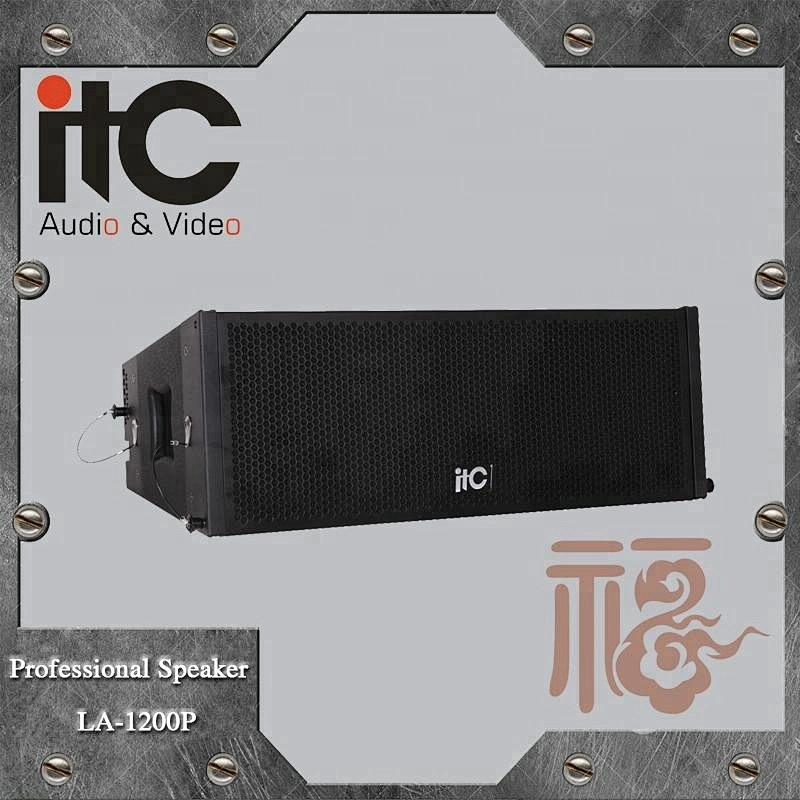

LA-1200P
Description
Sub-Frequency Active Line Array Speaker Full Range

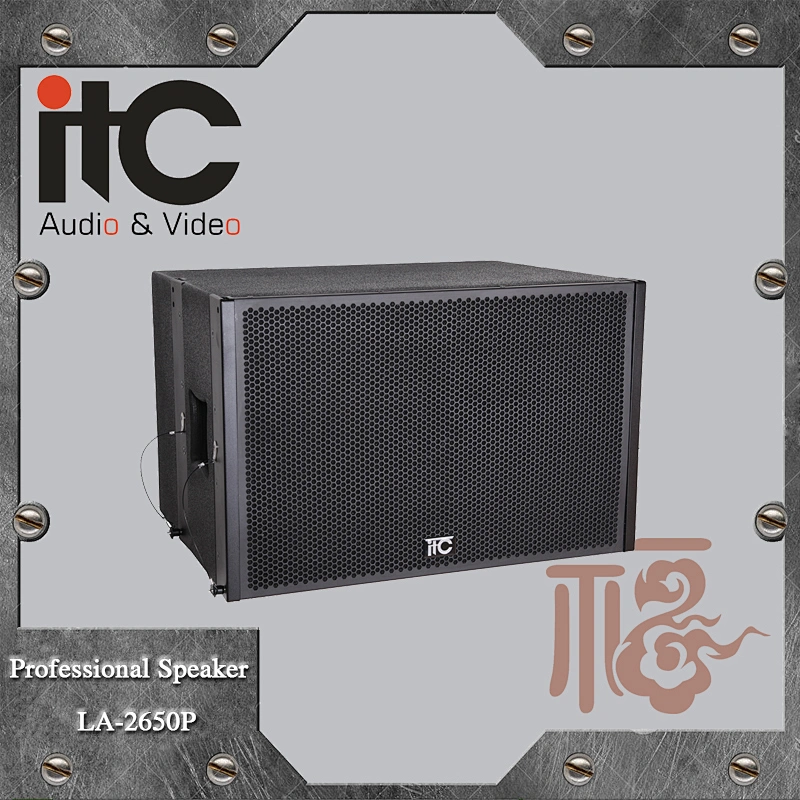

Active Subwoofer
Rated Power
150W (AES)
350W(AES)
Output Impedance
8Ω
8Ω
Frequency Response(-10dB)
85Hz-20KHz
45Hz-800Hz
Sensitivity(1W@1M)
99dB(1M/1W )
99dB (1M/1W )
Sensitivity of Line Input
0dB
0dB
Mid-bass Speaker driver
6.5"x2
12"x1
Tweeter
34mm(1.34”) compression driver x1
/
Horizontal Dispersion Angel(-6dB)
90°
Vertical Dispersion Angle(-6dB)
Changing according to the Dimension and the Inclination
NW
17.8kg
30.9kg
GW
20.1kg
35.1kg
Dimension(WxDxH)
(230+150) x 290 x 620 mm
400x450x620mm

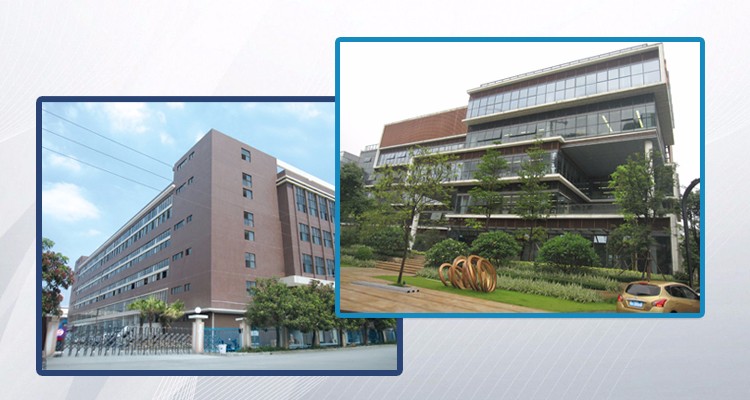

Our Company
Guangzhou ITC Electronic Technology Limited * Operate a 30,000sqm factory * 15 years of audiovisual experience * Integrating research, production, sales and service * 10 major product series and 1,000+ models * Support OEM & ODM service

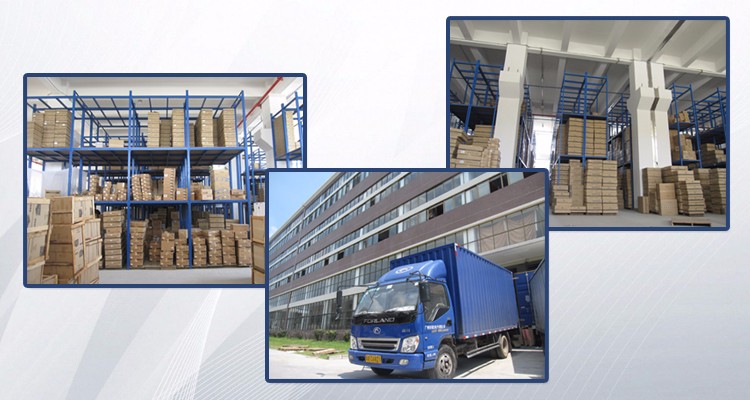

Packing & Delivery
