Widely used home theater sound system caixas de som amplificada profissional wireless Audio portable bluetooth speaker

Model NO.: CK-0508
Price:: USD 260.00-400.00 / piece
Minimum order quantity: 1 piece
Supply Ability: 5000.0 piece / Week
Country of Origin: Guangzhou, Shenzhen and HK

Quantity:

Product Description

Product Name:Best seller pro stage sound speaker system
Impedance:75Ω
SNR(A):≥88dB
Mid-woofer:5.25"PP mid-woofer
Angle of Coverage:(H)80°(V)60°
Weight:10.8kg
Tweeter:25mm soft dome tweeter
Amplifier:27W*4
THD:THD≤0.2%@1m,1W
Warranty:3years
Customized:yes
Place of Origin:CN;GUA
Brand Name:ITC
Model Number:CK-0508
Certification:CE

Products Description

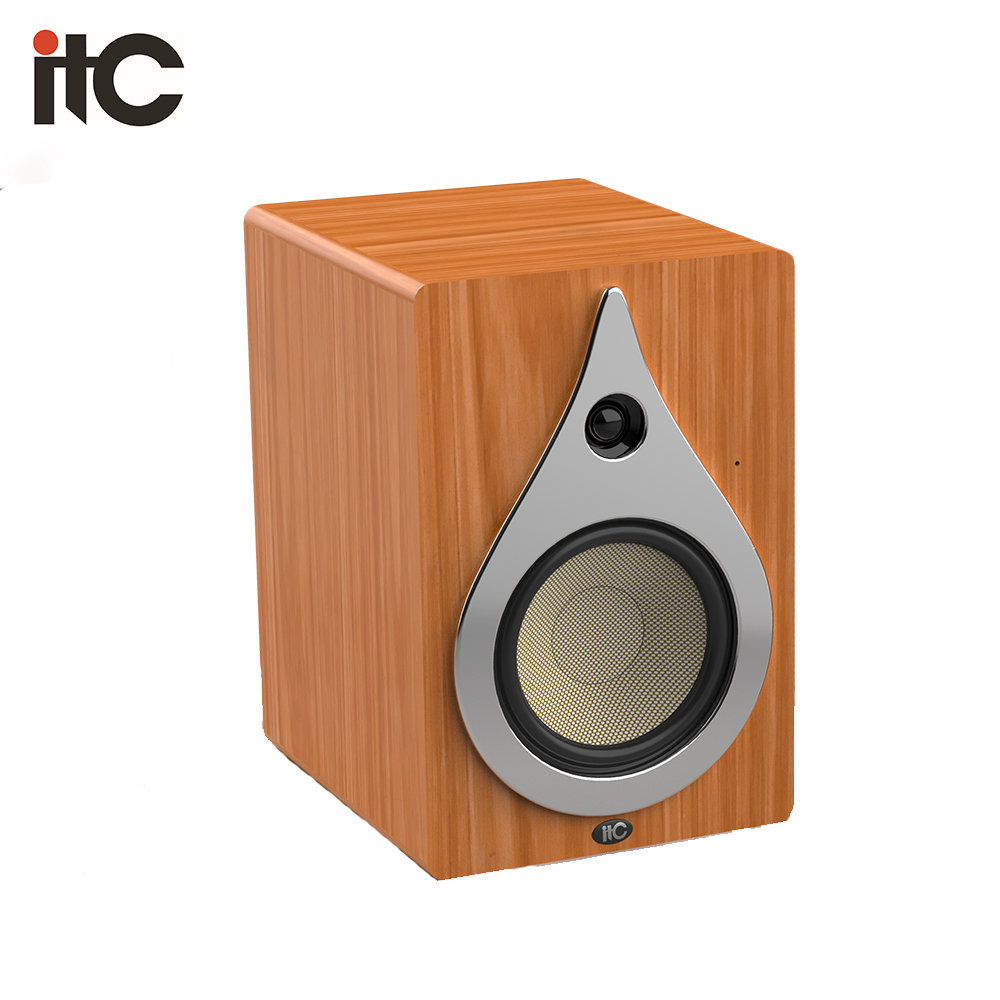

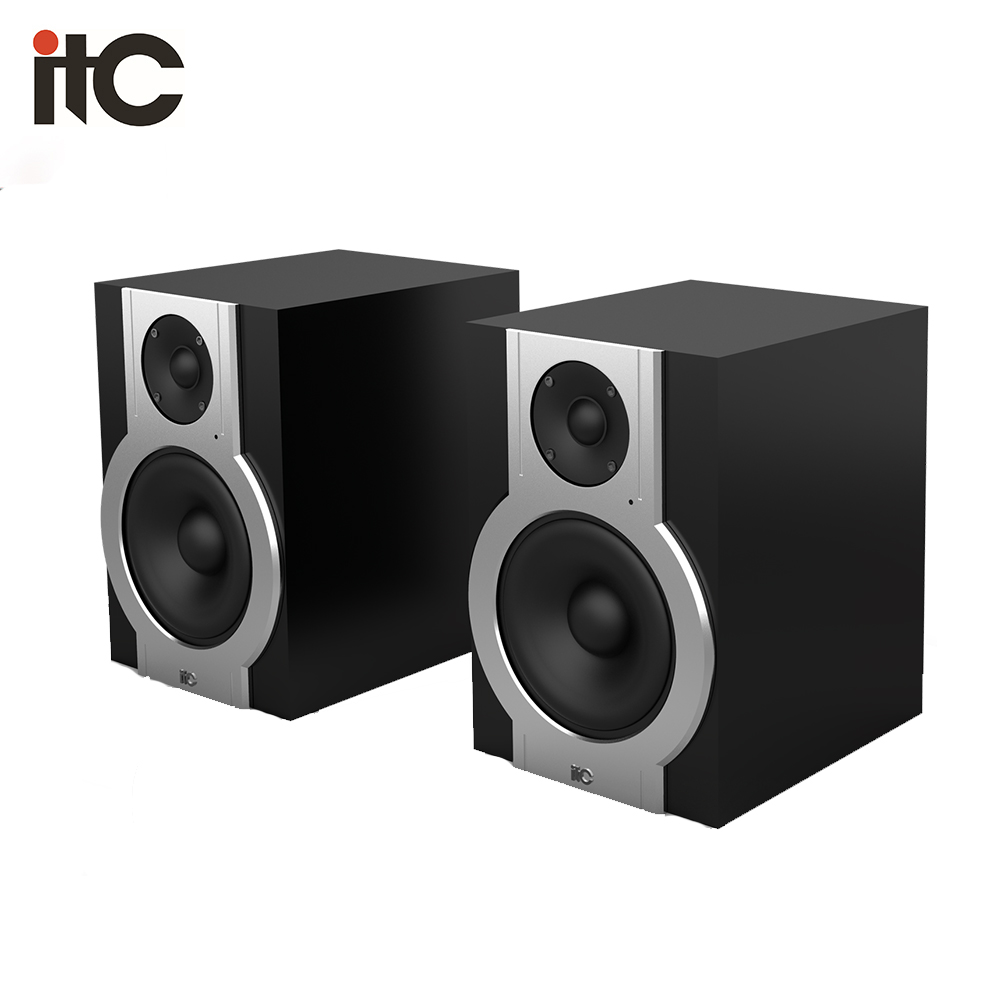

CK 508

At home, it can be placed on the study room, computer desk, and living room TV on the left and right sides for improved TV reinforent; In the office, it can be placed on the left and right sides of the office computer for music playback; suitable for small meeting rooms, control room / machine room to monitor.

Features:

* The mid-woofer adopts a 5.25"PP diaphragm, a large magnetic circuit and low distortion speaker.
* The tweeter adopts 20mm silk film neodymium magnetic HIFI speakers.
* Adopt two TI's TPA3116 low distortion digital amplifiers.
* Adopt third-order active electronic filter as crossover.
* Thick MDF wooden cabinet can effectively reduces the resonance.
* Double-diffused inverter tube can effectively reduce the wind noise in large dynamics.
* The DAC adopts TI's excellent PCM5102 chip, which has strong driving force, soft voice, and powerful low frequency.
* The front panel is made of aluminum alloy, and the housing is made of black wood veneer.
* Support AUX, optical fiber, coaxial, Bluetooth audio inputs.
* Support touch control to switch channels. Touch the gray circle at the top to switch the input source.
* Support channel input status indicator.
* Support Bluetooth 5.0.
* Support volume adjustment function.
* Support tweeter/woofer tone adjustment function.

Product Paramenters

Model	CK-0508
Acoustic system	Two-channel fourth-order inversion
Tweeter	25mm soft dome tweeter
Mid-woofer	5.25"PP mid-woofer
Amplifier	27W╳4
SNR(A)	≥88dB
Effective frequency band	52Hz-20kHz@-8dB
Total power	80W@10%
THD	THD≤0.2%@1m,1W
Bluetooth version	Ver: 5.0

Certifications

Recommend Products

Company Profile

About itc

Guangzhou Baolun Electronic Co.,Ltd (ITC) was founded in 1993,with more than 500 professional engineers for different systems in
R&D center and more than 3.000 staffs in total. We are professional manufacturer for audiovisual (PA system, speaker, amplifiers,
LED screen, Conference system and etc.) & lighting products. ITC has strict quality control, SMT production lines and imported raw
materials from international brands, products comes with CE,RoHs,EN54,ISO,CCC certificates, meet Europe standard. Our products are exported to all over the world with good reputation. ITC successful cases exceed 1,000,000 all over the world.

Product packaging

FAQ

Q: Are you manufacturer or trade company？

A: We are manufacturer, which located in NO.1 building B Block Zhongcun Street Panyu District of Guangzhou, Guangdong, China.

Q: Do you offer OEM&ODM service?
A: Yes, we do.

Q: What’s the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.

Q: Which place will use ITC equipment?
A: Our products are widely used in International Conferences, Governments, Banks, Churches, Highways, Airports, Parliaments,
Education institutes, Hotel, Private corporate conference hall and so on.

Q: What project did you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airport in Tabatinga, Brazil
*The 7th South China Sea International Conference in Vietnam
*The Subway Center of Chanakyapuri in New Delhi, India
*Department of Public Works and Highways in Philippines.
