- Place of Origin:CN;GUA
- Use:HOME THEATRE
- Use:Karaoke Player
- Use:Stage
- Model Number:TS-610P
- Brand Name:ITC
- Type:Active
- Channels:2 (2.0)
- Use:Conference room
- Impedance:4Ω
- Frequency Response:38Hz to 20KHz
- Rated Power:1000W
- Sensitivity:100dB/W/M
- Coverage Angle:(H)100°(V)80°
- Tweeter:75mm Compression Tweeter x1
- Mid-bass:15"x2
- Dimension (HxWxD):1220x530x510mm
- Weight:58Kg
- Warranty:3 Years

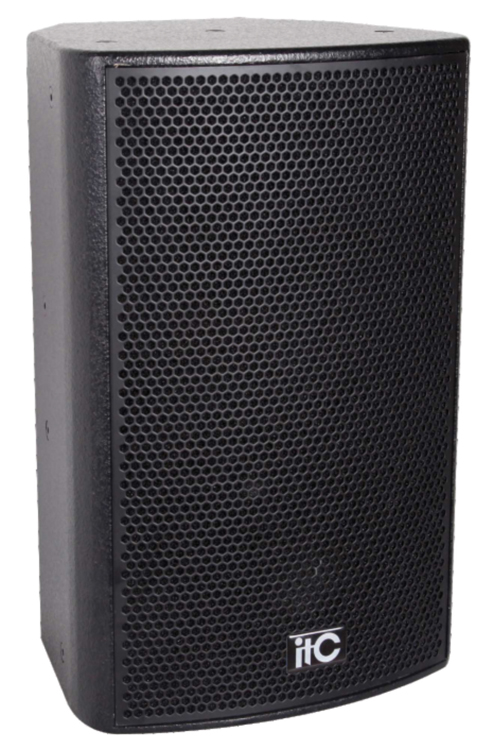

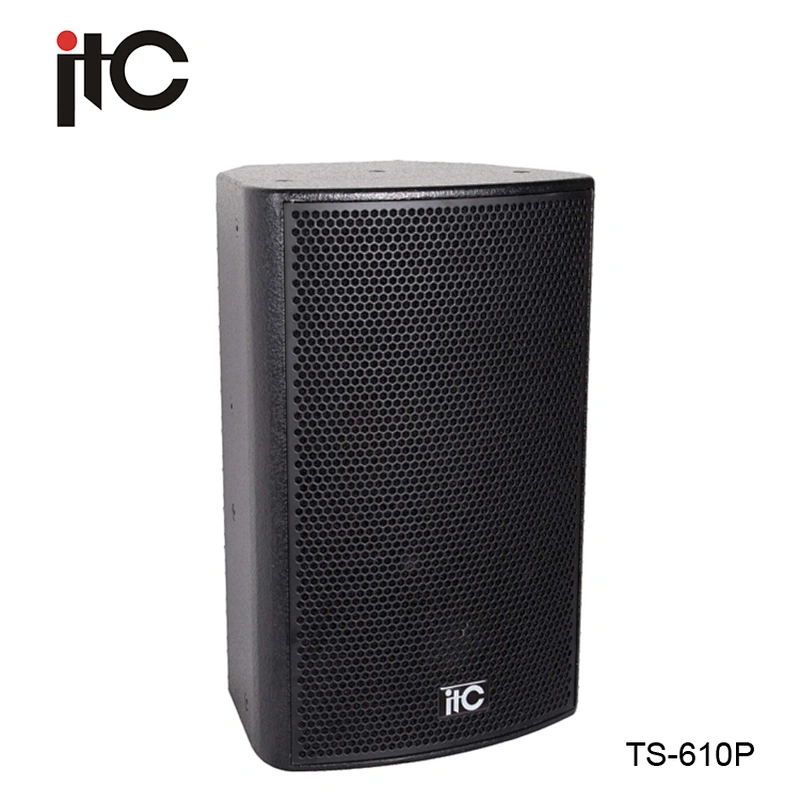

Newest 300W Professional Sound System Multiroom Audio System
Work together with professional amplifier, pre-effect processor, install in high-class
entertainment places, conference room, stage, ect.
* Adopt 10/12/15 inch mid-bass unit and 1.4/1.7/1.73 inch compression treble unit.
* The cover is made of 15mm birch, light weight, The surface is treated with high grade transparent paint,
and with Anti-dust mesh cotton.
* Accurate design of the frequency divider to optimize the power response and the human voice part of the IF expressive force.
* The full range is equipped with high efficiency power amplifier module, work with powerful DSP audio processor, can set a comprehensive parameter according to different applications of the system. And equipped with 6 parameter equalization, with frequency, delay, limiting function
* Multiple screw installing holes, a 35 mm diameter plunger socket, a variety of installation methods.
Model | TS-610P | TS-612P | TS-615P |
Impedance | 8Ω | 8Ω | 8Ω |
Frequency Response | 55Hz-20KHz | 50Hz-20KHz | 45Hz-20KHz |
Rated Power | 300W | 350W | 450W |
Sensitivity | 98dB/W/M | 99dB/W/M | 100dB/W/M |
Cover Angle | (H)80°(V)60° | (H)80°(V)60° | (H)80°(V)60° |
Treble | 1.4" Compressed Treble Unit×1 | 1.7" Compressed Treble Unit×1 | 1.73" Compressed Treble Unit×1 |
Bass | 10"bass×1 | 12"bass×1 | 15"bass×1 |
Dimension (H×W×L) | 510×325×300 mm | 560×360×380 mm | 660×435×430 mm |
Weight | 18.5Kg | 21.8Kg | 28.8Kg |

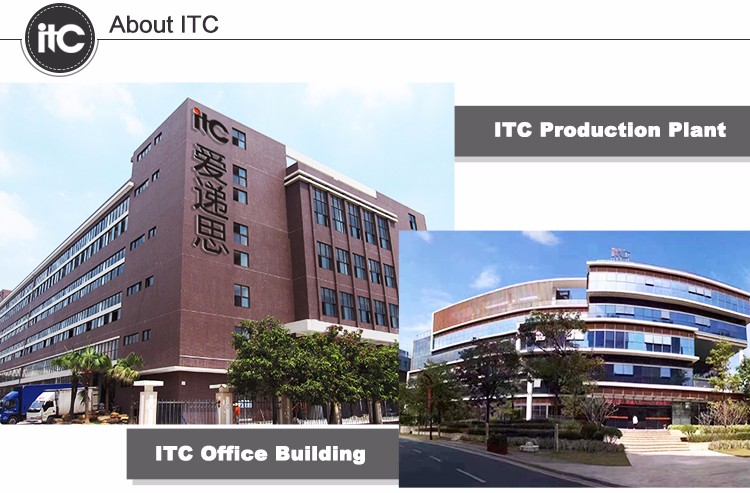

ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system, video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Pre-sale Service
* High Quality + Factory Price + Quick Response + Reliable Service, is our working faith.
* Professional foreign trade team, Reply your Alibaba enquiry and trade messager in 24 working hours.
* 30 system consultants and 10 designers to make drawing and BOQ for each tender.
* Design and BOQ response to customer within 48 hours.
Middle-sale Service
* Testing quality again before sending goods.
* Well-trained sales team for sales and basic technical service.
* Online system software demo and configuration is available.
* PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
* Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goods.
After-sale service
* ITC guarantee all electronics of 3 years quality warranty.
* ITC could supply 1% wearing spare parts free of charge.
* Two English spoken technician provide online after sales service.
* Technical documents could be downloaded from website www.itc-pa.com.cn.
* All of the quality compliant shall be feedback with a solution within 48 hours.
