- Product Name:Best seller pro stage sound speaker system
- Impedance:75Ω
- SNR(A):≥90dB
- Mid-woofer:6.5"bullet-proof cloth braided diaphragm
- Weight:15kg
- Tweeter:25mm soft dome tweeter
- Amplifier:50W*4
- THD:THD≤0.2%@1m,1W
- DSP:PEQ, frequency division, overhead filtering@ 48kHz / 24bit
- Fiber coaxial:Input impedance 75Ω; 44.1k, 48k, 88.2k, 96kHz, 192kHz / 16bit, 24bit
- Warranty:3years
- Customized:yes
- Place of Origin:CN;GUA
- Brand Name:ITC
- Model Number:CK-606
- Certification:CE
Products Description

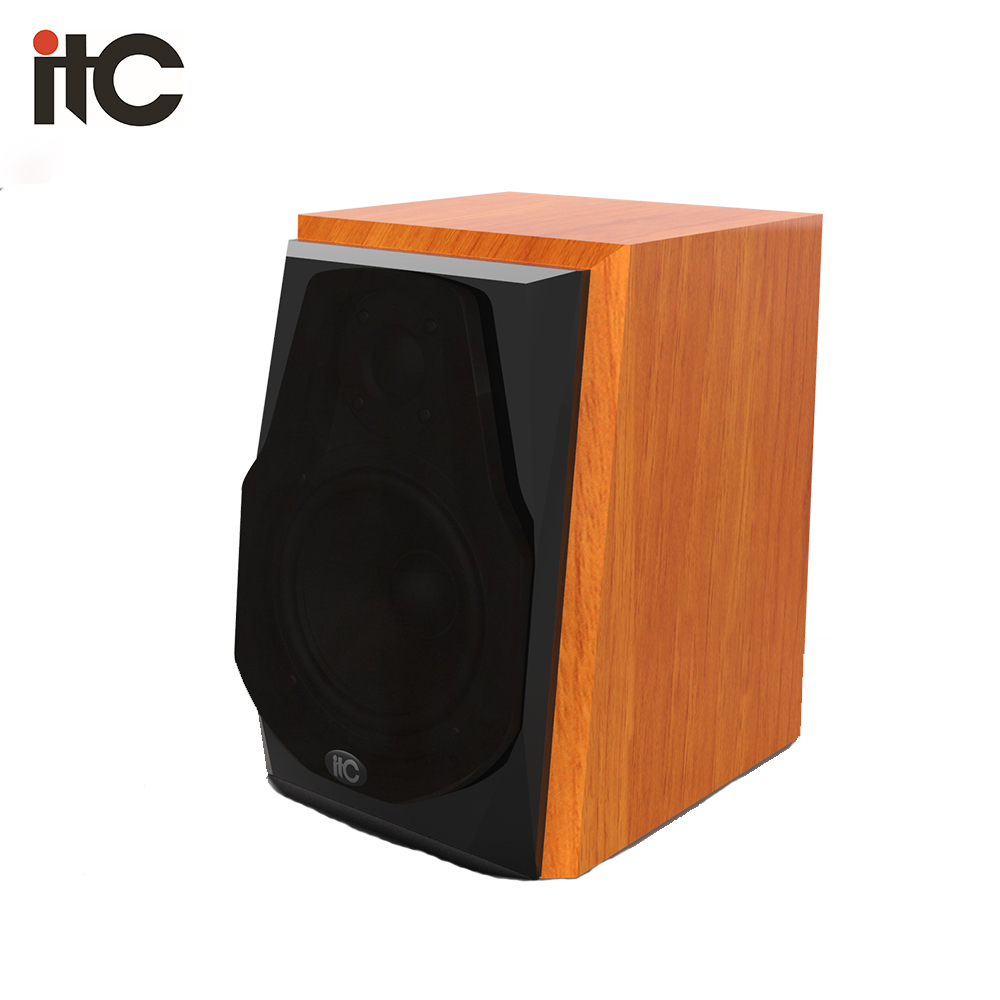

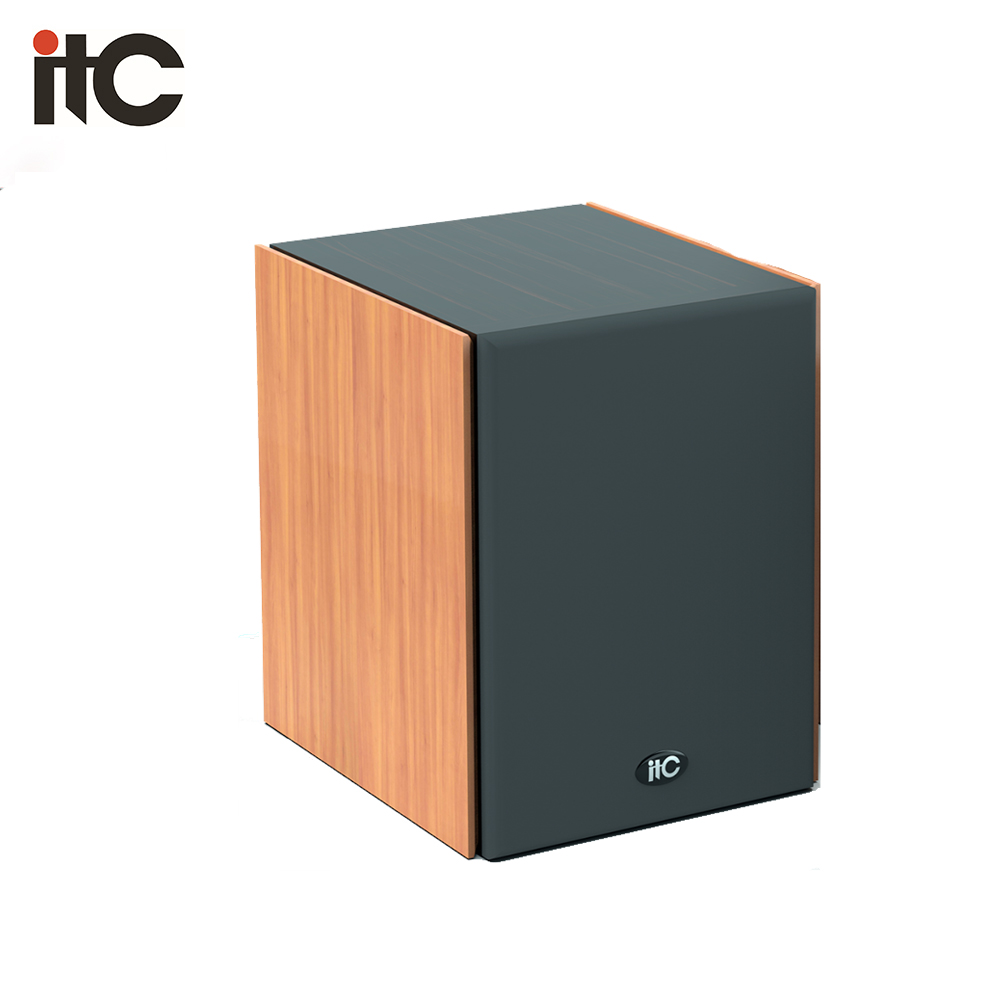

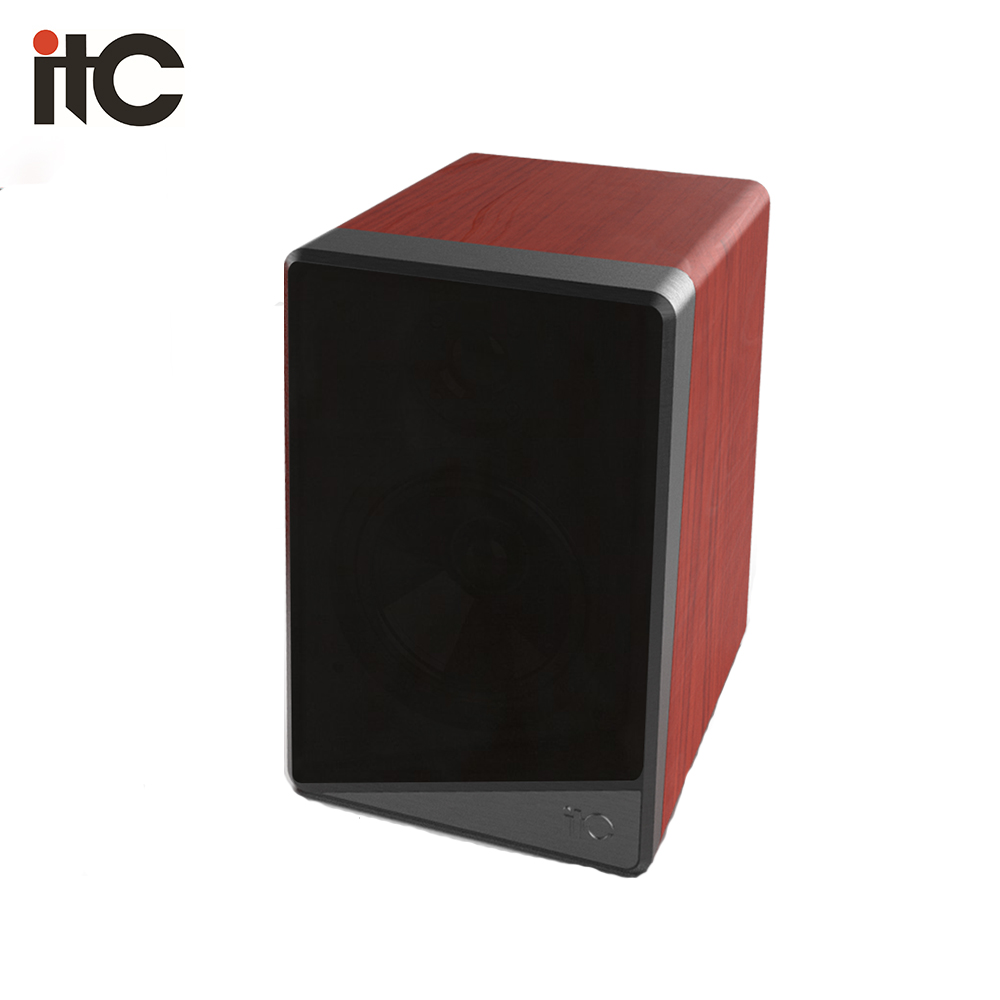

CK 606
At home, it can be placed on the study room, computer desk, and living room TV on the left and right sides for improved TV reinforent; In the office, it can be placed on the left and right sides of the office computer for music playback; suitable for small meeting rooms, control room / machine room to monitor.
Features:
* The mid-woofer adopts a 6.5"bullet-proof cloth braided diaphragm, a large R angle rubber edge folding ring, and a 100mm large
magnetic circuit low distortion HIFI speaker.
* The tweeter adopts 25mm silk film neodymium magnetic HIFI speakers.
* Adopt two TI's TPA3251 low distortion digital amplifiers.
* Adopt high power digital special low internal impedance flat copper large inductance special for HIFI speaker. Internal
impedance is as low as 7mΩ. It can effectively filter out unnecessary high frequency and further make the sound soft.
* DSP adopts ADAU1701 of Analog Devices for signal processing such as frequency division.
* High-power ring transformer with an outer diameter of 100mm.
* Adopt third-order active electronic filter as frequency divider.
* Thick MDF wooden cabinet can effectively reduces the resonance.
* Double-diffused inverter tube can effectively reduce the wind noise in large dynamics.
* The DAC adopts TI's excellent PCM5102 chip, which has strong driving force, soft voice, and powerful low frequency.

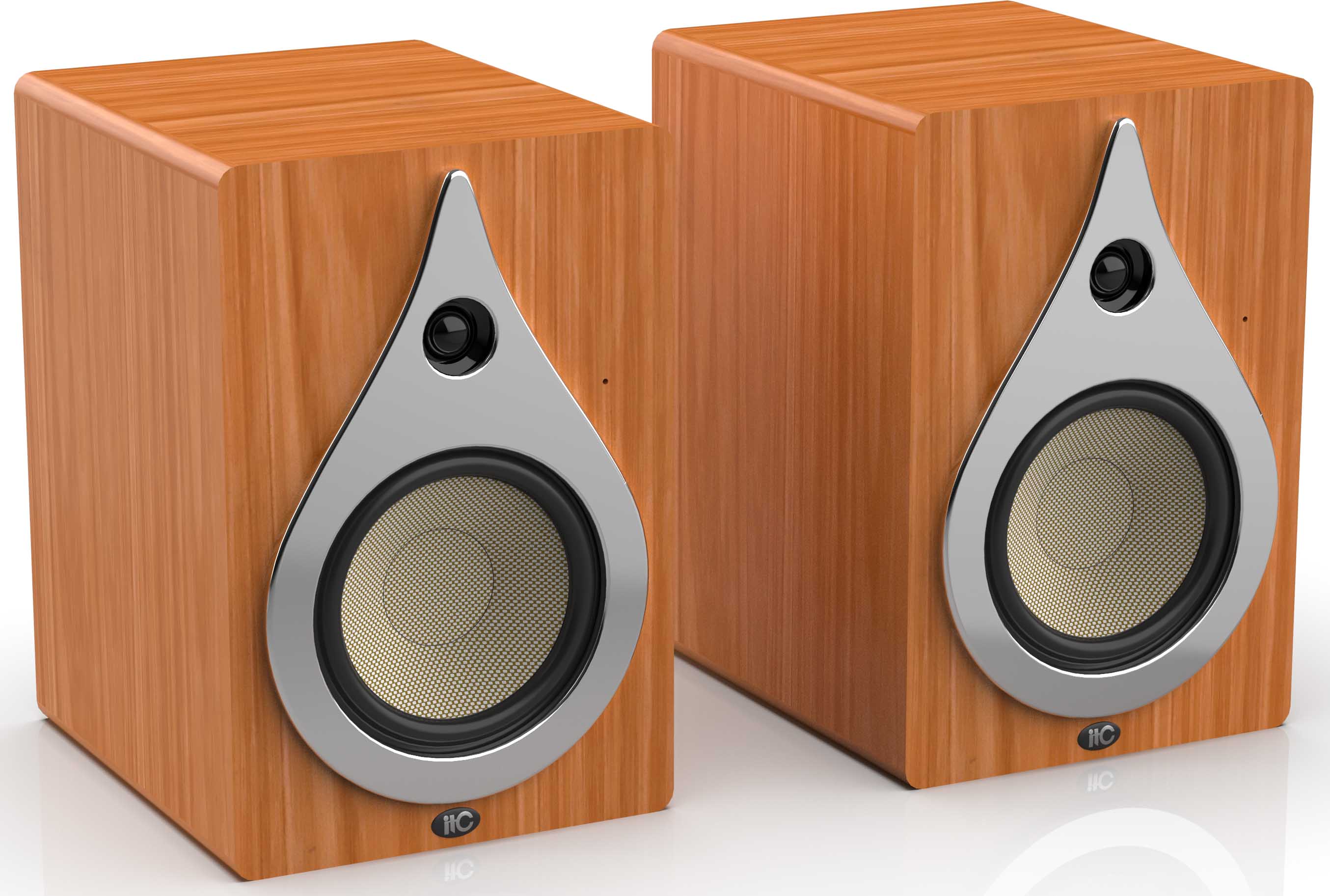

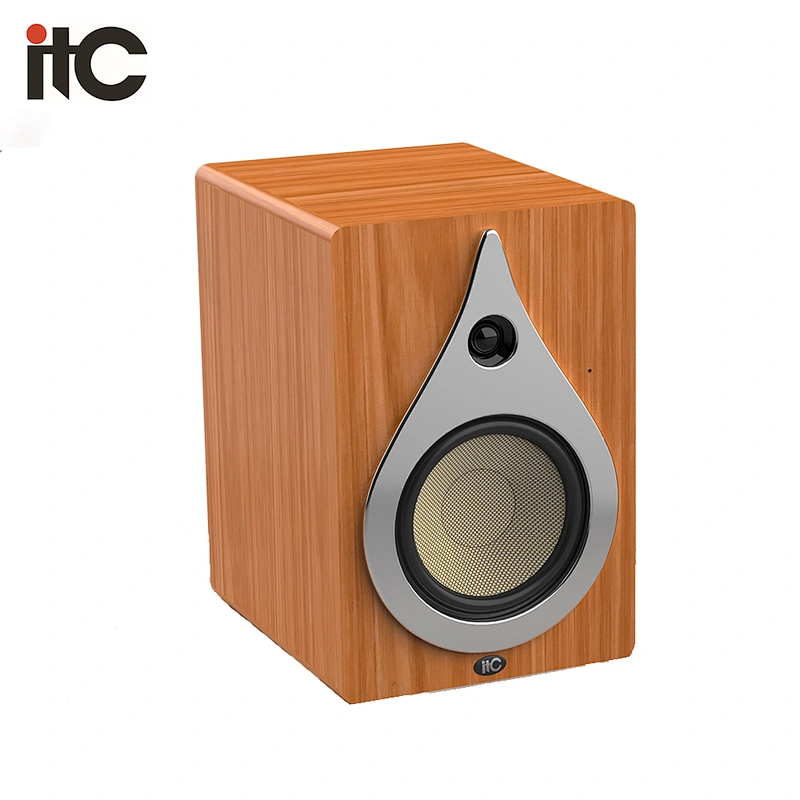

* The water drop shape of the front panel is made of aluminum alloy decorative parts, and the housing is made of mahogany veneer.
* Support AUX, optical fiber, coaxial, Bluetooth audio inputs.
* Support touch control to switch channels. Touch the gray circle at the top to switch the input source.
* Support channel input status indicator.
* Support Bluetooth 5.0.
* Support volume adjustment function.
* Support tweeter/woofer tone adjustment function.
magnetic circuit low distortion HIFI speaker.
* The tweeter adopts 25mm silk film neodymium magnetic HIFI speakers.
* Adopt two TI's TPA3251 low distortion digital amplifiers.
* Adopt high power digital special low internal impedance flat copper large inductance special for HIFI speaker. Internal
impedance is as low as 7mΩ. It can effectively filter out unnecessary high frequency and further make the sound soft.
* DSP adopts ADAU1701 of Analog Devices for signal processing such as frequency division.
* High-power ring transformer with an outer diameter of 100mm.
* Adopt third-order active electronic filter as frequency divider.
* Thick MDF wooden cabinet can effectively reduces the resonance.
* Double-diffused inverter tube can effectively reduce the wind noise in large dynamics.
* The DAC adopts TI's excellent PCM5102 chip, which has strong driving force, soft voice, and powerful low frequency.
* The water drop shape of the front panel is made of aluminum alloy decorative parts, and the housing is made of mahogany veneer.
* Support AUX, optical fiber, coaxial, Bluetooth audio inputs.
* Support touch control to switch channels. Touch the gray circle at the top to switch the input source.
* Support channel input status indicator.
* Support Bluetooth 5.0.
* Support volume adjustment function.
* Support tweeter/woofer tone adjustment function.
Product Paramenters
Model | CK-606 |
Acoustic system | Two-channel fourth-order inversion |
Tweeter | 25mm soft dome tweeter |
Mid-woofer | 5.25"PP mid-woofer |
Amplifier | 50W╳4 |
SNR(A) | ≥90dB |
Effective frequency band | 45Hz-20kHz@-8dB |
Total power | 140W@10% |
THD | THD≤0.2%@1m,1W |
Bluetooth version | Ver: 5.0 |
DSP | PEQ, frequency division, overhead filtering, gain control, dynamic voltage limit and other technical processing @ 48kHz / 24bit |
Certifications
Recommend Products
Company Profile
About itc
Guangzhou Baolun Electronic Co.,Ltd (ITC) was founded in 1993,with more than 500 professional engineers for different systems in
R&D center and more than 3.000 staffs in total. We are professional manufacturer for audiovisual (PA system, speaker, amplifiers,
LED screen, Conference system and etc.) & lighting products. ITC has strict quality control, SMT production lines and imported raw
materials from international brands, products comes with CE,RoHs,EN54,ISO,CCC certificates, meet Europe standard. Our products are exported to all over the world with good reputation. ITC successful cases exceed 1,000,000 all over the world.
R&D center and more than 3.000 staffs in total. We are professional manufacturer for audiovisual (PA system, speaker, amplifiers,
LED screen, Conference system and etc.) & lighting products. ITC has strict quality control, SMT production lines and imported raw
materials from international brands, products comes with CE,RoHs,EN54,ISO,CCC certificates, meet Europe standard. Our products are exported to all over the world with good reputation. ITC successful cases exceed 1,000,000 all over the world.
Product packaging
FAQ
Q: Are you manufacturer or trade company？
A: We are manufacturer, which located in NO.1 building B Block Zhongcun Street Panyu District of Guangzhou, Guangdong, China.Q: Do you offer OEM&ODM service?
A: Yes, we do.
Q: What’s the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q: Which place will use ITC equipment?
A: Our products are widely used in International Conferences, Governments, Banks, Churches, Highways, Airports, Parliaments,
Education institutes, Hotel, Private corporate conference hall and so on.
Q: What project did you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airport in Tabatinga, Brazil
*The 7th South China Sea International Conference in Vietnam
*The Subway Center of Chanakyapuri in New Delhi, India
*Department of Public Works and Highways in Philippines.
