- Certificate:CCC CE
- Impedance:Woofer: 4 ohms; Full Range: 4 ohms
- Frequency Response:40Hz to 20KHz
- Rated Power:Woofer: 500; Full Range: 400W
- Sensitivity:99dB/W/M
- Drivers:15"Woofer x1 & 3"Full Range x12
- Dimension of Subwoofer (HxWxD)mm:580x440x525
- Dimension of Full Range Speakers:1290x105x98
- Warranty:3 Years
- Type:Line Array Speakers
- Warranty:3years
- Place of Origin:CN
- Brand Name:ITC
- Model Number:TS-15A02

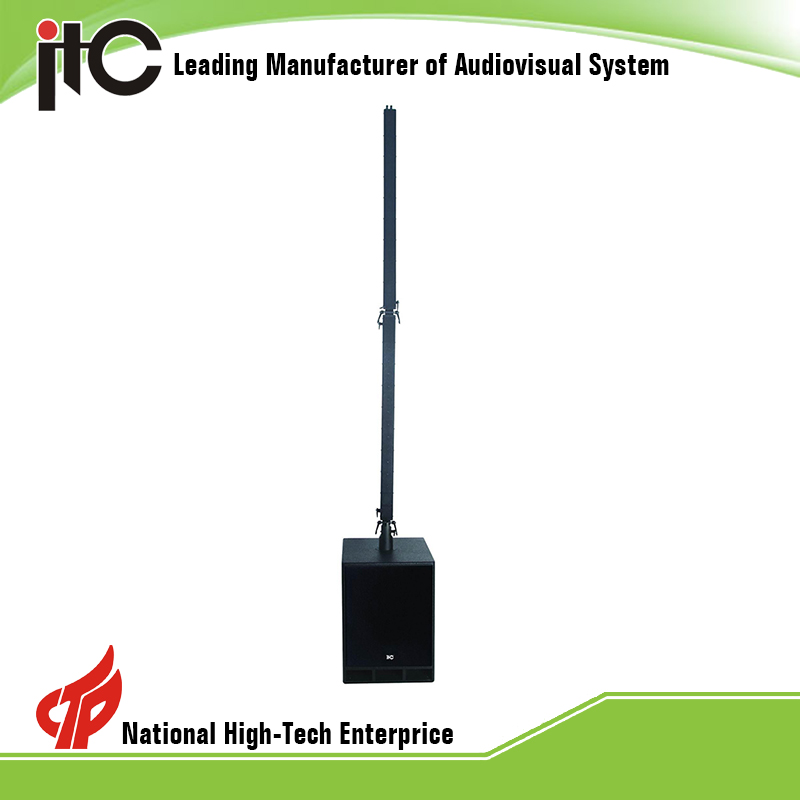

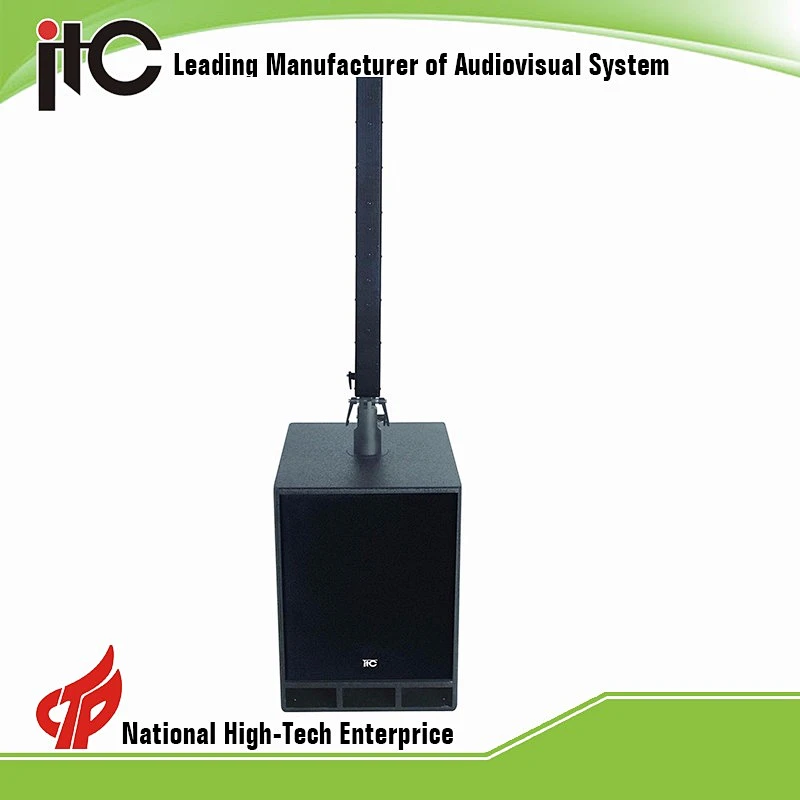

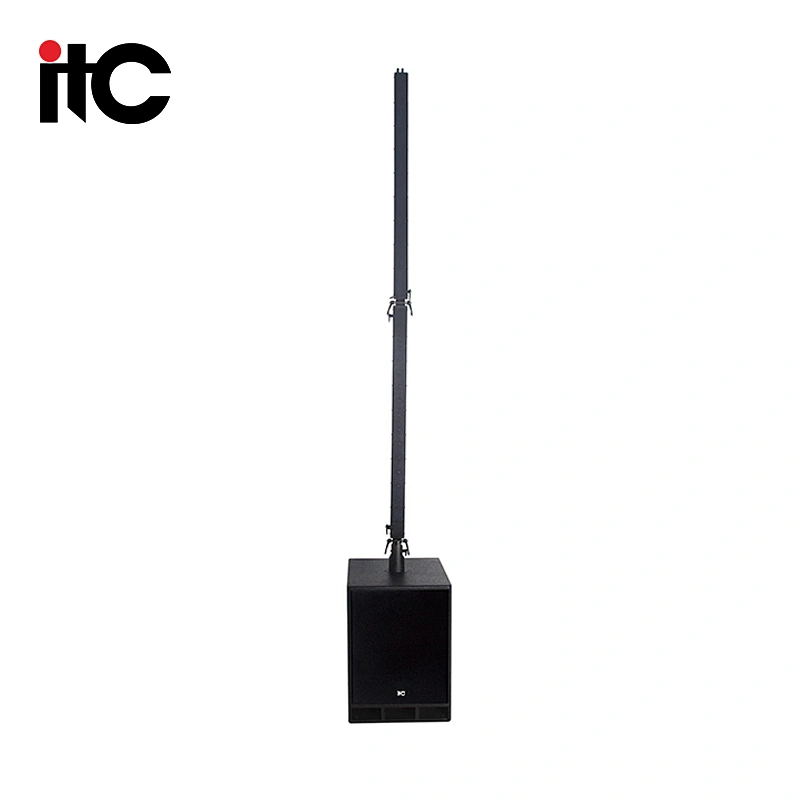

TS-15A02 Series 1000W 4ohm 2 Way Hi Fi Active Array Line Speakers
Features
1. Using reversed phase hole to reduce distortion.
2. Splicing arrangement design to cover larger area while using less speakers, even in complicated acoustic environment, it could realize perfect audio transmission.

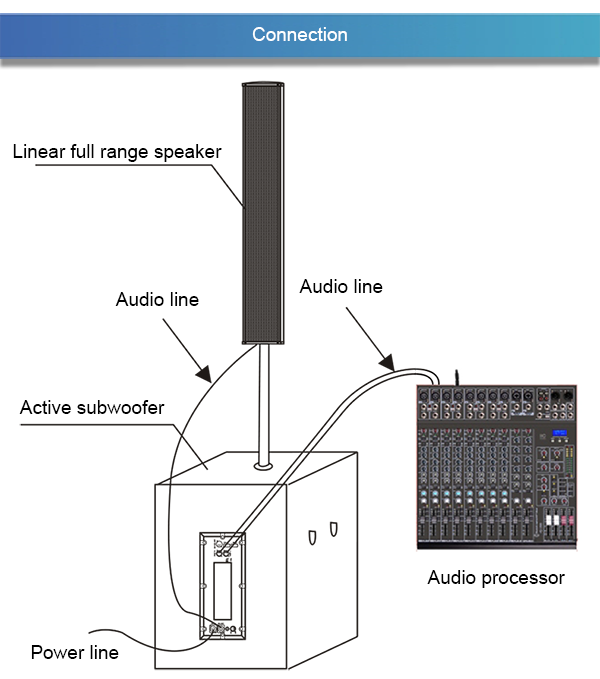

3. The speaker is with internal 2 channel digital amplifier, 1 is for subwoofer and the other is for full range speakers.

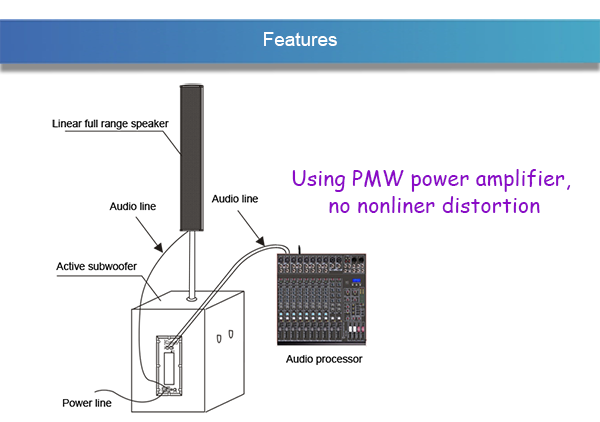

4. Using PWM power amplifier to realize no nonlinear distortion, auto recovery back electromotive force of speaker drivers.

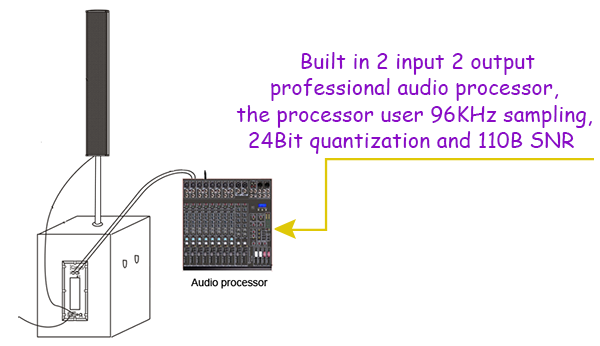

5. With internal 2 in 2 out pro sound processor whose S/N ratio is 110dB, sampling rate 96KHz/24Bit.
6. The audio processor works with power amplifier perfectly and the state signal of the power amplifier dynamic control the compensation created by the processor, the sound processor provides amplifier with base clock to achieve instruction synchronization.
7. The audio processor is integrated with EQ, distributor, delayer, suppressor, noise-gate, etc.
8. Using dual-phase power to supply continuously in large dynamic, using fixed-frequency switching power to avoid interference by frequency drift and beat signal.
9. Using the loop matching the feature of audio amplifier to speed up power supply and to ensure power supply in fast switching between unload and full-load.
Model | TS-15A02 | TS-15A03 |
Impedance | Woofer: 4 ohms; Full Range: 4 ohms | |
Frequency Response | 40Hz to 20KHz | |
Rated Power | Woofer: 500 Full Range: 500W | Woofer: 500 Full Range: 400W |
Sensitivity | 99dB/W/M | |
Drivers | 15” Woofer x1 & 2” Full Range x24 | 15” Woofer x1 & 3” Full Range x12 |

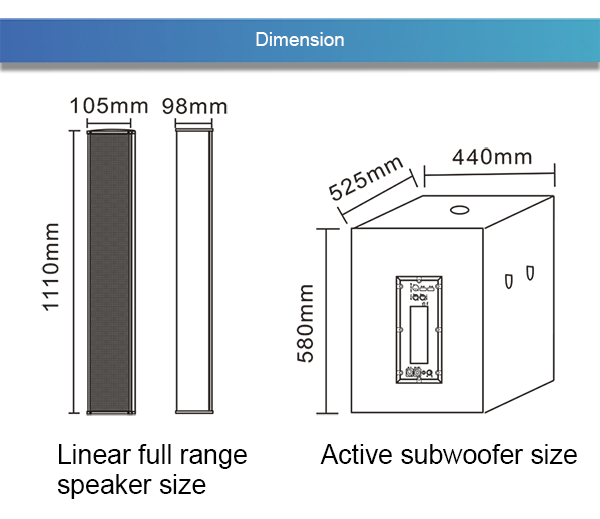

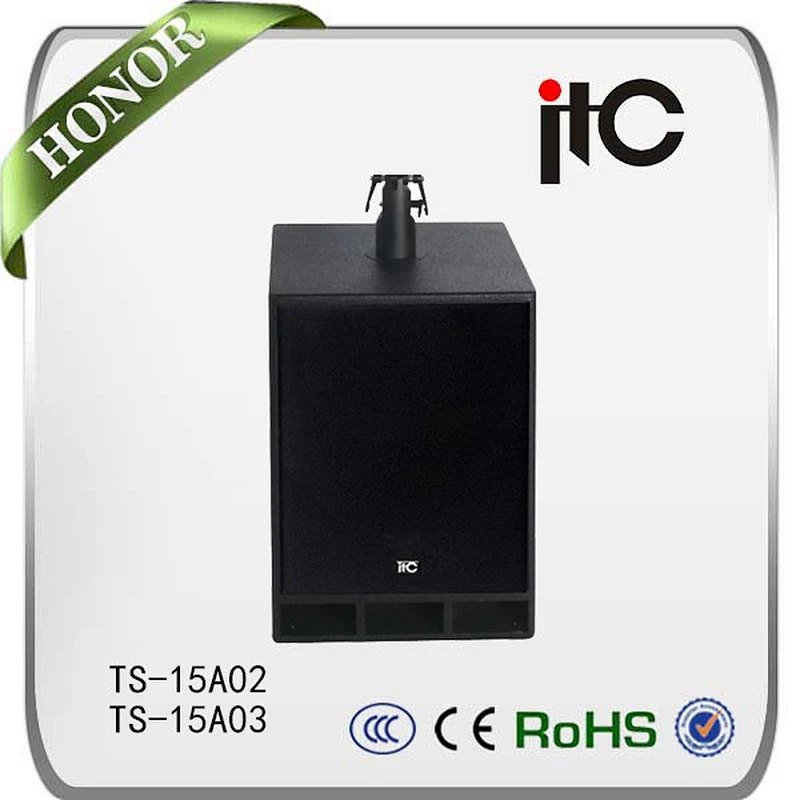

Dimension of Subwoofer (HxWxD)mm | 580x440x525 | 580x440x525 |

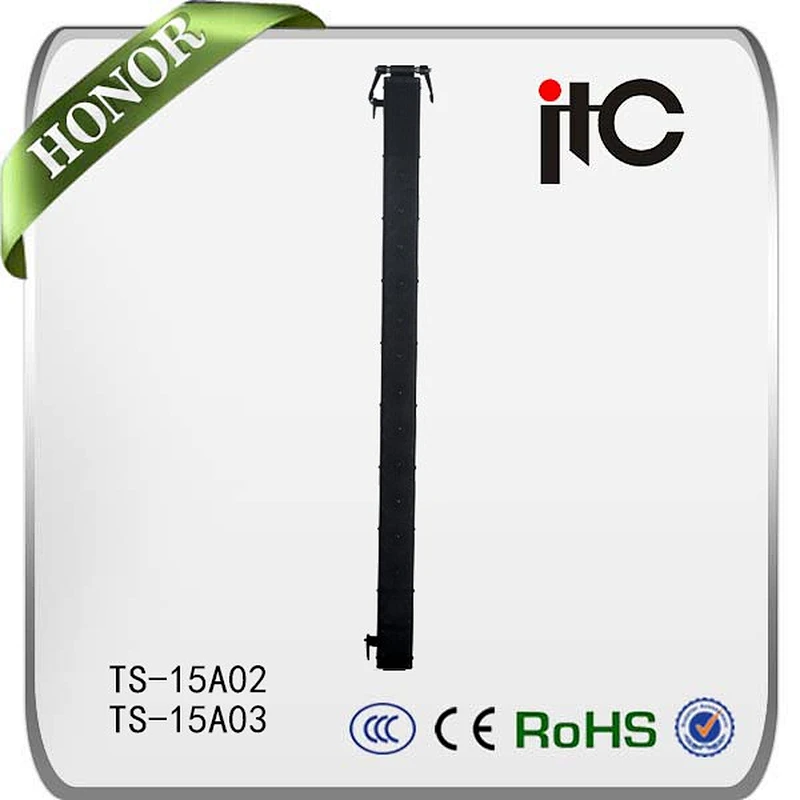

Dimension of Full Range Speakers (HxWxD)mm | 2100x63x80 | 1290x105x98 |
Weight (Kg) | 46 | 43 |

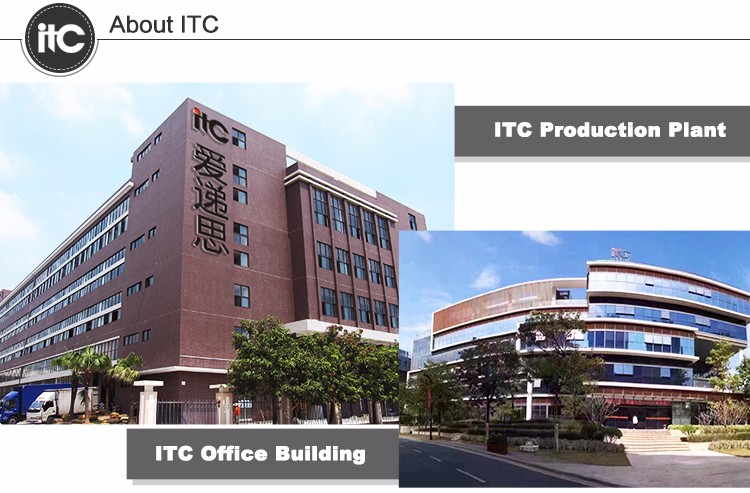

ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system, video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
Send Message

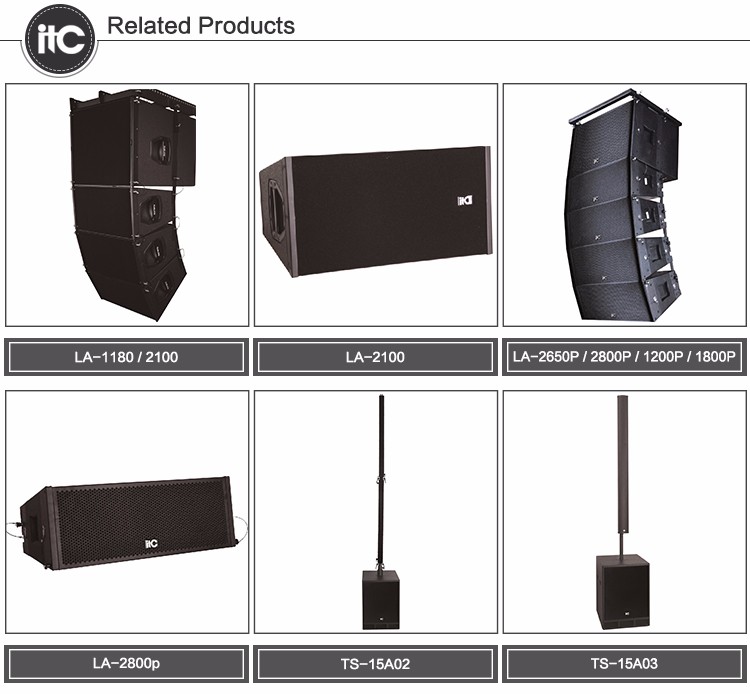

Related Products
