- Place of Origin:CN;GUA
- Use:Home Theatre
- Model Number:T-7807
- Brand Name:ITC
- Type:Active
- Channels:2 (2.0)
- Use:Public Address
- Power Supply:AC 180 to 260V of 50Hz; DC 24V at 1A
- Protocol:TCP/IP, UDP, IGMP
- Audio Format:MP3, WMA, WAV
- Audio Type:CD Level Stereo Sound in 16 Bit
- Sampling Rate:8K to 48K
- Bit Rate:8K to 768Kbps
- Sensitivity of AUX:350mV
- Sensitivity of Mic:5mV
- Power Consumption:50W
- Power Consumption of Standby:<3W

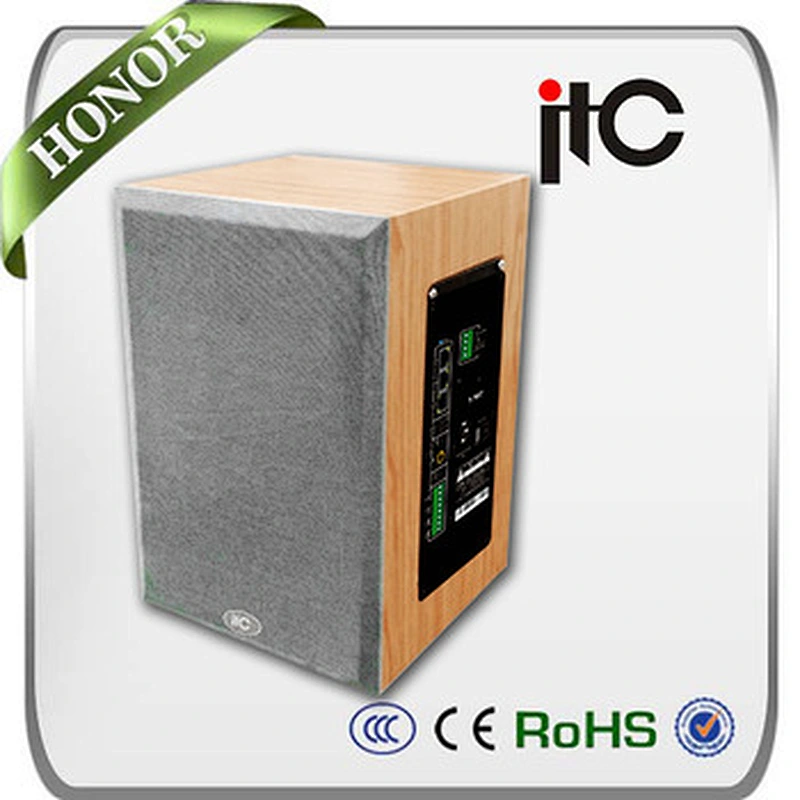

ITC T-7807 Internal Professional Sound Card Various Input TCP IP Speaker PA
It’s all-in-one IP speaker. It’s with the module of IP audio decoder, digital stereo amplifier at constant impedance and hi-fi speaker. And it’s suitable for the designated-point play rooms, classrooms, hotel rooms, etc.
1)All-in-one wall mount design; stylish appearance
2)It’s based in cloud-based platform of Luna; the security and the stability are excellent; support continuous work of 7 x24 hours
3)With internal SSD of 2G; support remotely managing; support background download in limited bandwidth or download in free time in order to reduce network burden; support the function of offline auto playing from the media library
4)With 2 network interface; support the modes of expansion via switcher and redundant backup; the speed is up to 1000M
5)Various access method for network, Including DHCP, ADSL, fixed IP, etc
6)Integrated with sound card in 24 Bit; to realize audio playing in Hi-fi level; the audio data streaming is up to 768Kpbs
7)With 1 Line input, 1 Mic input, and 1 EMC input; with internal digital preamplifier; support user-customized priority
8)With 1 Line output to connect external amplifier devices
9)Support intelligent power-saved and preopen management to ensure reliable and energy-saving working of the device
10)With 1 button to reset
11)With a group of RJ45 expansion port to achieve expansion of functions and operation
12)Support 2 kinds of power supply: city power and backup power at DC 24V
Model | T-7807 |
Power Supply | AC 180 to 260V of 50Hz; DC 24V at 1A |
Network Interface | 2 Groups of RJ45 |
Transmission Speed | 1000Mbps/100Mbps/10Mbps |
Protocol | TCP/IP, UDP, IGMP |
Audio Format | MP3, WMA, WAV |
Audio Type | CD Level Stereo Sound in 16 Bit |
Sampling Rate | 8K to 48K |
Bit Rate | 8K to 768Kbps |
AUX Input | 2 Groups |
Sensitivity of AUX | 350mV |
Mic Input | 1 Group |
Sensitivity of Mic | 5mV |
Power Consumption | 50W |
Power Consumption of Standby | <3W |
Frequency Response | 20Hz to 20KHz ±1dB |
T.H.D. | ≤0.1% |
S/N Ratio | ≥65dB |
Short Input | 0V/3.3V |
Short Output | <3A at 120V |
Expansion Interface | 1 RJ45 |
Protection Function | Overload, over-heat, short, etc |
Load of Power Output | <5KVA at 220V |
Working Temp. | 5℃~40℃ |
Working Relative Humidity | 20% to 80% |
Dimension | 245*162*182mm |
Weight | 2.5Kg |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
