- Place of Origin:CN;GUA
- Model Number:TS-608 /TS-610/ TS-612/ TS-615
- Brand Name:ITC
- Impedance:8 ohm
- Frequency Response:60Hz-20KHz
- Rated Power Ouput:200W
- Sensitivity:96dB/W/M
- Coverage Angle:(H)80°(V)70°
- Bass:8"woofer*1
- Tweeter:1.4"compression tweeter x 1
- Weight:9.6KG
- Dimension(H*W*D):440*243*243 mm
- Application:Theater, KTV Room, Conference Room or Hall

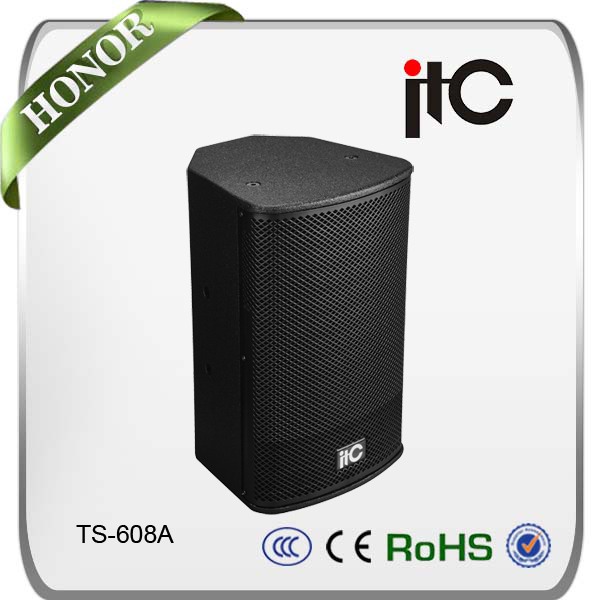

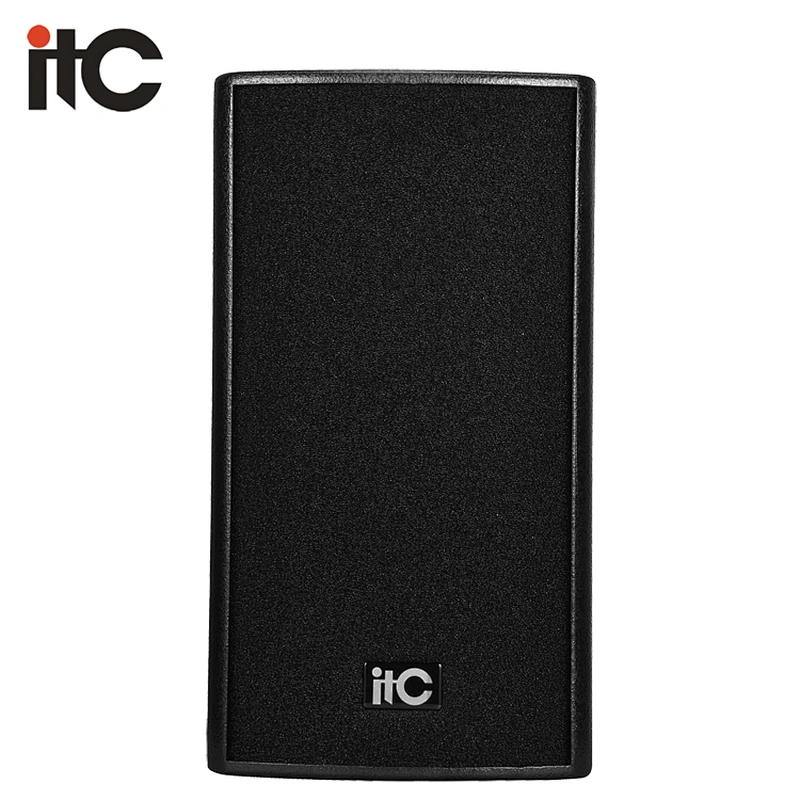

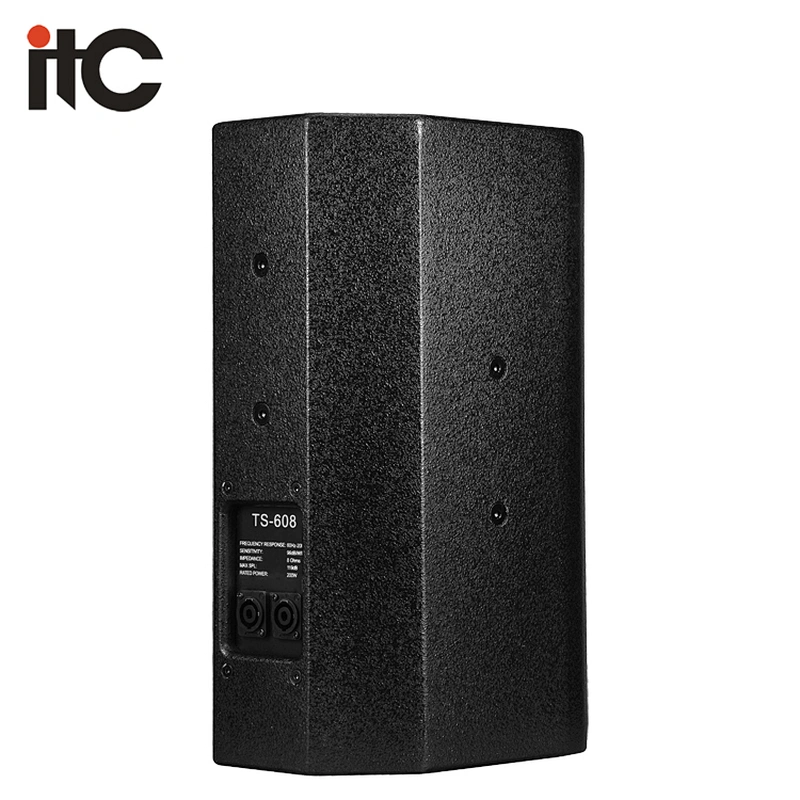

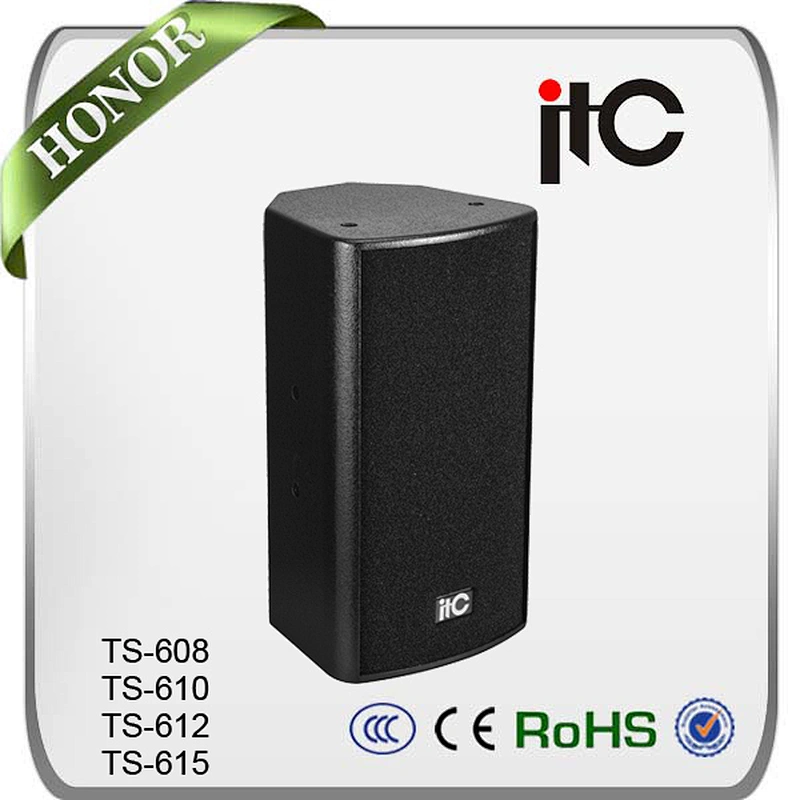

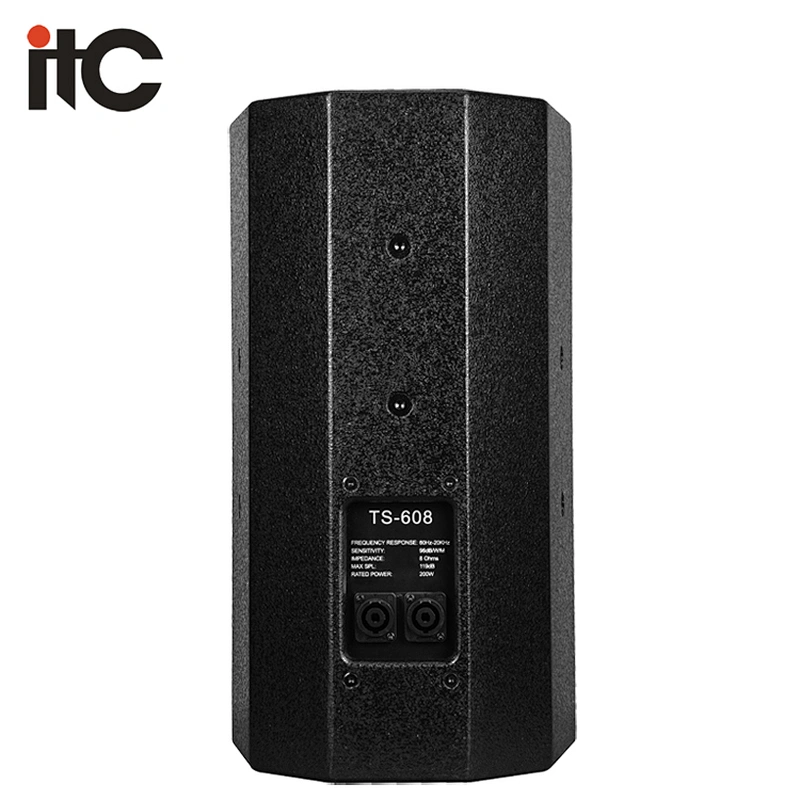

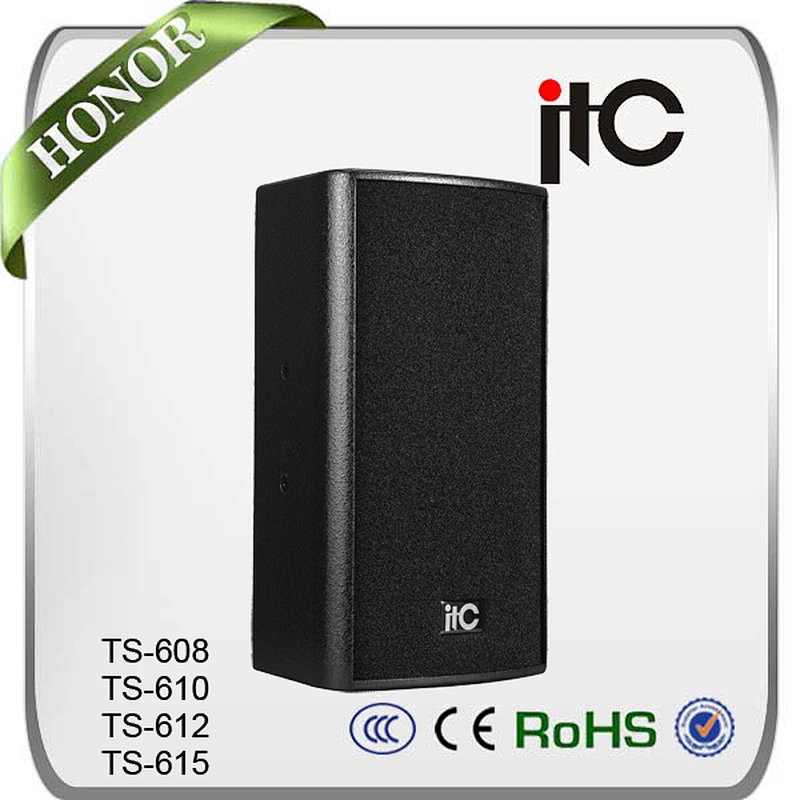

TS-608 High-end Entertainment Mid Bass Speakers Conference Loudspeaker
Product Features
* Using 1 pieces of 8"/10"/12"/15" mid-bass driver and 1 piece of 1.4"/1.4"/1.7"/1.73" Circular
polyethylene diaphragm compression driver.
* Box is made of 15mm plywood, light quality, with wear resistant paint processing, and paste Anti-dust mesh cotton outside.
* The exact design of frequency divider is able to perfect power response and good performance of vocal part.
* A plurality of screw lifting holes, one pole socket whose diameter is 35mm, a variety of installation methods.
Scope Of Application
Used together with TS professional power amplifier and the former effect processor systems, it is formed a set of perfect sound and vocal performance outstanding high-end entertainment
conference sound reinforcement system, which and be applied to the theater, KTV rooms, luxury meeting rooms and multi-function hall, etc. It can also be matched with subwoofer
high-performance satellite box.
Specifications
Model | TS-608 | TS-610 | TS-612 | TS-615 |
Impedance | 8Ω | 8Ω | 8Ω | 8Ω |
Frequency Response | 60Hz~20KHz | 55Hz~20KHz | 50Hz~20KHz | 45Hz~20KHz |
Power Rating | 200W | 300W | 350W | 450W |
Sensitivity | 96dB/W/M | 98dB/W/M | 99dB/W/M | 100dB/W/M |
Coverage Angle | (H)80° (V)60° | (H)80° (V)60° | (H)80° (V)60° | (H)80°(V)60° |
Tweeter | 1.4" compression tweeter x 1 | 1.4"Compressed treble unit x 1 | 1.7"Compressed treble unit x 1 | 1.73"Compressed treble unit x 1 |
Bass | 8" woofer x 1 | 10" x 1 Bass | 12" x 1 Bass | 15" x 1 Bass |
Dimension | 440 x 243 x 243 mm | 510 x 325 x 300 mm | 560 x 360 x 380mm | 660 x 435 x 430 mm |
Weight | 9.6Kg | 15.2Kg | 19.2Kg | 25.8Kg |

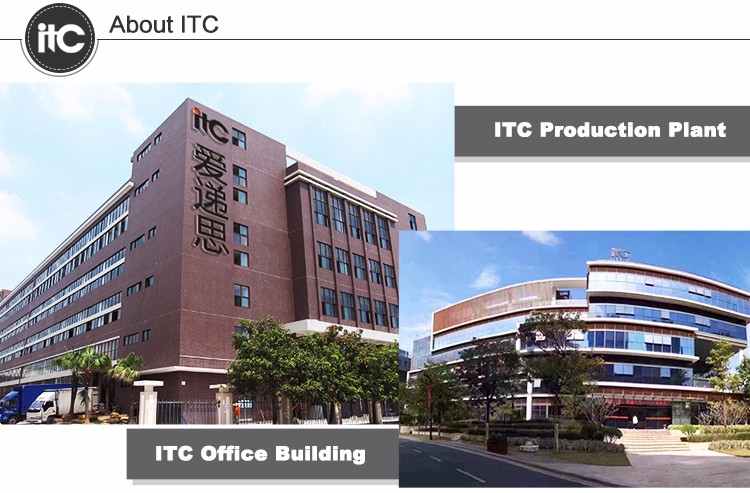

ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system, video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Pre-sale Service
* High Quality + Factory Price + Quick Response + Reliable Service, is our working faith.
* Professional foreign trade team, Reply your Alibaba enquiry and trade messager in 24 working hours.
* 30 system consultants and 10 designers to make drawing and BOQ for each tender.
* Design and BOQ response to customer within 48 hours.
Middle-sale Service
* Testing quality again before sending goods.
* Well-trained sales team for sales and basic technical service.
* Online system software demo and configuration is available.
* PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
* Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goods.
After-sale service
* ITC guarantee all electronics of 3 years quality warranty.
* ITC could supply 1% wearing spare parts free of charge.
* Two English spoken technician provide online after sales service.
* Technical documents could be downloaded from website www.itc-pa.com.cn.
* All of the quality compliant shall be feedback with a solution within 48 hours.
