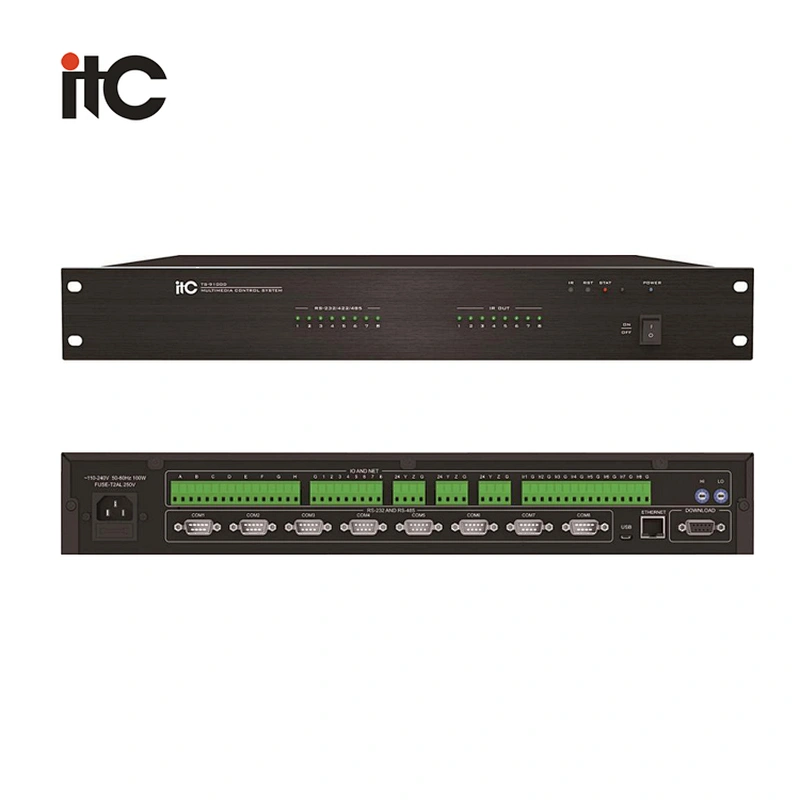

TS-9100D 32 bit 8 channel hdmi video wall controller vga

TS-9100D is a network central controller based on IOS/Android platform and other mobile devices, to realize web-based intelligent control, fully compatible with tranditional programming control mode, with luxurious beautiful appearance. It will be a representative of one new generation intelligent center controller, to lead the development trend in center control area.

Features

* Fully support network control, built-in network interface, support IPAD and Android platform and other mobile device to communicate with controller via wifi.

* Ipad and Android platform mobile device's programming mode is fully compatible with the traditional touch-screen programming way, no need to re-learn new programming method, extremely easy to upgrade and replace.

* Using programmable control platform, Chinese English programmable interface, interactive control structure.

* Using the latest 32-bit embedded processor, processing speed up to 533MHZ.

* Extensively adopts highly integrated co-processing chip, sophisticated LAY OUT makes system run very steadily and smoothly.

* Controller has built-in 8MB memory and 16MBlarge capacity FLASH memory.

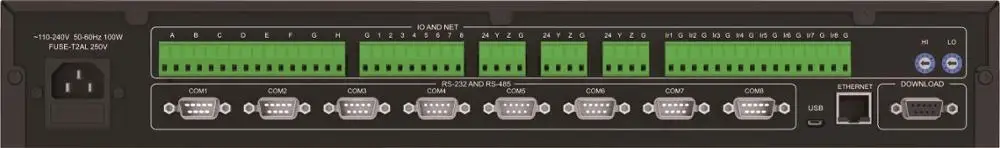

* 8 channel independent programmable serial ports, two-way transmit RS232, RS485 and RS422 signal.

* 8 channel independent programmable IR infrared emission port.

* 8 channel digital I/0 input and output control interface, with protection circuit.

* 8 channel weak current relay control interface.

* 3 CRV-NET network control interface, be used of external function extension.

* Client can programmable set any control protocol or any control code.

* Embedded intelligent IR learning function module, no need to allocate professional learner.

* Support dual code control, that is one key to send two kinds of codes.

* Can download different kinds of IR code base of commonly electronic equipment.

* Adopt international popular SMT production process.

* All-standard environmental protection power supply (110V-240V), suitable for any region.
