- Place of Origin:CN;GUA
- Simultaneous Interpretation:Yes
- Function:translation
- Model Number:TS-0670 system-Mic
- Brand Name:ITC
- Type:Audio Conference System
- Power Supply:3.7V 800mAH detachable lithium battery
- Demodulation Method:Full digital DQPSK demodulation technology
- Carrier Frequency:2.0 ~ 6.0 MHz
- Sound Frequently:120Hz - 10 KHZ (standard) 20Hz - 20 KHZ (high quality)
- Maximum S/N Ratio:>80dB
- Total Harmonic Distortion:< 1%
- Rated Power:100 mW
- Standby Power:8 mW
- Dimension:58 x 176 x 32 mm
- Weight:0.230 Kg (Not including battery)
ITC Multi Language Voice Language Translator IR Translation System
Your Preferred Choice for Economical Conference System

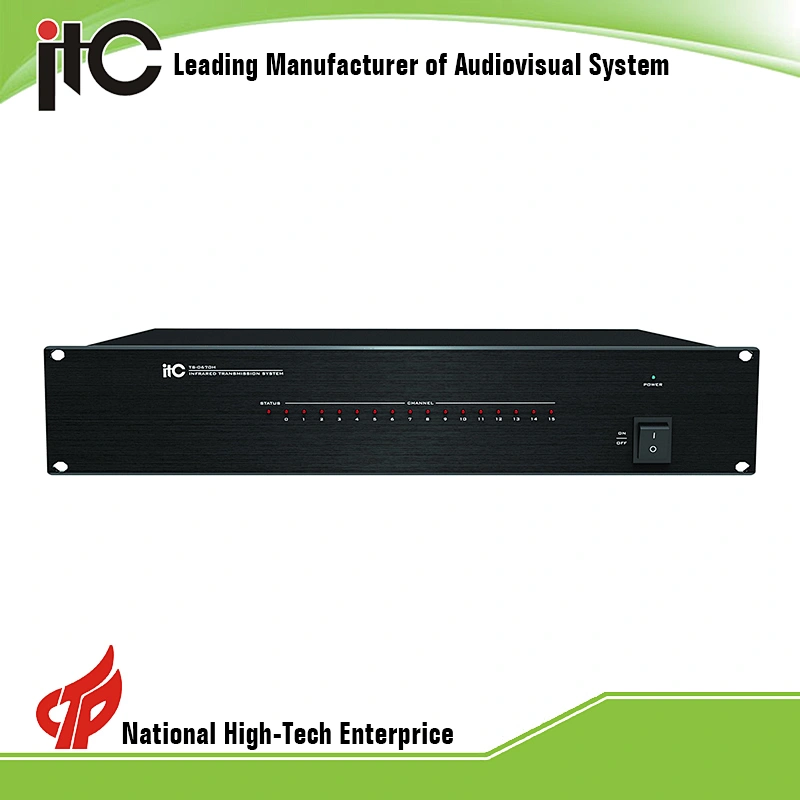

TS-0670H series digital infrared emission controller is the core part of digital infrared voice distribution system. Fully digital DQPSK modulated transmission with digital audio compression coding
system, the system can simultaneously transmit 16 channels language at the same time.. Infrared emission controller can be installed in standard 19-inch rack, easy for storage and safekeeping.
Infrared Wireless Simultaneous Interpretation System
Product List
(A) Wireless Simultaneous Interpretation System Controller | |

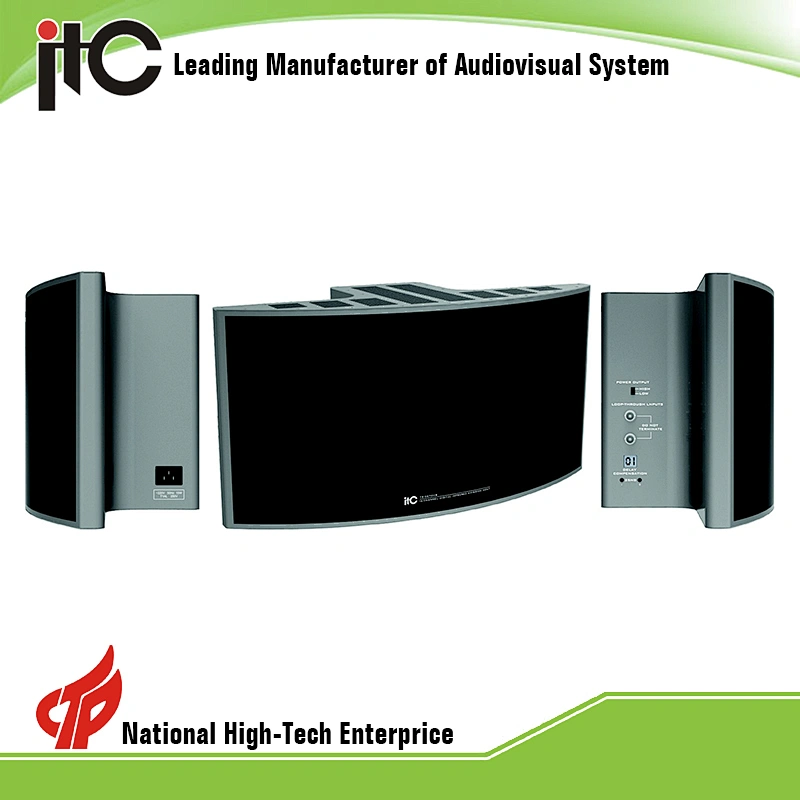

(B) IR Radiator | |

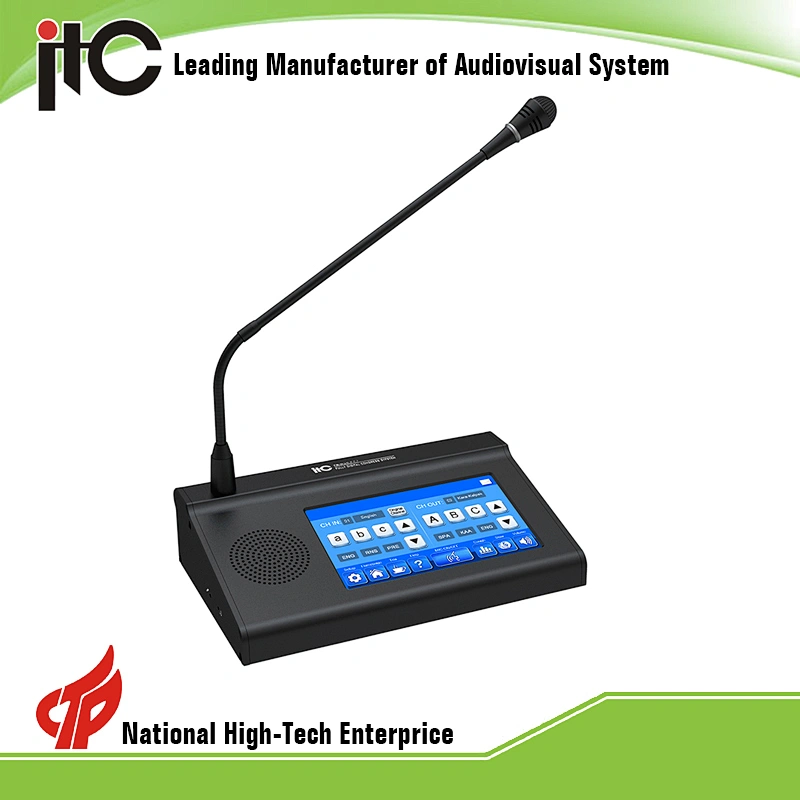

(C) Interpretation Unit | |

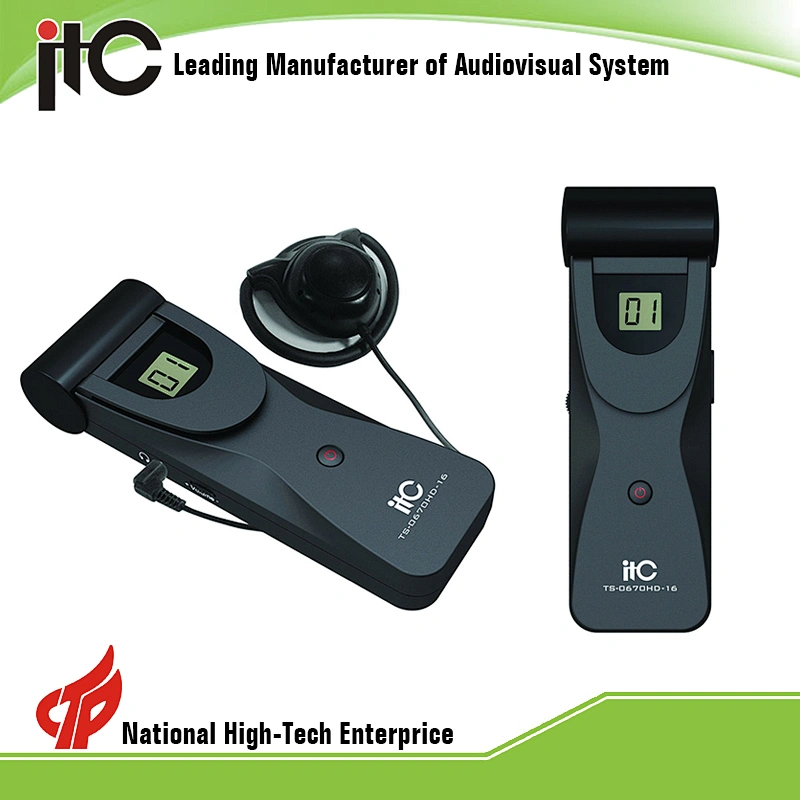

(D) Receiver Unit |
System Diagram
Features
1)Language channels are a lot and optional
16/32/64 channels of languages are provided
2)Using encryption mediation technique to process audio signal
Using DQPSK to ensure the high confidentiality; with internal DSP to make the sound in CD level
3)Wireless signal is excellent
The emissive distance of the radiator is up to 40m. After cascaded, the distance is up to 500m. And the covering angle is ±135° vertical
4)It’s easy for participants to use the receiver
Participants are free to move in the large signal range; What’s more, the receiver could be added without limit
5)Could work with the third-party sound system easily
With 16 sets of audio input and audio output to work with various system, such as ITC conference system, professional sound system, recording system, etc
6)In according to the standard of IEC 61604-7 and IEC 60914
International certification, worthy of trust
Model | TS-0670H |
Interpreter Unit Capacity | ≤128 |
Number of Channels | 16CH |
Frequency Response | 30 ~ 20KHz |
S/N Ratio | >75 dB(A) |
Dynamic Range | >80 dB |
Channel Crosstalk | >80 dB |
Total Harmonic Distortion | <0.05% |
Input Voltage | ~96V-264V 50/60Hz |
Audio Input | LINE IN 0-15: 350mV Unbalanced |
MIC IN 1-15: 70mV Unbalanced | |
Audio Output | LINE OUT 0-15: 1V Unbalanced |
LINE OUT 1-15: 1V Unbalanced | |
Output Load | >1KΩ |
Static Power Consumption | 25W |
Output Power Consumption | Not available |
Connection | Special cable (6-pin) + BNC (75Ω) |
Joint Reliability | reliable |
Standard | IEC60914 |
Working Temperature | -10℃~+60℃ |
Working Humidity | 20%~80%relative humidity, non-condensing |
Color | Black |
Weight | 4.23Kg |
Dimension | 484 x 305 x 88mm |
Installation | 19-inch standard rack |
* Compliance with IEC 61603-7 and IEC 60914.
* With 16 channel audio outputs for monitor or recording by connecting deck.
* With 2 channel signal output connector (BNC), for connecting the radiation panel.
* Using digital DQPSK modulation technology with high confidentiality.
* High-speed DSP processing and wonderful sound effects.
* It adopts high transmission frequency (2-6MHz, IEC61603 BAND4 band), without high frequency drive light interference.
* With support of input level indicator, the LED lights on the front panel of controller can display the status of the corresponding input channels.
* With support of 16 channel external audio inputs, it is suitable for large international convention.
* It supports Link TS fully digital conference system audio and digital 16 channel audio inputs.
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
