ITC 8 Channel PA System IP Based IP Public Address System

• Place of Origin:CN;GUA
• Model Number:T-7800B
• Brand Name:ITC
• Screen Size:17-Inch
• Screen Color:TFT 16 Bit True Color
• Operation Method:1920 x 1080 Liquid Crystal Resistive Touch Screen (5 Wire)
• Working Temp.:5℃ to +60℃
• Working Relative Humidity:≥75%
• Hard Drive:512G SSD
• Network Card:1000M
• SNR of System Audio Signal:Line: 70dB;Mic:60dB
• Distortion of System Audio Signal:1KHz<0.5%
• Power Consumption:AC 220V/50Hz/300W

ITC 8 Channel PA System IP Based IP Public Address System

Your Preferred Choice for Economical PA System

Features

1) Using i7CPU, which could support up to 3,000 terminals;
2) Using dual-channel memory 16G DDR3;
3) Using high speed 512G SSD, and the read-write speed is up to 500MByte/s;
4) 2 gigabit network interface to meet the demand of high speed data exchange;
5) Using 17-inch 16:9 HD screen of 1920x1080P, which is with LVDS digital interface;
6) With pull-style industrial level keyboard;
7) Using industrial level touch mouse;
8) Using 2 channel sound card, which could be expanded to 14 channel;
9) Support server in mode of convergence and P2P.

System Diagram

Products List

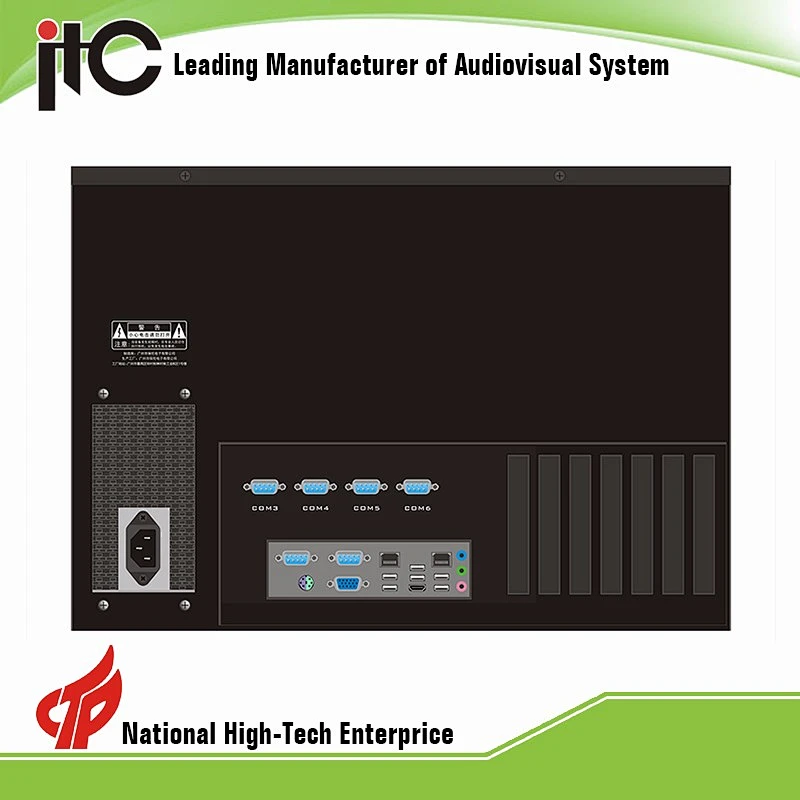

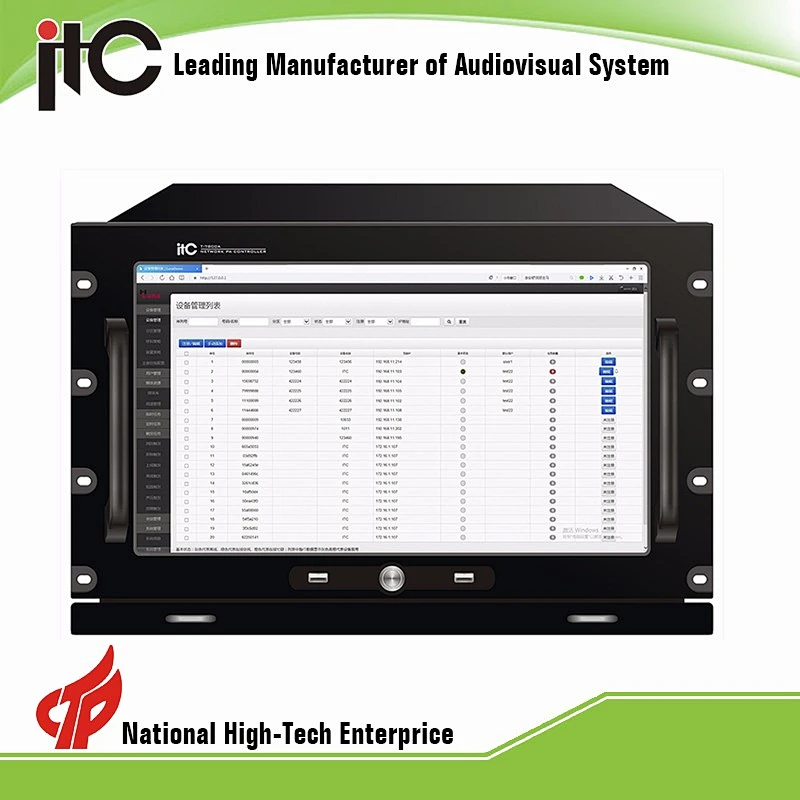

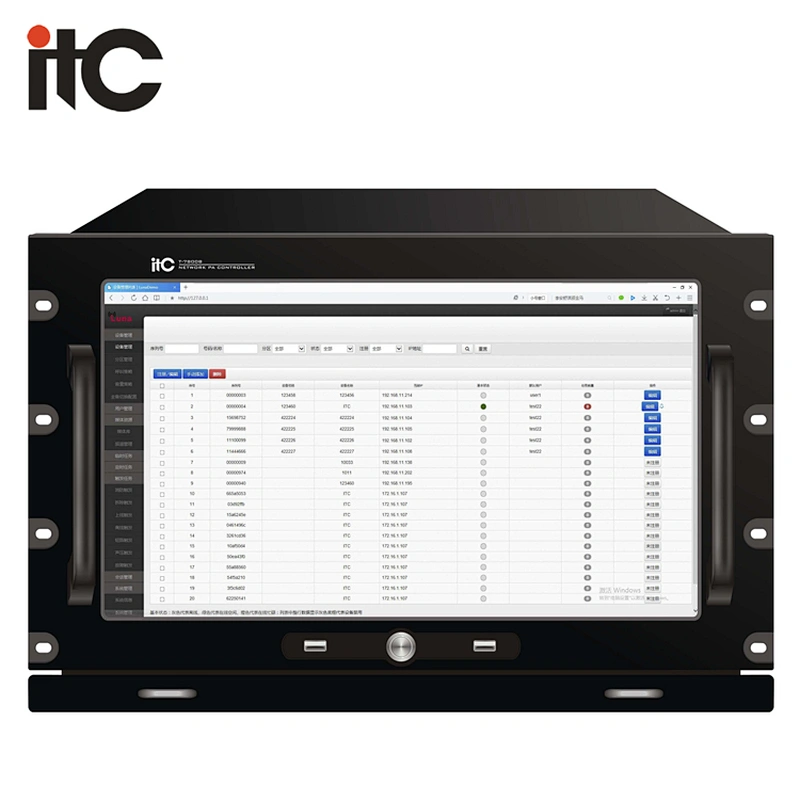

IP Network PA Controller T-7800

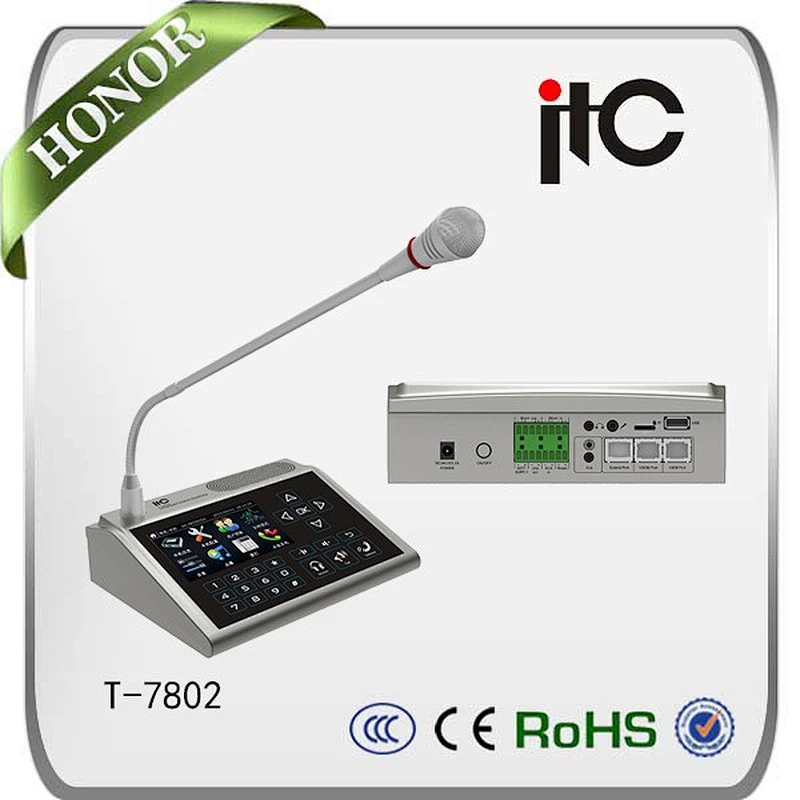

IP PA & Intercom Paging microphone T-7802

IP Network Fire Alarm Panel T-7823

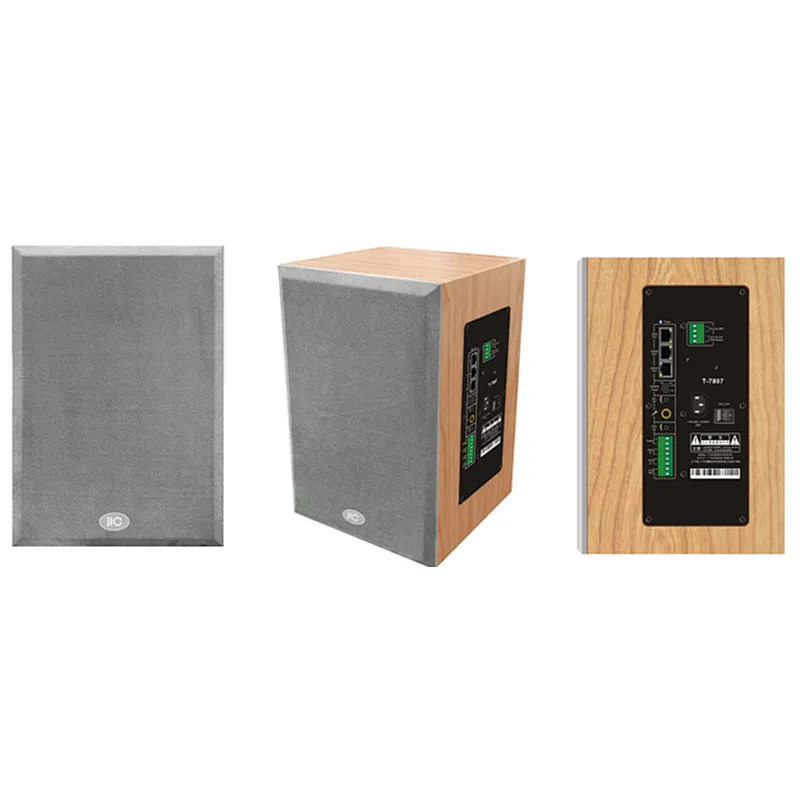

IP Network Active Speaker T-7807

IP Network Adapter Station T-78120

IP Network Adapter Station T-78350

IP Network Adapter Station T-78240

6W Ceiling Speaker T-205B

System Main Features:

Support broadcast different voice message to Ticket hall, Platform and other areas in Station;

Broadcast system integrated with travelling information platform, broadcast the train arrive information in platform automatically, also broadcasting voice message in ticket hall and other areas;

Connect with Remote paging microphone in Server Station, fire control room and Control room to broadcast message to all station or appointed zones;

Operator can control call station to local & remote broadcasting, can broadcast to all zones, any zone or appointed zone, also can urgent broadcast by one key.

Built in Fire Alarm Panel to broadcast evacuation message when emergency in Metro Station;

The broadcast system and fire alarming system is linkage, normally is hot state, once has fire accident or emergency events, the broadcast system and fire alarming system will be linkage, the broadcast playing will stop then play fire alarming audio to help workers of metro station to evacuation passengers who in all zones or appointed zones in highly effective.
