- Place of Origin:CN;GUA
- Model Number:T-7800A-1
- Brand Name:ITC
- Operation Method:1920x1080Liquid Crystal Resistive Touch Screen (5 Wire)
- Screen Color:TFT 16 Bit True Color
- Hard Drive:256G SSD
- Screen Size:17-Inch
- Working Relative Humidity:20% ~ 80%, No condensation
- Working Temp.:5℃ to +40℃
- Distortion of System Audio Signal:1KHz<0.5%
- Network Card:1000M
- Power Consumption:AC 220V/50Hz/300W
- SNR of System Audio Signal:Line: 70dB;Mic:60dB
Industrial Type High-end Luna Cloud PA System Voice Platform Server
Your Preferred Choice for Economical PA System

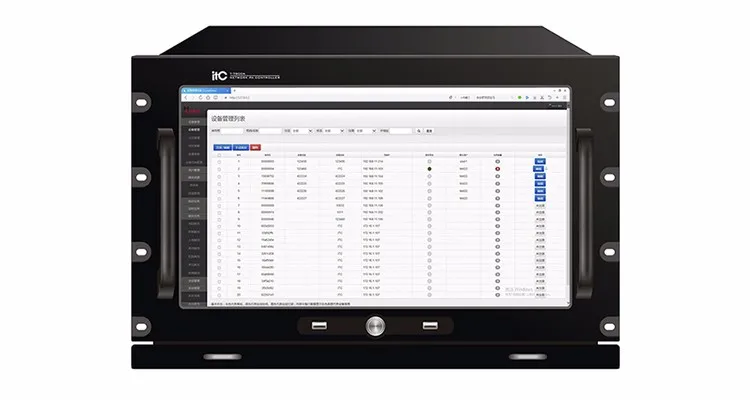

T-7800A Luna Cloud IP based PA System Server
Features
- Using CPU Core i7, which could support up to 1,000 terminals;
- Using dual channel memory 8G DDR3;
- Using high speed 256G SSD
- With dual network interface to meet the demand of high speed data exchange;
- Using 17-inch 16:9 HD screen of 1920x1080P, which is with LVDS digital interface;
- With pull-style industrial level keyboard;
- Using industrial level touch mouse;
- Using 2 channel sound card, which could be expanded to 14 channel.
System Diagram
Products List
IP Network PA Controller T-7800
IP PA & Intercom Paging microphone T-7802
IP Network Fire Alarm Panel T-7823
IP Network Active Speaker T-7807
IP Network Adapter Station T-78120
IP Network Adapter Station T-78350
IP Network Adapter Station T-78240
6W Ceiling Speaker T-205B
System Main Features:
Support broadcast different voice message to Ticket hall, Platform and other areas in Station;
Broadcast system integrated with travelling information platform, broadcast the train arrive information in platform automatically, also broadcasting voice message in ticket hall and other areas;
Connect with Remote paging microphone in Server Station, fire control room and Control room to broadcast message to all station or appointed zones;
Operator can control call station to local & remote broadcasting, can broadcast to all zones, any zone or appointed zone, also can urgent broadcast by one key.
Built in Fire Alarm Panel to broadcast evacuation message when emergency in Metro Station;
The broadcast system and fire alarming system is linkage, normally is hot state, once has fire accident or emergency events, the broadcast system and fire alarming system will be linkage, the broadcast playing will stop then play fire alarming audio to help workers of metro station to evacuation passengers who in all zones or appointed zones in highly effective.
Model | T-7800A |
Screen Size | 17-Inch |
Screen Color | TFT 16 Bit True Color |
Operation Method | 1240x768 Liquid Crystal Resistive Touch Screen (5 Wire) |
Working Temp. | 5℃ to +60℃ |
Working Relative Humidity | >75% |
Hard Drive | SSD |
Network Card | 1000M |
SNR of System Audio Signal | Line: 70dB;Mic:60dB |
Distortion of System Audio Signal | 1KHz<0.5% |
Standard Input Level of System Audio Signal | Line: 300mV;Mic:5mV |
Standard Output Level of System Audio Signal | 0dBV |
Power Consumption | AC 220V/50Hz/300W |
Dimension (WxDxH) | 484x310x314mm |
Weight | 11Kg |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one stop
solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, Led video wall and Lighting system , etc.
What's more,our system is applied to various worldclass events, such as 2008 Peking Olympic
Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 600 thousand successful cases in China and in worldwide.
