- Place of Origin:CN;GUA
- Usage:Outdoor
- Display Function:Video
- Screen Dimension:Customized Size
- Model Number:TV-OM400
- Brand Name:ITC
- Tube Chip Color:Full Color
- Pixels:4mm
- Product Name:Led Display
- Pixel configuration:1R1G1B
- LED Standard:SMD1921
- Density:62500 dot/m2
- Brightness:≥6500 CD/m2
- Refresh rate:≥960HZ
- Constant current:Constant current
- Driving components:Constant current
- Driving method:1/8 scanning
- Lifetime:≤ 100000H

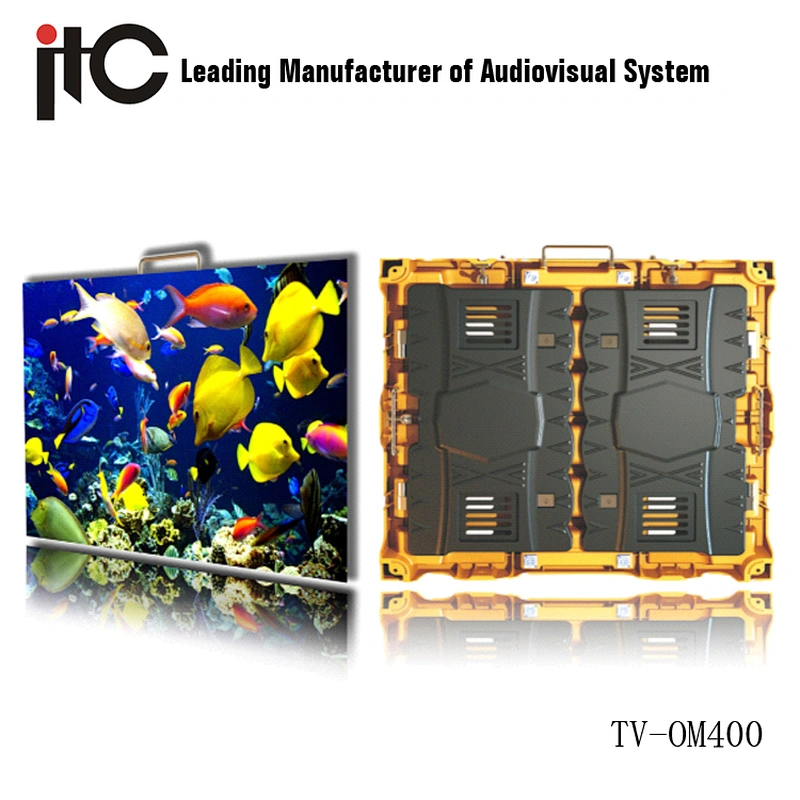

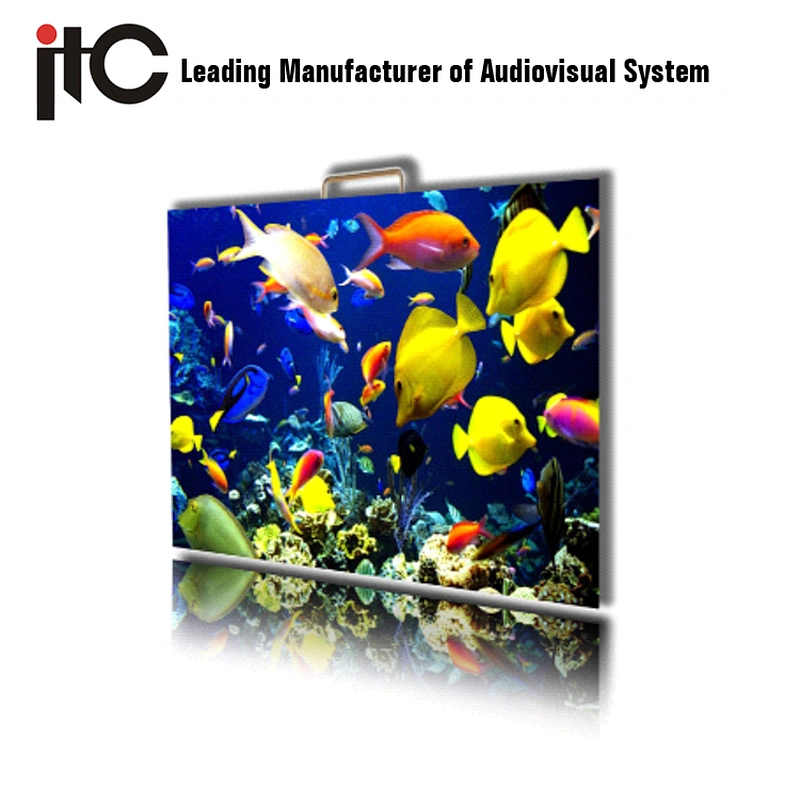

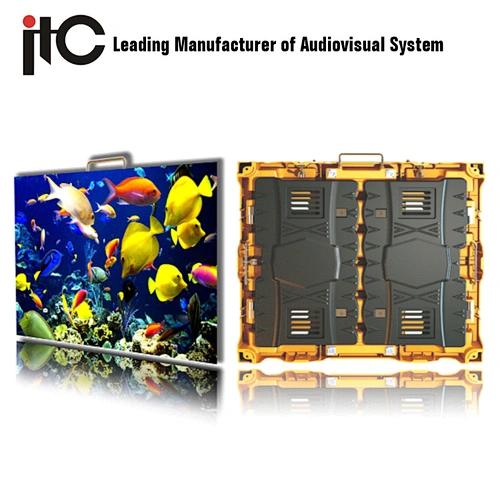

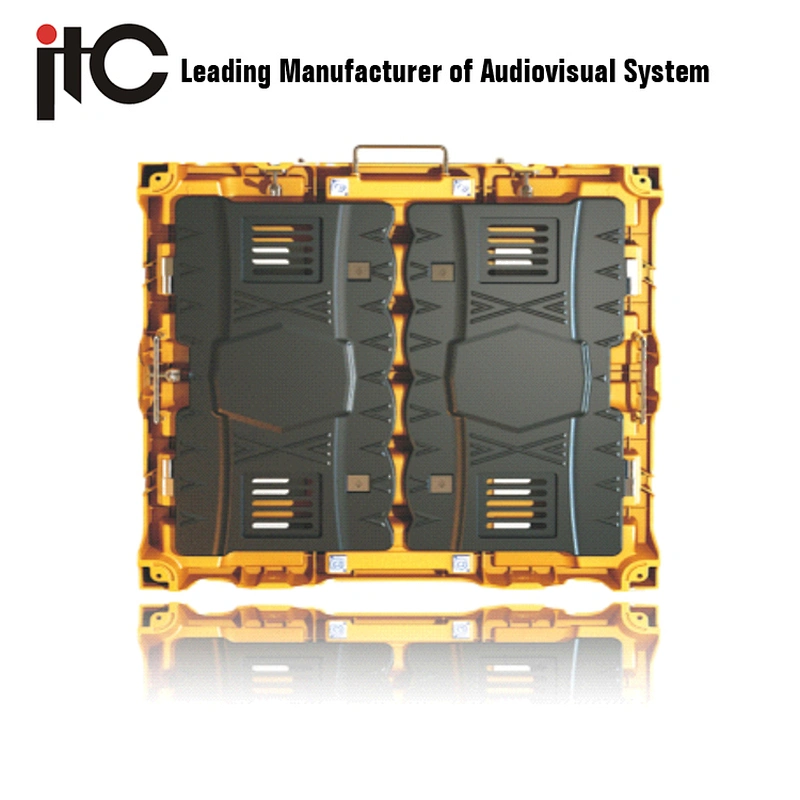

ITC Advertising HD Full Color Video P4 Outdoor Led Wall Screen
Application places: outdoor advertising/outdoor stadium/outdoor stage/outdoor displayarea
Function
* Playing advertising and video.
* Shaping the scene for art performance.
* Becoming city landmark.
* Government culture propaganda.
Features
* Seamless splice: Completely seamless splicing without any visual black seam.
* Screen calibration: Gamma correction technology to realize brightness and color correction point by point.
* Intelligent light control: Intelligent adjusting brightness to improve image comfort level and save more power.
* Oversized view: Super wide view, larger display visual scope, the picture remains clear at any angle.
* Heat dissipation: Unique heat dissipation technology, more secure in using with longer lifetime.
* Remote control: Remote control screen with more convenient operation.
* Extensive use: It is capable to play video, picture and text.
* IP65:Good protective property to avoid any environmental influence to the service life from the dust, rain etc.
Specification
Model | TV-OM400 |
LED Standare | SMD1921 |
Physical points distance(mm) | 4 |
Density | 62500dot/m2 |
Pixel configuration | 1R1G1B |
Unit board resolution | 64X32 |
Unit board size(mm) | 256X128 |
Cabinet resolution | 256X192 |
Cabinet size (mm) | 1024X768 |
Working voltage (DC) | DC +4.2V~+5V |
Optimum viewing distance (m) | 12 |
Horizontal view angle | 140° |
Vertical view angle | 140° |
Maintenance mode | After sales service |
Average power consumption | <480W/m2 |
Maximum power consumption | <1200W/m2 |
Display card | DVI/HDMI/DP |
Control method | Synchronous control |
Driving components | Constant current |
Driving method | 1/8 scanning |
Repetition frequency | ≥60HZ |
Refresh rate | ≥960HZ |
Gray level/color | 281 Trillion |
Brightness(CD/m2) | ≥6500 |
Contrast | 3000:1 |
Environment temperature | Storage: -35°~+85° Working:-20°~+50° |
Environment humidity | 10% to 80% no condensation |
Working voltage (AC) | 220V±10%/50HZ or 110V±10%/60HZ |
Lifetime | ≤ 100000H |
