- Place of Origin:CN;GUA
- Usage:Outdoor
- Display Function:Video
- Screen Dimension:Customized Size
- Model Number:TV-OM800
- Brand Name:ITC
- Tube Chip Color:Full Color
- Pixels:8mm
- Product Name:Led Display
- Pixel configuration:1R1G1B
- LED Standard:SMD3535
- Density:15625 point/m2
- Refresh rate:≥960HZ
- Control method:Synchronous control
- Cabinet resolution:128*96
- Cabinet size (mm):1024*768
- Driving method:1/8 scanning
- Lifetime:≤ 100000H

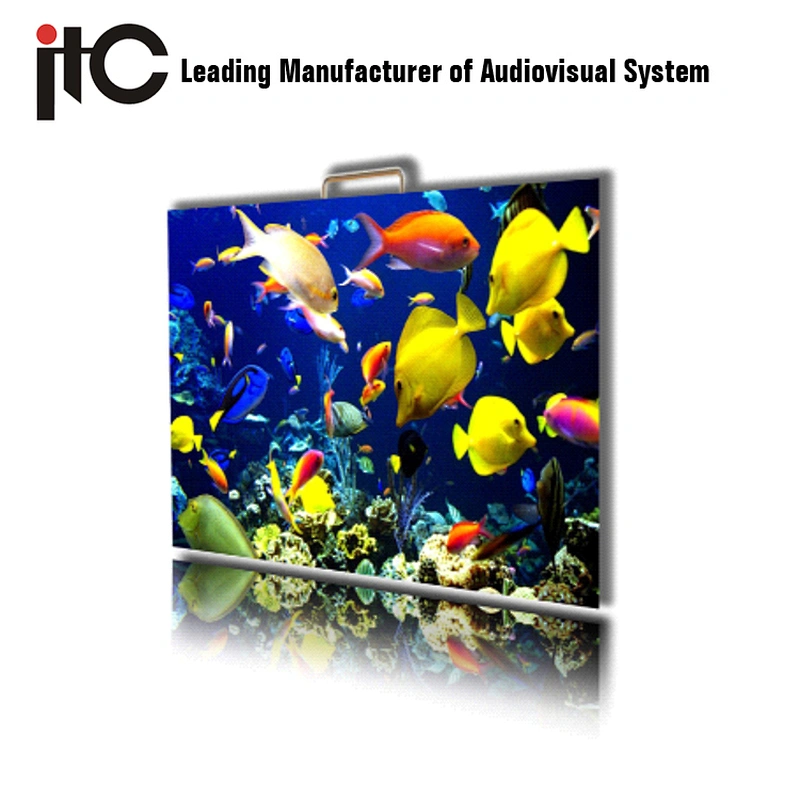

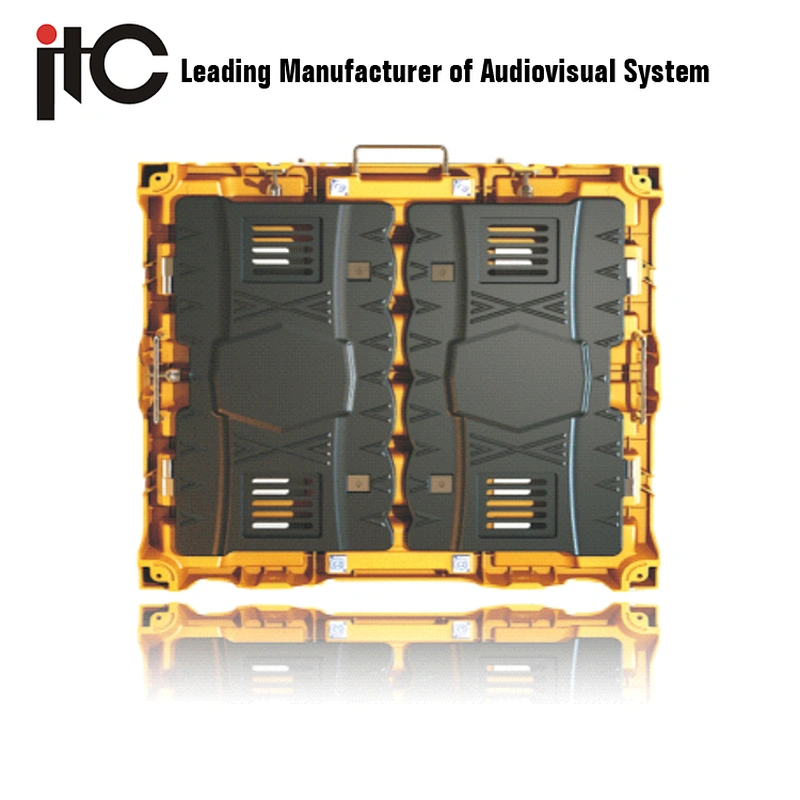

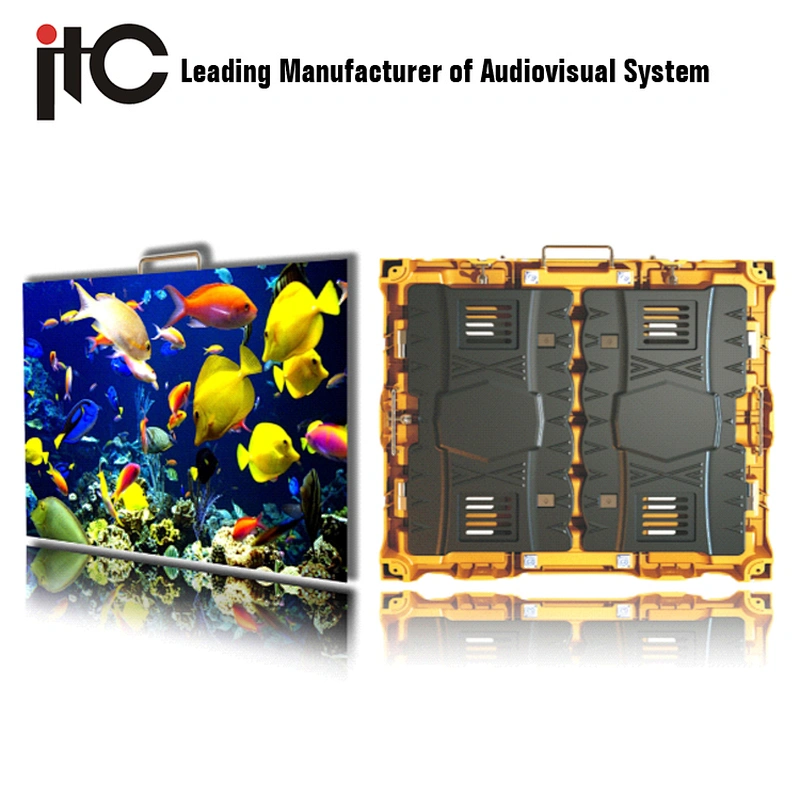

Led Display Solution Top Supplier Outdoor Advertising P8 Led Screen LED Video Wall
Application places: outdoor advertising/outdoor stadium/outdoor stage/outdoor displayarea
Function
* Playing advertising and video.
* Shaping the scene for art performance.
* Becoming city landmark.
* Government culture propaganda.
Features
* Seamless splice: Completely seamless splicing without any visual black seam.
* Screen calibration: Gamma correction technology to realize brightness and color correction point by point.
* Intelligent light control: Intelligent adjusting brightness to improve image comfort level and save more power.
* Oversized view: Super wide view, larger display visual scope, the picture remains clear at any angle.
* Heat dissipation: Unique heat dissipation technology, more secure in using with longer lifetime.
* Remote control: Remote control screen with more convenient operation.
* Extensive use: It is capable to play video, picture and text.
* IP65:Good protective property to avoid any environmental influence to the service life from the dust, rain etc.
Model | TV-OM800 |
LED Standare | SMD3535 |
Physical points distance(mm) | 8 |
Density | 15625 point/m2 |
Pixel configuration | 1R1G1B |
Unit board resolution | 32*16 |
Unit board size(mm) | 256*128 |
Cabinet resolution | 128*96 |
Cabinet size (mm) | 1024*768 |
Working voltage (DC) | DC +4.2V~+5V |
Optimum viewing distance (m) | 24 |
Horizontal view angle | 140° |
Vertical view angle | 140° |
Maintenance mode | After sales service |
Average power consumption | <400W/m2 |
Maximum power consumption | <1000W/m2 |
Display card | DVI/HDMI/DP |
Control method | Synchronous control |
Driving components | Constant current |
Driving method | 1/8 scanning |
Repetition frequency | ≥60HZ |
Refresh rate | ≥960HZ |
Gray level/color | 281 Trillion |
Brightness(CD/m2) | ≥6500 |
Contrast | 3000:1 |
Environment temperature | Storage: -35°~+85° Working:-20°~+50° |
Environment humidity | 10% to 80% no condensation |
Working voltage (AC) | 220V±10%/50HZ or 110V±10%/60HZ |
Lifetime | ≤ 100000H |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
