- Type:Mini Amplifier
- Channels:2 (2.0)
- Place of Origin:CN;GUA
- Brand Name:ITC
- Model Number:T-120DTB/T-240DTB/T-350DTB/T-500DTB
- Product Name:Digital Mixer Power Amplifier
- Output interface:4-16Ω, 100V
- Output power:120W/240W/350W/500W
- Frequency Response:50~16KHz (+1db, -3dB)
- Signal to noise ratio:MIC1, 2, 3:66dB; AUX1, 2:80dB
- Distortion:Less than 0.5%(at 1KHz, 1/3 of rated power)
- Channel crosstalk:≥50dB
- Protection:Overheat protection, overcurrent protection, short circuit protection
- Certification:CE ROHS
- Warranty:3 Years

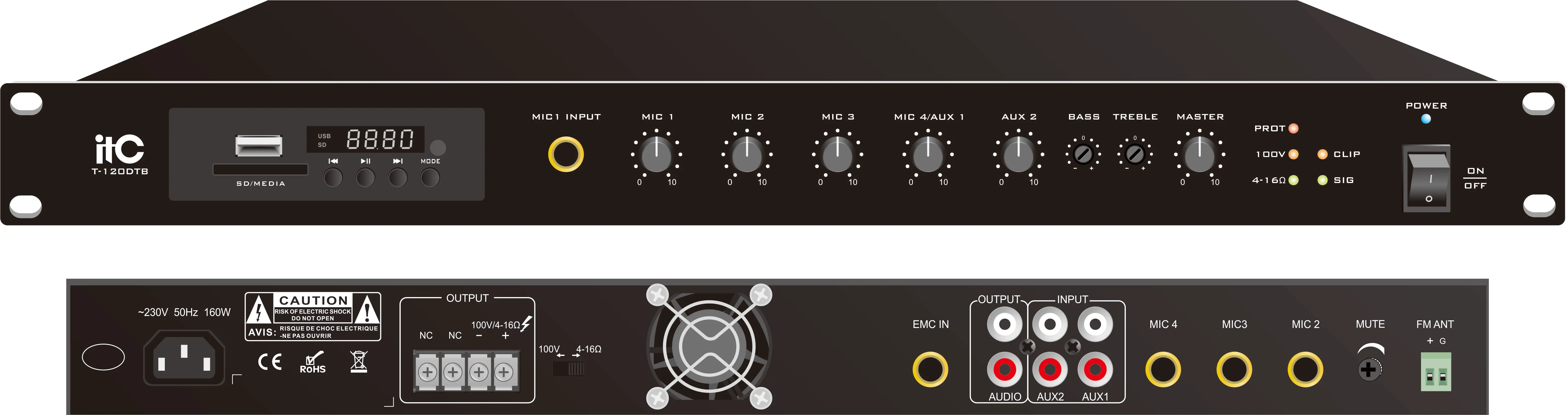

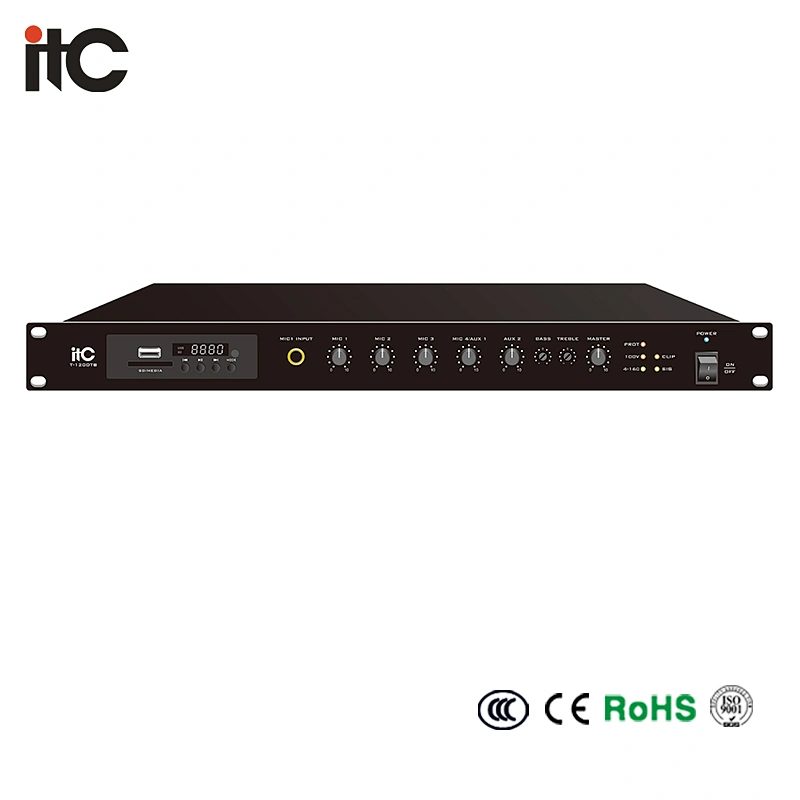

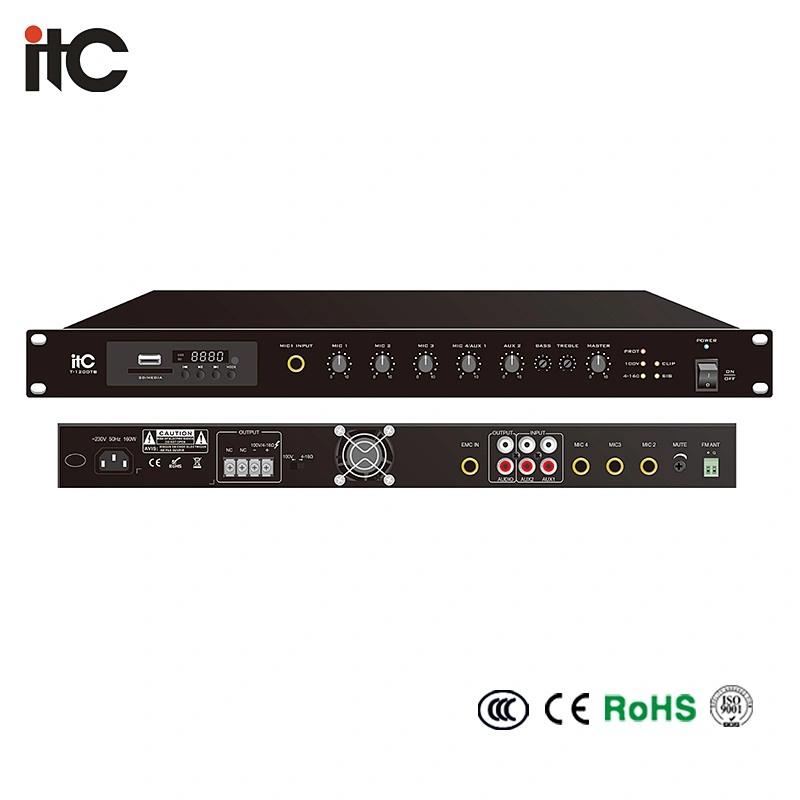

ITC Digital Mixer Power Amplifier with MP3/TUNER/BLUETOOTH (Phone Jack Mic Input)
Digital Mixer Amplifie with MP3/TUNER/Bluetooth, used for background music playback of small and medium-sized indoor venues such as small and medium-sized supermarkets, shopping malls, and leisure cafes.
Features
* Standard rack mounted design (1U), exquisite SMT process design.
* Support mp3/TUNER/Bluetooth remote control function, with remote control remote and the control distance can up to 8 meters.
* It has USB interface and SD card interface, integrated MP3 player module, with automatic priority playing audio function, digital screen can display the currently playing track of USB.
* Integrated Bluetooth module to support music playback via Bluetooth of the mobile phone.
* Integrated TUNER module with FM radio antenna port.
* 1 channel EMC input, 2 channel AUX input, 4 channel MIC input.
* Channel priority function EMC>MIC1>MIC2, MIC3, AUX1, AUX2.
* Each input has independent volume adjustment, and the total volume has treble, bass adjustment and volume control function.
* The device is equipped with level indication, overload and protection indicators.
* The device has good self-protection such as short circuit, overload and overheating.
* Two output modes: constant voltage output 100V, constant resistance output 4-16Ω.
* The high-efficiency energy-saving switching power supply is perfectly combined with the high-energy saving and ultra-stable design of class D digital power amplifier.
* Wide voltage supply: 180V-240V can work normally.
Specifications
Model | T-120DTB | T-240DTB | T-350DTB | T-500DTB | ||
120W | 240W | 350W | 500W | |||
Input sensitivity & impedance | MIC1, 2, 3, 4 input: 5mV/600Ω balanced European connection terminal | |||||
AUX1, 2 input: 350mV/10KΩ unbalanced RCA connection terminal | ||||||
EMC input: 775mV/10KΩ unbalanced European connection terminal | ||||||
Output sensitivity & source impedance | MIX OUT: 1000mV/470Ω unbalanced RCA connection interface | |||||
Tone | Bass: 10dB at 100Hz; | |||||
Treble: 10dB at 10KHz | ||||||
Frequency response | 50Hz~16KHz(+1dB,-3dB) | |||||
MIC1, 2, 3:66dB; AUX1, 2:80dB | ||||||
Mute function | MIC 1 is prior to mic2-4, aux1-2 audio input, | |||||
and EMC is prior to all audio input | ||||||
attenuation | ||||||
Heat dissipation | Side in and back out forced fan cooling, starting the fan when turned | |||||
on, infinitely variable speed processing | ||||||
Overheat protection, overcurrent protection, short circuit protection | ||||||
AC ~220-240V /50Hz | ||||||
Power consumption | 160W | 300W | 500W | 650W | ||
Dimension | 484×260×44mm | |||||
Weight | 3.7Kg | 3.8Kg | 4.0Kg | 4.1Kg | ||

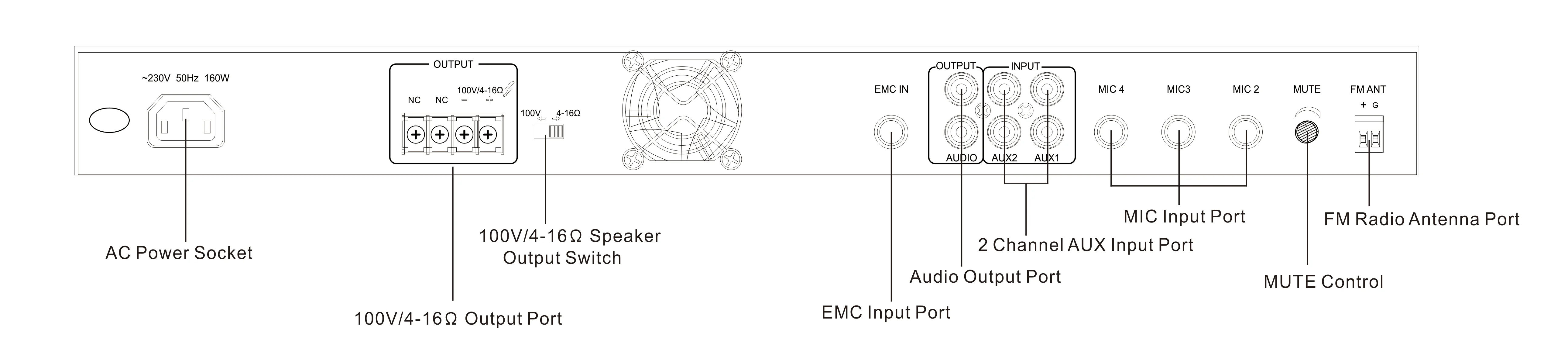

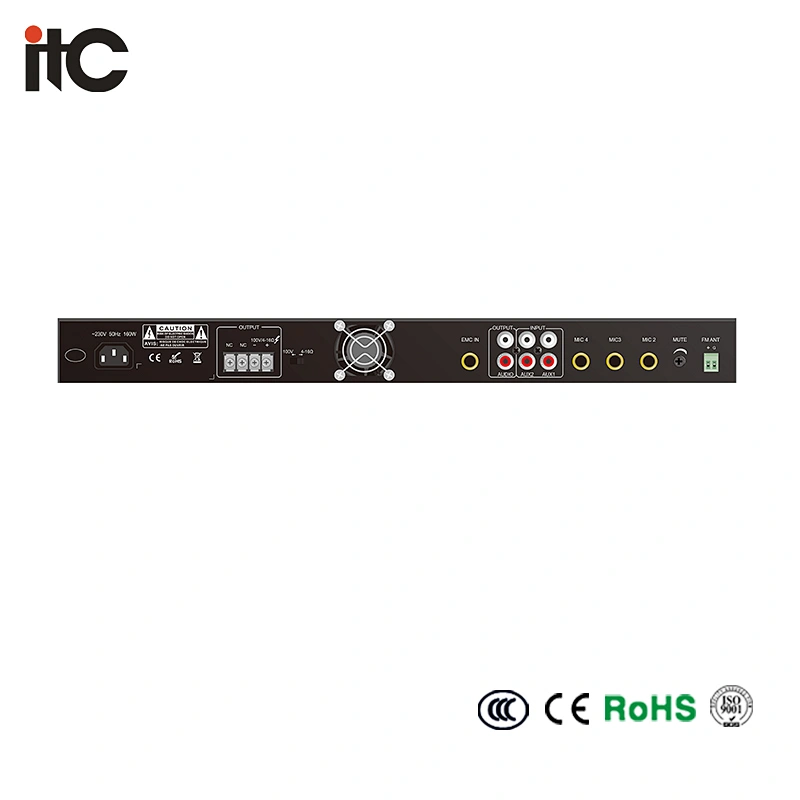

Rear Panel
Pre-sale Service
* High Quality + Factory Price + Quick Response + Reliable Service, is our working faith.
* Professional foreign trade team, Reply your Alibaba enquiry and trade messager in 24 working hours.
* 30 system consultants and 10 designers to make drawing and BOQ for each tender.
* Design and BOQ response to customer within 48 hours.
Middle-sale Service
* Testing quality again before sending goods.
* Well-trained sales team for sales and basic technical service.
* Online system software demo and configuration is available.
* PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
* Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goods.
After-sale service
* ITC guarantee all electronics of 3 years quality warranty.
* ITC could supply 1% wearing spare parts free of charge.
* Two English spoken technician provide online after sales service.
* Technical documents could be downloaded from website www.itc-pa.com.cn.
* All of the quality compliant shall be feedback with a solution within 48 hours.
