- Type:Mini Amplifier
- Channels:2 (2.0)
- Place of Origin:CN;GUA
- Brand Name:ITC
- Model Number:T-120DTBV/T-240DTBV/T-350DTBV/T-500DTBV
- Product Name:Digital Mixer Power Amplifier
- Power Supply:AC ~220-240V /50Hz
- RMS power:120W/240W/350W/500W
- Output interface:4-16Ω, 100V
- Frequency Response:50~16KHz (+1db, -3dB)
- SNR:MIC1, 2, 3:66dB; AUX1, 2:80dB
- THD:Less than 0.5%(at 1KHz, 1/3 of rated power)
- Channel crosstalk:≥50dB
- Protection:Over-heat, overload, short circuit
- Certification:CE ROHS

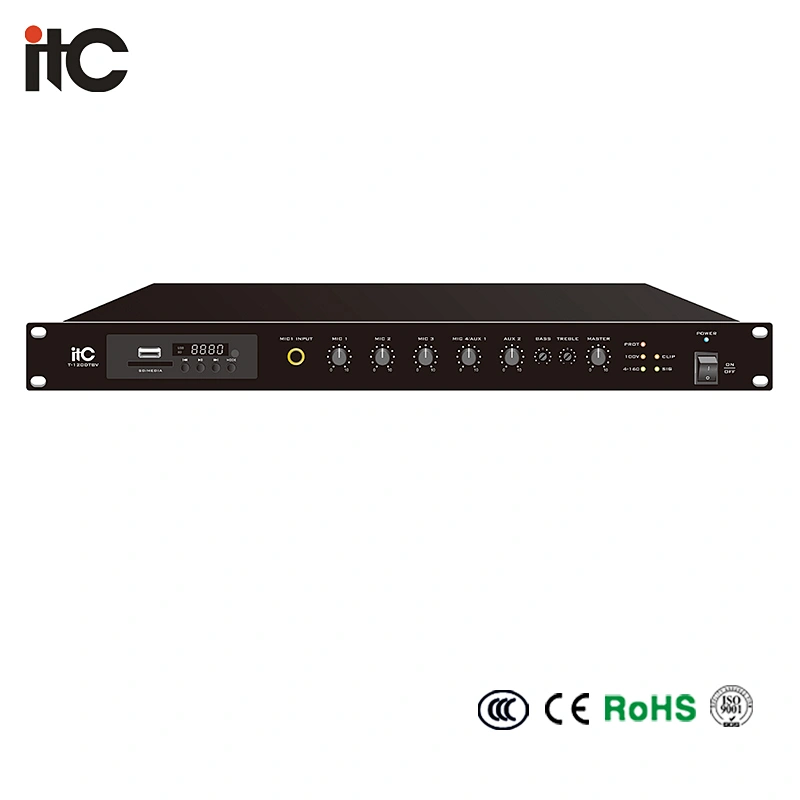

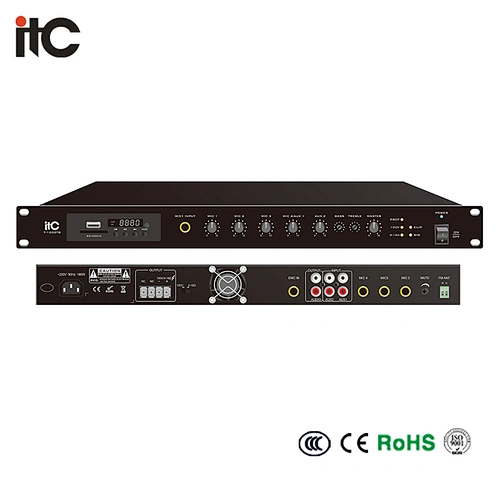

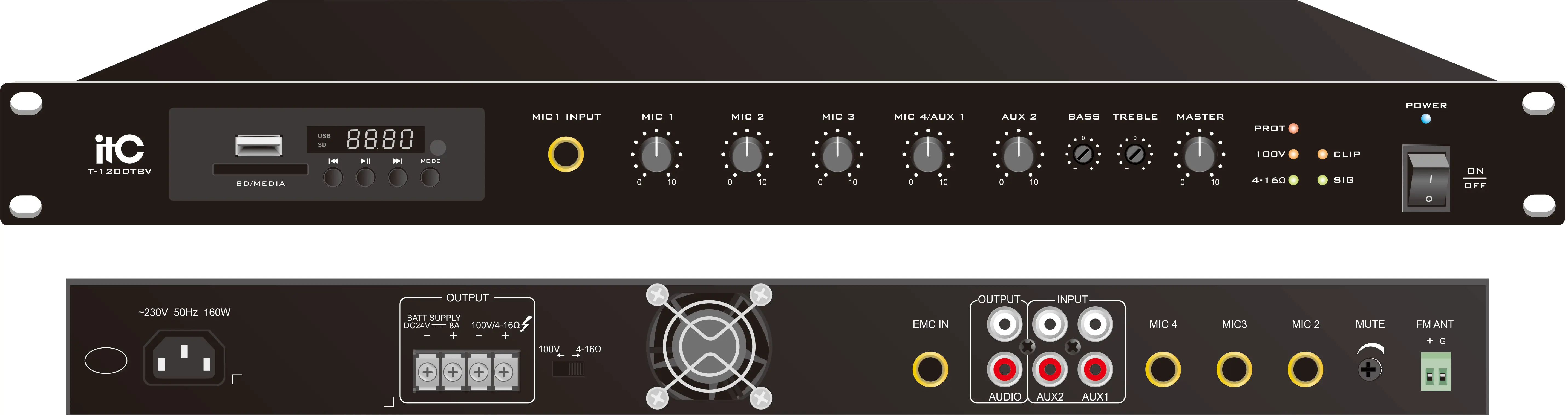

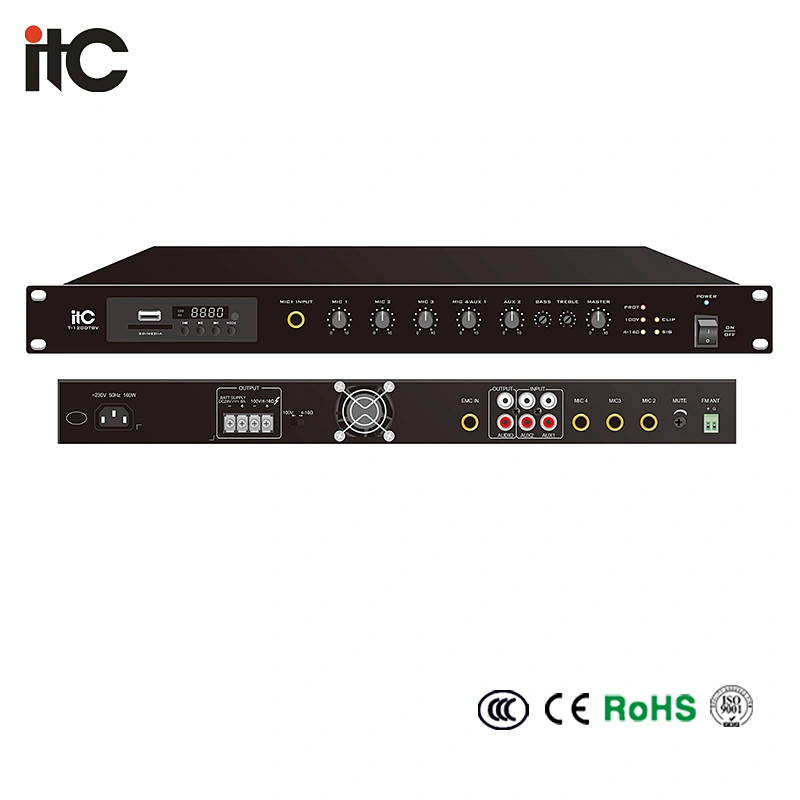

Professional Digital Mixer Power amplifier with MP3/Tuner/Bluetooth (Phone Jack Mic Input, with 24VDC)
It is the mixer amplifier with mp3/TUNER/Bluetooth for small and medium sized background music occasion such as small supermarkets, shopping malls, and cafes.
Features
* Standard rack mounted design (1U), SMT technology.
* Support mp3/TUNER/Bluetooth remote control function, and the remote control distance is up to 8 m.
* With USB interface and SD card interface, integrated MP3 player module, with automatic priority playing audio function, and digital screen can display the currently playing music of USB
* Integrated Bluetooth module to support to play music via Bluetooth mobile phone.
* Integrated TUNER module, with FM radio antenna port.
* 1 channel EMC input, 2 channels AUX input, 4 channels MIC input.
* Channel priority: EMC >MIC1>MIC2, MIC3, AUX1, AUX2
* Each channel has independent volume control function; master input has volume control and treble/bass control
* The machine is equipped with level indication, overload and protection indicator.
* The device has good self-protection such as short circuit, overload and overheating.
* Two output modes: constant voltage output 100V, 4-16Ω.
* Energy-efficient switching power supply combines with energy-saving and ultra-stable design of Class D amplifiers
* Wide voltage supply: 220V-240V can work normally; Support backup power supply 24V no delay switching.
Specifications
Model | T-120DTBV | T-240DTBV | T-350DTBV | T-500DTBV | |||||
Output | 4-16Ω, 100V | ||||||||
RMS Power | 120W | 240W | 350W | 500W | |||||
Input Sensitivity & Impedance | MIC1, 2, 3, 4 input:5mV/600Ω, unbalanced 6.3 connector; | ||||||||
AUX1,2 input:350mV/10KΩ, Unbalanced RCA connector; | |||||||||
EMC input:775mV/10KΩ, unbalanced 6.3 connector | |||||||||
Output Sensitivity & Source Impedance | MIX OUT:1000mV/470Ω, unbalanced RCA connector | ||||||||
Tone | Bass: ±10dB at 100Hz; | ||||||||
Treble: ±10dB at 10KHz | |||||||||
Frequency Response | 50Hz~16KHz(+1dB,-3dB) | ||||||||
MIC1, 2, 3:66dB;AUX1, 2:80dB | |||||||||
Less than 0.5%( at 1KHz, 1/3 rated power) | |||||||||
Mute Control | MIC 1 priority over MIC2-4, AUX1-2 audio input; | ||||||||
EMC has highest priority | |||||||||
Channel Crosstalk Attenuation | ≥50dB | ||||||||
Heat Dissipation | Flank in and rear panel out to force fan cooling, fan starts | ||||||||
when amplifier turned on, infinitely variable speed | |||||||||
Protection | Over-heat, overload, short circuit | ||||||||
Power consumption | 160W | 300W | 450W | 650W | |||||
Dimension | 484×260×44mm | ||||||||
Weight | 3.7Kg | 3.8Kg | 4.0Kg | 4.1Kg | |||||

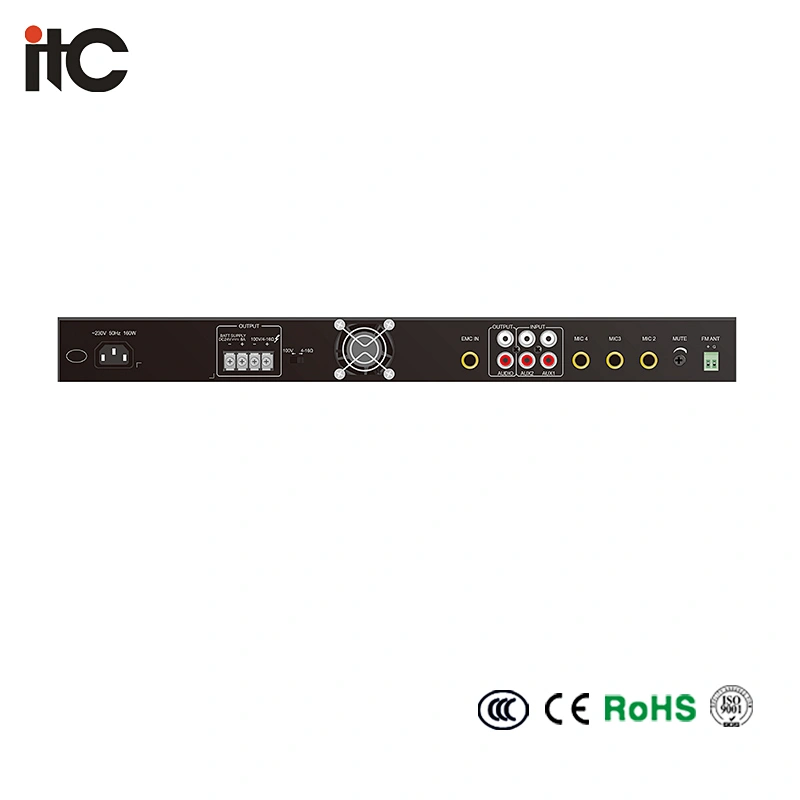

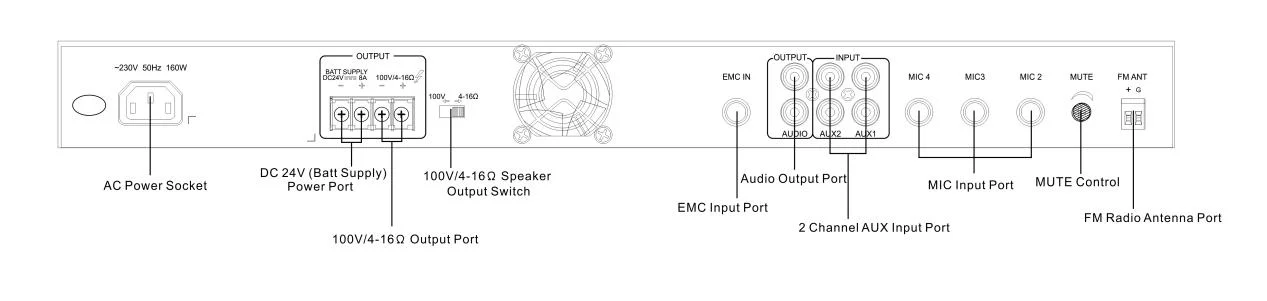

Rear Panel
Pre-sale Service
* High Quality + Factory Price + Quick Response + Reliable Service, is our working faith.
* Professional foreign trade team, Reply your Alibaba enquiry and trade messager in 24 working hours.
* 30 system consultants and 10 designers to make drawing and BOQ for each tender.
* Design and BOQ response to customer within 48 hours.
Middle-sale Service
* Testing quality again before sending goods.
* Well-trained sales team for sales and basic technical service.
* Online system software demo and configuration is available.
* PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
* Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goods.
After-sale service
* ITC guarantee all electronics of 3 years quality warranty.
* ITC could supply 1% wearing spare parts free of charge.
* Two English spoken technician provide online after sales service.
* Technical documents could be downloaded from website www.itc-pa.com.cn.
* All of the quality compliant shall be feedback with a solution within 48 hours.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
