ITC T-218(A) 10 Zone Desktop Paging Microphone PA

Quantity:

ITC T-218(A) 10 Zone Desktop Paging Microphone PA

Recommend

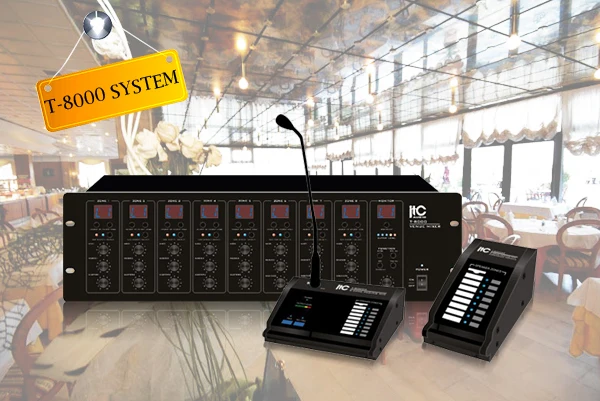

ITC T-8000 8*8 Audio Matrix PA System Public Address System

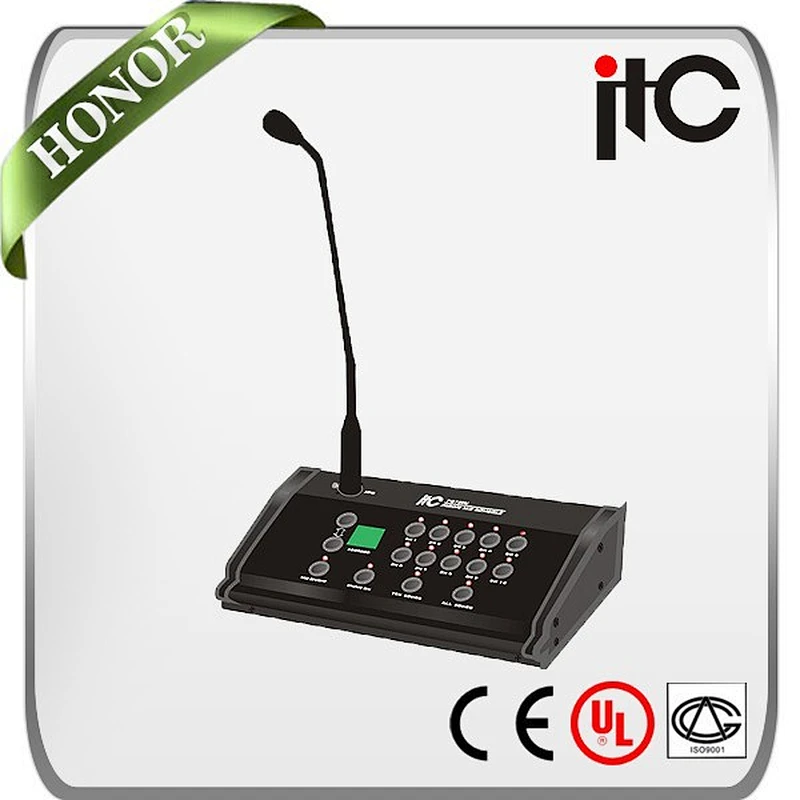

Appearance

ITC T-218(A) 10 Zone Desktop Paging Microphone PA

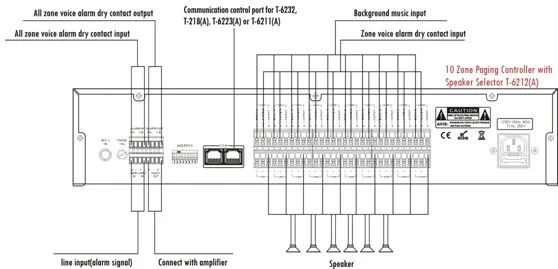

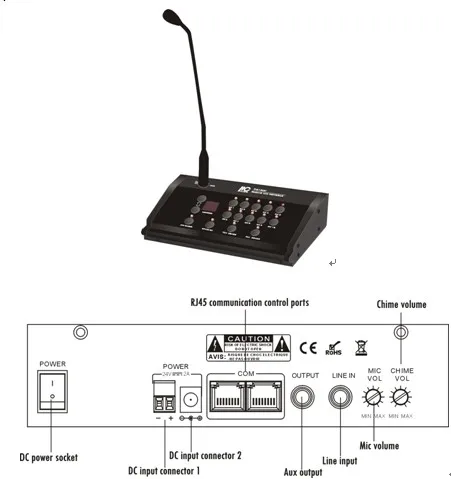

Connection

ITC T-218(A) 10 Zone Desktop Paging Microphone PA

Application

ITC T-218(A) 10 Zone Desktop Paging Microphone PA

Professional remote paging microphone, that could do zoning paging and whole area paging.
It’s mainly installed in master control room, duty room and leader office, and it should work with its host T-6212(A).

Feature

ITC T-218(A) 10 Zone Desktop Paging Microphone PA

Desktop design; Brushed aluminum panel; modern stylish design.
With LCD screen and indicators to show operation status of each zone; 16 numerical and functional keys; User-friendly operation.
With chime and volume control.
Users could do paging to 30 zone by T-218(A). What’s more, with expansion function, the num of zone is up to 300.
1 Mic input with individual volume control; 1 AUX input; 1 Line output to connect external speaker.
With function of expansion, 16 T-218(A) could work together. And the connection distance is up to 1Km.

Specification

ITC T-218(A) 10 Zone Desktop Paging Microphone PA

Model	T-218(A)
Input	MIC:600Ω, 10mV, unbalanced Line:10KΩ, 775mV, unbalanced
Output	Balanced
Frequency Response	MIC: 100Hz~15KHz; Line: 30Hz~18KHz
S/N Ratio	MIC input: 60dB Line input: 80dB
Controls	Chime MIC VOL controls, 300 channel selectors, chime button, power switch
Indicators	Powter LED, 10 paging channel LEDs
Power Supply	DC 24V
Power Consumption	10W
Weight	1.25Kg
Dimension	220x142.7x51.5mm
Communication Protocol	RS422
Communication Input	RJ45
Communication Speed	4800bps
Finish	Panel: steel plate, black Case: steel plate, black Side board: plastic, black
