- Place of Origin:CN;GUA
- Model Number:T-6212(A)
- Brand Name:ITC
- Output:80dB
- Frequency Response:MIC:100Hz~15KHz; Line: 30Hz~18KHz
- S/N Ratio:MIC input: 60dB Line input: 80dB
- Indicators:Power LED, 10 paging channel LED
- Power Supply:~110V/60Hz or~230V/50Hz or DC 24V
- Power Consumption:40W
- Weight:4.6Kg
- Dimension:484*303*88mm
- Communication Protocol:RS422
- Communication Input:RJ45

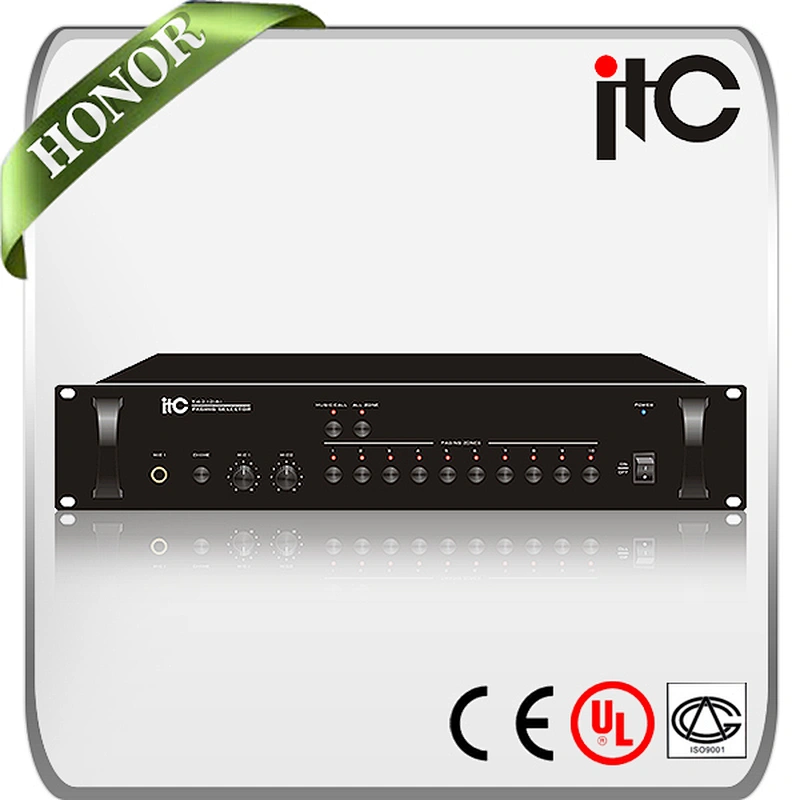

ITC T-6212(A) 10 Zone PA System Paging Controller With Speaker Selector
Suitable for small-scale public address system to do zoning paging, zoning BGM, zoning voice alarm.
- Standard chassis in 2U; Panel adopts brushed aluminum in black.
- It supports 10 zones that could be expandable to 300 zones; Controlled power of each output is up to 500W and the master power is 5000W.
- With function of off-line memory.
- With available input for 10 groups of BGM amplifier and 10 groups of voice alarm amplifier.
- With indicator so show status of music, paging and alarm.
- Complete controlling function for each zone, such as, bass/treble control, volume control, etc.
- With zoning paging function for local or super remote(1Km).
- Built in preamplifier with 2 level of priority and it is equipped with 2 Mic input and 2 Line input.
- Built in chime with 4 music scale.
Model | T-6212(A) |
Input | MIC1,2:600Ω ,5mV, unbalanced Line1,2:10KΩ ,775mV, unbalanced |
Output | 80dB |
Frequency Response | MIC:100Hz~15KHz; Line: 30Hz~18KHz |
S/N Ratio | MIC input: 60dB Line input: 80dB |
Controls | MIC1, 2 VOL controls, 10 channel selectors, chime button, power switch |
Indicators | Power LED, 10 paging channel LED |
Power Supply | ~110V/60Hz or~230V/50Hz or DC 24V |
Power Consumption | 40W |
Weight | 4.6Kg |
Dimension | 484x303x88mm |
Communication Protocol | RS422 |
Communication Input | RJ45 |
Communication Speed | 4800bps |
Finish | Panel: aluminum plate, black or golden (optional) Case: steel plate, black |
