- Place of Origin:CN;GUA
- Model Number:T-521UE
- Brand Name:ITC
- Communication:Wireless
- Use:Conference Megaphone
- Style:Headset Megaphone
- Frequency Range:640-857MHz Total 3 Band
- Oscillation:PLL
- Quantity of Channels:600 CH
- Frequency Response:50Hz--18KHz (±2dB)
- Working Distance:50m (Openness)
- Channel Separation:50MHz
- Carrier Wave Stability:±5PPm≤10KHz
- Image Interference Ratio:>80dB
- S/N Ratio:>105dB(1KHz-A)
- Sensitivity:-105dBm(12dB S/N AD)

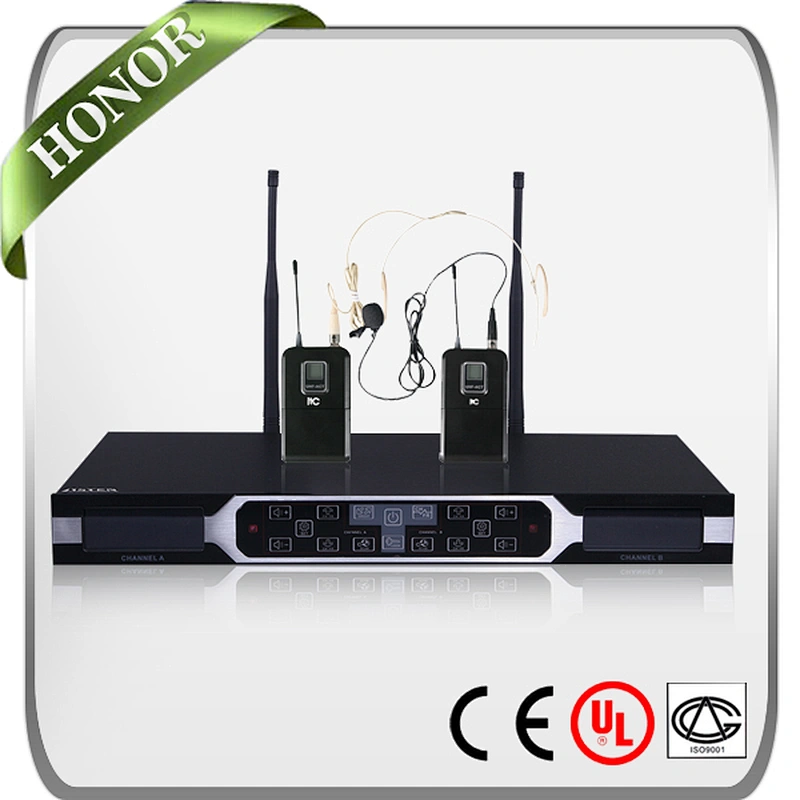

ITC T-521UE Outstanding Human Voice FM PLL Wireless Microphone for Teachers
ITC T-521UE Outstanding Human Voice FM PLL Wireless Microphone for Teachers
ITC T-521UE Outstanding Human Voice FM PLL Wireless Microphone for Teachers
1. To adopt sensitive touch screen to be user-friendly interface.
2.User could find the most suitable frequency range used by receiver via icon “SCAN” easily.
3.The receiver is to adopt tech. of PLL and MCU make frequency match with microphone conveniently.
4.High performance codec tech. for audio and output of canon and AV-3.0 make sound quality more perfect.
5.Support 16 set of the system to run in 32 bands simultaneously without interference.
6.Suitable for KARAOKE, Bar, Nightclub, classroom, conference room, etc.
ITC T-521UE Outstanding Human Voice FM PLL Wireless Microphone for Teachers
System index | |
Frequency Range | 640-857MHz Total 3 Band |
Oscillation | PLL |
Quantity of Channels | 600 CH |
Frequency Response | 50Hz--18KHz (±2dB) |
Working Distance | 50m (Openness) |
Channel Separation | 50MHz |
Carrier Wave Stability | ±5PPm≤10KHz |
Image Interference Ratio | >80dB |
S/N Ratio | >105dB(1KHz-A) |
Sensitivity | -105dBm(12dB S/N AD) |
THD | 0.5% (ref. ±40 kHz deviation. 1 KHz tone) |
ITC T-521UE Outstanding Human Voice FM PLL Wireless Microphone for Teachers
Receiver index | |
Display for Function | LCD |
Working Temperature | -10℃ to + 60℃ |
Case Material | Cold-rolled Galvanized Sheet |
Audio Output Level | ±40 kHz |
Output Impedance | 2 Channel Balanced: 200 ohm; In Parallel Unbalanced: 600 ohm |
Balanced Output | Pin 1: Ground; Pin 2: Audio; Pin 3: None |
Balanced Output Type | XLR |
Unbalanced Output Type | TRS 6.3mm |
Power Supply | DC 12V/1A |
Dimension | 41mm x 420mm x 180mm |
Weight | 3 Kg |
ITC T-521UE Outstanding Human Voice FM PLL Wireless Microphone for Teachers
Mic index | |
Frequency Range | 640-857MHz Total 3 Band |
Output Power | Max.: 30mW, Min.: 3mW |
Harmonic Radiation | <-55dBc |
Max. Offset | ±70KHz |
Max. Input Sound Pressure | 140dB SPL |
Oscillation | PLL |
Frequency Adjustment | To Lock Receiver’s Working Channel Automatically |
Battery | 2-segment AA Batteries |
