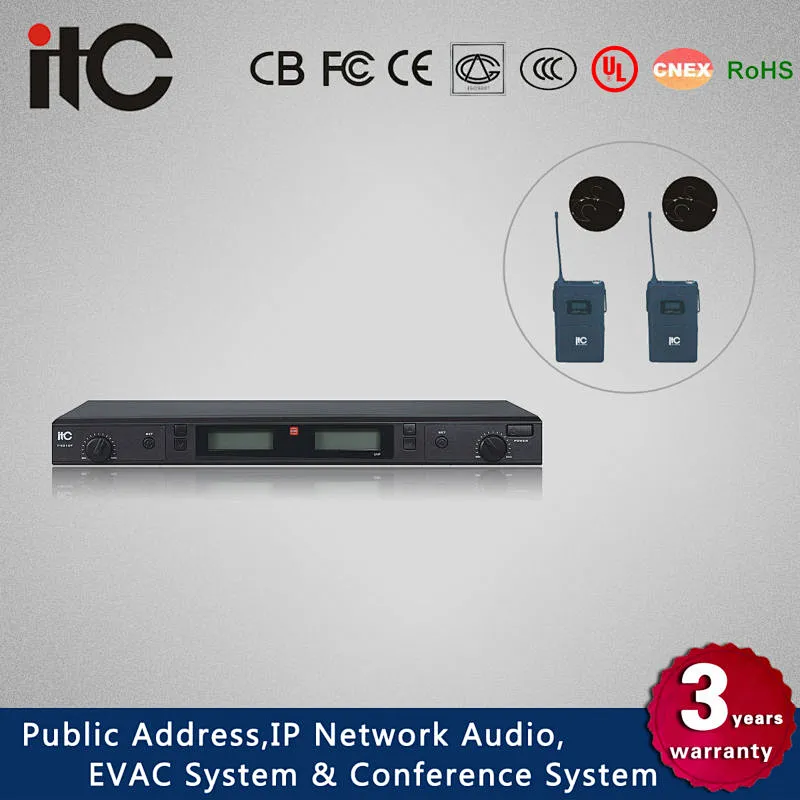

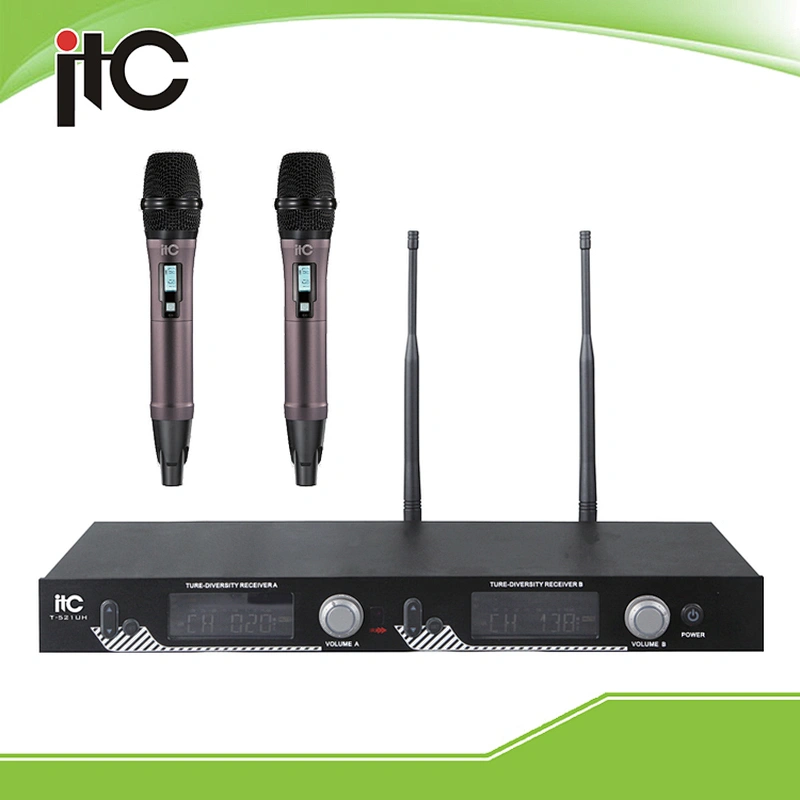

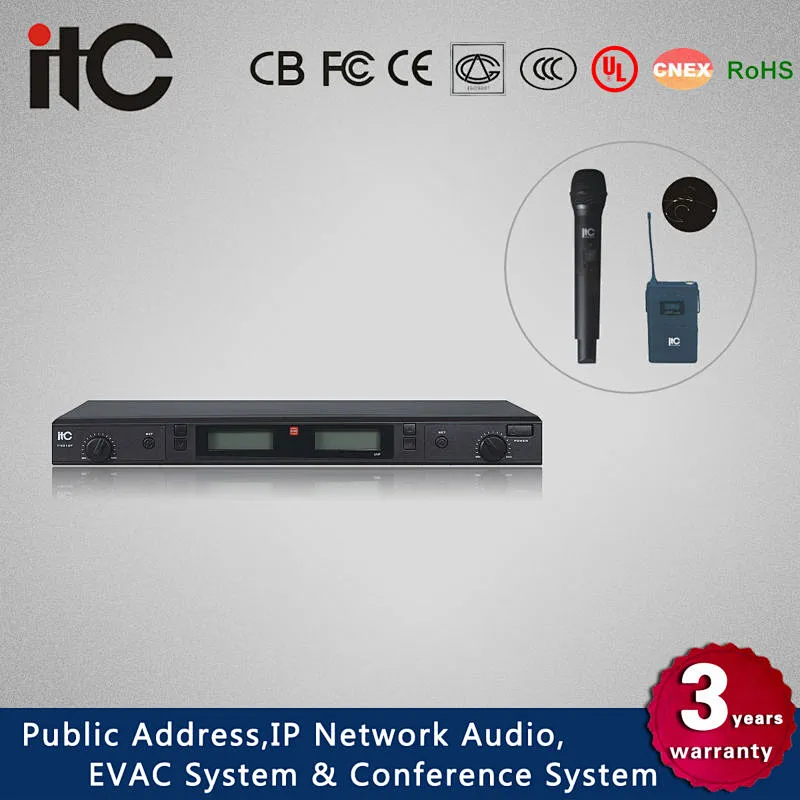

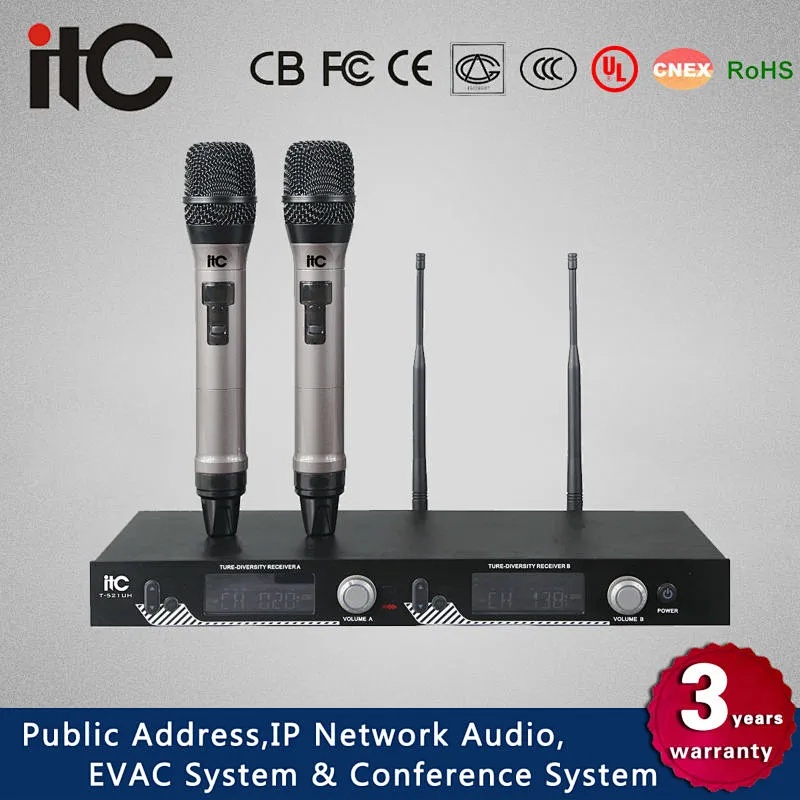

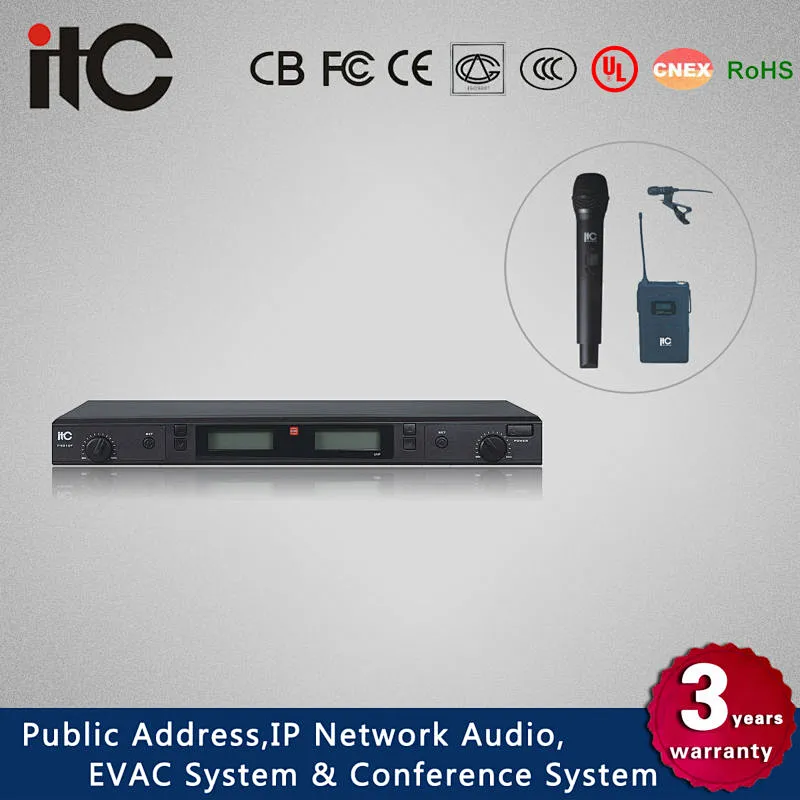

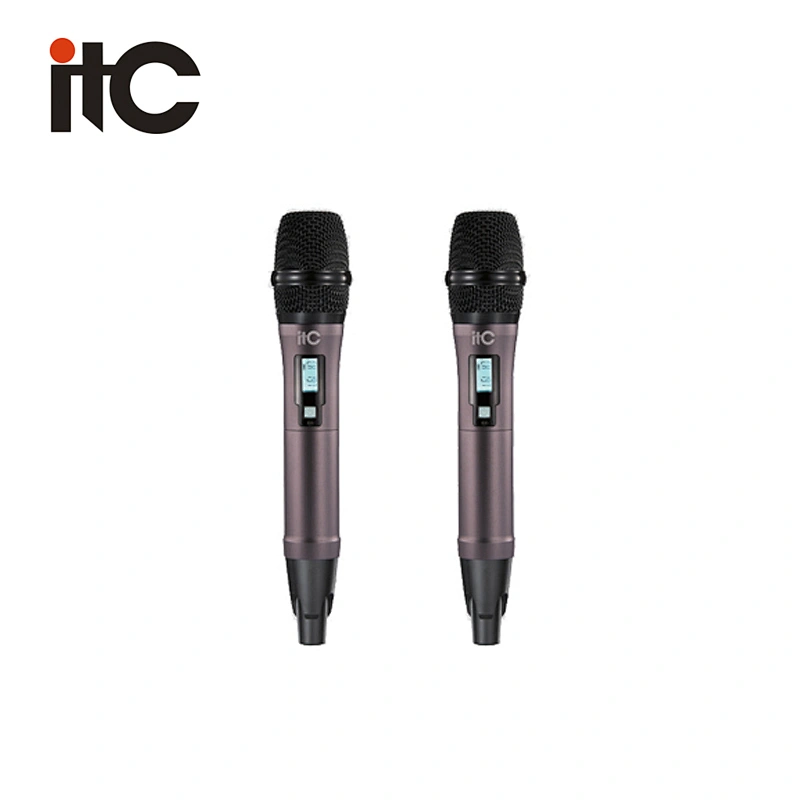

ITC UHF Double True Diversity Reception Classroom Sound System Handheld Microphone

ITC UHF Double True Diversity Reception Classroom Sound System Handheld Microphone

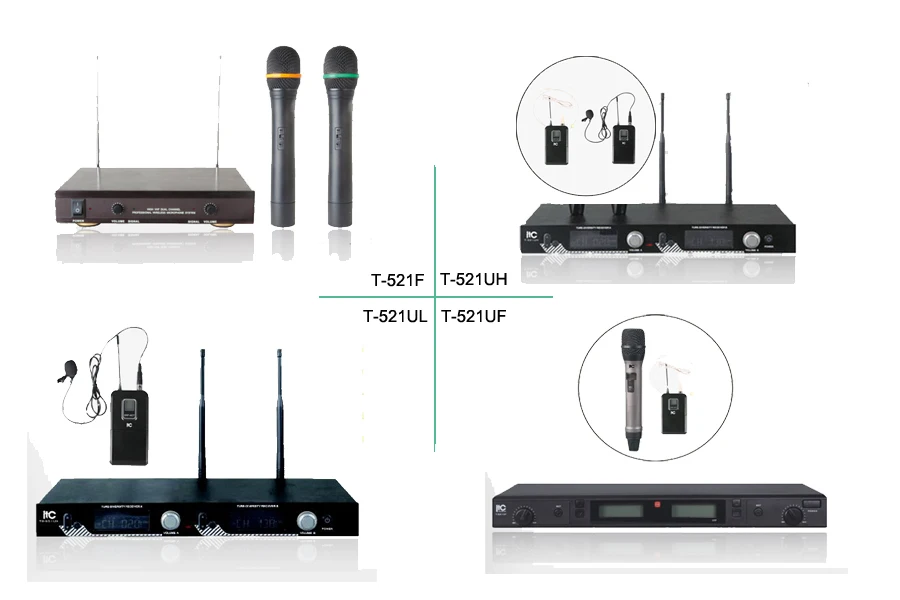

Model NO.: T-521UH/T-521UT/T-521UL/T-521UV/T-521US/T-521UW
Delivery: FOB
Minimum order quantity: 10 units
Supply Ability: 1000 units / Week
Country of Origin: Guangzhou, Shenzhen and HK

Quantity:

Product Description

Receiver mode:Double super heterodyne
Intermediate frequency:110MHz, 10.7MHz
Antenna access:BNC/50Ω
Sensitivity:12dBμV (80dBS/N)
Adjustable range of Sensitivity:12-32dBμV
Spurious suppression:≥75dB
Max output level:+10dBV
Power supply mode:DC 12~18V 500mA input
Attack:Moving Coil Condenser microphone
Antenna:Internal helical antenna of handheld microphone
Certification:CE
Style:Handheld Microphone
Communication:Wireless
Use:Karaoke Microphone
Use:Stage Performance
Use:Speech
Use:singing
Use:Classroom Sound System
Material:Metal
Function:Condenser Microphone
Polar Pattern:Omni-directional
Place of Origin:CN;GUA
Brand Name:ITC
Model Number:T-521UH/T-521UT/T-521UL/T-521UV/T-521US/T-521UW

ITC UHF Double True Diversity Reception Classroom Sound System Microphone

Feature

* Using UHF ultra-high frequency double true diversity reception, and USES the DPLL

multichannel digital phase-locked loop frequency synthesis technology.

* Provides each of 200 a total of 600 channels to choose, true diversity receiving, effectively avoiding the phenomenon of fault frequency and to extend the receiving distance.

* With a magnitude 8, according to 8 audio level display, according to the audio level,

according to the channel menu mute.

* Balanced and unbalanced output port, two choices to meet the needs of different device to connect.

* LCD liquid crystal display can also showed channel number and working frequency.

Light touch button control is simple, which let users to use it more conveniently.

* Strong anti-interference ability, can effectively restrain noise caused by th external

interference and same frequency interference.

* Infrared frequency function, can be convenient, shortcut of the transmitter and receiver synchronization.

* Enough intermediate frequency, Relaxed singing, sounds with magnetic and mixed thick feeling, the essence of the vocal microphone sound.

Parameters

Receiver Indication
Receiver mode	Double super heterodyne
Intermediate frequency	110MHz, 10.7MHz
Antenna access	BNC/50Ω
Sensitivity	12dBμV (80dBS/N)
Adjustable range of Sensitivity	12-32dBμV
Spurious suppression	≥75dB
Max output level	+10dBV
Power supply mode	DC 12~18V 500mA input

Frequency indication
Word frequency	640-857MHz(the applicable frequency depends on the local regulation) Broadband FM
Number of channel	200
Channel spacing	250KHz
Frequency stability	Within ±0.005%
Dynamic range	100dB
Maximum deviation	±45KHz
Audio frequency response	80-18KHz (±3DB) (frequency response of the whole system depends on the microphone unit)
Comprehensive signal to noise ratio	105dB
Comprehensive distortion	≤0.5%
Working distance	About 100m (working distance depends on many variation which includes absorbing, reflection and interference of Rf signal) 640-857MHz (the applicable frequency depends on the

Transmitter parameters
Attack	Moving Coil Condenser microphone (Collar microphone, Headset microphone)
Antenna	Internal helical antenna of handheld microphone,the hanging transmitter adopts1/4 wave-length whip antenna
Output power	Max power 30Mw;Min Power 3Mw
Spurious suppression	-60dB
Power supply	2 section 5,#1.5V alkaline battery
Battery service life	About 10 hours under 30mW, about 15 hours under 3mW
Function features	Adopting true diversity reception mode, effectively avoiding frequency phenomenon and the extension of the receiving distance
Quality characteristics	Enough intermediate frequency, Relaxed singin, sounds with magnetic and mixed thick feeling, the essence of the vocal microphone sound
