- Place of Origin:CN;GUA
- Use:Conference Microphone
- Model Number:T-521UR
- Brand Name:ITC
- Communication:Wireless
- Style:tie clip microphone
- Display for Function:LCD
- Working Temperature:-10℃ to + 60℃
- Case Material:Cold-rolled Galvanized Sheet
- Audio Output Level:±40 kHz
- Output Impedance:2 Channel Balanced: 200 ohm; In Parallel Unbalanced: 600 ohm
- Balanced Output:Pin 1: Ground; Pin 2: Audio; Pin 3: None
- Balanced Output Type:XLR
- Unbalanced Output Type:TRS 6.3mm
- Power Supply:DC 12V/1A
- Dimension:41mm x 420mm x 180mm

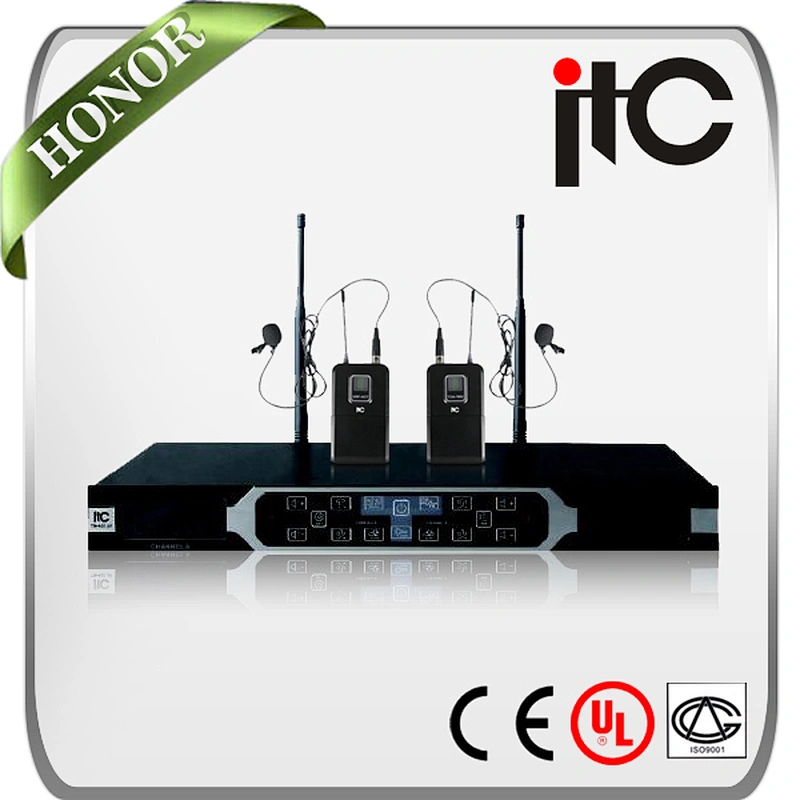

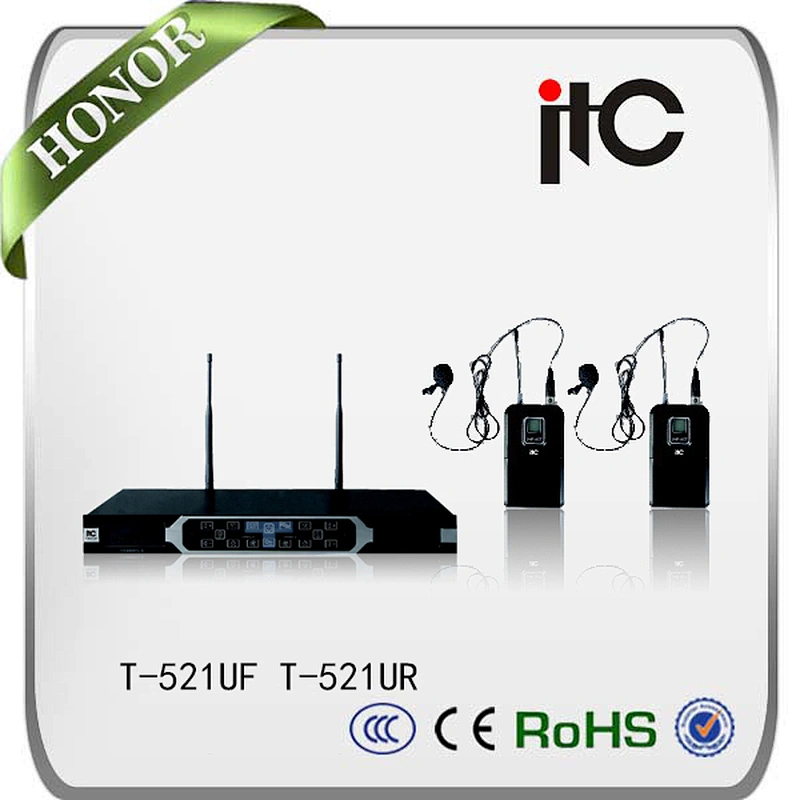

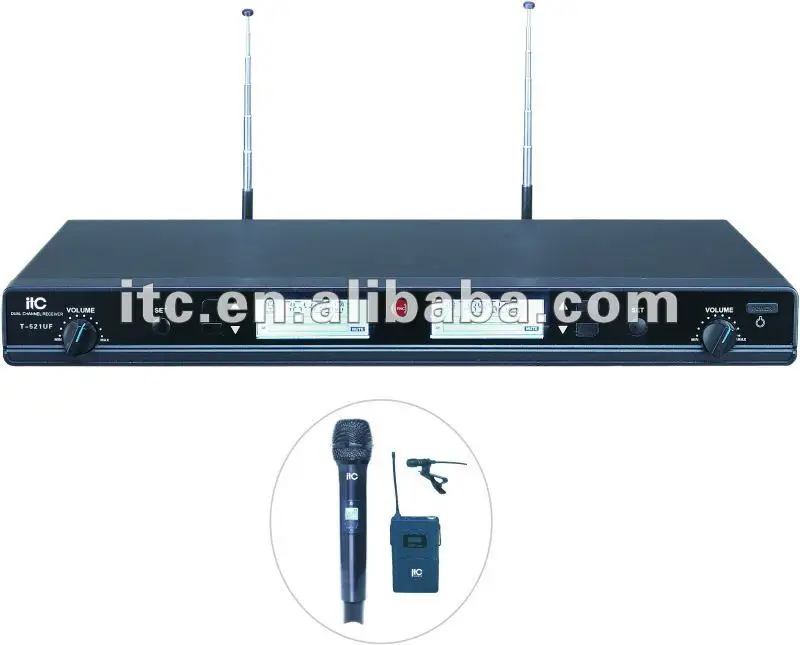

ITC T-521UR Generally Using Mini Wireless Tie Clip Microphone
ITC T-521UR Generally Using Mini Wireless Tie Clip Microphone Features:
*To adopt sensitive touch screen to be user-friendly interface.
*User could find the most suitable frequency range used by receiver via icon “SCAN” easily.
*The receiver is to adopt tech. of PLL and MCU make frequency match with microphone conveniently.
*High performance codec tech. for audio and output of canon and AV-3.0 make sound quality more perfect.
*Support 16 set of the system to run in 32 bands simultaneously without interference.
*Suitable for KARAOKE, Bar, Nightclub, classroom, conference room, etc.
System Index:
System index | |
Frequency Range | 640-857MHz Total 3 Band |
Oscillation | PLL |
Quantity of Channels | 600 CH |
Frequency Response | 50Hz--18KHz (±2dB) |
Working Distance | 50m (Openness) |
Channel Separation | 50MHz |
Carrier Wave Stability | ±5PPm≤10KHz |
Image Interference Ratio | >80dB |
S/N Ratio | >105dB(1KHz-A) |
Sensitivity | -105dBm(12dB S/N AD) |
THD | 0.5% (ref. ±40 kHz deviation. 1 KHz tone) |
Receiver Index:
Receiver index | |
Display for Function | LCD |
Working Temperature | -10℃ to + 60℃ |
Case Material | Cold-rolled Galvanized Sheet |
Audio Output Level | ±40 kHz |
Output Impedance | 2 Channel Balanced: 200 ohm; In Parallel Unbalanced: 600 ohm |
Balanced Output | Pin 1: Ground; Pin 2: Audio; Pin 3: None |
Balanced Output Type | XLR |
Unbalanced Output Type | TRS 6.3mm |
Power Supply | DC 12V/1A |
Dimension | 41mm x 420mm x 180mm |
Weight | 3 Kg |
Mic Index:
Mic index | |
Frequency Range | 640-857MHz Total 3 Band |
Output Power | Max.: 30mW, Min.: 3mW |
Harmonic Radiation | <-55dBc |
Max. Offset | ±70KHz |
Max. Input Sound Pressure | 140dB SPL |
Oscillation | PLL |
Frequency Adjustment | To Lock Receiver’s Working Channel Automatically |
Battery | 2-segment AA Batteries |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
