- Place of Origin:CN;GUA
- Model Number:T-531C
- Brand Name:ITC
- Style:Headset Microphone
- Communication:Wireless
- Ondo:Dynamic microphone
- Condenser:Lavalier microphone, headset microphone
- Antenna:built-in helical antenna handheld microphone, transmitter
- Output power:High power 30mW; low power 3mW
- Discrete suppression:-60dB
- Power supply:2 AA 5th batteries
- Time:More than 10 hours at 30mW, more than 15 hours at 3mW

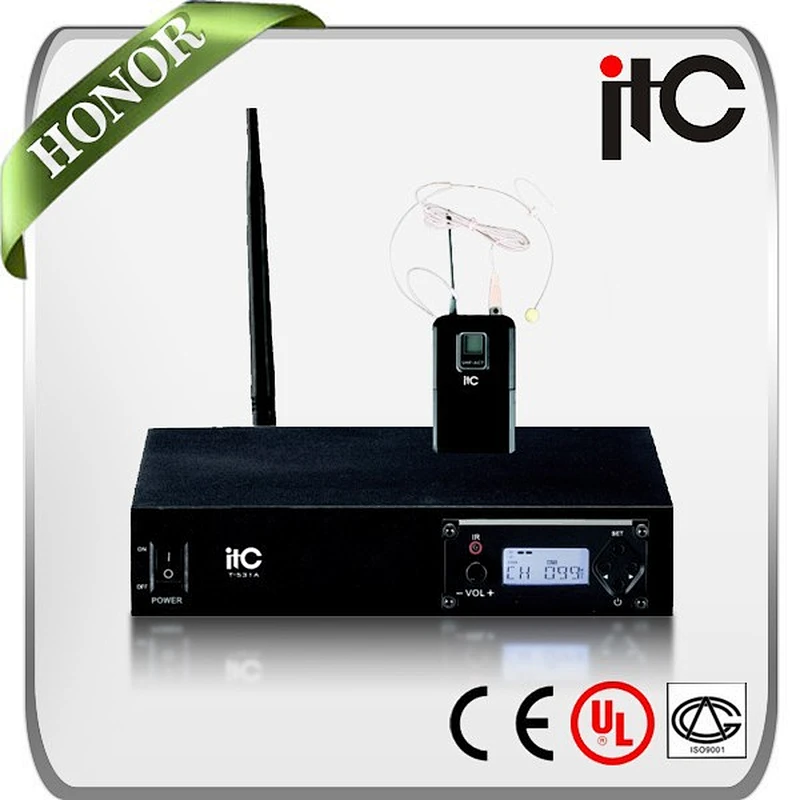

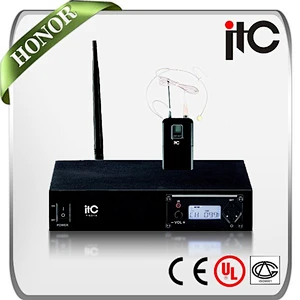

ITC T-531C 1 Channel UHF Digital Smallest Wireless Microphone
ITC T-531C 1 Channel UHF Digital Smallest Wireless Microphone
ITC T-531C 1 Channel UHF Digital Smallest Wireless Microphone
*Adopt international standard EIA 1/2 width 1U high metal chassis, which can be mounted directly to the rack.
* Provide 640-857MHZ six frequency bands 100 each, and the use of advanced phase- locked loop PLL frequency synthesizer technology, adjustable frequency, adjustable transmit power to avoid interference frequency.
* Super anti-jamming capability, can effectively suppress the noise caused by external interference and co-channel interference.
* LCD display window, displaying the channel / frequency, RF signal strength, AF audio output intensity.
* With infrared frequency transmitter frequency locked automatically synchronize ACT function.
* Rear receiving antenna separation design, single-antenna diversity receiver and the sound code, noise lock dual mute circuit, receiver distance, easily dropped.
* Internal SQ can increase receiver sensitivity adjustment to increase or decrease the sensitivity of the receiving distance in order to avoid noise interference.
ITC T-531C 1 Channel UHF Digital Smallest Wireless Microphone
Receiver Specifications | |
Receiver mode | Bouble-conversion superheterodyne |
IF frequency | 110MHz, 10.7MHz |
Wireless Interface | BNC / 50 ohms |
Sensitivity | 12 dBμV (80dBS / N) |
Sensitivity adjustment range | 12-32 dBμV |
Spurious suppression | ≥75dB |
Output socket type | Balanced and unbalanced |
Maximum output level | +10 dBV |
Power supply | DC 12 ~ 18V 500mA |
Working temperature | -40 ℃ ~ - + 80 ℃ |
Dimensions | (W x H x D) 210 mm x 44 mm x 147 mm |
ITC T-531C 1 Channel UHF Digital Smallest Wireless Microphone
System Specifications | |
Frequency Range | UHF 640-857MHz total of six segments |
Modulation | Wideband FM |
Adjustable range | 25MHz |
The number of channels | 600 |
Channel spacing | 250KHZ |
Frequency stability | ± 0.005% or less |
Dynamic range | 100dB |
The maximum deviation | ± 45KHZ |
Audio response | 60HZ-18KHZ (± 3dB) |
Integrated SNR | >115dB |
Comprehensive distortion | ≤0.5% |
Working distance | 50 meters |
ITC T-531C 1 Channel UHF Digital Smallest Wireless Microphone
Microphone Specifications | |
Ondo | Dynamic microphone |
Condenser | Lavalier microphone, headset microphone |
Antenna | built-in helical antenna handheld microphone, transmitter |
Peigua 1/4 wave whip-like antennas. | |
Output power | High power 30mW; low power 3mW |
Discrete suppression | -60dB |
Power supply | 2 AA 5th batteries |
Time | More than 10 hours at 30mW, more than 15 hours at 3mW |
Quality?
Our products're applied to important event like Olympic Game Peking 2008, Asian Game Guangzhou 2010, etc.
Trustworthy?
We're not only popular supplier in China but has good reputation in the world.
In time?
We have the ability and we'll try our best to fulfill your demand.
Factory?
Welcome to NO.1 Building B Block Zhongcun Street Panyu Guangzhou China.
