- Place of Origin:CN;GUA
- Simultaneous Interpretation:No
- Model Number:TS-358H
- Brand Name:ITC
- Type:Network Conference System
- Function:Other
- Frequency Range:640-690MHz/740-790MHz/ 807-857MHz
- Quantity of Channels:600
- Channel Separation:50MHz
- Carrier Stability:Within ± 0.005%
- Dynamic Range:100dB
- Max. Frequency Drift:± 45KHz
- Frequency Response:80Hz-18KHz (± 2dB)
- S/N Ratio:>105dB
- Sensitivity:-105 dB for 12 dB SINAD, typical
- Total harmonic distortion:≤0.5%

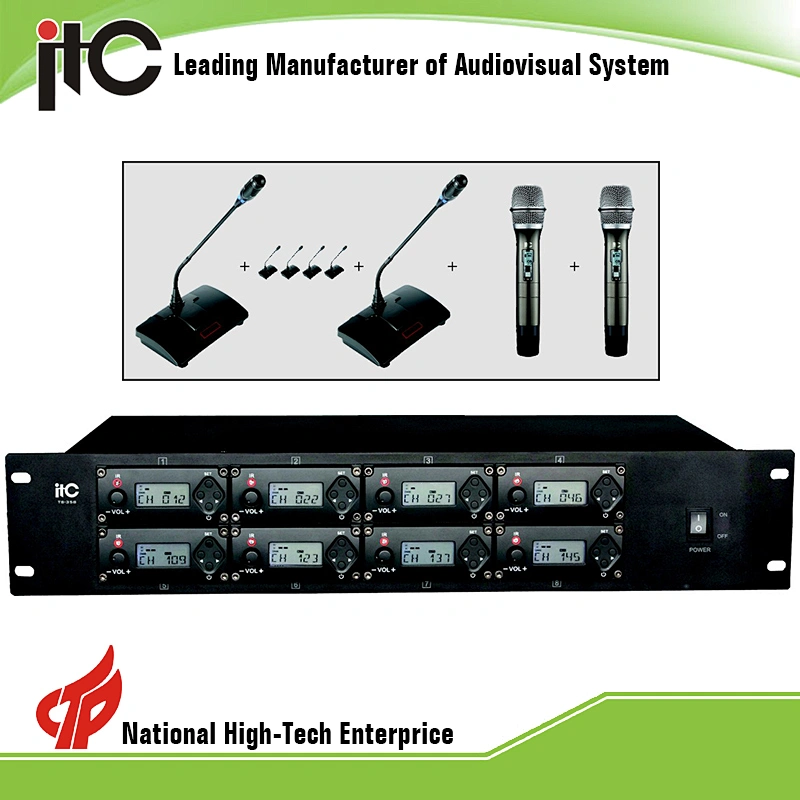

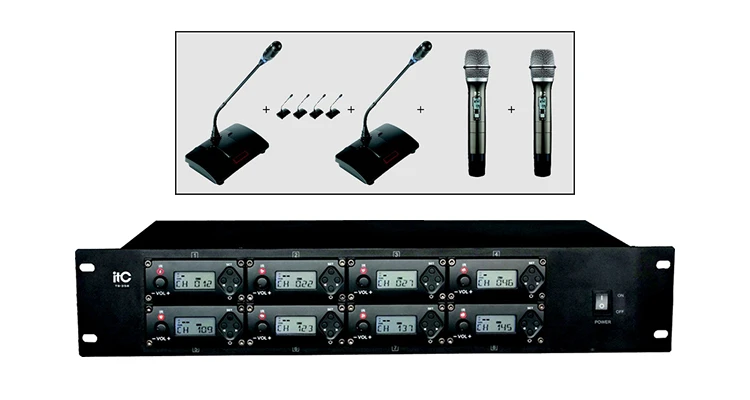

TS-358H PLL FM Wireless Microphone for Conference System
1.To adopt tech. of phase-locked loop (PLL) and CPU bus control management system.
2.Support to select frequency both manually and automatically to confirm channel; To control squelch by noise lock and tone code lock; Through these method to achieve stable signal.
3.With function of latest filter and anti-interference tech. to diaphragming external bad signal and mobile phone signal.
4.Operating frequency is from 640Hz to 857MHz; Each receiver has 200 adjustable frequency band; Support 4 receivers to work simultaneously without interference.
5. Users operate the machine via fluent buttons, which is power saving and cost-effective; It’s built in high performance codec tech. for audio; To adopt output in type of canon and AV-3.0; Through these method to achieve higher sound quality.
6.It’s suitable for conference room, classroom, banquet room, etc.
SystemIndex | ||
FrequencyRange | 640-690MHz/740-790MHz/807-857MHz | |
Quantity of Channels | 600 | |
ChannelSeparation | 50MHz | |
CarrierStability | Within ± 0.005% | |
DynamicRange | 100dB | |
Max.Frequency Drift | ±45KHz | |
Frequency Response | 80Hz-18KHz (± 2dB) | |
S/N Ratio | >105dB | |
Sensitivity | -105 dB for 12 dB SINAD, typical | |
Total harmonic distortion | ≤0.5% | |
Max.Output intensity | +10 dBV | |
EffectiveUseDistance | 50m (Openness) | |
ReceiverIndex | |
DisplayMethod | LCD |
AntennaInterface | BNC/50 ohm |
AudioOutputLevel | 200 ohm (-13dBV), balanced |
600 ohm (-2dBV), unbalanced | |
Audio Output Impedance | 200 ohm, balanced; 600 ohm, 2 channel merge, unbalanced |
Balanced Output | 1-Ground, 2-Audio, 3-Audio |
Power | DC12V --- 3A |
Working temperature | -10 ℃ ~ + 40 ℃ |
Dimension | 41 x 420 x 180mm |
Weight | 3Kg |
MicrophoneIndex | |
Antenna | InternalHelicalAntenna |
OutputPower | High:30mW;Low:3mW |
Discretesuppression | -60dB |
Powersupply | 3 AA Battery or 3 ni-mh Rechargeable Battery |
Using Time | >10 hours, when 30mw |
